Planetary gearboxes are essential components in modern machinery, offering high torque density, compact design, and exceptional efficiency. They are widely used in applications ranging from robotics and automotive systems to industrial machinery and renewable energy. However, the question remains: Are cheap planetary gearboxes reliable? While their lower price point makes them attractive, understanding their limitations and potential drawbacks is crucial for making informed purchasing decisions. This article explores the mechanics of planetary gearboxes, their advantages and disadvantages, and whether inexpensive models can meet the demands of various applications.

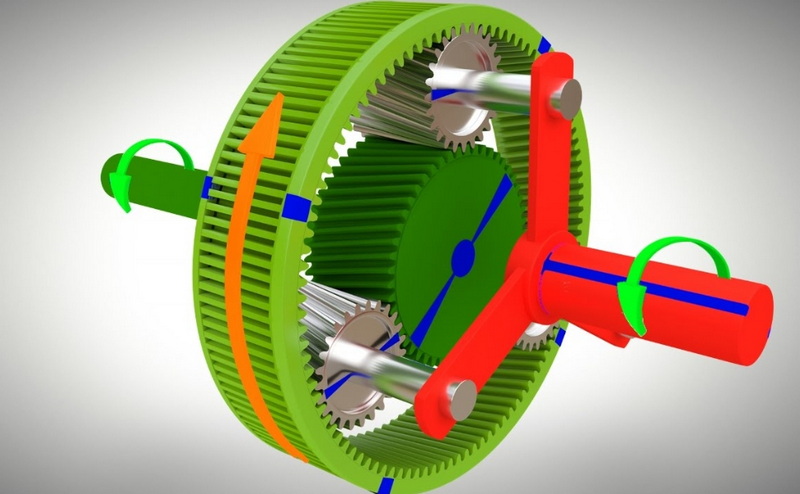

A planetary gearbox is a type of gear system designed to maximize torque transmission while maintaining a compact size. It consists of three main components:
1. Sun Gear: The central gear that drives the system.
2. Planet Gears: Multiple gears that orbit the sun gear and are mounted on a carrier.
3. Ring Gear: The outer gear that encases the planet gears and provides stability.
This unique configuration allows planetary gearboxes to transmit torque efficiently across multiple gears, making them highly durable and effective in demanding applications.
The sun gear rotates, driving the planet gears that revolve around it. These planet gears interact with the stationary or rotating ring gear. The result is a smooth distribution of torque and power across multiple gears, ensuring high efficiency and durability. Advanced designs may include features like helical teeth for smoother operation or needle roller bearings to reduce friction.
Planetary gearboxes offer several key advantages that make them a preferred choice across various industries:
The design allows for high torque transmission in a compact housing. For example, a planetary gearbox can handle up to 10 times the torque of a similarly sized spur gearbox, making it ideal for heavy-duty applications.
Due to their radial arrangement of gears, planetary systems are much smaller than other gearbox types with similar performance capabilities. This makes them perfect for applications where space is limited.
Planetary gearboxes often achieve efficiency rates exceeding 95%, minimizing energy loss during operation. This makes them an excellent choice for energy-sensitive applications like electric vehicles or wind turbines.
The load distribution across multiple planet gears reduces stress on individual components, increasing the system's overall lifespan.
Planetary gearboxes can be configured for various speed reduction ratios and torque capacities, making them suitable for diverse applications ranging from medical equipment to heavy-duty industrial machinery.
While inexpensive planetary gearboxes may seem appealing due to their lower upfront cost, they often come with significant disadvantages:
Cheap models frequently use inferior materials such as plastic or poorly hardened steel for gears and housings. These materials wear out quickly under heavy loads or continuous operation, leading to frequent failures.
Backlash refers to the play between meshing gears. Cheap planetary gearboxes often exhibit higher backlash over time, reducing precision in applications requiring accuracy, such as CNC machines or robotics.
Due to weaker materials and less rigorous manufacturing processes, inexpensive planetary gearboxes tend to fail more quickly than their premium counterparts.
While cheap models may save money initially, frequent repairs, replacements, and operational downtime can make them more expensive in the long run.
Budget planetary gearboxes are often mass-produced with limited design flexibility, making them unsuitable for specialized applications requiring custom configurations or unique performance characteristics.
Planetary gearboxes are used in a wide range of industries due to their versatility and efficiency:
- Robotics: Their compact size and precision make them ideal for robotic arms and actuators.
- Automotive Transmissions: Planetary systems are commonly used in automatic transmissions due to their ability to handle high torque.
- Industrial Machinery: From conveyors to packaging machines, planetary gearboxes provide reliable power transmission.
- Aerospace: Lightweight yet powerful planetary systems are used in aircraft controls.
- Renewable Energy: Wind turbines rely on planetary gearboxes for efficient power generation.
- Medical Equipment: Devices like surgical robots and imaging systems benefit from the precision and reliability of planetary designs.
However, choosing between a cheap or premium model depends on specific application requirements such as load capacity, precision needs, and operational lifespan.
The price range for planetary gearboxes varies widely depending on factors like material quality, size, and manufacturing standards:
| Price Range | Material Quality | Applications |
|---|---|---|
| $25-$100 | Plastic or sintered metal | Light-duty tasks like hobby projects |
| $100-$500 | Hardened steel | Industrial machinery with moderate loads |
| $500-$1500 | High-grade steel | Heavy-duty applications like wind turbines |
While cheap planetary gearboxes may suffice for low-stress applications such as hobby projects or prototypes, higher-priced models offer better durability and efficiency for demanding tasks like industrial automation or renewable energy systems.
A team developing low-cost educational robots opted for $50 plastic planetary gearboxes. While adequate during initial testing phases, the gearboxes began failing after 200 hours of operation due to material fatigue. Switching to $200 mid-range models extended operational life by over 1,000 hours with minimal maintenance requirements.
A packaging plant initially installed $100 budget planetary gearboxes on its conveyor belts but faced frequent breakdowns due to overheating and wear under continuous operation. After upgrading to $600 premium units with heat-treated steel gears and sealed bearings, downtime was reduced by 75%, saving the company $10,000 annually in maintenance costs.
A renewable energy company attempted to cut costs by using $150 budget planetary gearboxes in small-scale wind turbines but experienced frequent failures during high wind conditions. Upgrading to $1,200 premium models not only improved reliability but also increased energy efficiency by 15%, recouping the investment within two years.
If you decide to use a budget-friendly gearbox, proper maintenance can help extend its lifespan:
- Use high-quality grease or oil compatible with your gearbox's materials.
- Check lubrication levels every 100 operating hours for cheap models.
- Install sensors to monitor operating temperatures.
- Avoid exceeding 80°C for plastic components or 120°C for steel components.
- Misalignment can cause uneven wear on gears.
- Perform alignment checks every 500 hours of operation.
- Avoid overloading cheap gearboxes beyond their rated capacity.
- Use torque limiters if necessary to prevent sudden spikes in load.
- Inspect gears visually every few months for signs of wear such as pitting or cracking.
- Replace worn-out components promptly to avoid further damage.
- Consider replacing low-quality bearings or seals with higher-grade alternatives if compatible with your gearbox model.
Cheap planetary gearboxes can be reliable for low-stress applications but often fall short in durability and precision when compared to high-quality alternatives. While their lower price might seem attractive initially, hidden costs such as frequent maintenance and replacements can make them more expensive in the long run. For industries requiring consistent performance and reliability—such as automotive manufacturing or renewable energy—investing in premium planetary gearboxes is a smarter choice.
Ultimately, selecting the right gearbox involves balancing cost with performance requirements while considering long-term operational expenses rather than just upfront savings.
A planetary gearbox consists of three key components: the sun gear (central), planet gears (rotating around the sun), and a ring gear (outer casing).
Cheap models may suffice for light-duty tasks but are not recommended for heavy industrial applications due to lower material quality and shorter lifespan.
Higher backlash reduces precision, making cheap planetary gearboxes unsuitable for tasks requiring accuracy like robotics or CNC machines.
Prices depend on material quality (plastic vs steel), size, torque capacity, manufacturing standards, and brand reputation.
Yes, but only for low-stress applications like hobby projects or prototypes. For precision tasks or heavy loads, invest in higher-quality options to ensure reliability.
