Views: 222 Author: Ella Publish Time: 2025-04-15 Origin: Site
Content Menu
● Understanding Vickers Hydraulic Vane Motors
>> Key Features of Vickers Vane Motors
● Are Vickers Hydraulic Vane Motors Easy to Maintain?
>> Modular Design Simplifies Maintenance
>> Routine Maintenance Practices
>> Troubleshooting Common Issues
● Advanced Troubleshooting Techniques for Vickers Hydraulic Vane Motors
● Case Studies of Vickers Hydraulic Vane Motor Applications
>> Case Study 1: Agricultural Equipment
>> Case Study 2: Industrial Conveyor Systems
● Comparative Analysis with Other Hydraulic Motor Types
● Expert Tips for Optimizing Maintenance Schedules
● Common Misconceptions About Vickers Hydraulic Vane Motors
● Hydraulic Motor with Gear Reducer: Enhancing Performance and Maintenance
>> Benefits of Hydraulic Motors with Gear Reducers
>> Maintenance Considerations for Hydraulic Motors with Gear Reducers
● Step-by-Step Maintenance Guide for Vickers Hydraulic Vane Motors
>> 4. Cleaning and Replacement
>> 6. Testing
● Frequently Asked Questions (FAQ)
>> 1. How often should I change the hydraulic fluid in a Vickers vane motor system?
>> 2. Can I replace the vanes and seals myself?
>> 3. What are the signs that a hydraulic motor with gear reducer needs maintenance?
>> 4. How do I maintain the gear reducer attached to a hydraulic motor?
>> 5. Are Vickers hydraulic vane motors suitable for heavy-duty applications?

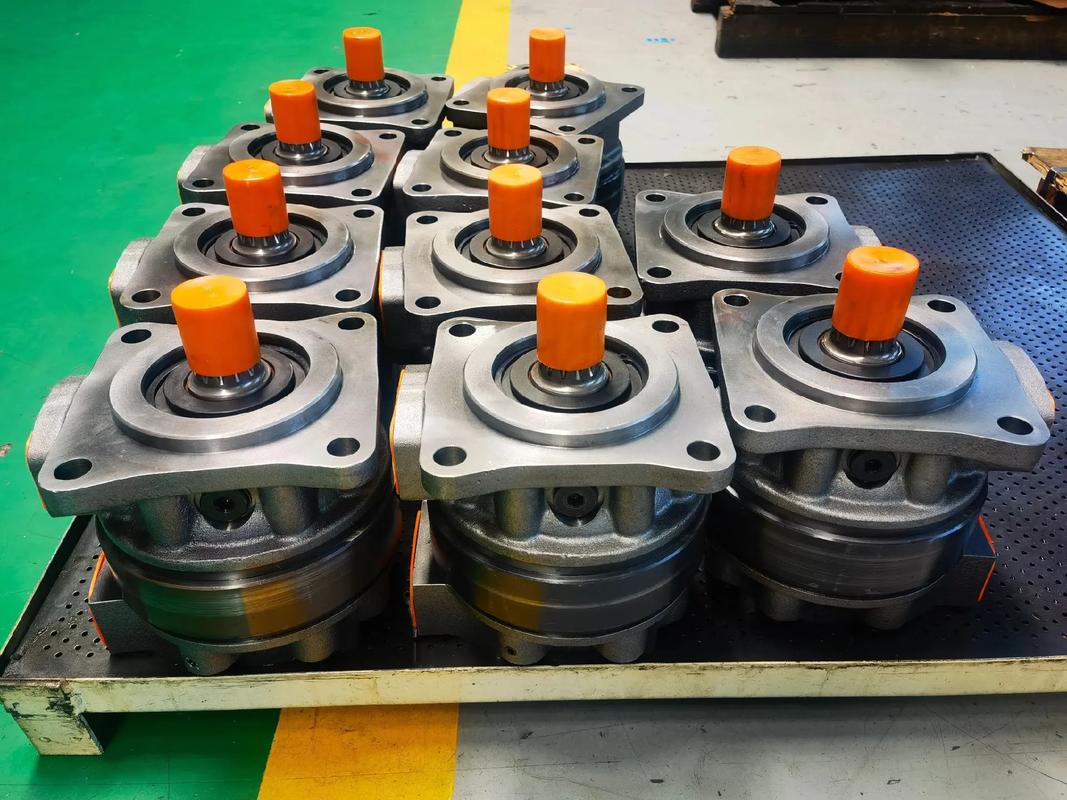

Vickers hydraulic vane motors are widely recognized for their efficiency, reliability, and versatility in various industrial and mobile hydraulic applications. A common question among users and maintenance professionals is whether these motors are easy to maintain, especially when integrated with gear reducers to optimize torque and speed. This comprehensive article explores the maintenance aspects of Vickers hydraulic vane motors, including practical tips, troubleshooting, and the role of hydraulic motors with gear reducers in enhancing system performance.
Vickers vane motors operate by using a rotor with sliding vanes inside a cam ring, converting hydraulic energy into mechanical rotary motion. Their design offers smooth operation, variable speed control, and consistent torque output, making them suitable for applications such as conveyors, plastic injection molding machines, and agricultural equipment.
- Variable displacement and speed control
- Low inertia for smooth operation
- Durable construction with high-quality materials
- Modular design for easy servicing
- Pressure ratings up to 2,500 psi (172 bar)
These features contribute to their popularity and ease of maintenance compared to other hydraulic motor types.
One of the main reasons Vickers vane motors are considered easy to maintain is their modular construction. This design allows for straightforward disassembly and replacement of key components such as vanes, seals, rotors, and bearings without needing to replace the entire motor. The availability of genuine replacement parts ensures reliable operation and longevity.
Maintaining a Vickers hydraulic vane motor involves several routine tasks that are manageable with basic hydraulic knowledge and tools:
- Regular inspection of hydraulic fluid quality and levels: Clean, uncontaminated fluid is critical to prevent wear and damage. Fluid should be filtered through fine mesh screens (200 mesh or finer) when added to the system.
- Checking and tightening hydraulic connections: Loose fittings can cause leaks or air ingress, leading to noisy or erratic motor operation.
- Filter maintenance: Periodic replacement of hydraulic filters prevents contaminants from damaging internal components.
- Monitoring operating conditions: Temperature, pressure, and torque should be regularly checked to detect early signs of wear or malfunction.
- Lubrication: Internal lubrication is provided by the hydraulic fluid flow, so maintaining fluid quality is essential. No additional lubrication is typically required.
Common problems such as reduced flow rate, pressure loss, or unusual noises can often be traced to worn vanes, seals, or contaminated fluid. Troubleshooting involves:
- Inspecting for air leaks in suction lines
- Checking for worn or misaligned vanes and seals
- Verifying proper alignment and torque settings
- Ensuring hydraulic fluid cleanliness and correct viscosity
For maintenance professionals seeking to deepen their diagnostic skills, advanced troubleshooting techniques can help identify subtle issues before they escalate:
- Pressure and flow testing: Using pressure gauges and flow meters at various points in the hydraulic circuit can pinpoint restrictions or leaks affecting motor performance.
- Thermal imaging: Infrared cameras can detect hotspots in the motor or gear reducer, indicating friction or lubrication problems.
- Vibration analysis: Monitoring vibration patterns helps detect bearing wear or imbalance in the rotor assembly.
- Oil analysis: Laboratory testing of hydraulic fluid can reveal contamination levels, wear metals, and fluid degradation, guiding maintenance decisions.
These techniques, combined with routine inspections, enhance reliability and reduce downtime.
A large-scale farm integrated Vickers hydraulic vane motors with gear reducers into their irrigation systems. The motors provided precise speed control for water pumps, improving irrigation efficiency. Maintenance was simplified due to the modular design, and routine fluid checks prevented contamination-related failures.
A manufacturing plant used Vickers vane motors to drive conveyor belts. The motors' smooth torque output reduced mechanical stress on the belts, extending their lifespan. When combined with gear reducers, the system achieved optimal speed and torque balance. Scheduled maintenance based on operating hours minimized unexpected breakdowns.
| Feature | Vickers Hydraulic Vane Motor | Gear Motor with Hydraulic Motor | Gerotor Hydraulic Motor | Radial Piston Hydraulic Motor |
|---|---|---|---|---|
| Maintenance Complexity | Moderate, modular design | Moderate, additional gear reducer maintenance | Higher, more complex internal parts | Higher, precision components |
| Torque Output | Moderate to high | High (due to gear reduction) | Moderate | High |
| Speed Control | Excellent, variable displacement | Excellent | Good | Good |
| Noise Level | Low to moderate | Moderate | Low | Low |
| Cost | Moderate | Higher (due to gear reducer) | Lower | Higher |
Vickers hydraulic vane motors strike a balance between ease of maintenance and performance, especially when paired with gear reducers for high torque applications.
- Implement condition-based maintenance: Use sensors to monitor temperature, vibration, and pressure, scheduling maintenance only when needed.
- Keep detailed maintenance logs: Track fluid changes, part replacements, and operating hours to predict future service needs.
- Train maintenance staff: Ensure technicians understand the motor's design and common failure modes.
- Use genuine parts and fluids: Avoid counterfeit or substandard components that can reduce motor life.
- Schedule preventive maintenance during downtime: Plan service intervals to minimize production disruption.
- Misconception 1: Vane motors require frequent lubrication
Fact: Vickers vane motors are lubricated by the hydraulic fluid itself; no additional lubrication is necessary if fluid quality is maintained.
- Misconception 2: Vane motors are noisy and inefficient
Fact: Properly maintained Vickers vane motors operate quietly and efficiently, with smooth torque delivery.
- Misconception 3: Gear reducers complicate maintenance excessively
Fact: While gear reducers add components, integrated units are designed for straightforward maintenance with clear lubrication and inspection points.
- Misconception 4: Vane motors are not suitable for heavy-duty applications
Fact: When combined with gear reducers, Vickers vane motors can handle demanding loads in mining, construction, and agriculture.
- Misconception 5: All hydraulic motors have similar maintenance needs
Fact: Different motor types have unique maintenance requirements; vane motors benefit from modularity and fluid lubrication, unlike some piston or gear motors.
Hydraulic motors with gear reducers combine the hydraulic motor with a mechanical gear reduction system to increase output torque while reducing speed. This combination is especially useful in heavy-duty applications like mining, construction, and agriculture where high torque at low speeds is required.
- Increased torque output: Gear reducers amplify the motor's torque, enabling it to drive heavy loads efficiently.
- Speed control: Reduction gears allow precise control of output speed, improving system performance and safety.
- Compact and robust design: These units are designed to withstand harsh environments and continuous operation.
- Simplified installation and maintenance: Integrated gear reducers reduce the need for separate components, lowering maintenance complexity.
While the hydraulic motor itself is relatively easy to maintain, the addition of a gear reducer introduces some additional maintenance points:
- Gearbox lubrication: Gear reducers require proper lubrication to prevent gear wear and overheating. Regular oil changes and checks are necessary.
- Seal integrity: Seals between the motor and gear reducer must be inspected to prevent fluid leaks.
- Bearing and gear inspection: Periodic checks for wear or damage in gears and bearings help avoid unexpected failures.
- Temperature monitoring: Both motor and gear reducer temperatures should be monitored to avoid overheating.
- Ensure the hydraulic system is depressurized and the motor is isolated.
- Gather necessary tools, replacement parts, and clean hydraulic fluid.
- Check all hydraulic connections for tightness and leaks.
- Inspect the motor exterior for damage or contamination.
- Examine hydraulic fluid for cleanliness and proper level.
- Remove the motor from the system if necessary.
- Use manufacturer's tools to open the motor housing.
- Carefully extract vanes, rotor, and seals for inspection.
- Clean all components with appropriate solvents.
- Replace worn or damaged vanes, seals, and bearings with genuine parts.
- Reassemble the motor following manufacturer's torque specifications and alignment guidelines.
- Reinstall the motor and reconnect hydraulic lines securely.
- Prime the hydraulic system to remove air.
- Run the motor under no load to check for leaks and abnormal noises.
- Gradually apply load and monitor performance parameters.
Vickers hydraulic vane motors are generally easy to maintain due to their modular design, availability of genuine replacement parts, and straightforward maintenance procedures. Regular inspection, fluid cleanliness, and adherence to manufacturer guidelines are key to maximizing their service life. When combined with gear reducers, these motors provide enhanced torque and speed control, though the gear reducer adds some additional maintenance requirements such as lubrication and gear inspection. Overall, with proper care, Vickers hydraulic vane motors and hydraulic motors with gear reducers offer reliable, long-lasting performance in demanding applications.
Regular fluid changes depend on operating hours and conditions but typically every 1,000 to 2,000 hours or as recommended by the manufacturer. Always use clean, filtered fluid to prevent contamination.
Yes, with proper tools and following the manufacturer's instructions, vane and seal replacement is straightforward due to the motor's modular design. Using genuine parts is essential for reliability.
Signs include unusual noises, fluid leaks, overheating, reduced torque or speed, and vibration. Early detection through regular inspection can prevent major failures.
Maintain the gear reducer by regularly checking and changing the gearbox oil, inspecting seals and bearings, and monitoring operating temperature. Follow the reducer manufacturer's maintenance schedule.
Yes, they are widely used in heavy-duty applications such as mining, construction, and agriculture, especially when combined with gear reducers to provide high torque at low speeds.
