Gears are fundamental components in mechanical systems, used to transmit power and change the speed or direction of rotational motion. Among various types of gears, bevel and planetary gears are particularly notable for their versatility and efficiency in power transmission. This article will delve into the design and applications of bevel planetary gearboxes, exploring their advantages, challenges, and configurations.
Gears are toothed wheels that mesh together to transmit rotational motion. They are widely used in machinery, automotive systems, and industrial applications. The primary types of gears include spur, helical, bevel, worm, and planetary gears, each with distinct characteristics and applications.
Spur gears are the simplest type, featuring straight teeth parallel to the gear axis. They are efficient for power transmission between parallel shafts but can be noisy and prone to wear.
Helical gears have angled teeth, providing smoother operation and higher load-bearing capacity than spur gears. However, they generate axial thrust, requiring additional support.
Bevel gears transmit power at an angle, typically 90 degrees, making them ideal for applications where space is limited. They can be straight-toothed or spiral-toothed, with the latter offering quieter operation.

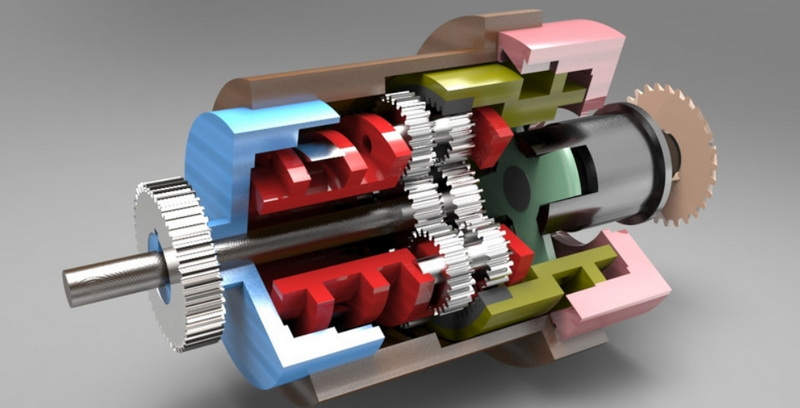

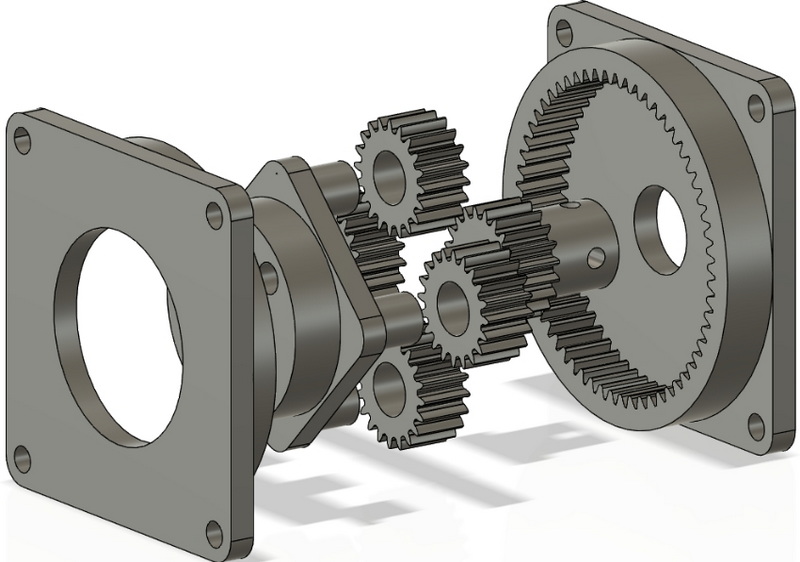

Planetary gears consist of a sun gear, planet gears, and a ring gear. They offer high gear reduction ratios, compact size, and high torque capacity, making them suitable for applications like robotics and industrial machinery.
A bevel planetary gearbox combines the properties of bevel and planetary gears. It includes:
- Sun Gear: The central gear that receives input power.
- Planet Gears: These orbit the sun gear and mesh with the ring gear.
- Ring Gear: The outer gear that provides output power.
- Bevel Gear Stage: Transmits power at a right angle, often using spiral bevel gears for smooth operation.
1. Compact Design: Combines the efficiency of planetary gears with the directional change of bevel gears.
2. High Power Density: Offers high torque and gear reduction ratios in a small space.
3. Low Noise: Spiral bevel gears ensure quiet operation.
4. High Torsional Rigidity: Provides stability and resistance to twisting forces.
1. Complex Design: Requires precise manufacturing and assembly.
2. High Bearing Loads: Axial and radial forces can strain bearings.
3. Maintenance: Needs regular lubrication and inspection.
Planetary gearboxes distribute the load among multiple planet gears, increasing the overall torque capacity and enhancing durability. This design feature allows them to handle heavy loads efficiently. Diagrams showing load distribution in planetary gearboxes can help visualize this concept:
Materials like steel, aluminum, and brass are common due to their strength and durability. The choice depends on the application's requirements for weight, cost, and environmental conditions. For instance, in high-temperature applications, materials with high thermal resistance are preferred.
Proper lubrication is crucial for smooth operation and longevity. The type of lubricant used depends on the operating conditions, such as temperature and load. Synthetic oils are often used for their superior lubricating properties and thermal stability.
Recent innovations in bevel planetary gearbox technology include advancements in materials and manufacturing techniques. For example, the use of advanced composites and 3D printing allows for lighter and more complex designs, enhancing efficiency and reducing production costs.

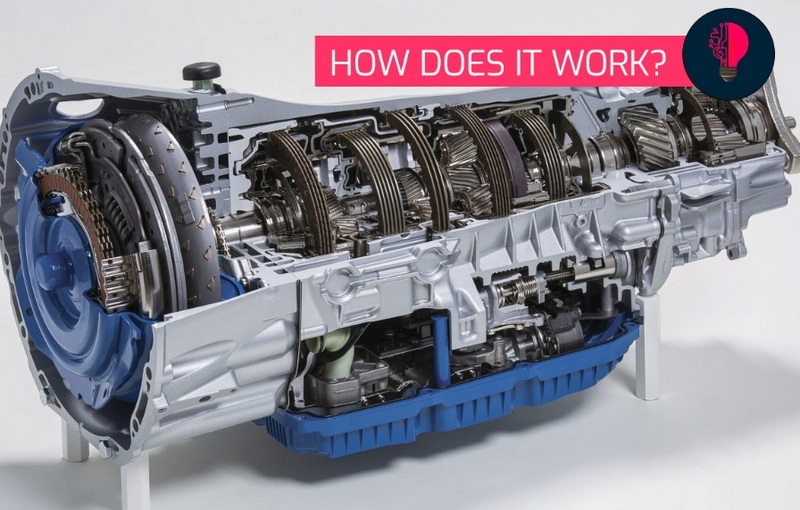

Bevel planetary gearboxes are used in automotive systems, such as differentials, to efficiently distribute power between wheels. This ensures better traction and stability, especially in vehicles designed for off-road use. Images of bevel planetary gearboxes in automotive applications can illustrate their integration:
Bevel planetary gearboxes offer advantages over other designs due to their compactness and high power density. However, they are more complex and expensive than simpler gearbox designs like spur or helical gearboxes. A comparative analysis can help determine the most suitable gearbox for specific applications:
| Gearbox Type | Compactness | Power Density | Complexity | Cost |
|---|---|---|---|---|
| Bevel Planetary | High | High | High | High |
| Spur Gearbox | Low | Low | Low | Low |
| Helical Gearbox | Medium | Medium | Medium | Medium |
Future trends in bevel planetary gearbox design include the integration of advanced materials and technologies, such as smart materials and IoT sensors for real-time monitoring and optimization. These advancements will enhance efficiency, reliability, and maintenance predictability.
Bevel planetary gearboxes are used in various industries:
- Automotive: In differentials and transmissions for efficient power distribution.
- Industrial Machinery: For high-torque applications requiring compact designs.
- Robotics: Provides precise motion control and high power density.
In industrial settings, bevel planetary gearboxes are often used in machinery that requires high torque and precision, such as conveyor systems and manufacturing equipment. Their compact design allows for efficient use of space, making them ideal for applications where machinery needs to be integrated into existing infrastructure.
The environmental impact of bevel planetary gearboxes is minimal compared to other mechanical systems. They are designed to be energy-efficient, reducing power consumption and heat generation. Additionally, advancements in materials and manufacturing processes aim to minimize waste and environmental footprint.
Ensuring safety and reliability is crucial in the design and operation of bevel planetary gearboxes. Regular maintenance, proper installation, and adherence to safety standards are essential to prevent accidents and extend the lifespan of the gearbox.
Bevel planetary gearboxes offer a powerful combination of compact design, high power density, and directional change, making them ideal for applications requiring efficient power transmission in limited spaces. Despite their complexity and maintenance needs, they are widely used in automotive, industrial, and robotic systems.
A planetary gearbox consists of a sun gear, planet gears, and a ring gear. The planet gears orbit the sun gear and mesh with the ring gear, providing high gear reduction ratios and torque capacity.
Bevel gears transmit power at an angle, typically 90 degrees, making them suitable for applications where space is limited or a change in direction is needed. They can be straight-toothed or spiral-toothed, with spiral bevel gears offering quieter operation.
Combining bevel and planetary gears offers a compact design with high power density, low noise operation due to spiral bevel gears, and high torsional rigidity. This combination is ideal for applications requiring efficient power transmission in limited spaces.
Bevel planetary gearboxes are used in automotive systems (e.g., differentials), industrial machinery (for high-torque applications), and robotics (for precise motion control).
Planetary gearboxes distribute the load among multiple planet gears, increasing the overall torque capacity and enhancing durability. This design feature allows them to handle heavy loads efficiently.
