Views: 222 Author: Ella Publish Time: 2025-02-06 Origin: Site
Content Menu
● Working Principle of 2-Speed Hydraulic Motors
● Types of 2-Speed Hydraulic Motors
>> 1. Closed-Loop Speed Regulation
● Key Components Enabling Speed Shifts
>> 1. Displacement Control Valve
● Applications and Case Studies
>> 1. Case 645 Tractor Drive System
>> 2. Waste Compaction Systems
● Maintenance and Failure Prevention
>> 1. Common Failures & Solutions
● FAQ
>> 1. How does temperature affect 2-speed motor performance?
>> 2. Can I retrofit single-speed motors with 2-speed controls?
>> 3. What's the lifespan of a 2-speed motor?
>> 4. How to calculate hydraulic motor power?
>> 5. Why does my motor vibrate in HSLT mode?
A 2-speed hydraulic motor efficiently switches between low-speed/high-torque (LSHT) and high-speed/low-torque (HSLT) modes by altering its displacement or internal fluid pathways. This dual functionality optimizes performance for applications requiring variable power demands, such as winches, conveyors, and heavy machinery. Let's explore its mechanics, types, and real-world applications with expanded technical insights.
Two-speed hydraulic motors operate by modifying displacement—the fluid volume needed to rotate the motor's shaft once. This adjustment is achieved through:
- Low-speed mode: High displacement (larger fluid chambers) generates greater torque at lower RPM.
- High-speed mode: Reduced displacement (smaller chambers) allows faster rotation with less torque.
- Example: Eaton Char-Lynn 2000 Series motors shift displacement in a 1:2 ratio, doubling speed while halving torque.
- Valves or solenoids redirect fluid between circuits. Parallel flow (fluid splits to multiple chambers) enables higher speed, while series flow (sequential chamber pressurization) boosts torque.
- Pump-controlled systems (Figure 3) modulate motor speed via displacement adjustments, improving efficiency compared to valve-controlled systems.
- Load-sensing systems automatically adjust displacement based on resistance. For example, a pressure increase triggers low-speed mode, while low resistance activates high-speed mode.

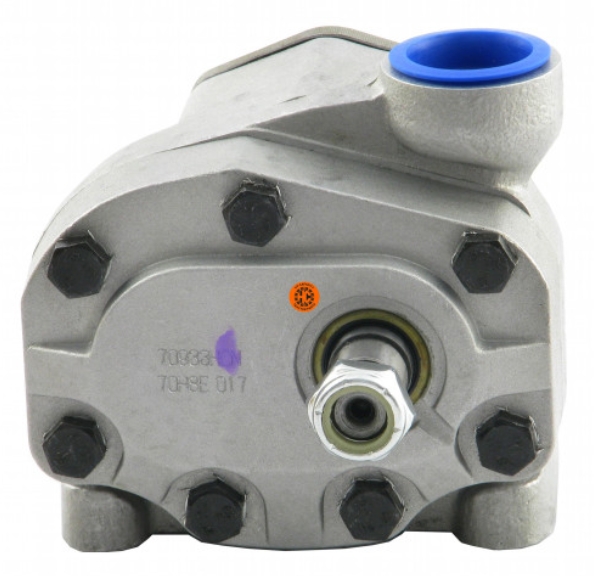

| Parameter | High-Speed Mode | Low-Speed Mode |
|---|---|---|
| Torque (Nm) | 100–448 | 200–896 |
| Max Speed (rpm) | 230–1000 | 115–500 |
| Flow Rate (l/min) | 45–75 | 45–75 |
| Type | Mechanism | Applications | Key Features |
|---|---|---|---|
| Gerotor Motors | Dual gear sets switch between displacements | Winches, augers | Compact design, 89% volumetric efficiency |
| Axial Piston Motors | Adjustable swashplate angle modifies chamber size | Construction equipment | 94% torque efficiency, pressure ratings up to 450 bar |
| Radial Piston Motors | Pistons engage/disengage cam rings | Heavy-duty vehicles | 4055 lb.ft/1000 psi torque, triple-sealed protection |
| Gear Motors | Fluid rerouted between parallel/series paths | Conveyors, compactors | 15–2000 cSt viscosity range |
Example: Black Bruin S-series motors feature shift-on-the-go 2-speed function with continuous high power output.
- Pump-controlled systems (Figure 3) use feedback to adjust displacement signals, achieving ±1% speed accuracy under variable loads.
- Formula for speed calculation:
Nm=(Qmi×60×ηvm)/Dm
Where Qmi = inlet flow (in³/s), ηvm = volumetric efficiency, Dm = displacement.
- Eaton motors demonstrate 89% volumetric efficiency and 94% torque efficiency in load tests.
- Energy savings: Pump-controlled systems reduce power loss by 18% compared to valve-controlled designs.
- Solenoid-shifted valves (e.g., Parker models) reroute fluid within 0.2 seconds.
- Fail-safe spring return ensures default LSHT mode during power loss.
- Monitors outlet pressure (up to 6527 psi) to trigger displacement changes.
- Critical for preventing cavitation in HSLT mode.
- Generate distinct magnetic fields for fixed speed ratios (e.g., 2:1).
- Black Bruin motors use triple-sealed shafts to protect windings.
- Utilizes 2-speed motor for field operations (low-speed plowing) and transport (high-speed road travel).
- Key specs: 305.6 in³/rev displacement, 4055 lb.ft/1000 psi torque.
- Low-speed mode applies 3000 psi pressure for compression.
- High-speed mode retracts piston in 2.5 seconds, improving cycle time by 40%.
- Radial piston motors with 2-speed function handle 800-ton/hour loads.
- Maintenance interval extended to 10,000 hours through inline filtration.
| Issue | Root Cause | Solution |
|---|---|---|
| Overheating (>200°F) | Clogged case drains | Install 25µ inline filters |
| Torque loss | Shaft seal leakage | Replace with Viton seals (300°F rating) |
| Cavitation noise | Air entrapment | Bleed system, check fluid level |
| Mode shift failure | Sticking spool valve | Clean with ISO 32 fluid, polish spool |
- Monthly: Inspect shaft seals, test case drain flow (min. 1.5 gpm)
- Quarterly: Replace breather caps, verify pressure compensator settings
- Annually: Flush reservoir, test motor efficiency (ηvm > 85\% )
- ISO VG 46 recommended for -40°F to 250°F operation.
- Viscosity below 15 cSt causes bearing wear; above 2000 cSt reduces efficiency.
- Maximum axial load: 15% of radial capacity.
- Tapered roller bearings in Black Bruin motors handle 50,000 lbf radial loads.
- Use pressure-relief valves set at 110% of max working pressure.
- Avoid speed <200 RPM to prevent stick-slip motion.
Two-speed hydraulic motors provide unparalleled flexibility in power transmission systems. Through innovative displacement control and advanced pressure feedback mechanisms, these motors deliver precise speed-torque adaptation while maintaining 85–94% operational efficiency. Regular maintenance—particularly seal inspections and fluid quality management—ensures optimal performance in demanding industrial environments.
- High temperatures (>200°F) reduce fluid viscosity, increasing internal leakage by up to 30%. Always monitor reservoir temps with thermocouples.
- Only motors with displacement adjustment capability (e.g., axial piston designs) can be retrofitted. Gear motors require complete replacement.
- Properly maintained Eaton motors achieve 15,000+ hours; radial piston models last 20,000+ hours in mining applications.
- Use:
Php=(Tlb.ft×Nrpm)/5252
For 300 lb.ft at 500 RPM: 28.6 HP.
- Imbalanced cam rings in radial piston motors cause <0.005" runout. Precision grinding restores smooth operation.
