Hydraulic truck cranes are indispensable in modern construction and industrial applications, combining heavy lifting capabilities with the mobility of a truck. These robust machines rely on hydraulics to efficiently lift and transport heavy loads. At the heart of the crane's functionality is the hydraulic rotation motor, which allows the crane to rotate and precisely position loads. Understanding the workings of this motor is crucial to appreciating the overall operation of hydraulic truck cranes.
Hydraulic systems in cranes operate on the principle of transmitting force through a fluid, typically oil. This system uses pressurized fluids to power mechanical operations. Pascal's law explains that pressure applied to a confined fluid is transmitted equally in all directions, which is fundamental to how hydraulic systems amplify force.
The key components of a hydraulic system include:
- Hydraulic Pump: The hydraulic pump provides hydraulic fluid under pressure to a directional control valve. It converts mechanical energy into hydraulic energy, pushing fluid into the system.
- Hydraulic Cylinders: These are critical for lifting and moving large loads with precision and control. They convert hydraulic pressure into linear force, which pushes or pulls the boom and jib to lift or lower the load.
- Control Valves: Control valves regulate the direction and rate of flow to the crane functions.
- Hydraulic Motors: Hydraulic motors, particularly the rotation motor, convert hydraulic energy back into mechanical energy to produce rotational movement.
- Hydraulic Fluid Reservoir: The hydraulic fluid is housed in the hydraulic reservoir, which transfers power through the hydraulic pump.
Hydraulic truck cranes consist of several key components that enable them to perform lifting operations efficiently. These include:
- Boom: The boom is the long, extendable arm of the crane used for lifting and positioning loads.
- Jib: The jib is an extension attached to the boom, providing additional reach and lifting height.
- Hydraulic Cylinders: These cylinders are responsible for lifting and moving the boom and jib. They consist of a piston, rods, barrels, and seals that work together to produce the desired movement.
- Rotation Motor: The rotation motor is located on the crane base and rotates the crane.
- Winch: The winch is used for lifting and lowering loads via wire rope.
- Hydraulic System: This system includes the hydraulic pump, cylinders, motors, tubing, and hoses required to operate the crane.
- Outriggers: Outriggers provide stability to the crane, especially when lifting heavy loads.

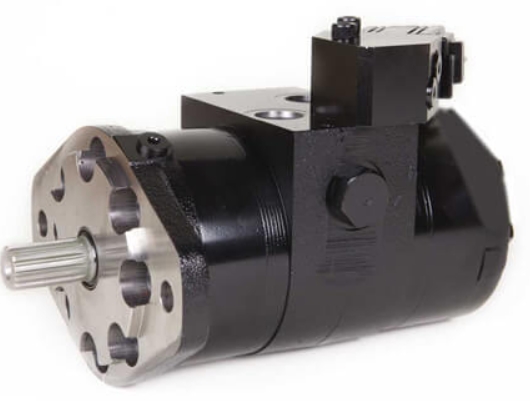

The hydraulic rotation motor is a crucial component that enables the crane to rotate, providing a full range of motion for lifting and placing loads accurately. The motor is typically located at the base of the crane and is responsible for turning the entire upper structure.
The functionality of the hydraulic rotation motor involves several key steps:
1. Hydraulic Fluid Input: Hydraulic fluid, pressurized by the hydraulic pump, enters the rotation motor.
2. Conversion of Hydraulic Energy to Mechanical Energy: The motor converts the hydraulic energy of the fluid into mechanical energy, producing a rotational force.
3. Torque Transmission: The rotating torque is transmitted through a gear train, which then rotates the crane in either a clockwise or counterclockwise direction.
4. Control Mechanism: The rotation is controlled by a valve lever, which regulates the flow of hydraulic fluid to the motor, determining the direction and speed of rotation.
Several types of hydraulic motors can be used for crane rotation, each with its own advantages and applications:
- Gear Motors: Gear motors are simple and cost-effective, suitable for applications requiring moderate speed and torque.
- Vane Motors: Vane motors offer a good balance of speed and torque, making them versatile for various crane applications.
- Piston Motors: Piston motors are more efficient and can handle higher pressures and loads. They are ideal for heavy-duty applications requiring precise control.

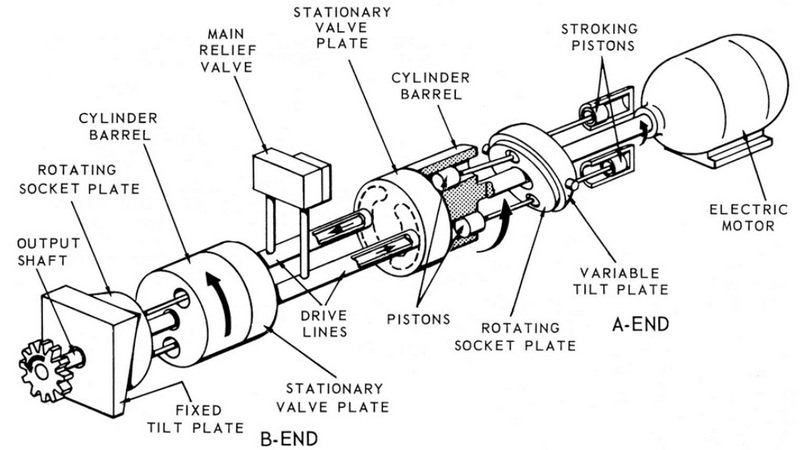

Piston motors are commonly used in hydraulic truck cranes due to their efficiency and ability to handle high pressures. These motors operate through a series of pistons that convert hydraulic pressure into rotational motion.
1. Fluid Input: Pressurized hydraulic fluid is fed into the motor.
2. Piston Activation: The fluid is directed to individual pistons, causing them to move linearly.
3. Rotational Movement: The linear motion of the pistons is converted into rotational motion via a swashplate or crankshaft.
4. Output: The rotating shaft provides the mechanical power needed to turn the crane.
Achieving precise control in crane rotation is essential for safety and efficiency. Modern hydraulic systems incorporate advanced control mechanisms to ensure smooth and accurate movements.
- Valve Control: Control valves regulate the flow of hydraulic fluid to the rotation motor, allowing the operator to adjust the speed and direction of rotation.
- Feedback Systems: Some cranes use feedback systems to monitor the position and speed of the rotation, providing real-time adjustments to maintain accuracy.
- Electronic Control: Electronic control systems enhance precision by allowing for programmable movements and automated functions.
Regular maintenance and timely troubleshooting are critical to ensure the longevity and reliability of hydraulic rotation motors. Common maintenance tasks include:
- Fluid Checks: Regularly check the hydraulic fluid level and condition. Replace the fluid as recommended by the manufacturer.
- Leak Inspections: Inspect the motor and related hydraulic lines for leaks. Address any leaks promptly to prevent fluid loss and system damage.
- Filter Replacement: Replace hydraulic filters regularly to keep the fluid clean and prevent contamination.
- Component Inspection: Inspect the motor components for wear and damage. Replace worn or damaged parts as needed.
Common issues and troubleshooting steps include:
- Slow or Jerky Rotation: This can be caused by low fluid levels, contaminated fluid, or a faulty control valve.
- Motor Overheating: Overheating can result from excessive load, insufficient cooling, or internal motor damage.
- Unusual Noises: Unusual noises may indicate worn bearings, damaged gears, or other mechanical issues.
The use of hydraulic rotation motors in crane trucks offers several advantages:
- High Torque: Hydraulic motors can provide high torque, allowing cranes to rotate heavy loads with ease.
- Precise Control: Hydraulic systems enable precise control over the rotation speed and direction.
- Reliability: Hydraulic motors are robust and reliable, capable of withstanding demanding operating conditions.
- Compact Size: Hydraulic motors are relatively compact, making them suitable for use in mobile crane applications.
To further enhance the performance and reliability of hydraulic rotation motors, several advanced components and technologies are integrated into modern crane systems.
Proportional valves are essential for precise control over the flow of hydraulic fluid to the rotation motor. Unlike traditional on/off valves, proportional valves allow for variable flow rates, enabling the operator to adjust the rotation speed and torque with greater accuracy. This results in smoother and more controlled movements, especially when handling sensitive or delicate loads.
Closed-loop hydraulic systems enhance the efficiency and responsiveness of the crane's rotation. In a closed-loop system, the hydraulic fluid is continuously circulated, with feedback mechanisms monitoring the motor's performance. Any deviations from the desired parameters are immediately corrected, ensuring stable and consistent operation.
Modern cranes are equipped with a variety of sensors and monitoring systems that provide real-time data on the hydraulic rotation motor's performance. These sensors can detect changes in pressure, temperature, and flow rate, alerting the operator to potential issues before they escalate. This proactive approach to maintenance helps to prevent costly downtime and ensures the safe operation of the crane.
The cleanliness of hydraulic fluid is crucial for the longevity and performance of the rotation motor. Advanced filtration systems are used to remove contaminants from the fluid, preventing wear and damage to the motor's internal components. These filtration systems often include multiple stages of filtration, ensuring that the fluid remains clean and free of debris.
Operating a hydraulic truck crane safely and efficiently requires a thorough understanding of the hydraulic rotation motor and its capabilities. Several operational considerations should be taken into account:
Always ensure that the load being lifted is within the crane's rated capacity. Exceeding the load capacity can cause instability and potentially damage the rotation motor and other components. Utilize the outriggers to provide additional stability, especially when lifting heavy loads or operating on uneven surfaces.
Environmental factors such as wind, temperature, and terrain can affect the performance of the hydraulic rotation motor. High winds can create additional stress on the crane, requiring careful operation and reduced load capacities. Extreme temperatures can also impact the viscosity of the hydraulic fluid, affecting the motor's efficiency.
Proper operator training and certification are essential for ensuring the safe and efficient operation of hydraulic truck cranes. Operators should be trained on the proper use of the hydraulic rotation motor, including its limitations and potential hazards. Regular refresher courses and ongoing training can help to maintain a high level of competency among operators.
Before each use, conduct a thorough pre-operational inspection of the hydraulic rotation motor and related components. Check for leaks, damage, and any signs of wear or deterioration. Ensure that all safety devices are functioning properly and that the hydraulic fluid level is within the recommended range.
The field of hydraulic rotation motor technology is constantly evolving, with ongoing research and development efforts focused on improving performance, efficiency, and reliability. Some of the key trends in this area include:
Smart hydraulics involves the integration of sensors, controls, and software to create intelligent hydraulic systems. These systems can monitor their own performance, detect potential issues, and automatically adjust parameters to optimize efficiency and reliability. Smart hydraulics can also provide valuable data for predictive maintenance, helping to prevent costly downtime.
Electric hydraulic hybrid systems combine the benefits of both electric and hydraulic power. These systems use electric motors to drive the hydraulic pump, allowing for more efficient and precise control of the rotation motor. Hybrid systems can also reduce energy consumption and emissions, making them a more environmentally friendly option.
The use of advanced materials and manufacturing techniques is also driving innovation in hydraulic rotation motor technology. Lightweight materials such as composites and high-strength alloys can reduce the weight of the motor, improving the crane's overall performance. Advanced manufacturing techniques such as additive manufacturing (3D printing) are also being used to create more complex and efficient motor designs.
The hydraulic rotation motor is a vital component in hydraulic truck cranes, providing the rotational force necessary for precise load placement. Understanding the principles of hydraulic systems, the types of hydraulic motors, and the control mechanisms involved is essential for operating and maintaining these cranes effectively. Regular maintenance and timely troubleshooting ensure the reliability and longevity of the hydraulic rotation motor, contributing to the overall efficiency and safety of crane operations. As technology continues to advance, we can expect to see even more sophisticated and efficient hydraulic rotation motor designs, further enhancing the capabilities of hydraulic truck cranes.
The hydraulic rotation motor is a component in hydraulic truck cranes that converts hydraulic energy into rotational mechanical energy. It is typically located at the base of the crane and is responsible for turning the entire upper structure, allowing the crane to rotate and precisely position loads.
Several types of hydraulic motors can be used for crane rotation, each with its own advantages and applications. These include gear motors, vane motors, and piston motors. Piston motors are commonly used in hydraulic truck cranes due to their efficiency and ability to handle high pressures.
A hydraulic rotation motor converts hydraulic pressure into rotational movement through a series of pistons, gears, or vanes. Pressurized hydraulic fluid is directed to these components, causing them to move and generate a rotational force. This rotational force is then transmitted through a gear train to rotate the crane.
Common issues that can occur with hydraulic rotation motors include slow or jerky rotation, motor overheating, and unusual noises. These issues can be caused by low fluid levels, contaminated fluid, a faulty control valve, excessive load, insufficient cooling, or internal motor damage. Regular maintenance, fluid checks, and component inspections can help prevent these issues, and timely troubleshooting can resolve them.
Regular maintenance and timely troubleshooting are critical to ensure the longevity and reliability of hydraulic rotation motors. Recommended maintenance practices include regular fluid checks, leak inspections, filter replacement, and component inspections. Additionally, it is important to address any issues promptly to prevent further damage and ensure the safe and efficient operation of the crane.
