Hydraulic flow reducers, often referred to as flow control valves, play a crucial role in hydraulic systems by regulating the flow rate of hydraulic fluid. This regulation is essential for controlling the speed of hydraulic actuators such as cylinders and motors, ensuring that the system operates efficiently and safely. In this article, we will delve into the workings of hydraulic flow reducers, their types, applications, and importance in hydraulic systems.
Hydraulic flow reducers are designed to adjust the flow rate of hydraulic fluid in a system. By controlling the flow, these valves manage the speed at which hydraulic actuators operate, which is vital for maintaining precise control over hydraulic operations. The primary function of a hydraulic flow reducer is to restrict the flow of fluid in one direction, thereby reducing the speed of the actuator.
Hydraulic flow reducers work by adjusting the size of the flow passage to control the rate at which hydraulic fluid flows through the system. This adjustment can be manual or automatic, depending on the type of valve used.

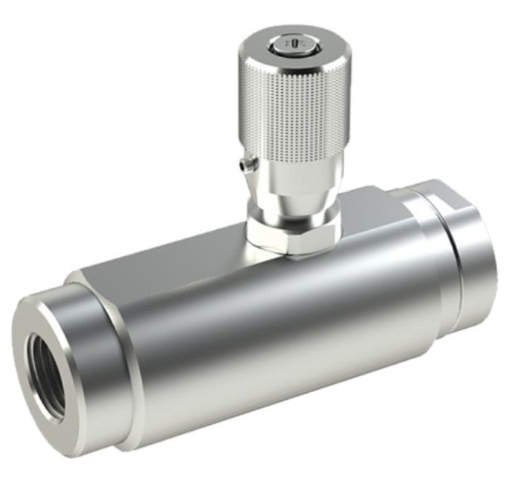

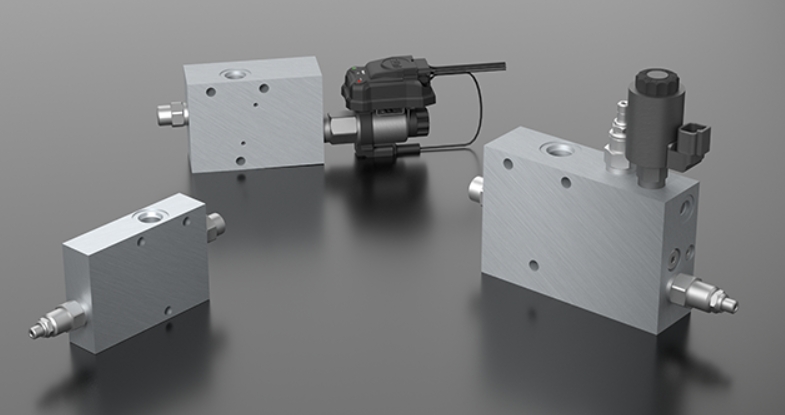

Manual flow control valves are simple and cost-effective. They typically include a handle or knob that allows the operator to adjust the flow rate manually. These valves are commonly used in applications where the flow rate does not need to change frequently.
Automatic flow control valves, on the other hand, adjust the flow rate based on system parameters such as pressure or temperature. These valves are more complex and often include electronic or hydraulic pilots to sense changes in the system and adjust the flow accordingly.
Pressure-compensated flow control valves are a type of automatic valve that maintains a constant flow rate despite changes in system pressure. These valves are crucial in applications where consistent speed is required, even under varying loads.

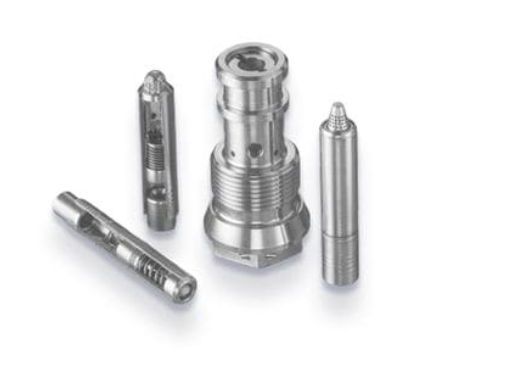

There are several types of hydraulic flow reducers, each designed for specific applications:
- Throttle Valves: These are simple, manually adjustable valves used to restrict flow in one direction.
- Meter-In and Meter-Out Valves: Meter-in valves control the flow entering an actuator, while meter-out valves regulate the flow leaving the actuator.
- Flow Dividers: These valves split the flow from one source into multiple paths at a set ratio, ensuring balanced fluid distribution across multiple actuators.
Flow dividers operate based on the principle that fluid horsepower input equals fluid horsepower output, minus efficiency losses. They are used to distribute fluid evenly across multiple actuators.
Hydraulic flow reducers are used in a wide range of applications, including:
- Heavy Machinery: In construction and mining equipment, flow control valves are essential for controlling the speed of hydraulic cylinders and motors.
- Agricultural Equipment: Flow reducers help manage the speed of hydraulic systems in tractors and loaders.
- Industrial Automation: In manufacturing, these valves ensure precise control over hydraulic actuators.
Hydraulic flow reducers are vital for maintaining system efficiency and safety. They prevent overloading by limiting excessive flow rates and ensure consistent operation under varying conditions.
- Improved Efficiency: By controlling flow rates, these valves optimize energy transfer and reduce waste.
- Enhanced Safety: They prevent system overloads and reduce the risk of damage to components.
- Precise Control: Flow reducers allow for precise speed control of hydraulic actuators.
Recent advancements in hydraulic systems have significantly improved their efficiency and performance. These include:
- Electrically Controlled Hydraulic Systems: These systems use electronic control units (ECUs) to precisely regulate hydraulic functions, resulting in improved efficiency, performance, and safety.
- Intelligent Hydraulic Systems: The integration of sensors, actuators, and advanced control algorithms enables real-time monitoring and adaptive control, optimizing system performance.
- Digital Hydraulic Systems: Digital hydraulic technology provides precise and programmable control of hydraulic flow and pressure, enhancing efficiency and performance.
Modern technologies such as electrohydraulic systems and IoT devices have transformed how hydraulic systems are designed, controlled, and monitored. These advancements include:
- Electrohydraulic Systems: These systems combine electronic controls with hydraulic drives, offering high power density and precise control, which is particularly beneficial in mobile applications.
- IoT and AI Integration: The integration of IoT and AI enhances real-time performance monitoring, predictive maintenance, and energy optimization, leading to cost savings and reduced downtime.
Pressure reducing valves are another crucial component in hydraulic systems. They are used to create distinct pressure zones within a circuit, allowing different sections to operate at different pressures. This is particularly useful in systems where sensitive components require lower pressures while other parts need higher pressures.
Pressure reducing valves work by maintaining a constant reduced pressure downstream, regardless of the inlet pressure. They are typically used in branch circuits and can be adjusted using a knob or screw to set the desired outlet pressure.
Pressure reducing valves are essential in various applications, including:
- Industrial Processes: They ensure that sensitive components operate at lower pressures while maintaining higher pressures elsewhere in the system.
- Irrigation Systems: These valves help maintain consistent water pressure across different sections of an irrigation network.
Modern hydraulic servo valves have seen significant advancements with the integration of digital technologies. These valves use digital PID control to provide precise and variable control over fluid flow and pressure. Digital signal processing (DSP) enhances real-time monitoring and adjustment of control signals, improving overall performance and stability[2].
- Digital PID Control: Allows for precise control of fluid flow and pressure.
- Digital Signal Processing (DSP): Enhances real-time monitoring and adjustment of control signals.
- Communication Interfaces: Enable seamless integration with other electronic systems for data exchange and remote monitoring.
- Fault Monitoring and Diagnostics: Provide real-time fault detection and preventive maintenance capabilities.
A recent case study highlights the modernization of an industrial hydraulic system to improve efficiency and reduce maintenance costs. The system was upgraded with piston pumps, which offer longer life and higher pressure capabilities compared to traditional gear pumps. The integration of load-sensing systems reduced power losses by adjusting pump flow and pressure to match system demands[3].
- Piston Pumps: Replaced gear pumps for improved efficiency and longevity.
- Load-Sensing Systems: Reduced energy consumption by optimizing pump output based on system requirements.
- Advanced Filtration Systems: Improved fluid cleanliness, reducing contamination-related failures.
Hydraulic flow reducers are indispensable components in hydraulic systems, providing precise control over the flow rate of hydraulic fluid. By understanding how these valves work and their various types, engineers and operators can optimize system performance, enhance safety, and improve efficiency. The integration of modern technologies such as electrohydraulic systems and IoT devices further enhances the capabilities of hydraulic systems, making them more efficient, reliable, and cost-effective.
A hydraulic flow reducer's primary function is to control the flow rate of hydraulic fluid, thereby regulating the speed of hydraulic actuators such as cylinders and motors.
Pressure-compensated flow control valves maintain a constant flow rate despite changes in system pressure by using a spring-loaded compensator spool that adjusts to pressure changes.
Common types include throttle valves, meter-in and meter-out valves, and flow dividers. Each type serves specific purposes in controlling fluid flow.
Hydraulic flow reducers are crucial in heavy machinery for controlling the speed of hydraulic cylinders and motors, ensuring efficient and safe operation.
Flow dividers operate by splitting the flow from one source into multiple paths at a set ratio, ensuring balanced fluid distribution across multiple actuators without requiring pilot signals.
