Hydraulic motors play a crucial role in numerous machines, converting fluid power into mechanical energy to drive external loads. These motors are essential components in equipment that requires consistent speed variations and either slow or rapid rotary movement, delivering substantial power for various applications. This article provides an in-depth look at how hydraulic gear motors function, their key components, diverse applications, and comparisons with other motor types.
Hydraulic motors act as mechanical actuators, transforming fluid power into the mechanical energy necessary to power machinery.The driving force behind all hydraulic operations is fluid power. Hydraulic motors utilize pressurized fluids from a hydraulic pump to create force, resulting in angular displacement and torque. As fluid flows into the hydraulic motor, it exerts pressure on the motor's gears, vanes, or pistons, causing the output shaft to rotate.This rotating shaft harnesses flow and hydraulic pressure to generate rotational torque, which in turn produces the power and force required to move external loads. The cycle then repeats continuously. The operational speed of a hydraulic motor is determined by the volume of oil and the pressure supplied by the pump.
Several types of hydraulic motors are available, each suited to specific applications:
- Gear Motors: Known for their simplicity and durability, gear motors are commonly used. They consist of two meshing gears within a housing. Hydraulic fluid entering the motor causes the gears to rotate, converting hydraulic pressure into mechanical rotation.
- Vane Motors: These motors typically have a displacement volume between 9 cc/rev and 214 cc/rev, with a maximum pressure of 230 bar. Their speeds range from 100 to 2,500 rpm.

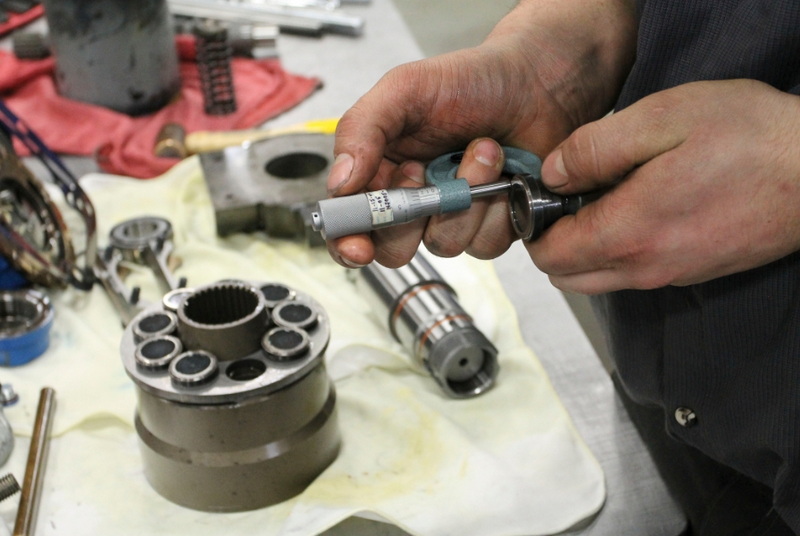

- Piston Motors: SMA piston motors, for example, use five pistons carried radially in a cylinder block mounted on the driveshaft.. Hydraulic fluid under pressure is fed to each piston, and combined with an offset driveshaft, this creates a turning movement that drives the application.
Gear motors consist of three primary parts:
- Driven Gear: Attached to the output shaft, the driven gear generates motion from hydraulic fluid pressure, which is then transferred to the idler gear. It is responsible for transmitting rotational motion between the two gears.
- Idler Gear: This stationary gear is not attached to the output shaft and serves only as a guide. Its teeth interlock with the driven gear, causing it to rotate.
- Output Shaft: As pressure builds, the driven gear's motion is initiated, and the torque created by the driven gear is transferred through the output shaft.
External gear motors feature a pair of matched gears enclosed in a housing. Both gears have identical tooth forms and are driven by pressure fluid. One gear connects to an output shaft, while the other acts as an idler. When pressure fluid enters the housing where the gears mesh, it forces the gears to rotate, following the path of least resistance around the housing's periphery. The fluid exits at low pressure on the opposite side of the motor. Close tolerances between the gears and housing minimize fluid leakage and increase volumetric efficiency. Wear plates on the sides of the gears prevent axial movement and further control leakage.

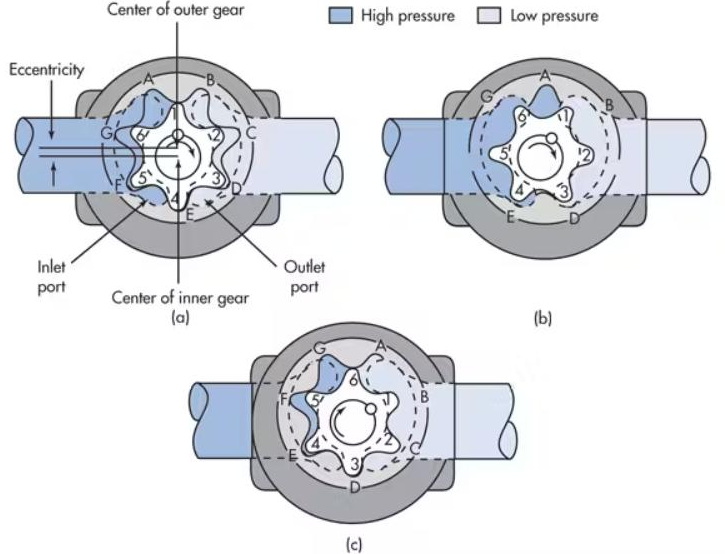

Internal gear motors operate based on an internal gear (rotor) rotating within a fixed external gear (stator). These motors are fitted with teeth. Pressure fluid enters the motor through the inlet port. Due to the inner gear having one fewer tooth than the outer gear, a pocket forms between the inner teeth and outer socket. The kidney-shaped inlet port is designed to shut off fluid flow just as this pocket reaches its maximum volume, with the tips of the inner gear teeth providing a seal. As the gears continue to rotate, a new pocket forms, while the initial pocket moves opposite the kidney-shaped outlet port, steadily draining as its volume decreases. This gradual volume change provides smooth, uniform fluid flow with minimal pressure variation.
Gear motors are versatile and find applications across various sectors:
- Agriculture: Used in agricultural equipment to power implements like seeders and harvesters.
- Construction: Employed in construction machinery such as concrete mixers and compactors.
- Material Handling: Utilized in conveyor systems and other equipment requiring consistent power delivery.
- Road Making Machinery
- Mining Machines
- Food Industry Machinery
- Special Vehicles
Hydraulic motors offer several advantages:
- High Torque: They can generate significant torque, making them suitable for demanding applications.
- Durability: Hydraulic motors are rugged and built to withstand harsh environments.
- Compact Size: Despite their power, they come in compact sizes.
- Efficiency: Gear motors can operate under high-pressure conditions while maintaining efficiency.
- Maintainability: They are relatively easy to maintain and repair, reducing downtime.
- Noise: Some gear motors can be noisy.
- Operating Pressure: Gear motors typically operate at low pressures, although modern versions can handle higher pressures.
| Feature | Hydraulic Motor | Electric Motor |
|---|---|---|
| Instant Stop | Can be stopped instantly | Cannot be stopped instantly due to air gap and weak magnetic field |
| Reverse Rotation | Direction of rotation can be reversed instantly | Direction of rotation cannot be reversed instantly due to air gap and weak magnetic field |
| Power Transmission | Suitable for power transmission to remote areas | Less suitable for remote power transmission |
| Speed Control | Offers infinitely variable speed control | Speed control may require additional components |
| Overload Protection | Provides self-overload protection | Requires additional protection mechanisms |
| Dynamic Braking | Capable of dynamic braking | May require additional braking systems |
| Power-to-Weight Ratio | High power-to-weight ratio | Can be lower compared to hydraulic motors |
| Environmental Considerations | Requires proper handling of hydraulic fluids to prevent leaks | Generally cleaner operation but electricity generation may have environmental impacts |
When selecting a hydraulic motor, consider the following factors:
- Performance: Choose a motor type that matches the expected overall performance requirements.
- Speed: Determine the required speed (N) in revolutions per second using the formula:
N=q/D×nv
Where:
q = hydraulic fluid flow (in l/min
D = displacement (in cm³/rev)
nv = volumetric efficiency
- Output Torque: Calculate the necessary output torque (M) in Newton-meters using the formula:
M=Δp×nm
Where:
-Δp = differential pressure (bar)
-nm= mechanical efficiency
- Output Power: Determine the required output power (P) in kilowatts.
Hydraulic gear motors can be supplied with integrated relief valves and anti-cavitation valves to suit a wide range of applications. These valves enhance the motor's reliability and protect it from damage due to overpressure or cavitation.
The materials used in the construction of hydraulic gear motors ensure suitability for various fluids and environments. Modern designs incorporate cast iron for high-pressure applications, optimal performance, and endurance.Special shaft seals are used to allow the motors to withstand extreme over-pressures without damage or failure.
Hydrostatic transmissions convert mechanical power into fluid power and then back into shaft power.These transmissions offer advantages such as power transmission to remote areas, infinitely variable speed control, self-overload protection, reverse rotation capability, dynamic braking, and a high power-to-weight ratio. They are used in material-handling equipment, farm tractors, railway locomotives, buses, lawn mowers, and machine tools.
Hydraulic gear motors are essential for converting fluid power into mechanical energy, which drives a wide array of machinery across diverse industries. Their simple yet robust design, coupled with the ability to deliver high torque and consistent performance, makes them indispensable in applications ranging from agriculture and construction to material handling and beyond. Understanding the different types of hydraulic motors, their components, and their specific advantages allows engineers and operators to select the most appropriate motor for their needs, ensuring efficiency, reliability, and optimal performance in their respective applications.
Hydraulic motors are mechanical actuators that convert fluid power into mechanical energy to power machines.They use pressurized fluids from a hydraulic pump to generate force, which turns the motor's gears, vanes, or pistons, rotating the output shaft and creating torque to move external loads.
The main types of hydraulic motors include gear motors, vane motors, and piston motors. Gear motors are known for their simplicity and durability, vane motors for their range of speeds, and piston motors for high power and shock resistance.
The key components of a gear motor include the driven gear, the idler gear, and the output shaft.The driven gear is attached to the output shaft and generates motion, the idler gear acts as a guide, and the output shaft transfers the torque created by the driven gear.
Hydraulic gear motors are commonly used in agriculture, construction, material handling, road making, mining, and the food industry. They power equipment like seeders, harvesters, concrete mixers, conveyor systems, and various types of machinery.
Advantages of hydraulic motors include high torque, durability, compact size, and self-overload protection. Disadvantages can include potential noise and the need for proper handling of hydraulic fluids.Compared to electric motors, hydraulic motors offer better power transmission to remote areas and infinitely variable speed control but may require more maintenance.
