Hydraulic motor mounts play a crucial role in securing the engine to the vehicle's frame while minimizing vibration and noise. These mounts combine a metal bracket with a hydraulic cylinder, using fluid to dampen vibrations and adjust to engine movement. This article delves into the workings, types, benefits, and maintenance of hydraulic motor mounts, providing a comprehensive understanding for automotive enthusiasts and professionals alike.
Hydraulic engine mounts are specialized components designed to secure the engine to the vehicle's frame. Unlike solid rubber mounts, hydraulic mounts incorporate a hydraulic cylinder filled with a special oil. This design allows the mount to absorb vibrations and shocks from the road, reducing their transmission to the rest of the vehicle. The fluid-filled cylinder also dampens engine vibrations, isolating them from the frame and enhancing ride comfort and reducing noise.

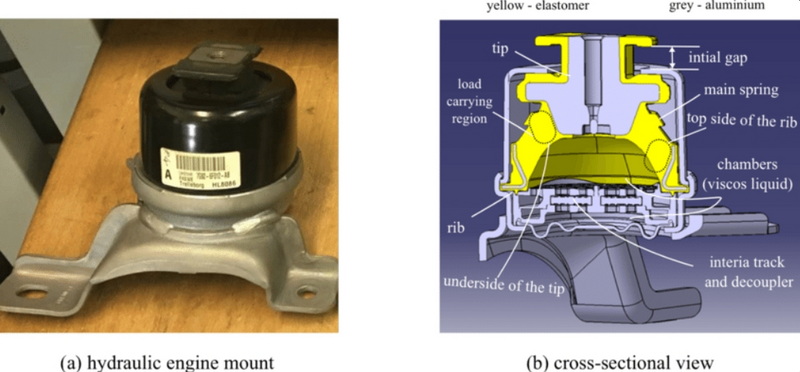

A hydraulic engine mount typically consists of the following parts:
- Metal Bracket:This attaches to the engine and provides a secure connection point.
- Hydraulic Cylinder:This attaches to the frame and contains the hydraulic fluid.
- Hydraulic Fluid: Usually a special oil, this fluid acts as a cushion, absorbing vibrations and shocks.
- Chambers: Hydraulic engine mounts include two fluid-filled chambers, which are connected by channels.
- Inertia Track (Damping Channel): This channel connects the two chambers and helps in dampening vibrations.
- Decoupler: A rigid plastic component that swings freely to adjust to different vibration frequencies.
The primary function of hydraulic engine mounts is to isolate the engine's vibrations from the vehicle's frame. Here's a detailed breakdown of their operation:
1. Vibration Absorption:
When the engine vibrates, the hydraulic fluid inside the cylinder moves, changing the pressure on the mount. This movement absorbs much of the vibration energy, preventing it from reaching the frame.
2. Frequency Dependence:
Effective mounts must be frequency dependent, meaning they are stiff and highly damped in the low-frequency range (e.g., during hard acceleration or driving on rough surfaces) and soft and light in the high-frequency range (e.g., from engine firing pulses).
3. Tuning:
Hydraulic engine mounts can be finely tuned to provide optimal vibration dampening without allowing excessive engine movement.
4. Adjustment to Engine Movement:
The hydraulic cylinder adjusts to the engine's movement, providing better isolation and improving overall engine performance by reducing vibrations.
Several variations of hydraulic motor mounts cater to different vehicle requirements:
- Passive Hydraulic Mounts: These are basic hydraulic mounts that use fluid-filled chambers to dampen vibrations.
- Active Hydraulic Mounts: Often vacuum-controlled, these mounts respond to changes in RPM, providing more dynamic vibration control. Active mounts typically include a diaphragm that separates an oily half from a vacuum side, controlling the amount of vacuum pressure applied.
- Semi-Active Hydraulic Mounts: These mounts use electronically controlled valves to adjust the flow of hydraulic fluid, optimizing damping characteristics based on driving conditions.
Hydraulic engine mounts offer several benefits over traditional rubber mounts:
- Improved Vibration Damping: They significantly reduce the transmission of vibrations to the vehicle's frame, enhancing ride comfort.
- Noise Reduction: By isolating engine vibrations, they minimize noise inside the vehicle.
- Durability: Hydraulic engine mounts generally offer improved durability compared to rubber mounts.
- Adjustability: They can adjust to the engine's movement, providing better isolation and improving engine performance.
| Mount Type | Material | Vibration Damping | Adjustability | Cost | Durability |
|---|---|---|---|---|---|
| Hydraulic | Rubber, Hydraulic Fluid | Excellent | Yes | High | Moderate |
| Rubber | Solid Rubber | Good | No | Moderate | High |
| Metal | Metal | Poor | No | Low | High |
| Active (Advanced) | Various | Excellent | Yes | Very High | Moderate |
Hydraulic motor mounts are used in a variety of vehicles to improve ride quality and reduce noise. Common applications include:
- Passenger Cars: Enhancing comfort by minimizing engine vibration.
- Trucks and SUVs: Providing robust support and vibration isolation for larger engines.
- High-Performance Vehicles: Optimizing engine performance by reducing unwanted movement and vibration.
Like all vehicle components, hydraulic engine mounts can wear out over time. Recognizing the signs of wear is crucial for timely replacement:
- Cracks or Corrosion: Physical damage to the mount is a clear indicator of wear.
- Excessive Engine Vibration: Increased vibration felt in the cabin may indicate mount failure.
- Lurching Motion: A noticeable lurch when accelerating or jolting while driving can signal worn engine mounts.
- Fluid Leaks: Leaking hydraulic fluid is a definitive sign of a damaged hydraulic mount.
Replacing hydraulic engine mounts typically involves the following steps:
1. Preparation: Gather necessary tools, including wrenches, sockets, and a jack.
2. Safety: Ensure the vehicle is properly supported and the engine is cool.
3. Removal: Disconnect any electrical connections and remove any components obstructing access to the mount.
4. Extraction: Unbolt and remove the old engine mount.
5. Installation: Install the new engine mount, ensuring all bolts are tightened to the manufacturer's specifications.
6. Reassembly:Reconnect any electrical connections and reinstall any removed components.
Regular inspection of engine mounts can help identify potential issues early. Check for signs of wear, such as cracks, leaks, or corrosion, during routine maintenance.
Hydraulic engine mounts are generally more expensive than rubber engine mounts. The cost varies depending on the vehicle make and model, as well as the brand and quality of the mount. However, the improved performance and durability of hydraulic mounts often justify the higher cost.
When working with hydraulic motor mounts, consider the following safety precautions:
- Wear Protective Gear: Always wear safety glasses and gloves to protect against oil spills and other hazards.
- Secure the Vehicle: Ensure the vehicle is properly supported on jack stands before beginning any work.
- Follow Manufacturer Instructions: Adhere to the manufacturer's guidelines for installation and maintenance.
- Check for Damage: Inspect all components for wear or damage before installation.
- Proper Fastening: Ensure all components are securely fastened before operating the vehicle.
Beyond the common signs of wear, advanced diagnostics can help pinpoint issues with hydraulic motor mounts. Modern vehicles equipped with diagnostic systems can sometimes provide error codes related to engine performance or vibration, which may indicate a problem with the mounts.
- Using OBD-II Scanners: An OBD-II scanner can read diagnostic trouble codes (DTCs) stored in the vehicle's computer. While there aren't specific codes for mount failure, codes related to engine misfires, crankshaft position, or idle speed can suggest excessive engine movement due to worn mounts.
- Vibration Analysis: Professional mechanics can use vibration analysis tools to measure the frequency and amplitude of engine vibrations. This can help differentiate between mount issues and other potential causes, such as worn belts or unbalanced tires.
- Visual Inspection Techniques: A thorough visual inspection under good lighting can reveal subtle cracks, leaks, or deformations in the mount. Using a small mirror and flashlight can help inspect hard-to-reach areas.
For enthusiasts looking to enhance the performance and durability of their vehicle's engine mounts, several aftermarket options are available:
- Upgraded Hydraulic Mounts: Some manufacturers offer upgraded hydraulic mounts with improved materials and damping characteristics. These mounts can provide even better vibration isolation and engine control.
- Polyurethane Mounts: While not hydraulic, polyurethane mounts offer a stiffer alternative to rubber mounts. They provide increased engine stability and reduced movement, which can be beneficial for performance vehicles. However, they may transmit more vibration to the cabin compared to hydraulic mounts.
- Hybrid Mounts: These mounts combine elements of hydraulic and polyurethane designs, offering a balance of vibration damping and engine stability.
Proper disposal of used hydraulic engine mounts is essential to minimize environmental impact. Hydraulic fluid can be harmful to the environment if it leaks into the soil or water.
- Recycling: Some auto parts stores and recycling centers accept used engine mounts for recycling. The metal components can be recycled, reducing the demand for new materials.
- Proper Disposal of Hydraulic Fluid: Ensure that any hydraulic fluid is properly drained and disposed of according to local regulations. Never pour hydraulic fluid down the drain or onto the ground.
- Choosing Environmentally Friendly Products: When replacing engine mounts, consider choosing products made from recycled materials or manufactured using environmentally friendly processes.
In modern vehicles with adaptive suspension systems, hydraulic motor mounts can work in conjunction with the suspension to provide a smoother and more controlled ride.
- Coordinated Damping: The vehicle's computer can adjust the damping characteristics of both the suspension and the engine mounts to optimize ride comfort and handling.
- Real-Time Adjustments: Sensors monitor road conditions and vehicle dynamics, allowing the system to make real-time adjustments to the damping settings of the engine mounts.
- Enhanced Stability: By coordinating the damping of the engine mounts and suspension, the system can minimize body roll and improve stability during cornering and braking.
To illustrate the effectiveness of hydraulic motor mounts, consider the following case studies:
- Luxury Sedan: A luxury sedan equipped with hydraulic motor mounts experienced a significant reduction in engine vibration and noise compared to a similar model with traditional rubber mounts. The improved ride comfort contributed to a more enjoyable driving experience.
- Performance Vehicle: A performance vehicle fitted with upgraded hydraulic mounts demonstrated improved engine stability during hard acceleration and cornering. The reduced engine movement resulted in better throttle response and handling.
- Truck/SUV: An SUV experiencing excessive vibration due to worn engine mounts had new hydraulic mounts installed. This resulted in a noticeable improvement in ride quality and a reduction in cabin noise, enhancing the vehicle's overall usability.
The field of engine mount technology is continuously evolving, with ongoing research and development focused on improving performance, durability, and environmental friendliness.
- Smart Mounts: Future engine mounts may incorporate advanced sensors and actuators, allowing them to actively adapt to changing driving conditions.
- Self-Healing Materials: Research is being conducted on self-healing materials that can repair minor damage to engine mounts, extending their lifespan.
- Sustainable Materials: Efforts are underway to develop engine mounts made from sustainable and renewable materials, reducing their environmental impact.
Hydraulic motor mounts are essential for maintaining vehicle comfort and performance by effectively isolating engine vibrations. Their design, which incorporates fluid-filled chambers, allows for superior damping and adjustability compared to traditional rubber mounts. While they may be more expensive, the benefits of improved ride quality, reduced noise, and enhanced durability make them a worthwhile investment for many vehicle owners. Regular inspection and timely replacement of worn mounts are crucial for ensuring optimal vehicle performance and safety. Additionally, understanding advanced diagnostics, aftermarket options, and environmental considerations can further enhance the value and sustainability of these critical components.
Hydraulic engine mounts secure the engine to the vehicle's frame and minimize vibration and noise. They use hydraulic fluid to dampen vibrations and adjust to engine movement, providing a smoother and quieter ride.
Signs of a bad hydraulic engine mount include excessive engine vibration, cracks or corrosion on the mount, a lurching motion when accelerating, and fluid leaks.
Hydraulic engine mounts generally offer better vibration damping and adjustability compared to rubber mounts. However, they are typically more expensive and may not be as durable as solid rubber mounts.
Replacing a hydraulic engine mount can be done by a DIYer, but it requires mechanical knowledge and the right tools. If you're not comfortable doing it yourself, it's best to take your vehicle to a professional mechanic.
The cost of hydraulic engine mounts varies depending on the vehicle make and model, as well as the brand and quality of the mount. They are generally more expensive than rubber engine mounts.
