Hydraulic rotary actuators are critical components in modern industrial systems, providing precise rotational motion and high torque in compact designs. This article delves into their mechanics, applications, innovations, and future trends, supported by diagrams, videos, and case studies.

1. Introduction to Hydraulic Rotary Actuators

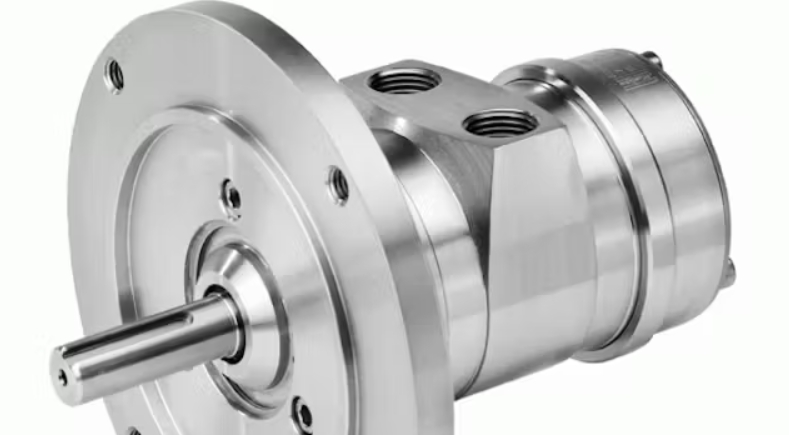

Hydraulic rotary actuators convert pressurized fluid energy into controlled rotational motion. Their ability to deliver high torque in confined spaces makes them indispensable in industries like robotics, aerospace, and heavy machinery. Unlike electric or pneumatic actuators, they excel in high-load, high-precision environments.

2. Basic Working Principle

The core mechanism involves converting linear piston motion into rotation via helical splines, rack-and-pinion systems, or vanes:

1. Hydraulic Pressure Input: Fluid enters the actuator chamber.

2. Piston Movement: Pressure drives the piston linearly.

3. Motion Conversion: Helical gears or racks transform linear motion into shaft rotation.

4. Output Control: Fluid flow adjustments regulate speed and direction.

3. Internal Mechanisms and Key Components

- Housing: Durable casing for internal components.

- Piston and Shaft: Converts fluid pressure to rotation.

- Helical Splines/Racks: Critical for motion conversion.

- Seals and Bearings: Prevent leaks and reduce friction.

4. Types of Hydraulic Rotary Actuators

Type	Rotation Range	Torque Capacity	Use Case
Helical Spline	90°–720°+	Very High	Heavy machinery
Rack-and-Pinion	90°–360°	Moderate	Valve automation
Vane	90°–280°	Low-Moderate	Compact systems

5. Advanced Applications Across Industries

Robotics and Automation

- Robotic Arms: Hydraulic actuators enable precise movement in assembly lines, such as welding and material handling.

- Surgical Robots: Used in minimally invasive surgery for smooth, tremor-free instrument control.

Aerospace

- Flap and Rudder Control: Ensure reliable adjustment of aircraft control surfaces under extreme conditions.

- Landing Gear Systems: Provide robust actuation for gear deployment/retraction.

Automotive Manufacturing

- Case Study: A leading automotive plant uses helical spline actuators to position chassis components with ±0.1° accuracy, reducing assembly errors by 30%.

Marine and Offshore

- Hatch Control: Waterproof actuators operate ship cargo doors and hatches in corrosive environments.

6. Innovations in Hydraulic Rotary Actuator Technology

Smart Hydraulic Actuators

- IoT Integration: Sensors monitor pressure, temperature, and wear, transmitting data to predictive maintenance systems.

- Energy-Efficient Designs: Variable displacement pumps reduce energy consumption by 25% in smart factories.

Hybrid Systems

- Electro-Hydraulic Actuators: Combine electric control with hydraulic power for precision and efficiency.

7. Advantages and Limitations

Advantages

- Torque densities up to 10x higher than electric actuators.

- Superior durability in high-vibration environments.

Limitations

- Higher maintenance costs compared to electric systems.

Comparison with Electric and Pneumatic Actuators

Feature	Hydraulic	Electric	Pneumatic
Torque	High	Moderate	Low
Precision	High	Very High	Moderate
Maintenance	Frequent	Low	Moderate
Cost	High	Moderate	Low

8. Maintenance and Troubleshooting

Predictive Maintenance Tools

- Vibration Analysis: Detects bearing wear early.

- Fluid Contamination Sensors: Alert users to particulate levels exceeding ISO 4406 standards.

9. Future Trends and Market Outlook

- 2025 Trends: Growth in IoT-enabled actuators (projected 8.2% CAGR).

- Smart Factories: Actuators with embedded AI for self-optimizing systems.

- Sustainability: Bio-degradable hydraulic fluids and recyclable materials.

Conclusion

Hydraulic rotary actuators remain vital for high-torque, precision applications. Innovations in IoT, energy efficiency, and hybrid systems will solidify their role in automation and heavy industries.

FAQ: Top 5 Questions

1. Can hydraulic actuators be used in explosive environments?

Yes, explosion-proof designs with sealed housings are available for oil and gas applications.

2. How do IoT-enabled actuators improve performance?

Real-time data analytics optimize maintenance schedules and reduce downtime by 40%.

3. What is the lifespan of a hydraulic rotary actuator?

With proper maintenance, 10–15 years, depending on load cycles.

4. Are hydraulic actuators suitable for cleanrooms?

No—fluid leaks risk contamination; electric actuators are preferred.

5. How do hybrid electro-hydraulic systems work?

Electric motors control hydraulic pumps, balancing precision and power.
