Hydraulic rotation motors are essential components in many industrial and mobile applications, converting hydraulic energy into mechanical motion. These devices are widely used in construction, agriculture, manufacturing, and other industries to power machinery that requires rotational movement. In this article, we will explore the working principles, key components, types, applications, and maintenance of hydraulic rotation motors. To aid understanding, we've included diagrams and video references where applicable.
Hydraulic systems are a cornerstone of modern engineering, enabling the efficient transfer of power through pressurized fluids. Among the many components of these systems, hydraulic rotation motors stand out for their ability to generate rotary motion and torque. Whether it's powering an excavator arm or driving an industrial conveyor belt, hydraulic motors are indispensable in countless applications.
This article provides a detailed look at how hydraulic rotation motors work, their design features, and their practical uses across industries.

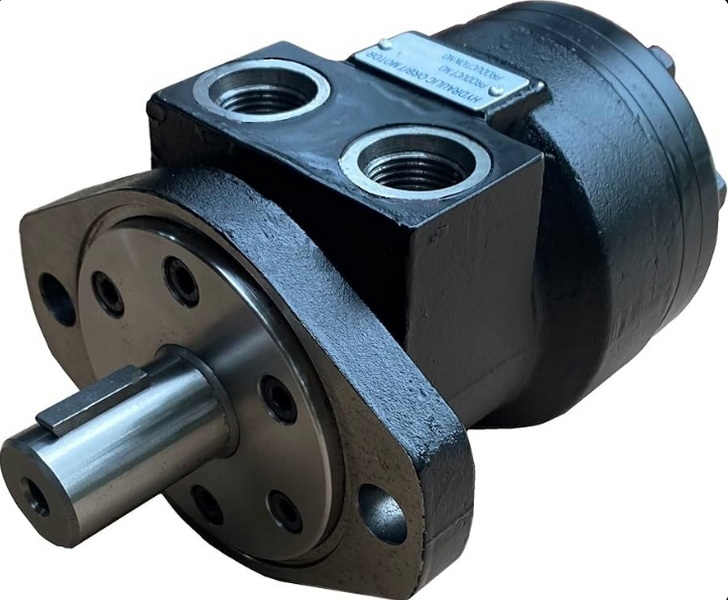

A hydraulic rotation motor is a mechanical actuator that transforms hydraulic energy into continuous rotary motion or torque. It operates by using pressurized fluid to drive internal components such as gears, vanes, or pistons. The resulting rotational motion can be used to power machinery or perform specific tasks.
- Converts fluid power into rotary mechanical energy.
- Capable of producing high torque at low speeds.
- Operates under high-pressure conditions.
- Offers precise control over speed and direction.
Hydraulic rotation motors are an integral part of hydraulic systems and are often paired with pumps to create a complete power transmission system.
The operation of a hydraulic rotation motor can be broken down into several steps:
1. Pressurization of Fluid: A hydraulic pump pressurizes the fluid (usually oil) and directs it into the motor.
2. Energy Transfer: The pressurized fluid interacts with internal components like pistons, vanes, or gears inside the motor.
3. Torque Generation: The interaction between the fluid and these components generates torque on the motor's output shaft.
4. Rotational Motion: The output shaft rotates continuously as long as pressurized fluid flows through the motor.
5. Return Flow: After transferring energy to the motor, the fluid returns to the reservoir via a return line.
The efficiency of this process depends on factors such as fluid pressure, flow rate, and the design of the motor itself.
Hydraulic motors consist of several key components that work together to convert hydraulic energy into mechanical motion:
| Component | Function |
|---|---|
| Reservoir | Stores hydraulic fluid for circulation in the system. |
| Pump | Pressurizes the fluid and directs it toward the motor. |
| Valves | Regulate fluid flow and control direction within the system. |
| Pistons/Gears/Vanes | Internal mechanisms that interact with pressurized fluid to produce motion. |
| Output Shaft | Transfers rotational motion to drive external loads or machinery. |
| Seals | Prevent leakage and maintain pressure within the system. |
Each component plays a critical role in ensuring efficient operation and durability under demanding conditions.
Hydraulic motors come in various designs tailored to specific applications:
Gear motors use meshing gears to convert hydraulic pressure into rotary motion. They are compact, simple in design, and suitable for low-speed applications.
- Advantages: Low cost, easy maintenance.
- Disadvantages: Lower efficiency compared to other types.
Vane motors feature vanes mounted on a rotor that move radially against a cam ring as pressurized fluid flows through them.
- Advantages: Smooth operation at varying speeds.
- Disadvantages: Sensitive to contamination in hydraulic fluid.

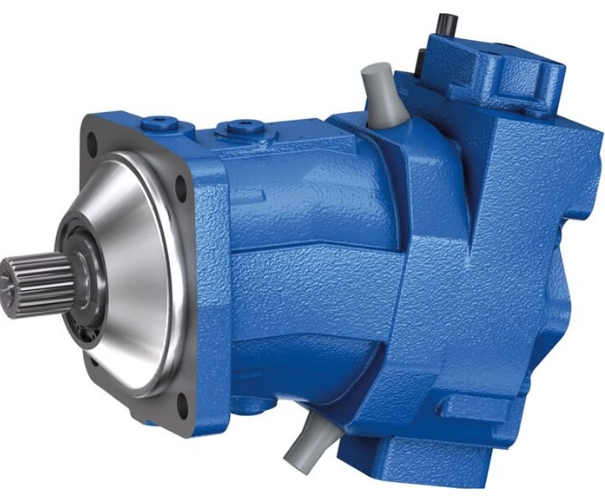

Piston motors use pistons arranged radially or axially to generate torque by interacting with pressurized fluid.
- Advantages: High efficiency and torque output.
- Disadvantages: Higher cost and complex design.
Choosing the right type depends on factors like required speed, torque output, and operating conditions.
Hydraulic rotation motors are versatile devices used across numerous industries:
Hydraulic motors power excavators, cranes, loaders, and other heavy machinery for tasks like lifting, digging, and rotating arms or buckets.
In factories, hydraulic motors drive conveyor belts, mixers, presses, and cutting machines with precision and reliability.
Farm equipment such as harvesters and irrigation systems rely on hydraulic motors for efficient operation in demanding environments.
On ships and boats, hydraulic motors are used in steering systems, winches for lifting heavy loads, and propulsion systems for auxiliary equipment.
Hydraulic power steering systems in vehicles use small hydraulic motors to assist drivers by reducing steering effort.
Understanding both the benefits and drawbacks of hydraulic rotation motors helps in selecting the right one for your application:
- High torque output at low speeds.
- Compact design compared to electric counterparts.
- Reliable performance under high-pressure conditions.
- Smooth operation with precise control over speed and direction.
- Requires regular maintenance to prevent leaks or contamination.
- Sensitive to temperature changes that can affect fluid viscosity.
- Higher initial cost compared to some alternatives like electric motors.
To ensure optimal performance and longevity of your hydraulic rotation motor:
1. Inspect Regularly: Check for leaks around seals or connections.
2. Clean Filters: Replace or clean filters periodically to prevent contamination from damaging internal components.
3. Monitor Fluid Levels: Ensure adequate levels of clean hydraulic fluid in the reservoir.
4. Check Operating Pressure: Avoid exceeding recommended pressure limits to prevent damage.
5. Lubricate Components: Proper lubrication reduces wear on moving parts.
By following these maintenance practices, you can minimize downtime and extend the lifespan of your equipment.
Hydraulic rotation motors are indispensable tools in modern engineering applications due to their ability to efficiently convert hydraulic energy into rotary motion. With various designs like gear motors, vane motors, and piston motors available on the market today, they cater to diverse industrial needs ranging from construction equipment to marine applications.
Understanding how these devices work—and maintaining them properly—ensures reliable performance across demanding environments while maximizing their operational lifespan.
A hydraulic rotation motor converts pressurized hydraulic fluid into rotary motion or torque for driving machinery or performing tasks requiring rotational movement.
The three main types are gear motors (simple design), vane motors (smooth operation), and piston motors (high efficiency).
Higher fluid pressure increases torque output but requires robust components capable of handling stress without failure.
They are widely used in construction (excavators), industrial machinery (presses), agriculture (harvesters), marine systems (winches), and automotive power steering systems.
Regular inspections for leaks or wear-and-tear; cleaning filters; monitoring fluid levels; ensuring proper lubrication; checking operating pressures—all contribute significantly toward maintaining optimal performance.
