Hydraulic track motors are critical components in various tracked vehicles, including excavators, bulldozers, and other heavy machinery. These motors convert hydraulic energy into mechanical energy to drive the tracks, enabling movement and operation in rugged terrains. This article explores the working principles, types, components, and applications of hydraulic track motors with detailed explanations supported by diagrams and videos.
Hydraulic track motors are essential in modern heavy machinery for their efficiency, durability, and ability to handle high torque at low speeds. These motors are widely used in industries such as construction, mining, agriculture, and forestry due to their compact design and high power density.
Tracked vehicles rely on hydraulic track motors to navigate challenging terrains where traditional wheeled vehicles might fail. Whether moving across muddy fields or climbing rocky slopes, these motors provide the power and precision needed for reliable operation.
At their core, hydraulic track motors operate based on the principles of fluid dynamics. They use pressurized hydraulic fluid to generate rotational motion. Here's how it works:
1. Fluid Flow: Pressurized hydraulic fluid enters the motor through an inlet port.
2. Force Generation: The fluid applies pressure on pistons or gears within the motor.
3. Torque Production: The force generated by the fluid is converted into torque by mechanical components like pistons or gears.
4. Output Motion: The torque is transmitted to a drive shaft, which powers the tracks of the vehicle.
The direction and speed of rotation can be controlled by adjusting the flow and pressure of the hydraulic fluid using control valves or advanced electronic systems.
Hydraulic track motors consist of several critical components that work together to ensure efficient operation:
| Component | Function |
|---|---|
| Inlet/Outlet Ports | Channels for hydraulic fluid to enter and exit the motor. |
| Pistons or Gears | Convert hydraulic pressure into mechanical motion. |
| Swash Plate | Adjusts piston movement for variable displacement motors. |
| Drive Shaft | Transfers torque to the tracks or wheels of the vehicle. |
| Control Valves | Regulate fluid flow and pressure for speed and direction control. |
| Housing | Encloses internal components to protect them from external damage. |
- Bearings: Reduce friction between moving parts.
- Seals: Prevent leakage of hydraulic fluid.
- Cooling Systems: Dissipate heat generated during operation.
There are several types of hydraulic track motors, each suited for specific applications:

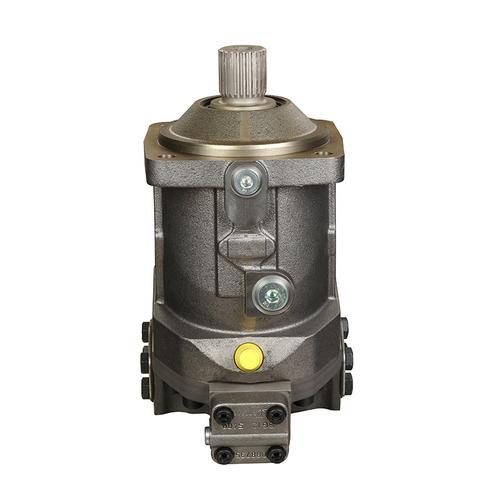

- Use pistons arranged parallel to the drive shaft.
- Offer high efficiency and variable displacement options.
- Commonly used in excavators and cranes due to their ability to handle high loads.
- Feature pistons arranged radially around a central axis.
- Provide high torque at low speeds.
- Ideal for heavy-duty applications like mining equipment where slow but powerful movement is required.

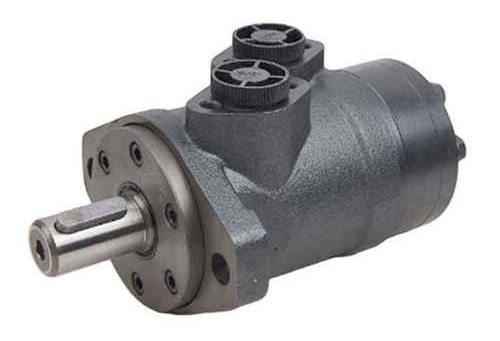

- Compact design with high torque output.
- Suitable for small machinery like skid steers or compact loaders.
- Known for their simple construction and reliability in light-duty applications.
- Use interlocking gears to convert hydraulic energy into rotational motion.
- Simple design but less efficient than piston motors.
- Often used in applications where cost-effectiveness is prioritized over performance.
| Type | Efficiency | Torque Output | Application Example |
|---|---|---|---|
| Axial Piston | High | Moderate | Excavators |
| Radial Piston | Moderate | High | Mining Equipment |
| Orbital | Moderate | High | Skid Steers |
| Gear | Low | Low | Light-Duty Industrial Tasks |
Hydraulic track motors are versatile and find use in various industries:
In construction, these motors power excavators, bulldozers, loaders, and trenchers. Their ability to operate in rough terrains makes them indispensable on construction sites.
Farm equipment like tractors and harvesters rely on hydraulic track motors for mobility across uneven fields.
Logging equipment uses these motors to navigate dense forests while carrying heavy loads.
Underground mining equipment benefits from the high torque provided by radial piston motors to move through confined spaces with heavy payloads.
In industrial settings, hydraulic track motors are used in conveyor systems, mobile platforms, and other heavy-duty applications requiring precise control and reliability.
1. High torque at low speeds enables heavy lifting and precise movements.
2. Compact design with high power density saves space in machinery.
3. Durable construction ensures long-term use in harsh environments.
4. Smooth operation with precise speed control enhances performance.
1. Requires regular maintenance to prevent leaks or contamination.
2. Initial cost can be higher compared to electric motors.
3. Sensitive to dirt or debris in hydraulic fluid, which can cause damage over time.
Proper maintenance is essential for ensuring the longevity and efficiency of hydraulic track motors:
1. Regular Inspections:Check for leaks, worn seals, or damaged components.
2. Hydraulic Fluid Quality: Use clean, high-quality hydraulic fluid recommended by the manufacturer.
3. Filter Replacement: Replace filters periodically to prevent contamination from entering the system.
4. Temperature Monitoring: Avoid overheating by ensuring proper cooling systems are functioning.
5. Follow Manufacturer Guidelines: Adhere strictly to maintenance schedules provided by the equipment manufacturer.
The future of hydraulic track motors is shaped by advancements in technology aimed at improving efficiency, sustainability, and ease of use:
- Smart sensors monitor performance metrics like temperature, pressure, and wear in real time.
- Predictive maintenance reduces downtime by identifying issues before they escalate.
- New materials and designs reduce energy losses within the system.
- Hybrid systems combine hydraulics with electric drives for better fuel economy.
- Development of biodegradable hydraulic fluids minimizes environmental impact.
- Miniaturization allows integration into smaller machinery without compromising performance.
- Electronic controls enable more precise adjustments in speed and direction.
Hydraulic track motors are indispensable in modern machinery due to their ability to provide reliable power in demanding conditions. Their efficiency, durability, and versatility make them a preferred choice across various industries such as construction, agriculture, forestry, mining, and industrial manufacturing.
As technology evolves, these motors will continue to improve in efficiency and functionality while adapting to new challenges such as sustainability requirements and digital integration.
A hydraulic track motor converts hydraulic energy into mechanical energy to drive tracked vehicles like excavators and bulldozers.
Variable displacement motors allow adjustment of fluid flow for speed control, while fixed displacement motors operate at a constant speed.
Regular maintenance includes checking for leaks, replacing worn seals, cleaning filters, monitoring temperature levels, and ensuring clean hydraulic fluid to prevent contamination.
Yes, they are designed with robust housing and seals to withstand harsh conditions like dirt, dust, moisture, extreme temperatures, or corrosive environments.
Industries such as construction (excavators), mining (underground loaders), agriculture (tractors), forestry (logging equipment), and industrial manufacturing benefit significantly from these motors due to their efficiency and reliability.
