Radial hydraulic motors are a cornerstone of modern hydraulic systems, playing a crucial role in converting hydraulic energy into mechanical energy. These motors are particularly valued for their ability to deliver high torque at low speeds, making them indispensable in various industrial and commercial applications. In this article, we will explore the working principles, components, applications, advantages, and limitations of radial hydraulic motors. To enhance understanding, we include diagrams and videos where possible.
Hydraulic systems rely on the interplay of pumps, valves, actuators, and motors to perform a wide range of tasks. Among these components, radial hydraulic motors stand out for their unique design and functionality. Unlike other motor types, radial hydraulic motors are specifically designed to handle high-torque applications with exceptional efficiency.
Radial hydraulic motors are commonly used in industries such as construction, agriculture, marine engineering, and industrial manufacturing. Their ability to operate under heavy loads and in demanding environments makes them highly reliable for critical operations.
To understand how a radial hydraulic motor works, it's essential to first examine its key components:

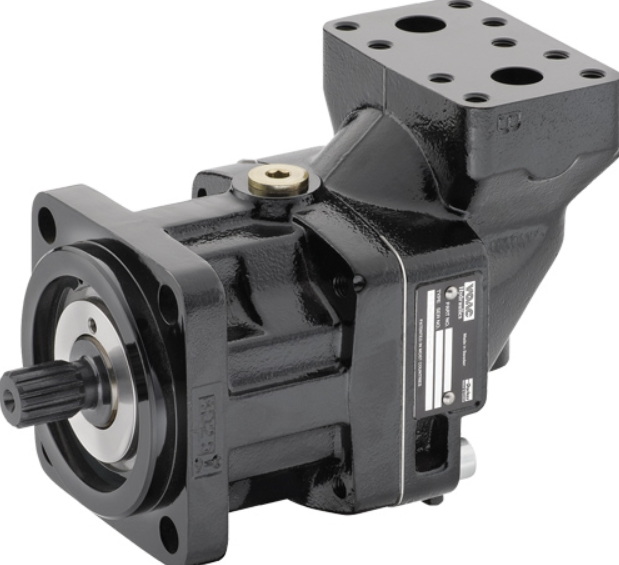

The housing encloses the motor's internal components and provides structural support. It is typically made from durable materials like cast iron or steel to withstand high pressures.
Pistons are the heart of the motor. They are arranged radially around the central camshaft and move in and out as hydraulic fluid flows into the motor.
The cam ring is a stationary or rotating component that interacts with the pistons. Its shape determines the movement of the pistons and plays a critical role in torque generation.
The valve plate regulates the flow of hydraulic fluid into and out of the pistons' chambers. It ensures that pressurized fluid is directed to the correct pistons at the right time.
The output shaft transfers the rotational motion generated by the pistons to external machinery or equipment.
The working principle of a radial hydraulic motor can be broken down into four main steps:
The process begins when pressurized hydraulic fluid enters the motor through an inlet port. The valve plate directs this fluid into specific piston chambers.
As pressurized fluid fills a piston chamber, it pushes the piston outward against the cam ring. This outward movement creates a force that contributes to torque generation.
When multiple pistons push against the cam ring simultaneously, they cause either the cylinder block or camshaft (depending on design) to rotate. This rotational motion is transmitted to the output shaft.
After completing their stroke, pistons return to their original position due to spring action or pressure from returning fluid. The cycle then repeats as new pressurized fluid enters.
Radial hydraulic motors are versatile devices used across various industries due to their robust design and high-performance capabilities:
In manufacturing plants, radial motors power conveyor belts, mixers, crushers, and other heavy machinery requiring consistent torque.
These motors are integral to excavators, cranes, drilling rigs, and other construction equipment that operate under heavy loads.
In marine engineering, radial motors are used in winches for lifting heavy loads as well as propulsion systems for boats and ships.
Farmers rely on radial motors for tasks such as powering harvesters, irrigation pumps, and other agricultural machinery.
Understanding both the strengths and weaknesses of radial hydraulic motors is crucial when deciding whether they are suitable for your application.
- High Torque Output: Radial motors excel at delivering high torque even at low speeds.
- Compact Design: Their compact size makes them ideal for space-constrained environments.
- Durability: Built with robust materials, they can handle heavy workloads over extended periods.
- Energy Efficiency: Minimal energy loss makes these motors highly efficient compared to other types.
- Bidirectional Operation: They can rotate in both clockwise and counterclockwise directions by reversing fluid flow.
- Higher Initial Cost: Radial motors tend to be more expensive than axial or gear-type motors.
- Complex Maintenance: Due to their intricate design, they require specialized knowledge for repairs.
- Limited Speed Range: While excellent at low speeds, they may not perform well in high-speed applications.
Proper maintenance ensures optimal performance and extends the lifespan of your radial hydraulic motor:
1. Regularly Inspect Seals: Check for leaks around seals and replace them if necessary.
2. Monitor Fluid Quality: Use clean hydraulic fluid with appropriate viscosity levels.
3. Clean Filters: Dirty filters can restrict fluid flow and reduce efficiency.
4. Check Operating Pressure: Ensure that pressure levels remain within recommended limits.
5. Lubricate Moving Parts: Proper lubrication minimizes wear on internal components.
Radial hydraulic motors are powerful devices designed for high-torque applications across various industries. Their unique design allows them to deliver exceptional performance under demanding conditions while maintaining energy efficiency. By understanding how these motors work and following proper maintenance practices, you can maximize their benefits in your operations.
Whether you're working in construction, agriculture, or industrial manufacturing, radial hydraulic motors offer reliability and versatility that few other motor types can match.
Here are some common questions about radial hydraulic motors:
Radial motors have pistons arranged radially around a central camshaft, while axial motors have pistons aligned parallel to the axis of rotation.
Yes! By reversing the flow of hydraulic fluid through the motor's inlet/outlet ports, radial motors can rotate in both clockwise and counterclockwise directions.
Routine maintenance includes inspecting seals for leaks, cleaning filters regularly, ensuring proper lubrication levels, and monitoring operating pressure.
Several factors influence efficiency:
- Fluid viscosity
- Operating temperature
- Pressure levels
- Wear on internal components
No—radial hydraulic motors are optimized for low-speed applications requiring high torque rather than high-speed operations.
