Hydraulic motors are essential components in various industrial and mechanical systems, offering the ability to convert hydraulic energy into mechanical motion. Among these, two-speed hydraulic motors stand out for their versatility and efficiency, enabling machines to operate at variable speeds and torque levels. This article provides an in-depth exploration of how two-speed hydraulic motors work, their components, applications, advantages, and more.

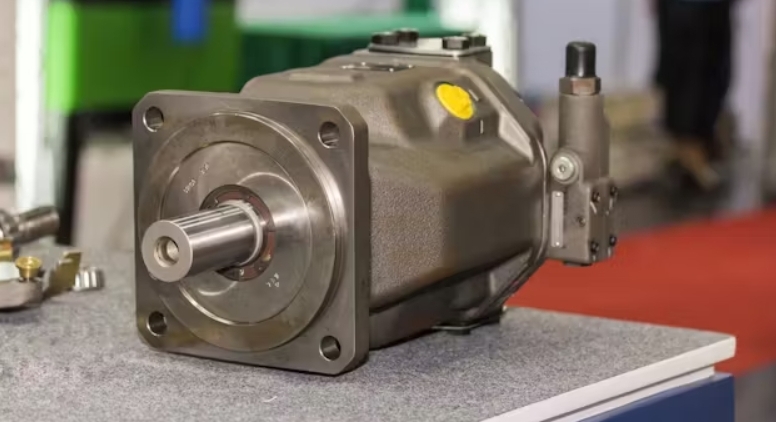

Hydraulic motors are mechanical actuators that transform hydraulic pressure and flow into torque and angular displacement (rotation). These motors are widely used in systems requiring high power density, precise control, and durability under demanding conditions. From construction equipment to industrial machinery, hydraulic motors play a pivotal role in powering modern industries.
A two-speed hydraulic motor is a specialized type of motor that can operate at two distinct speed and torque settings by altering its internal displacement or fluid flow path. This capability makes it highly adaptable for applications that require both high-speed movement and high-torque power.
- High-Speed, Low-Torque Mode: Used for applications requiring faster operation with less force.
- Low-Speed, High-Torque Mode: Ideal for tasks demanding greater force but slower movement.
This dual-mode operation is achieved through internal mechanisms that adjust the motor's displacement or redirect hydraulic fluid flow.
The functionality of a two-speed hydraulic motor relies on several key components:

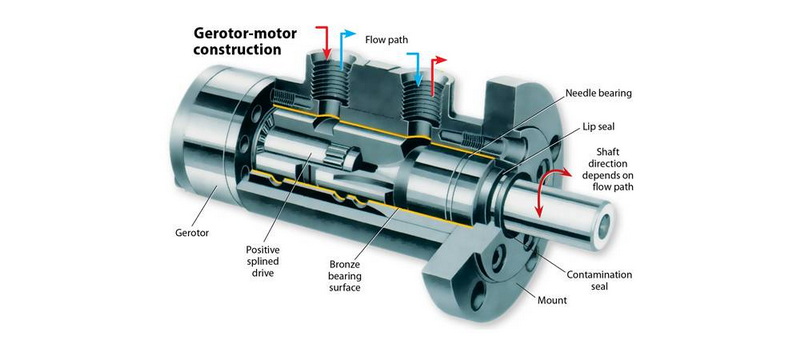

The rotor is the rotating element inside the stator, which remains stationary. Together, they create the mechanical motion necessary for torque generation.
This mechanism adjusts the motor's displacement to switch between high-speed and low-speed modes. It often involves pistons or vanes that alter the internal volume available for fluid.
The spool valve directs hydraulic fluid to specific chambers within the motor, enabling the transition between speed modes.
A sequence valve ensures smooth switching between modes by controlling the timing and flow of hydraulic fluid.
These ports allow pressurized fluid to enter and exit the motor, driving its operation.
The pilot pressure system provides the control input needed to activate the switching mechanism between speed modes.
The operation of a two-speed hydraulic motor can be broken down into three main phases:
In this mode:
- The motor operates with reduced displacement.
- Only a portion of the chambers within the motor is utilized for fluid flow, while others recirculate fluid internally.
- This configuration results in higher rotational speed but lower torque output.
In low-speed mode:
- The motor uses its full displacement capacity.
- All chambers are engaged with pressurized fluid, maximizing torque output while reducing speed.
- This mode is particularly useful for heavy-duty tasks like lifting or pushing heavy loads.
Switching between high-speed and low-speed modes is achieved through a spool valve or sequence valve:
- When pilot pressure is applied to the valve, it redirects hydraulic fluid to adjust displacement.
- Advanced systems incorporate "soft-shift" technology to ensure smooth transitions without abrupt changes or interruptions in operation.
Two-speed hydraulic motors are versatile and find applications in numerous industries where variable speed and torque are essential:
- Excavators: For digging operations requiring high torque at low speeds and fast movement at high speeds.
- Bulldozers: For pushing heavy materials with precision control over speed and force.
- Harvesters: For adjusting cutting speeds based on crop density.
- Tractors: For pulling heavy loads or operating implements like plows.
- Conveyor Belts: To adjust speed based on material flow requirements.
- Machine Tools: For precision machining tasks requiring variable speeds.
- Winches: For hauling loads with controlled speed and torque.
- Propulsion Systems: To adapt to varying water currents and load conditions.
- Hybrid Vehicle Drives: For efficient power delivery under varying driving conditions.
- Off-Road Vehicles: To navigate rough terrain with adjustable speed and torque settings.
1. Flexibility
- The ability to switch between speed modes allows for versatile operation across different tasks.
2. Energy Efficiency
- By adapting to load requirements, two-speed motors reduce energy consumption compared to single-speed alternatives.
3. Compact Design
- Eliminates the need for multiple motors or external gearboxes, saving space and reducing system complexity.
4. Cost Savings
- Reduces wear on components by operating efficiently under varying conditions.
5. Enhanced Productivity
- Faster cycle times in high-speed mode combined with powerful performance in low-speed mode improve overall productivity.
1. Complexity
- The additional components required for dual-mode operation make these motors more complex than single-speed models.
2. Higher Initial Cost
- The advanced design comes with a higher upfront cost compared to simpler alternatives.
3. Pressure Sensitivity
- Precise control of pilot pressure is necessary for smooth operation; improper settings can lead to performance issues.
4. Maintenance Requirements
- Regular maintenance is essential to ensure long-term reliability due to the increased number of moving parts.
To maximize the lifespan and efficiency of your two-speed hydraulic motor, follow these maintenance tips:
1. Regular Inspection
- Check for leaks, worn seals, or damaged components regularly.
2. Fluid Quality
- Use clean, high-quality hydraulic fluid with appropriate viscosity levels as recommended by the manufacturer.
3. Proper Filtration
- Ensure filters are clean and functional to prevent contaminants from entering the system.
4. Monitor Pilot Pressure
- Verify that pilot pressure settings are within recommended ranges for smooth switching between modes.
5. Lubrication
- Keep all moving parts properly lubricated to minimize friction and wear.
Two-speed hydraulic motors provide unmatched versatility in modern machinery by offering adjustable speed and torque settings tailored to specific tasks. Their innovative design not only enhances operational efficiency but also reduces costs by eliminating the need for multiple motors or gearboxes in complex systems.
By understanding their working principles, applications, advantages, and maintenance requirements, industries can harness their full potential to improve productivity while minimizing downtime.
Whether you're working with construction equipment, agricultural machinery, or industrial tools, a two-speed hydraulic motor can be a game-changer in optimizing performance across diverse scenarios.
A single-speed motor operates at a fixed speed and torque level, while a two-speed motor can switch between two distinct modes—high speed/low torque and low speed/high torque—offering greater flexibility for various applications.
Soft-shift technology ensures smooth transitions between speed modes by gradually ramping up pilot pressure during switching, preventing abrupt changes that could damage components or disrupt operations.
They are commonly used in construction equipment (e.g., excavators), agricultural machinery (e.g., tractors), marine systems (e.g., winches), industrial applications (e.g., conveyor belts), and automotive systems (e.g., hybrid vehicles).
Efficiency depends on factors such as fluid viscosity, mechanical design quality, volumetric efficiency (minimizing internal leakage), proper maintenance practices, and correct pilot pressure settings during operation.
Yes! Two-speed motors are designed to handle high pressures and temperatures but require proper sealing materials (e.g., Viton seals) and regular maintenance checks when used in extreme environments like offshore drilling rigs or desert climates.
