Vane air motors are a type of pneumatic motor that converts the energy of compressed air into mechanical motion. They are widely used in various industrial and commercial applications due to their reliability, efficiency, and explosion-proof characteristics. In this article, we will delve into the working principle, design, and features of vane air motors, along with illustrations and videos to enhance understanding.

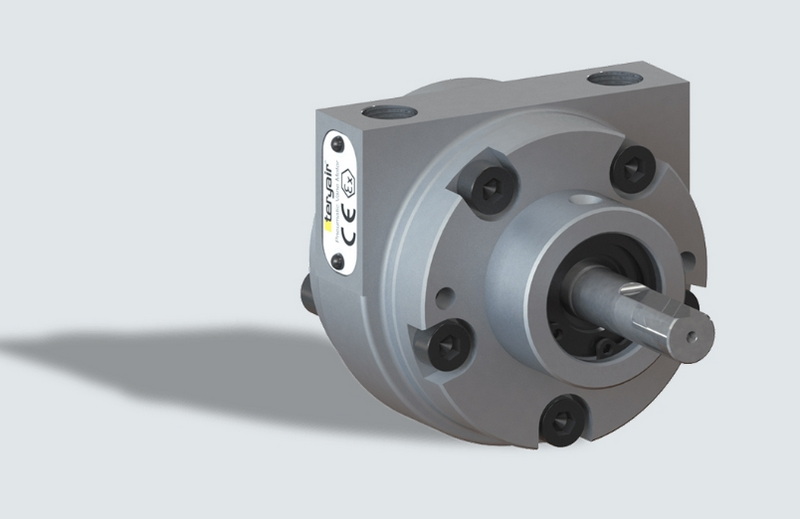

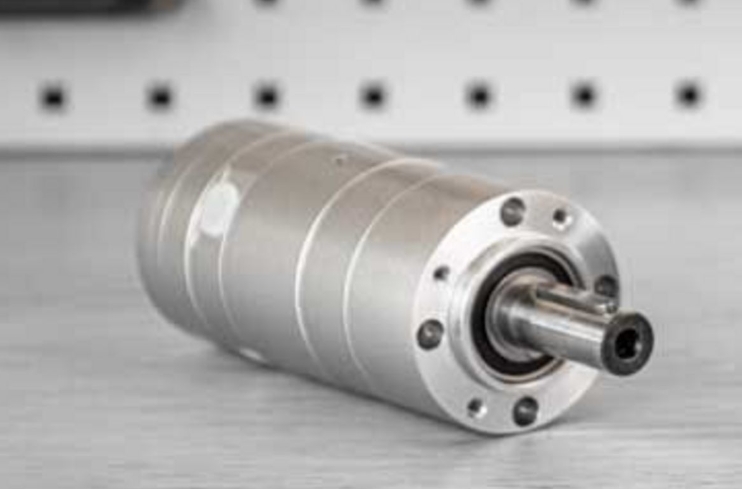

Vane air motors are designed to operate using compressed air as the power source. They consist of a housing, a rotor with vanes, inlet and outlet ports, and an output shaft. The motor works by utilizing the pressure of compressed air to drive the vanes, which in turn rotate the rotor and produce mechanical energy.
- Housing: The outer casing that encloses the motor components.
- Rotor: An eccentrically positioned shaft with slots for vanes.
- Vanes: Flat or curved blades that slide in and out of the rotor slots.
- Inlet and Outlet Ports: For compressed air supply and exhaust.

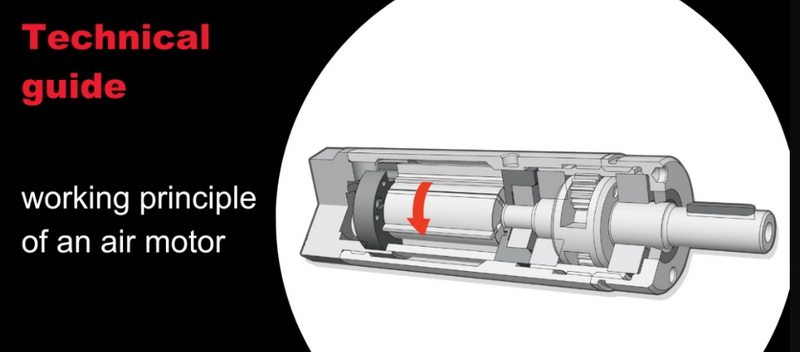

The working principle involves the conversion of compressed air energy into rotational motion. Here's a step-by-step explanation:
1. Air Supply: Compressed air enters the motor through the inlet port.
2. Vane Movement: The air pushes against the vanes, forcing them against the housing wall.
3. Rotation: As the rotor rotates, the vanes move in and out of their slots due to centrifugal force.
4. Air Expansion: The expanding air chambers between vanes and the housing create a pressure differential, driving the rotor.
5. Exhaust: After performing work, the air is exhausted through the outlet port.
- Eccentric Rotor: The rotor is positioned off-center within the housing, creating a crescent-shaped chamber.
- Vane Movement: Vanes move freely in the rotor slots, dividing the chamber into separate working areas.
- Sealing: Centrifugal force and air pressure ensure the vanes seal against the housing.
- Explosion-Proof: Suitable for hazardous environments due to the absence of sparks.
- High Starting Torque: Can start under load.
- Variable Speed Control: Easy to adjust speed by controlling air pressure and flow.
- Compact and Lightweight: Ideal for small spaces and handheld tools.
Vane air motors are versatile and used in various applications:
- Industrial Tools: Drills, grinders, and saws.
- Food Processing: Mixers and conveyors.
- Medical Equipment: Ventilators and respirators.
- Automotive: Pneumatic tools for assembly and repair.
- Mixing Equipment: Used in chemical and pharmaceutical industries.
- Hoists and Winches: For lifting heavy loads in construction and manufacturing.
As highlighted by Globe Airmotors, vane air motors are commonly used in:
- Mixing Equipment
- Ventilators
- Hoists
- Winches
- Pump Drives
- Conveyor Belts
- Turntables
- Packing Machines
- After Coolers[1].
Vane air motors have several advantages over electric and hydraulic motors:
- Explosion-Proof: Suitable for hazardous environments without the risk of sparks.
- High Starting Torque: Can start under load, unlike some electric motors.
- Variable Speed Control: Easy to adjust speed using air pressure and flow control.
- Compact Design: Lightweight and ideal for small spaces.
Larger vane motors are generally more efficient than piston motors, with a flow rate of about 46.13 cfm/hp compared to 28 cfm/hp for piston motors[3]. However, DEPRAG's turbine-powered motors offer a more efficient solution, being 40% more efficient than standard vane motors when operating at load[2].
Regular maintenance is crucial for extending the lifespan of vane air motors. This includes cleaning, lubrication (if applicable), and checking for wear on vanes and seals.
- Dust and Debris Removal: Use compressed air or a soft brush to clean the motor's exterior and ventilation ports.
- Air Filter Inspection: Regularly inspect and clean or replace air filters to ensure adequate airflow.
- Lubricated Motors: Use lubricants specifically designed for pneumatic motors. Lubrication helps protect vanes and gears.
- Lubrication-Free Motors: Ensure dry air supply to prevent corrosion and wear on metal parts.
- Regular Inspections: Check for signs of wear, damage, or loose connections.
- Preventive Maintenance Schedule: Implement a schedule for routine maintenance tasks.
To adjust the performance of a vane air motor, you can use either throttling or pressure regulation. Throttling reduces air supply to decrease speed and air consumption but may impact starting torque. Pressure regulation is suitable for changing stall torque while maintaining high starting torque[7].
| Method | Effect on Speed | Effect on Torque | Effect on Air Consumption |
|---|---|---|---|
| Throttling | Reduces Speed | Decreases Starting Torque | Reduces Air Consumption |
| Pressure Regulation | Maintains Speed | Changes Stall Torque | Maintains Air Consumption |
As technology advances, vane air motors are becoming more efficient and environmentally friendly. Innovations include:
- Energy Efficiency: Improved designs to reduce air consumption while maintaining performance.
- Materials Science: Development of new materials for vanes and seals to enhance durability and reduce maintenance needs.
- Digital Integration: Integration with digital systems for better control and monitoring of motor performance.
The sliding vane air motor market is witnessing a growing demand for energy-efficient solutions across various industries. Manufacturers are focusing on developing more efficient designs and production methods to meet sustainability goals[4][6].
The sliding vane air motor market is expected to grow due to increasing demand for energy-efficient and environmentally friendly solutions. Key trends include:
- Growing Demand for Energy Efficiency: Industries are seeking ways to minimize energy consumption and reduce their environmental footprint[4].
- Industrial Automation: Sliding vane air motors are suitable for automation tasks requiring precise control and compact size[4].
- Strategic Collaborations: Partnerships between manufacturers and technology firms to innovate and develop advanced air motor solutions[6].
Vane air motors are efficient and reliable devices that convert compressed air into mechanical energy. Their simplicity, explosion-proof nature, and ability to operate in harsh environments make them ideal for a wide range of applications. Understanding their working principle and design can help in selecting the right motor for specific needs.
The main components include the housing, rotor with vanes, inlet and outlet ports, and an output shaft.
Rotation is achieved by the pressure of compressed air pushing against the vanes, which in turn rotate the rotor.
Advantages include explosion-proof performance, high starting torque, variable speed control, and compact design.
Maintenance involves cleaning, lubrication (if applicable), and checking for wear on vanes and seals. Regular inspections and preventive maintenance schedules are also crucial.
Common applications include industrial tools, food processing equipment, medical devices, automotive tools, mixing equipment, ventilators, hoists, and winches.
