Hydraulic motors are critical components in various industrial and mobile applications, converting hydraulic energy into mechanical energy to drive machinery. Among the factors influencing their performance, displacement plays a pivotal role in determining the speed and torque characteristics of the motor. This article explores the intricate relationship between displacement and speed, supported by detailed explanations, diagrams, and examples. By the end of this article, you will have a comprehensive understanding of how displacement impacts hydraulic motor performance and how to optimize motor selection for specific applications.

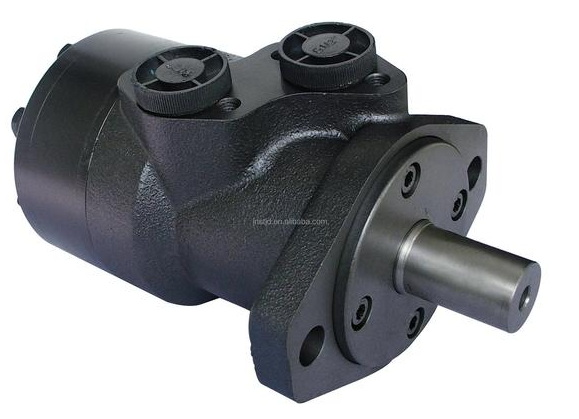

Displacement refers to the volume of fluid required to turn the motor's output shaft through one complete revolution. It is typically measured in cubic inches (in³) or cubic centimeters (cm³) per revolution. Hydraulic motors can have either fixed displacement or variable displacement:
- Fixed Displacement Motors: Provide constant torque and speed proportional to the input flow. These motors are simple in design and are commonly used in applications where consistent performance is required.
- Variable Displacement Motors: Allow adjustments to torque and speed by varying the displacement. These motors offer greater flexibility and are ideal for systems requiring variable outputs.
The speed of a hydraulic motor is inversely proportional to its displacement when operating under a constant flow rate:
- High Displacement: Results in slower speeds but higher torque.
- Low Displacement: Leads to higher speeds but reduced torque.
This relationship arises because larger displacement motors require more fluid per revolution, slowing down their rotational speed for a given flow rate. Conversely, smaller displacement motors require less fluid per revolution, allowing them to rotate faster.
To fully understand how displacement affects speed, it's important to consider other factors that interact with displacement to influence motor performance.
The flow rate of hydraulic fluid directly impacts motor speed. For instance, increasing the flow rate increases the RPM (revolutions per minute) of the motor. This relationship can be expressed as:
Speed RPM =Flow Rate L min/Displacement L rev
For example:
- A higher flow rate delivers more fluid into the motor per unit time, increasing its rotational speed.
- A lower flow rate reduces the amount of fluid entering the motor, slowing its rotation.
While pressure primarily affects torque, it indirectly influences speed by overcoming system resistance. Higher pressure ensures efficient energy transfer, maintaining consistent speeds under varying loads. However, excessive pressure can lead to system inefficiencies or damage.
The load applied to the motor impacts its ability to maintain speed. Under heavy loads, motors with higher displacement are preferred due to their ability to generate greater torque at lower speeds. Conversely, lighter loads may benefit from smaller displacement motors that prioritize speed over torque.
Hydraulic systems are not 100% efficient due to factors such as internal leakage and friction. These losses can reduce the effective speed of the motor, particularly at high pressures or under heavy loads.

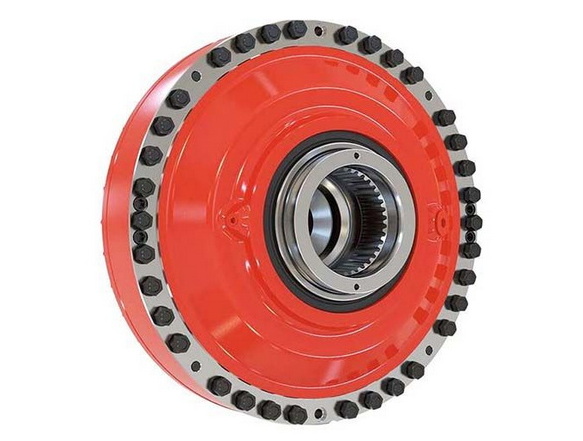

Different types of hydraulic motors—gear motors, vane motors, and piston motors—have unique characteristics that influence how displacement affects speed:
- Gear Motors: Typically fixed displacement; simple and reliable but less efficient.
- Vane Motors: Can be fixed or variable displacement; suitable for medium-speed applications.
- Piston Motors: Highly efficient and available in variable displacement designs; ideal for high-performance systems.
To illustrate how displacement affects hydraulic motor speed in real-world scenarios, let's examine two examples:
Consider a hydraulic motor with a displacement of 100 cm³/rev operating at a flow rate of 20 liters per minute:
Speed=20/0.1=200RPM
This motor will operate at a relatively low speed but can handle high-torque applications like winches or cranes. These applications require significant force to lift or pull heavy loads, making high-displacement motors ideal.
Now consider a smaller motor with 50 cm³/rev at the same flow rate:
Speed=20/0.05=400RPM
This configuration is suitable for high-speed applications like conveyor belts or fans where rapid rotation is more important than torque.
Hydraulic motors are versatile and used across industries due to their ability to deliver precise control over speed and torque. Here are some common applications:
High-displacement motors power heavy-duty machinery like excavators, bulldozers, and loaders. These machines require immense torque for lifting and digging operations.
Variable-displacement motors are used in self-propelled sprayers and harvesters for precise control over movement and spraying rates.
Low-displacement motors drive high-speed conveyor systems used in manufacturing plants for transporting goods efficiently.
Winches and cranes on ships rely on high-torque hydraulic motors with larger displacements to handle heavy loads during loading/unloading operations.
Mining vehicles use variable-displacement hydraulic systems for adaptability in harsh environments where both high torque and variable speeds are required.
When selecting a hydraulic motor for an application:
- Evaluate the required torque and speed.
- Consider system constraints such as available flow rate and pressure.
- Account for efficiency losses due to leakage or friction.
- Choose between fixed or variable displacement based on operational flexibility needs.
Using an appropriately sized motor improves energy efficiency by minimizing wasted hydraulic power. Oversized motors may operate inefficiently at low speeds, while undersized motors may struggle under heavy loads.
Motors with higher displacements may experience greater wear due to increased internal forces during operation. Regular maintenance is essential to ensure longevity and optimal performance.
Displacement is a key determinant of a hydraulic motor's speed and torque capabilities. While higher displacement provides greater torque at lower speeds, smaller displacement enables faster rotations with reduced torque. Understanding this relationship allows engineers to select the appropriate motor for specific applications, balancing performance requirements with operational efficiency. By optimizing motor selection based on flow rate, pressure, load conditions, and efficiency considerations, industries can achieve superior results across diverse applications.
Fixed displacement motors provide constant torque and speed proportional to input flow, while variable displacement motors allow adjustments in torque and speed by altering the displacement.
Motor speed increases with higher flow rates since more fluid passes through the motor per unit time.
High-speed motors typically have lower torque, making them unsuitable for heavy-duty tasks requiring significant force.
Use the formula:
Speed RPM =rev Flow Rate L min/Displacement L
A low-displacement motor may struggle to generate sufficient torque, leading to inefficiencies or failure under heavy loads.
