Hydraulic motors are essential components in many industrial and mobile applications, converting hydraulic energy into mechanical motion. Among the various types of hydraulic motors, screw-type hydraulic motors stand out for their efficiency, quiet operation, and ability to handle high-pressure applications. This article delves into the working principles, components, advantages, and applications of screw-type hydraulic motors.

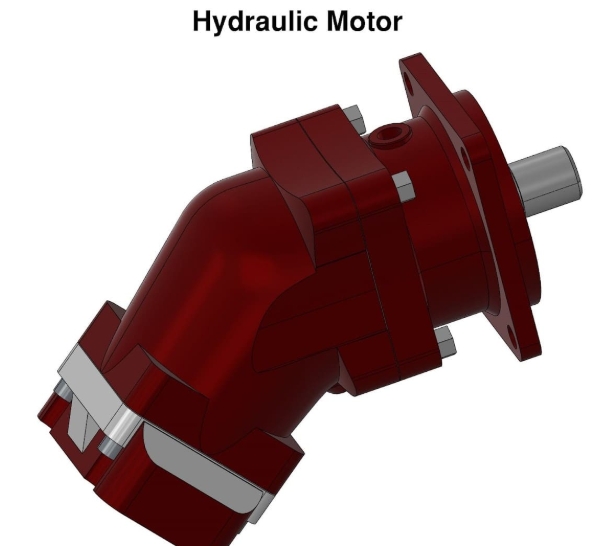

Hydraulic motors are devices that convert hydraulic energy (fluid pressure and flow) into mechanical energy (rotational motion). They are widely used in industries such as construction, agriculture, and manufacturing due to their reliability and power density.

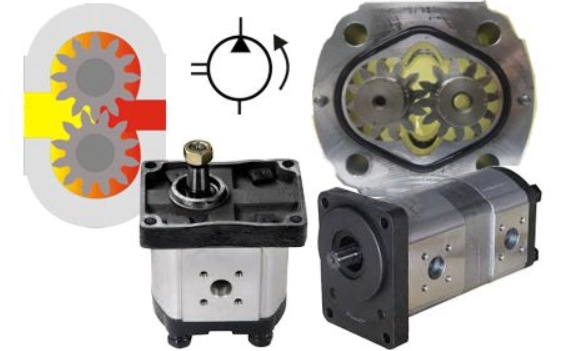

- Gear Motors: Utilize meshing gears to generate torque.
- Vane Motors: Use vanes that slide in and out of a rotor.
- Piston Motors: Employ pistons arranged axially or radially.
- Screw-Type Motors: Use intermeshing screws to create motion.
Each type has its unique advantages and is selected based on specific application requirements. Among these, screw-type hydraulic motors are particularly valued for their smooth operation and ability to handle high-viscosity fluids.
A screw-type hydraulic motor operates using a set of intermeshing screws—typically one power rotor and two idler rotors. These screws form sealed chambers that move fluid through the motor, generating rotational force.
- High efficiency
- Quiet operation
- Ability to handle high-viscosity fluids
- Compact design
- High-pressure tolerance
This design makes screw-type hydraulic motors ideal for applications requiring precision and durability under demanding conditions.
The operation of a screw-type hydraulic motor can be broken down into the following steps:
Pressurized fluid is introduced into the motor through an inlet port. The fluid is typically supplied by a hydraulic pump in the system.
The pressurized fluid enters sealed chambers formed by the intermeshing screws inside the motor housing. The geometry of the screws ensures that the fluid is trapped efficiently without leakage.
As the pressurized fluid moves along the length of the screws, it causes them to rotate. The power rotor transmits this rotational motion to the output shaft, generating mechanical energy.
The movement of fluid creates torque on the power rotor while maintaining a smooth flow through the system. This conversion process is highly efficient due to minimal internal leakage.
After transferring its energy, the fluid exits through the outlet port at reduced pressure, ready to be recirculated or discharged.
This continuous process ensures steady motion with minimal noise and vibration, which is one of the defining characteristics of screw-type hydraulic motors.
A screw-type hydraulic motor consists of several critical components:
| Component | Description |
|---|---|
| Power Rotor | The main screw that transmits torque to the output shaft. |
| Idler Rotors | Secondary screws that mesh with the power rotor to form sealed chambers. |
| Housing | Encloses the screws and provides structural support while maintaining pressure integrity. |
| Inlet/Outlet Ports | Allow fluid to enter and exit the motor efficiently without leakage. |
| Seals | Prevent leakage and maintain pressure within the motor for optimal performance. |
Each component plays a vital role in ensuring smooth operation and high efficiency under varying load conditions.
1. High Efficiency: Minimal internal leakage results in efficient energy transfer, reducing energy losses.
2. Quiet Operation: The smooth movement of screws reduces noise levels significantly compared to other types of hydraulic motors.
3. Durability: Robust construction allows for operation under high pressures (up to 3000 psi) without compromising performance.
4. Versatility: Can handle a wide range of fluids, including viscous oils, making them suitable for diverse industrial applications.
5. Compact Design: The compact nature of screw-type motors allows them to fit into tight spaces while delivering high power output.
Screw-type hydraulic motors are used across various industries due to their unique capabilities:
- Oil and Gas Industry: For pumping crude oil or other viscous fluids.
- Marine Applications: Used in propulsion systems due to their reliability in harsh environments.
- Industrial Machinery: Commonly found in conveyor drives and other heavy-duty machinery.
- Mobile Equipment: Widely used in excavators, cranes, and other construction equipment requiring precise control.
Proper maintenance is crucial for ensuring optimal performance and extending the lifespan of screw-type hydraulic motors:
1. Regular Inspection: Check for signs of wear on screws, seals, and housing.
2. Lubrication: Ensure adequate lubrication to reduce friction between moving parts.
3. Seal Replacement: Replace worn-out seals promptly to prevent fluid leakage.
4. Fluid Quality Check: Use clean hydraulic fluid with appropriate viscosity levels.
5. Temperature Monitoring: Avoid overheating by ensuring proper cooling systems are in place.
By following these maintenance practices, you can maximize efficiency and minimize downtime in your operations.
While screw-type hydraulic motors have distinct advantages, it's important to understand how they compare with other types:
| Feature | Screw-Type Motor | Gear Motor | Vane Motor | Piston Motor |
|---|---|---|---|---|
| Noise Level | Low | Moderate | Moderate | Low |
| Efficiency | High | Moderate | Moderate | High |
| Pressure Tolerance | High | Moderate | Low | Very High |
| Fluid Compatibility | Wide Range | Limited | Limited | Wide Range |
This comparison highlights why screw-type motors are preferred for specific applications requiring quiet operation and versatility.
Screw-type hydraulic motors are versatile and reliable components that excel in high-pressure applications requiring quiet operation and efficiency. Their unique design enables them to handle challenging tasks across various industries, making them indispensable in modern engineering.
Whether you're working in oil extraction, marine propulsion, or industrial manufacturing, understanding how these motors work can help you make informed decisions about their use and maintenance.
Screw-type motors use intermeshing screws to create rotational motion, offering quieter operation and higher efficiency compared to gear or vane motors.
Yes, their robust design allows them to efficiently pump high-viscosity fluids like oil without compromising performance.
Most screw-type motors can operate at pressures up to 3000 psi or higher depending on their design specifications.
Yes, they are commonly used in marine propulsion systems due to their reliability and resistance to harsh environments such as saltwater exposure.
Regular maintenance includes checking seals for leaks, ensuring proper lubrication, inspecting screws for wear, monitoring operating temperatures, and using clean hydraulic fluids.
