Motor mounts are a critical component in any vehicle, including the Chevrolet Trailblazer. In this article, we will delve into how hydraulic motor mounts function, their advantages, and their role in ensuring a smooth and vibration-free ride. Specifically, we will focus on their application in the Chevy Trailblazer and provide insights into replacement procedures, maintenance tips, and troubleshooting common issues.
Motor mounts serve as the connecting link between the engine and the vehicle's frame. They are designed to:
- Secure the engine in place.
- Absorb vibrations caused by engine operation.
- Reduce noise transmitted to the cabin.
Hydraulic motor mounts are a specialized type that uses fluid-filled chambers to dampen vibrations more effectively than traditional solid rubber mounts.
In modern vehicles like the Chevy Trailblazer, engines produce significant vibrations due to combustion and moving parts. Without motor mounts, these vibrations would transfer directly to the vehicle's frame and cabin, resulting in an uncomfortable driving experience. Hydraulic motor mounts not only reduce these vibrations but also stabilize the engine during acceleration, braking, and cornering.
Hydraulic motor mounts consist of three key components:
1. Outer Shell: A durable housing made of steel or aluminum.
2. Rubber Layer: Provides flexibility and cushioning.
3. Hydraulic Fluid Chamber: Filled with a viscous fluid that absorbs vibrations.
When the engine generates vibrations, the hydraulic fluid inside the mount moves through internal channels, dissipating energy and reducing noise and movement.
- Dual-Stage Damping: Allows for better performance at both low and high engine speeds.
- Temperature Resistance: Maintains functionality under extreme heat or cold conditions.
- Enhanced Durability: Designed to withstand prolonged exposure to engine heat and mechanical stress.

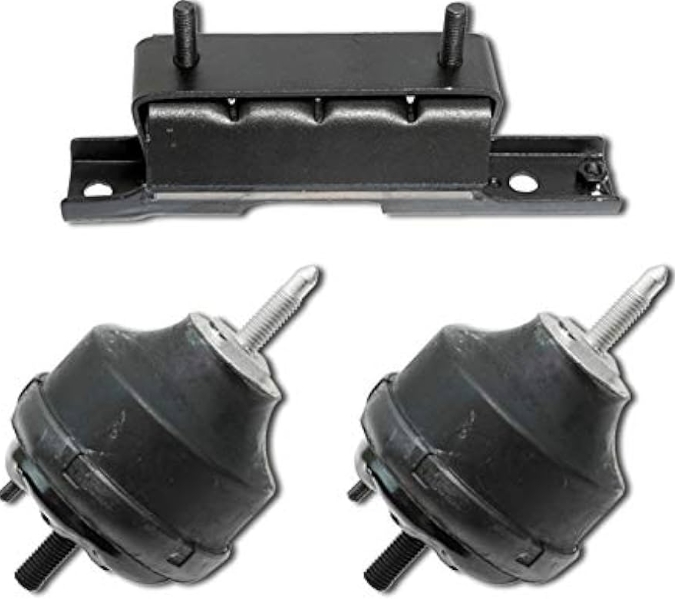

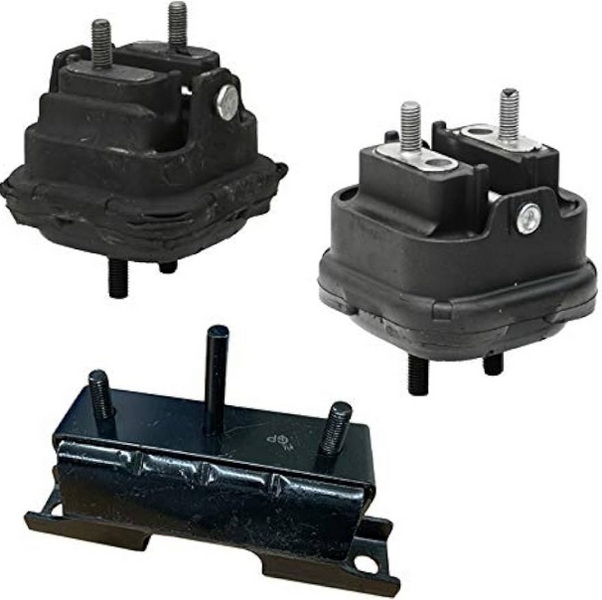

The Chevrolet Trailblazer (2002–2009 models) commonly features hydraulic motor mounts due to their superior vibration-dampening properties. These mounts are located:
- On either side of the engine.
- At the transmission mount for added stability.
Unlike conventional rubber mounts, which rely solely on elasticity to absorb vibrations, hydraulic motor mounts use fluid dynamics to dampen vibrations more effectively. This is particularly beneficial for SUVs like the Trailblazer, which often operate under varying loads and driving conditions.
Over time, hydraulic motor mounts can wear out due to constant exposure to heat, pressure, and road conditions. Here are some common symptoms indicating that your Chevy Trailblazer's motor mounts may need attention:
1. Excessive Vibrations: If you notice increased vibrations in the cabin while idling or driving, it could be due to worn-out motor mounts.
2. Clunking or Banging Noises: Damaged mounts may cause metal-to-metal contact between the engine and frame, resulting in unusual noises during acceleration or gear shifts.
3. Engine Movement: A failing mount may allow excessive engine movement when accelerating or braking.
4. Visible Damage: Inspecting the mount may reveal cracks or leaks in the rubber or hydraulic fluid chamber.
5. Check Engine Light: In some cases, a failing mount can trigger sensors that illuminate the check engine light.
Replacing hydraulic motor mounts can be a complex task but is manageable with proper tools and guidance.
- 18mm socket
- Pry bar
- Floor jack with a wooden block
- Screwdrivers (flat-head and Phillips)
- Safety gear (gloves and goggles).
1. Preparation:
- Park the vehicle on a flat surface and secure it.
- Disconnect the battery for safety.
2. Accessing the Mount:
- Remove components obstructing access, such as the airbox or fan clutch.
- Locate the motor mounts on both sides of the engine.
3. Lifting the Engine:
- Use a floor jack with a wooden block under the oil pan to slightly lift the engine.
- Ensure you only raise it enough to relieve pressure on the mount.
4. Removing Old Mount:
- Unbolt both top and bottom bolts of the mount using an 18mm socket.
- Carefully slide out the old mount.
5. Installing New Mount:
- Align the new hydraulic mount with mounting points.
- Secure bolts tightly, ensuring proper alignment.
6. Reassembly:
- Reinstall removed components like the fan clutch and airbox.
- Lower the engine back into position.
Proper maintenance can significantly extend the lifespan of your Chevy Trailblazer's hydraulic motor mounts:
1. Regular Inspections: Check for visible signs of wear or damage during routine maintenance.
2. Avoid Aggressive Driving: Sudden acceleration or hard braking can put additional stress on motor mounts.
3. Replace Worn-Out Components Promptly: Delaying replacement of damaged mounts can lead to further damage to surrounding components.
4. Keep Fluids in Check: Leaking oil or coolant can degrade rubber components over time; ensure there are no leaks near your motor mounts.
Hydraulic motor mounts offer several benefits over traditional solid mounts:
1. Superior Vibration Dampening: The fluid-filled design absorbs more vibration, providing a smoother ride.
2. Noise Reduction: Minimizes engine noise transmitted to the cabin.
3. Longevity: Durable materials ensure longer service life under normal conditions.
4. Improved Engine Stability: Reduces excessive movement during acceleration or gear shifts.
5. Enhanced Comfort: Especially important for SUVs like the Trailblazer that prioritize passenger comfort during long drives.
Hydraulic motor mounts play an essential role in enhancing ride quality and protecting your Chevy Trailblazer's engine from excessive vibrations and noise. Regular inspection and timely replacement of worn-out mounts can prevent further damage to your vehicle's drivetrain system.
By understanding how these components work and following proper maintenance practices, you can ensure optimal performance for your Trailblazer while enjoying a smoother driving experience.
Hydraulic motor mounts are engine mounts filled with fluid that absorb vibrations more effectively than solid rubber mounts.
Signs include excessive vibrations, clunking noises during gear shifts, or visible damage to the rubber layer.
Yes, with proper tools like sockets, pry bars, and a floor jack, you can replace them by following detailed guides or video tutorials.
Typically, they last between 5–7 years but may wear out sooner depending on driving conditions.
OEM (Original Equipment Manufacturer) parts often provide better quality and fitment but may cost more than aftermarket alternatives.
