Hydraulic motors are essential components in various industrial and mobile applications, converting hydraulic energy into mechanical energy to perform work. Understanding how to calculate the horsepower (HP) of a hydraulic motor is crucial for selecting the right motor for a specific application and ensuring optimal performance. This article delves into the intricacies of hydraulic motor HP calculation, providing a comprehensive guide for engineers, technicians, and anyone involved in hydraulic systems.
Before diving into the calculation methods, let's briefly discuss hydraulic motors. These motors operate by using pressurized hydraulic fluid to rotate an output shaft, which can then be connected to machinery or equipment to perform work. Hydraulic motors are known for their high power density, compact size, and ability to provide constant torque over a wide range of speeds.
There are several types of hydraulic motors, each with its own advantages and disadvantages:

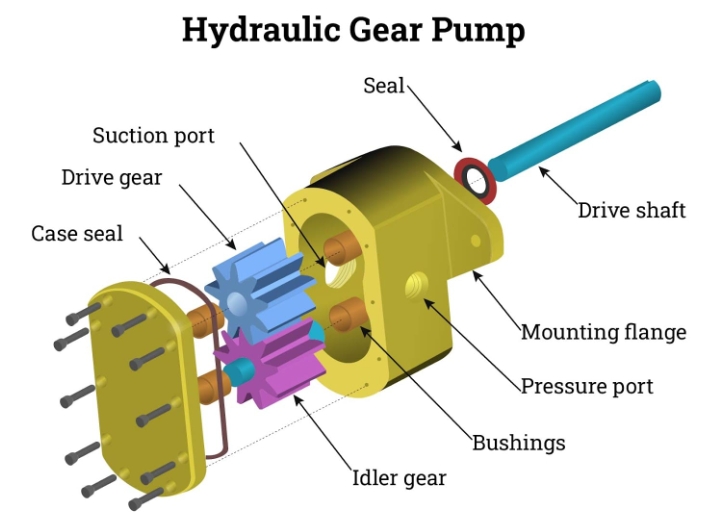

- Gear Motors: Simple and cost-effective, gear motors are suitable for low to medium pressure applications. External gear motors are more common due to their ease of manufacturing and maintenance, while internal gear motors can handle higher pressures and offer quieter operation.
- Vane Motors: Vane motors offer good efficiency and are commonly used in mobile equipment. They are known for their compact size and ability to provide relatively constant torque over a wide speed range.

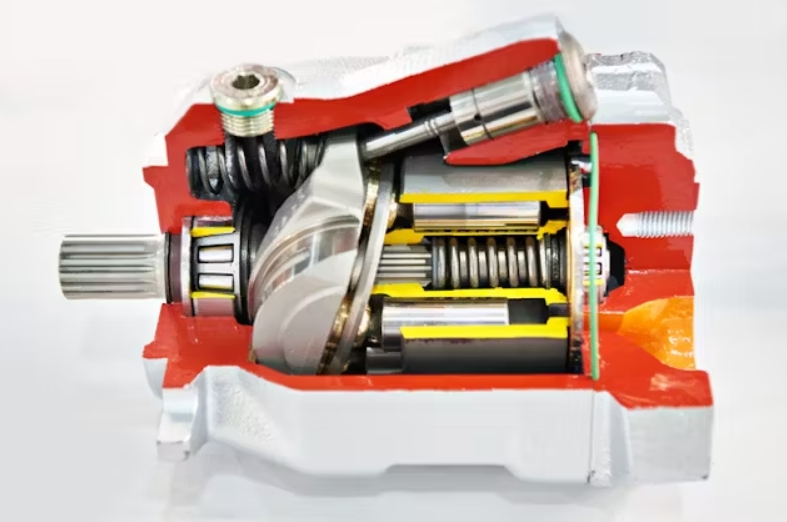

- Piston Motors: Piston motors are the most efficient and can handle high-pressure, high-speed applications. There are two main types: axial piston motors and radial piston motors. Axial piston motors are more common and are available in both swashplate and bent-axis designs. Radial piston motors are typically used in high-torque, low-speed applications.
Several factors influence the horsepower of a hydraulic motor. Understanding these factors is essential for accurate HP calculation and motor selection:
The pressure of the hydraulic fluid entering the motor, typically measured in pounds per square inch (psi) or bar. Higher pressure generally results in higher horsepower. The maximum pressure rating of the motor is a critical parameter to consider, as exceeding it can lead to damage and failure.
The volume of hydraulic fluid flowing through the motor per unit of time, usually measured in gallons per minute (GPM) or liters per minute (LPM). A higher flow rate also contributes to higher horsepower. The flow rate capacity of the motor determines its maximum speed and power output.
The volume of fluid required to rotate the motor shaft one revolution, typically measured in cubic inches per revolution (in³/rev) or cubic centimeters per revolution (cm³/rev). The displacement is a fundamental characteristic of the motor and determines its torque output for a given pressure.
The rotational speed of the motor shaft, usually measured in revolutions per minute (RPM). The speed range of the motor is an important consideration, as it must match the requirements of the driven equipment.
Hydraulic motors are not 100% efficient due to internal leakage and friction. Efficiency is expressed as a percentage and affects the actual horsepower delivered by the motor. There are two types of efficiency to consider: volumetric efficiency and mechanical efficiency.

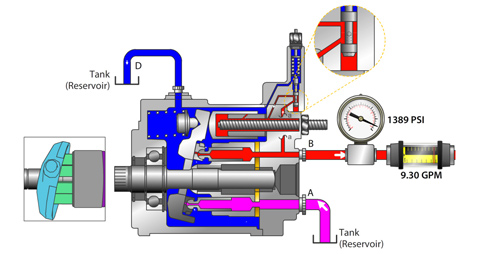

The fundamental formula for calculating hydraulic horsepower (HHP) is:
HHP=(P×Q)/1714
Where:
- HHP = Hydraulic Horsepower
- P = Pressure (psi)
- Q = Flow Rate (GPM)
- 1714 = Conversion factor to yield HHP in terms of horsepower
This formula calculates the theoretical horsepower of the hydraulic fluid. However, it does not account for the motor's efficiency. To determine the actual horsepower delivered by the hydraulic motor, the efficiency must be considered. The conversion factor 1714 is derived from the relationship between psi, GPM, and horsepower, and it ensures that the result is expressed in the correct units.
To calculate the actual horsepower (AHP) of a hydraulic motor, the following formula is used:
AHP=(P×Q×η)/1714
Where:
- AHP = Actual Horsepower
- P = Pressure (psi)
- Q = Flow Rate (GPM)
- η = Motor Efficiency (as a decimal)
Example:
Let's consider a hydraulic motor with the following specifications:
- Pressure (P) = 2500 psi
- Flow Rate (Q) = 20 GPM
- Efficiency (η) = 85% (0.85)
Using the formula:
AHP=(2500×20×0.85)/1714
AHP=42500/1714
AHP≈24.8 HP
Therefore, the actual horsepower delivered by this hydraulic motor is approximately 24.8 HP. This example illustrates the importance of including efficiency in the calculation to obtain a realistic estimate of the motor's performance.
Another method to calculate hydraulic motor horsepower involves torque and speed. The formula is:
HP=(T×N)/63025
Where:
- HP = Horsepower
- T = Torque (in lb-in)
- N = Speed (RPM)
- 63025 = Conversion factor
To use this formula, you need to know the torque output of the hydraulic motor. The torque can be calculated using the following formula:
T=(D×P)/2π
Where:
- T = Torque (in lb-in)
- D = Motor Displacement (in³/rev)
- P = Pressure (psi)
Example:
Consider a hydraulic motor with the following specifications:
- Displacement (D) = 5 in³/rev
- Pressure (P) = 3000 psi
- Speed (N) = 500 RPM
First, calculate the torque:
T=(5×3000)/2π
T=15000/6.283
T≈2387.3 lb-in
Now, calculate the horsepower:
HP=(2387.3×500)/63025
HP=1193650/63025
HP≈18.9 HP
Therefore, the horsepower of this hydraulic motor is approximately 18.9 HP. This method provides an alternative way to determine horsepower when torque and speed data are available.
As mentioned earlier, motor efficiency is a critical factor. It is further broken down into volumetric and mechanical efficiency.
This refers to the amount of fluid the motor theoretically requires compared to the actual amount it uses. It is affected by internal leakage. The formula is:
ηv=Theoretical Flow Rate/Actual Flow Rate
A lower volumetric efficiency indicates more internal leakage, resulting in wasted energy and reduced performance.
This refers to the motor's ability to convert hydraulic power into mechanical power. It is affected by friction between moving parts. The formula is:
ηm=Theoretical Torque/Actual Torque
A lower mechanical efficiency indicates more energy loss due to friction, also resulting in reduced performance.
The overall efficiency (η) is the product of volumetric efficiency and mechanical efficiency:
η=ηv×ηm
The efficiency of a hydraulic motor significantly impacts its performance. Several factors affect motor efficiency:
1. Internal Leakage: Leakage between the inlet and outlet ports reduces volumetric efficiency. This can be caused by worn seals, clearances, or manufacturing defects.
2. Friction: Friction between moving parts, such as gears, vanes, or pistons, reduces mechanical efficiency. Lubrication plays a crucial role in minimizing friction and maintaining efficiency.
3. Fluid Viscosity: Incorrect fluid viscosity can increase friction and leakage, reducing efficiency. Using the correct fluid viscosity as specified by the motor manufacturer is essential for optimal performance.
4. Operating Conditions: High temperatures and pressures can also decrease efficiency. Elevated temperatures can reduce fluid viscosity, leading to increased leakage. High pressures can increase internal stresses and friction.
5. Motor Wear: Over time, wear and tear on motor components can reduce efficiency. Regular maintenance and timely replacement of worn parts are necessary to maintain optimal performance.
Properly sizing a hydraulic motor for a specific application involves more than just calculating horsepower. Here's a step-by-step guide:
1. Determine Load Requirements: Calculate the required torque and speed to drive the load. This may involve analyzing the load's inertia, friction, and external forces.
2. Calculate Horsepower: Use the torque and speed values to calculate the required horsepower. Ensure that you account for any safety factors or peak load conditions.
3. Select Motor Type: Choose the appropriate motor type (gear, vane, or piston) based on the application's pressure, speed, and efficiency requirements.
4. Choose Motor Size: Select a motor with a displacement that provides the required torque at the available pressure. Consider the motor's speed range and efficiency.
5. Verify Performance: Verify that the selected motor can meet the application's performance requirements under all operating conditions. Consider factors such as starting torque, acceleration, and duty cycle.
6. Consider System Compatibility: Ensure that the motor is compatible with the existing hydraulic system, including the pump, valves, and fluid.
When selecting a hydraulic motor, it's essential to consider practical factors such as:
- Application Requirements: Determine the required horsepower, torque, and speed for the application. Consider the duty cycle, operating environment, and any special requirements.
- Operating Environment: Consider the operating temperature, pressure, and fluid compatibility. Ensure that the motor is suitable for the intended environment, including exposure to extreme temperatures, humidity, or corrosive substances.
- Motor Type: Choose the appropriate motor type (gear, vane, or piston) based on the application requirements. Each motor type has its own advantages and disadvantages in terms of cost, efficiency, and performance.
- Maintenance: Ensure that the motor is properly maintained to maximize its lifespan and efficiency. Regular maintenance tasks include fluid checks, filter replacement, and leak detection.
- Cost: Consider the initial cost of the motor, as well as the long-term operating and maintenance costs.
1. Ignoring Efficiency: Failing to account for motor efficiency can lead to significant errors in horsepower calculation. Always include the motor efficiency in the calculation to obtain a realistic estimate of the motor's performance.
2. Using Incorrect Units: Ensure that all parameters are in the correct units (e.g., psi for pressure, GPM for flow rate). Using incorrect units can lead to significant errors in the calculation.
3. Neglecting Pressure Drop: Pressure drop in the hydraulic lines can reduce the actual pressure at the motor, affecting its performance. Account for pressure drop in the system to ensure accurate horsepower calculation.
4. Oversizing the Motor: Selecting a motor with excessive horsepower can lead to inefficiencies and increased costs. Choose a motor that is properly sized for the application to optimize performance and efficiency.
1. Variable Displacement Motors: These motors allow the displacement to be adjusted, providing variable speed and torque control. The horsepower calculation remains the same, but the displacement value changes with the adjustment.
2. Servo-Controlled Hydraulic Motors: These motors use feedback control systems to precisely control speed and position. The horsepower calculation is more complex, as it involves dynamic analysis of the control system.
3. Energy Efficiency in Hydraulic Systems: Implementing energy-saving techniques, such as using variable displacement pumps and load-sensing valves, can significantly reduce energy consumption in hydraulic systems.
4. Condition Monitoring of Hydraulic Motors: Monitoring the condition of hydraulic motors, using techniques such as vibration analysis and oil analysis, can help prevent failures and optimize maintenance schedules.
Hydraulic motors are used in a wide range of applications, including:
- Construction Equipment: Excavators, loaders, and bulldozers utilize hydraulic motors for propulsion and implement control. They provide the high torque and power required to perform heavy-duty tasks.
- Agricultural Machinery: Tractors, harvesters, and sprayers rely on hydraulic motors for various functions. They offer precise control and high power density for agricultural applications.
- Industrial Machinery: Hydraulic motors power conveyors, mixers, and machine tools. They provide reliable and efficient power for a wide range of industrial processes.
- Marine Applications: Winches, cranes, and propulsion systems in boats and ships use hydraulic motors. They offer high power and reliability in harsh marine environments.
- Mining Equipment: Hydraulic motors drive drills, crushers, and loaders in mining operations. They provide the high torque and power required to extract and process minerals.
- Renewable Energy Systems: Hydraulic motors are used in wind turbines and hydroelectric generators to convert mechanical energy into electrical energy.
Calculating the horsepower of a hydraulic motor is a critical step in selecting the right motor for a specific application. By understanding the factors that affect horsepower, using the appropriate formulas, and considering practical considerations, engineers and technicians can ensure optimal performance and reliability of hydraulic systems. This article has provided a detailed guide to HP calculation, covering various methods and considerations to help you make informed decisions. The inclusion of volumetric and mechanical efficiency, sizing considerations, common mistakes, and advanced topics further enriches the reader's understanding of the subject matter.
Hydraulic horsepower (HHP) is the theoretical power of the hydraulic fluid, calculated using pressure and flow rate. Actual horsepower (AHP) is the power delivered by the hydraulic motor, accounting for its efficiency.
Motor efficiency reduces the actual horsepower delivered by the motor. The actual horsepower is calculated by multiplying the hydraulic horsepower by the motor efficiency (expressed as a decimal).
Pressure is typically measured in pounds per square inch (psi) or bar, while flow rate is usually measured in gallons per minute (GPM) or liters per minute (LPM).
Yes, horsepower can be calculated using torque and speed with the formula HP = (T x N) / 63025, where T is torque in lb-in and N is speed in RPM.
Key factors include the required horsepower, torque, speed, operating environment, motor type, and maintenance requirements. Also consider the overall efficiency of the motor, its physical size and weight, and its cost.
