Hydraulic motors are essential components in numerous industrial applications, converting hydraulic energy into mechanical energy to perform various tasks. These motors are integral to systems requiring high power and precise control, such as heavy machinery, construction equipment, and automated systems. Understanding how hydraulic motors are powered, their working principles, types, and applications is crucial for anyone involved in mechanical engineering or related fields.
A hydraulic motor is a mechanical actuator that converts hydraulic pressure and flow into torque and angular displacement, resulting in rotation. It serves as the rotary counterpart to the hydraulic cylinder, which is a linear actuator. In essence, hydraulic motors transform the energy of pressurized fluid into mechanical work.
The fundamental principle behind hydraulic motors involves using pressurized fluids, typically hydraulic oil, to generate force. This force is then translated into rotational motion, which can be used to power machinery and equipment. The motor's operation is dictated by the amount of oil and pressure supplied by a hydraulic pump.
A hydraulic motor consists of several key components that work together to facilitate the conversion of hydraulic energy into mechanical energy. These components include:
- Gears: Used in gear-type hydraulic motors, these components mesh together, and the hydraulic fluid pressure generates motion, which is then transferred to the idler gear.
- Vanes: Found in vane-type motors, these parts slide in and out of the rotor, allowing compressed air to move the rotor in a circular motion.
- Pistons: Utilized in piston-type motors, these components are pushed by hydraulic pressure to turn the rotor.
- Actuators: Mechanical components that convert fluid power into mechanical energy.
- Output Shaft: Connected to the driven gear, this component transmits the torque created by the driven gear.
- Stator: Exerts force on the piston, generating a tangential component that initiates rotation in both the piston and the rotor.
- Rotor: Rotates when triggered by specific mechanisms, such as gear meshing and fluid flow in gear-type motors, or vane pressure in vane-type motors.
- Driveshaft: Transmits the generated torque from within the motor to external applications.
- Valves: Control the flow of fluid within the hydraulic motor, allowing manipulation of the motor's operation.
- Casings: Safeguard and enclose the motor's internal components.
- Piston Rods: Transmit hydraulic or pneumatic forces to machine components, generating motion.
The operation of a hydraulic motor involves a cycle of fluid flow, pressure generation, and mechanical motion. The process can be summarized as follows:
1. Fluid Supply: A hydraulic pump channels fluid from a reservoir into pressurized tubes.
2. Pressure Conversion: The pressurized fluid enters the hydraulic motor, pushing against the gears, vanes, or pistons.
3. Rotational Motion: The force exerted by the fluid turns the motor's output shaft, creating torque.
4. Energy Transfer: The rotating shaft uses the flow and hydraulic pressure to generate the power needed to move an external load.
5. Fluid Return: After flowing through the motor, the fluid returns to the reservoir, and the cycle repeats.
The hydraulic pump is crucial in driving the fluid through the system. Different types of hydraulic pumps exist, including:

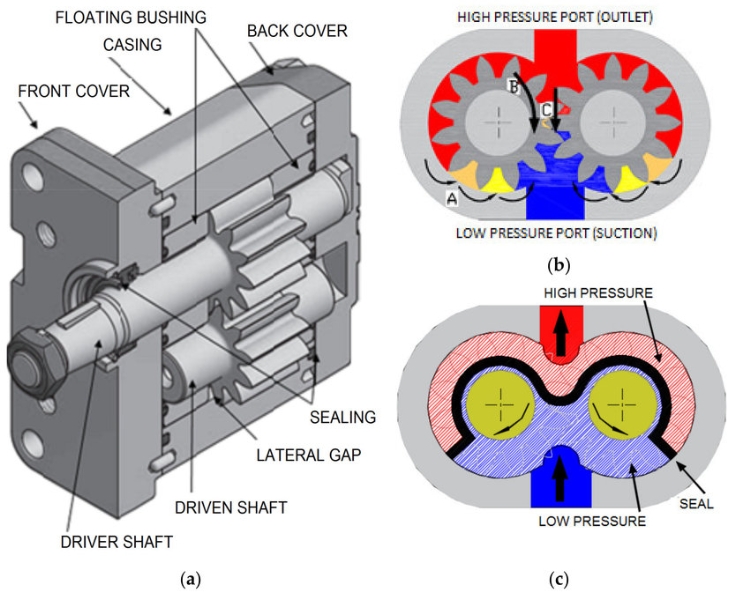

- Gear Pumps: These pumps use two meshed gears within a case to push oil from the inlet to the outlet.

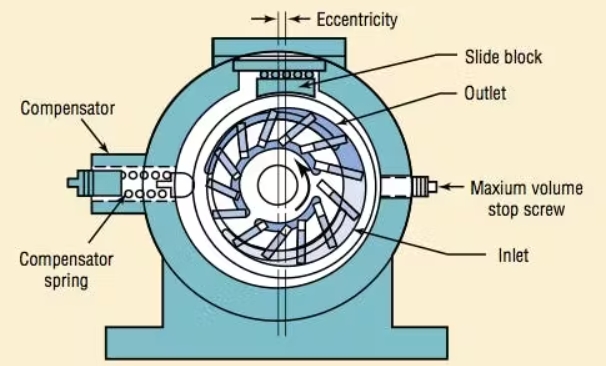

- Rotary Vane Pumps: These pumps employ a rotating beam to push the oil through a screw pump.
- Piston Pumps: More complex and efficient, piston pumps use reciprocating pistons to move fluid. They can be axial or radial, offering higher pressure capabilities.
A hydraulic power unit (HPU) is a mechanical system that generates and controls mechanical power through pressurized fluid. It operates based on fluid mechanics principles and Pascal's law, where force applied to a closed fluid system increases the fluid pressure proportionally. This pressure drives mechanical components like hydraulic cylinders, motors, and valves. HPUs typically include a reservoir, pump, motor, filters, control valves, and other accessories necessary for a complete hydraulic system.
Hydraulic motors are categorized based on their design and working principles. The main types include:
- Gear Motors: These motors use two gears that rotate against each other. Fluid enters through an inlet, powering one gear, which then transfers power to the second gear, setting both in motion. The fluid moves along the periphery of the gears and exits through an outlet. Gear motors are simple and cost-effective but tend to be less efficient than other types.
- Vane Motors: These motors produce rotating motion in either clockwise or counterclockwise directions. They consist of a drive shaft, slotted rotor, and rectangular vanes. Compressed air is forced into the assembly, moving the rotor, and then released through an outlet port. Vane motors offer a good balance of cost and performance, suitable for medium-duty applications.
- Piston Motors: These motors use hydraulic cylinders to generate motion. They are further divided into:
- Axial Piston Motors: The piston is attached to a rotary axle, and hydraulic pressure pushes the piston, turning the rotor. Axial piston motors are highly efficient and capable of operating at high pressures and speeds. They are commonly used in applications requiring precise control and high power.
- Radial Piston Motors: These come in crankshaft and multi-lobe cam ring types. Crankshaft motors have a single cam piston pushed inwards and are marked by high starting torque. Multi-lobe cam ring motors possess multiple lobes and a piston that moves outward, generating high power and running smoothly at low speeds. Radial piston motors are known for their high torque output at low speeds, making them suitable for heavy-duty applications like winches and construction equipment.
Hydraulic motors find use in a wide array of applications due to their ability to provide high power and precise control. Some common applications include:
- Crane Drives and Winches: Used for lifting heavy loads, requiring high torque and precise control.
- Military Vehicles: Provide the necessary power for various functions, including steering, braking, and driving auxiliary equipment.
- Excavators: Power the movement and digging operations, requiring high torque and robust performance.
- Self-Driven Cranes: Enable mobility and lifting capabilities.
- Feeder and Conveyor Drives: Maintain consistent material flow in manufacturing and processing plants.
- Roll Mills: Drive the rolling process in metalworking, requiring high torque and precise speed control.
- Agitator and Mixer Drives: Ensure thorough mixing of materials in chemical, food, and pharmaceutical industries.
- Drum Drives for Digesters: Facilitate the digestion process in various industries, such as wastewater treatment and paper production.
- Shredders for Cars: Provide the force needed to shred materials in recycling plants.
- Kilns and Trommers: Drive the rotation of kilns and trommers in cement and mineral processing plants.
- Trench Cutters: Power the cutting mechanism in construction and infrastructure projects.
- Drilling Rigs: Provide the rotational force for drilling in oil and gas exploration, as well as mining operations.
- Elevators: Ensure smooth and controlled vertical movement in buildings and construction sites.
- Gasoline Pumps: Power the pumping mechanism in gas stations and fuel distribution systems.
- Amusement Park Rides: Drive various ride components, ensuring safety and reliability.
- Forestry Equipment: Used in harvesters and forwarders for cutting and moving timber.
- Agricultural Machinery: Powers tractors and other farm equipment for plowing, planting, and harvesting.
Controlling hydraulic motors involves managing their speed, torque, and direction of rotation. Several methods and components are used to achieve this control:
- Flow Control Valves: These valves regulate the flow rate of hydraulic fluid to the motor, thereby controlling its speed. Types include needle valves, orifice valves, and pressure-compensated flow control valves.
- Pressure Control Valves: These valves limit the maximum pressure in the hydraulic system, protecting the motor and other components from damage. Types include relief valves, pressure-reducing valves, and sequence valves.

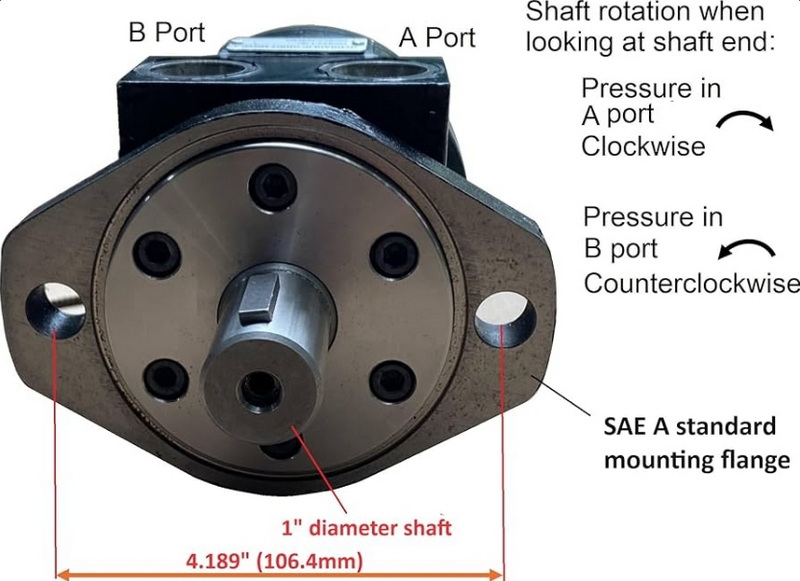

- Directional Control Valves: These valves direct the flow of hydraulic fluid to either port of the motor, controlling the direction of rotation. They can be manually operated, electrically operated (solenoid valves), or hydraulically operated.
- Servo Valves and Proportional Valves: These valves provide precise control over the flow and pressure of hydraulic fluid, allowing for accurate positioning and speed control. Servo valves offer higher precision and faster response times compared to proportional valves.
- Closed-Loop Control Systems: These systems use feedback sensors to monitor the motor's speed and position, allowing for closed-loop control of its performance. These systems typically include a controller, sensors, and actuators.
- Hydraulic Power Units (HPUs) with Variable Displacement Pumps: HPUs equipped with variable displacement pumps can adjust the flow rate of hydraulic fluid, providing energy-efficient control of the motor's speed and torque.
Troubleshooting hydraulic motors involves identifying and resolving issues that affect their performance and reliability. Common problems include:
- Motor Not Rotating: This could be due to a lack of hydraulic pressure, a blocked or restricted flow path, a faulty directional control valve, or internal damage to the motor.
- Slow or Erratic Rotation: This could be caused by low hydraulic pressure, a partially blocked flow path, air in the hydraulic system, or worn components inside the motor.
- Excessive Noise: This could indicate cavitation (formation of vapor bubbles in the hydraulic fluid), air in the system, worn bearings, or internal damage to the motor.
- Overheating: This could be due to excessive hydraulic pressure, a restricted flow path, a clogged filter, or insufficient cooling.
- Leaks: Leaks can occur at fittings, seals, or the motor's housing, indicating damaged or worn components.
To troubleshoot these issues, it's essential to follow a systematic approach:
1. Visual Inspection: Check for leaks, damage, and proper connections.
2. Pressure Testing: Measure the hydraulic pressure at various points in the system to identify pressure drops or abnormalities.
3. Flow Testing: Measure the flow rate of hydraulic fluid to identify restrictions or blockages.
4. Component Testing: Test individual components, such as valves and pumps, to ensure they are functioning correctly.
5. Fluid Analysis: Analyze the hydraulic fluid to check for contamination, viscosity, and other properties.
Hydraulic motor technology has seen significant advancements in recent years, driven by the need for improved efficiency, performance, and reliability. Some notable advancements include:
- High-Efficiency Motors: These motors are designed to minimize energy losses due to friction and leakage, resulting in improved overall efficiency.
- Variable Displacement Motors: These motors can adjust their displacement (the volume of fluid displaced per revolution), allowing for precise control of speed and torque.
- Compact and Lightweight Designs: Advances in materials and manufacturing techniques have led to the development of more compact and lightweight hydraulic motors, making them suitable for a wider range of applications.
- Integrated Sensors and Controls: Some hydraulic motors are now equipped with integrated sensors and controls, allowing for real-time monitoring and adjustment of their performance.
- Electro-Hydraulic Motors: These motors combine electric and hydraulic technologies to provide precise control, high power density, and energy efficiency.
- Digital Hydraulics: This emerging field uses digital control techniques to improve the performance and efficiency of hydraulic systems.
The future of hydraulic motor technology is expected to be shaped by several key trends:
- Increased Focus on Energy Efficiency: As energy costs continue to rise, there will be a growing emphasis on developing more energy-efficient hydraulic motors and systems.
- Greater Use of Electronic Controls: Electronic controls will play an increasingly important role in hydraulic motor technology, enabling precise control, improved performance, and advanced diagnostics.
- Integration with IoT (Internet of Things): Hydraulic motors will be increasingly integrated with IoT devices, allowing for remote monitoring, predictive maintenance, and data-driven optimization.
- Development of Sustainable Hydraulic Fluids: There will be a growing focus on developing environmentally friendly hydraulic fluids that are biodegradable and non-toxic.
- Additive Manufacturing (3D Printing): Additive manufacturing will enable the creation of complex and customized hydraulic motor designs, leading to improved performance and functionality.
- Artificial Intelligence (AI) and Machine Learning (ML): AI and ML technologies will be used to optimize hydraulic motor performance, predict failures, and automate maintenance tasks.
Hydraulic motors are vital in modern machinery, converting hydraulic energy into mechanical energy to power a diverse range of applications. Their ability to deliver high power, precise control, and durability makes them indispensable in industries such as construction, manufacturing, and transportation. Understanding the principles, components, types, control methods, troubleshooting techniques, and advancements of hydraulic motors is essential for engineers and technicians working with these systems. The future of hydraulic motor technology promises even greater efficiency, performance, and sustainability through advancements in materials, controls, and integration with emerging technologies. Despite some drawbacks, the advantages of hydraulic motors often outweigh the disadvantages, ensuring their continued use and development in the future.
The main function of a hydraulic motor is to convert hydraulic energy into mechanical energy, providing the necessary power to drive various mechanical components and systems.
A hydraulic pump converts mechanical energy into hydraulic energy by increasing the pressure and flow of a fluid, while a hydraulic motor converts hydraulic energy back into mechanical energy in the form of rotary motion.
The common types of hydraulic motors include gear motors, vane motors, and piston motors (axial and radial).
Hydraulic motors typically use hydraulic oil, which is a specially formulated fluid designed to transmit power, lubricate components, and dissipate heat.
Hydraulic motors are used in a wide range of applications, including crane drives, military vehicles, excavators, conveyor drives, roll mills, and drilling rigs.
