Engine mounts are vital components in your vehicle, responsible for securing the engine in place and minimizing vibrations that can affect your driving experience and the longevity of other parts. Among the different types of engine mounts, hydraulic motor mounts are known for their superior vibration dampening capabilities. This article delves into the lifespan of hydraulic motor mounts, factors influencing their durability, signs of failure, maintenance tips, and comparisons with other types of mounts.

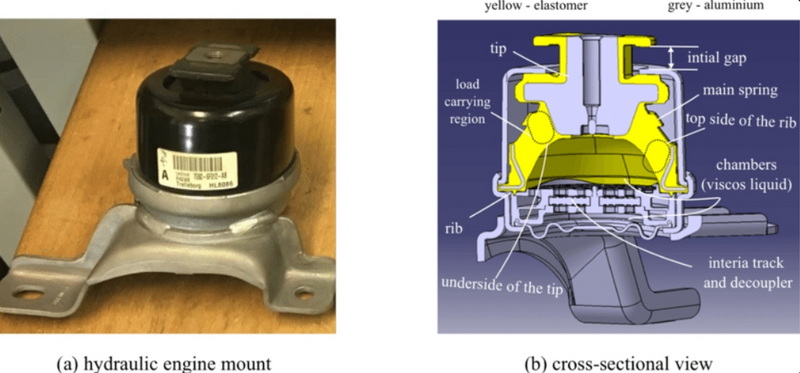

Hydraulic motor mounts are advanced engine mounts designed to provide optimal vibration isolation. Unlike solid rubber mounts, hydraulic mounts contain a hollow center filled with hydraulic fluid, typically a glycol/water mixture. This design allows the mount to absorb vibrations across a broader frequency range.
- Fluid-Filled Chamber: The hydraulic fluid dampens vibrations, reducing noise and movement.
- Frequency Dependence: Hydraulic mounts are designed to be stiff and highly damped at low frequencies while remaining soft and light at high frequencies.
- Tuning Capability: These mounts can be precisely tuned to provide optimum vibration dampening without allowing excessive engine movement.
The lifespan of hydraulic motor mounts can vary significantly based on several factors. On average, these mounts last between 60,000 to 100,000 miles or approximately 5 to 7 years. However, this range is influenced by driving conditions, vehicle type, and the quality of the mounts.
- Driving Habits: Aggressive acceleration and abrupt braking can put additional strain on the engine mounts, reducing their lifespan.
- Road Conditions: Poor road surfaces and exposure to extreme temperatures can accelerate wear and tear.
- Vehicle Type: The specific design and requirements of different vehicles can impact how long the mounts last.
- Quality of Mounts: High-quality mounts from reputable manufacturers generally last longer than cheaper alternatives.
Recognizing the signs of failing engine mounts is crucial for maintaining your vehicle's performance and preventing further damage. Here are common symptoms to watch for:
1. Unusual Vibrations: Increased vibrations in the cabin, steering wheel, or seats can indicate failing mounts.
2. Excessive Engine Movement: Visible movement of the engine, especially during acceleration or deceleration, is a clear sign of mount failure.
3. Knocking or Clunking Sounds: Noises coming from the engine bay, particularly when shifting gears or driving over bumps, suggest worn or broken mounts.
4. Visible Wear and Tear: Cracks, splits, corrosion, or leaks in the mount's rubber or hydraulic components are signs of damage.
5. Lurching Motion: A noticeable lurch or jerk when accelerating can indicate that the engine mounts are failing to hold the engine securely.
Failing to replace damaged engine mounts can lead to severe consequences for your vehicle and safety. A worn-out engine motor mount can cause the engine to shift excessively, leading to misalignment and potential damage to surrounding components.
- Damage to Surrounding Components: Excessive engine movement can damage the transmission, exhaust system, and other parts, leading to costly repairs.
- Compromised Handling: Faulty motor mounts can affect vehicle stability and handling, making it unsafe to drive, especially at high speeds.
- Passenger Discomfort: Increased vibrations and noise can reduce passenger comfort.
- Damage to Vehicle's Chassis: In some cases, excessive vibrations can damage the vehicle's chassis.
Preventing premature wear on your engine mounts is key to reducing replacement frequency and cost. Here are some tips:
1. Drive Smoothly: Avoid aggressive acceleration and abrupt braking. Sudden movements put stress on the engine mounting and can lead to faster deterioration.
2. Inspect Regularly: Include motor mounts in your routine vehicle inspections. Look for visible cracks, wear, or unusual engine movement that could indicate damage.
3. Address Vibrations Immediately: If you notice increased vibrations or noise, have your mechanic check the engine mount system promptly to prevent further damage.
4. Avoid Overloading: Carrying excessive weight puts additional strain on your vehicle, increasing wear on the motor mount replacement system.
5. Use Quality Parts: Always opt for reliable parts when replacing mounts. Cheap alternatives may save money upfront but can wear out quickly, leading to frequent replacements.
There are several types of engine mounts, each with its own advantages and disadvantages. Here's a comparison:
Type of Mount | Description | Advantages | Disadvantages |
Rubber Mounts | Solid rubber with metal backing plates. | Robust and effective at absorbing vibration; typically the standard choice for many vehicles. | Can degrade over time, leading to increased vibration and noise. |
Metal Mounts | Metal on metal. | High durability and strength. | Poor vibration dampening. |
Hydraulic Mounts | Rubber mounts with a hollow center filled with hydraulic fluid. | Excellent vibration isolation; can be tuned for optimal dampening. | More expensive and less durable than solid rubber mounts. |
Active Mounts | Vacuum-controlled mounts that respond to changes in RPM. | Highly effective at controlling vibration and engine movement; often found in high-end vehicles. | Complex and expensive to replace. |
Regular inspection of hydraulic motor mounts can help identify potential issues early. Follow these steps to inspect your engine mounts:
- Open the hood and locate the engine mounts.
- Check for any visible cracks, corrosion, or warping on the mounts.
- Look for signs of hydraulic fluid leaks.
- Start the engine and let it idle.
- Observe the engine for any excessive movement or vibration.
- Have someone rev the engine while you watch the mounts for unusual movement.
- Listen for any knocking or clunking sounds coming from the engine bay, especially when shifting gears or driving over bumps.
- If you notice any signs of wear or damage, consult a professional mechanic for a thorough inspection.
If your hydraulic motor mounts need replacement, here's a list of tools and materials you may need:
- New engine mounts (OEM or high-quality aftermarket)
- Socket set
- Wrench set
- Jack and jack stands
- Torque wrench
- Wheel chocks
- Safety glasses
- Gloves
- Penetrating oil
- Wooden block (to protect the oil pan when jacking up the engine)
Replacing hydraulic motor mounts can be a complex task, so it's essential to proceed with caution. If you're not comfortable performing the replacement yourself, consult a professional mechanic.
- Park the vehicle on a level surface and engage the parking brake.
- Use wheel chocks to secure the rear wheels.
- Disconnect the negative battery cable to prevent electrical accidents.
- Raise the vehicle using a jack and secure it with jack stands.
- Locate the engine mounts that need to be replaced.
- Place a wooden block on the jack to protect the oil pan.
- Position the jack under the engine to provide support.
- Slightly raise the engine to take the weight off the mounts.
- Use a socket or wrench to remove the bolts securing the old engine mounts.
- Carefully remove the old mounts from their positions.
- Position the new engine mounts in their respective locations.
- Align the bolt holes and hand-tighten the bolts.
- Use a torque wrench to tighten the bolts to the manufacturer's specifications.
- Slowly lower the engine using the jack until it rests on the new mounts.
- Remove the jack.
- Ensure all bolts are tightened to the correct torque specifications.
- Double-check the alignment of the engine and mounts.
- Reconnect the negative battery cable.
- Start the engine and let it idle.
- Check for any unusual vibrations or noises.
- Take the vehicle for a test drive to ensure the new mounts are functioning correctly.
The cost of replacing hydraulic motor mounts can vary depending on several factors, including the vehicle's make and model, the type of mounts used, and the labor rates in your area.
- Parts Cost: Hydraulic motor mounts are generally more expensive than solid rubber mounts. Prices can range from $50 to $300 per mount, depending on the brand and quality.
- Labor Cost: Labor costs can vary widely depending on the mechanic's hourly rate and the complexity of the job. Replacing engine mounts can take between 3 to 6 hours of labor.
To truly understand the longevity and performance of hydraulic motor mounts, it's beneficial to delve deeper into their technology and design. These mounts aren't just simple fluid-filled containers; they are engineered with precision to meet the specific needs of different vehicle models and engine types.
- Inertia Ring: Some hydraulic mounts include an inertia ring that floats within the hydraulic fluid. This ring enhances the mount's ability to dampen vibrations, particularly at specific engine speeds.
- Decoupler Element: A decoupler element isolates the engine from the vehicle's frame, further minimizing the transmission of vibrations. This element is typically made of rubber or other flexible materials.
- Hydraulic Fluid Composition: The hydraulic fluid used in these mounts is carefully selected to provide optimal damping characteristics. The viscosity and chemical properties of the fluid are critical for performance and longevity.
- Chamber Design: The internal chambers within the mount are designed to control the flow of hydraulic fluid, ensuring effective vibration dampening. The size and shape of these chambers are tailored to the specific engine and vehicle.
The materials used in hydraulic motor mounts play a crucial role in their overall performance and lifespan. The rubber components must be resistant to heat, oil, and other chemicals, while the metal parts must be strong enough to withstand constant stress and vibration.
- Rubber Compounds: Advanced rubber compounds are used to ensure durability and flexibility. These compounds are designed to resist cracking and degradation over time.
- Metal Alloys: High-strength metal alloys are used for the mount's frame and brackets. These alloys provide the necessary strength and rigidity to support the engine.
- Sealing Technology: Effective sealing is essential to prevent hydraulic fluid leaks. Advanced sealing technologies are used to ensure long-term reliability.
The environment in which a vehicle operates can significantly impact the lifespan of hydraulic motor mounts. Extreme temperatures, exposure to road salt, and other harsh conditions can accelerate wear and tear.
- Temperature Effects: High temperatures can cause the hydraulic fluid to degrade and the rubber components to harden.
- Road Salt: Road salt can corrode the metal parts of the mount, weakening them over time.
- UV Exposure: Prolonged exposure to ultraviolet (UV) radiation can damage the rubber components, causing them to crack and lose their flexibility.
The field of engine mount technology is constantly evolving, with new innovations aimed at improving performance, durability, and efficiency.
- Active Engine Mounts: Active engine mounts use sensors and actuators to dynamically adjust the mount's damping characteristics in response to changing driving conditions. These mounts provide the ultimate in vibration isolation and control.
- Magnetorheological (MR) Fluid Mounts: MR fluid mounts use a special type of hydraulic fluid that changes viscosity in response to a magnetic field. This allows for precise control over the mount's damping characteristics.
- Lightweight Materials: The use of lightweight materials, such as aluminum and composites, helps to reduce the overall weight of the mount, improving fuel efficiency.
Accurate diagnosis of engine mount problems is essential for effective repair. In addition to the visual inspection and engine movement tests described earlier, mechanics may use specialized tools to assess the condition of the mounts.
- Vibration Analyzers: Vibration analyzers can detect subtle vibrations that may not be noticeable to the naked eye. These tools can help pinpoint the source of the vibration and identify failing engine mounts.
- Pressure Testing: Pressure testing can be used to check for leaks in the hydraulic system. This involves pressurizing the system and looking for signs of fluid leakage.
- Computer Diagnostics: Some vehicles have diagnostic systems that can detect engine mount problems. These systems can provide valuable information about the condition of the mounts.
Hydraulic motor mounts are essential for maintaining a smooth and comfortable driving experience by effectively reducing engine vibrations. While their lifespan typically ranges from 5 to 7 years, several factors can influence their durability. Regular maintenance, careful driving habits, and timely replacement of worn mounts can help extend their lifespan and prevent costly damage to other vehicle components. By understanding the signs of failure and following proper inspection and replacement procedures, you can ensure your vehicle operates safely and efficiently.
Hydraulic motor mounts offer superior vibration isolation compared to rubber mounts. They are designed to dampen vibrations across a broader frequency range, providing a smoother and quieter driving experience.
Common signs of failing hydraulic motor mounts include increased vibrations in the cabin, excessive engine movement, knocking or clunking sounds, visible cracks or leaks on the mounts, and a lurching motion when accelerating.
Driving with a broken engine mount is not recommended. It can lead to damage to surrounding components, compromise vehicle handling, and pose a safety risk.
Replacing hydraulic motor mounts can be a complex task that requires specific tools and knowledge. If you are not comfortable performing the replacement yourself, it's best to consult a professional mechanic.
It's a good idea to inspect your engine mounts during routine vehicle inspections, or at least every 12 months. Regular inspections can help identify potential issues early and prevent further damage.
