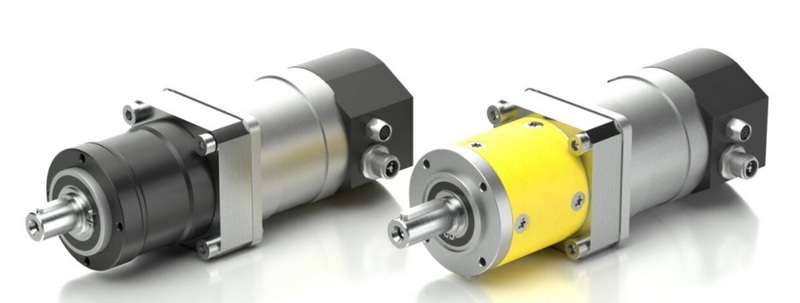

Planetary gearboxes are complex mechanical systems used to transmit power and torque in various applications, from automotive transmissions to industrial machinery. They are known for their compact design and ability to provide high torque at low speeds. But how many gears does a typical planetary gearbox have? In this article, we will delve into the components and operation of planetary gearboxes, explore their applications, and discuss the number of gears involved.
A planetary gearbox, also known as an epicyclic gear train, consists of three main components: a sun gear, multiple planet gears, and a ring gear. The sun gear is located at the center, surrounded by planet gears that orbit around it, while the ring gear encloses the planet gears. This arrangement allows for various gear ratios by fixing different components and using them as input or output members.
1. Sun Gear: Located at the center, it is the driving gear that transmits power to the planet gears.
2. Planet Gears: These are the gears that orbit around the sun gear. They are mounted on a carrier and mesh with both the sun gear and the ring gear.
3. Ring Gear: This is the outer gear with internal teeth that encloses the planet gears.
4. Carrier: Holds the planet gears in place and rotates with them, often serving as the output shaft.
The operation of a planetary gearbox involves fixing one component while using another as the input and a third as the output. This allows for different gear ratios and directions of rotation.
- Fixed Ring Gear: If the ring gear is fixed, the sun gear can be used as the input, and the carrier as the output. This configuration provides a reduction in speed and an increase in torque.
- Fixed Sun Gear: If the sun gear is fixed, the ring gear can be used as the input, and the carrier as the output. This setup provides a higher gear ratio compared to the fixed ring gear scenario.
- Fixed Carrier: If the carrier is fixed, the sun gear can be used as the input, and the ring gear as the output. This configuration results in a direct drive or overdrive ratio.
Planetary gearboxes are widely used in various applications due to their compact size and ability to provide high torque.
- Automotive Industry: They are a key component in automatic transmissions, providing multiple gear ratios for efficient power transmission. The compact size and robust design of planetary gear systems make them ideal for the limited space within a vehicle's transmission system[1].
- Industrial Machinery: Used in conveyor systems, mixers, and other machinery where precise control of speed and torque is crucial. Their ability to handle heavy loads while maintaining efficiency makes them indispensable in industrial applications[1][5].
- Aerospace and Aviation: In the aerospace sector, planetary gearboxes are utilized in various mechanisms, including landing gear systems, actuators, and satellite deployment systems. The lightweight and compact nature of these gearboxes make them well-suited for aerospace applications where minimizing weight is critical for fuel efficiency and overall performance[1].
- Renewable Energy: Planetary gearboxes play a crucial role in the field of renewable energy, especially in wind turbines and solar tracking systems. In wind turbines, they help optimize the rotational speed of the generator to produce electricity efficiently. Solar tracking systems use planetary gearboxes to adjust the position of solar panels, maximizing their exposure to sunlight throughout the day[1][5].
- Robotics and Automation: The precision and reliability of planetary gearboxes make them a preferred choice in robotics and automation. Robotic arms, CNC machines, and automated manufacturing systems often incorporate planetary gears to ensure accurate and controlled movements[1][8].
- Medical Devices: Planetary gear systems are also utilized in various medical devices, such as diagnostic equipment, imaging devices, and robotic surgical systems. Their ability to provide precise motion control and their compact design make them suitable for applications where space is limited, and accuracy is paramount[1].
- Rubber Industry: Planetary gearboxes offer a robust solution with an excellent power-to-weight ratio, reducing size and weight while maintaining durability. This makes them an attractive alternative to traditional parallel shaft gearboxes in the rubber industry[2].
A planetary gearbox typically consists of a single stage with one sun gear, multiple planet gears (usually three or four), and one ring gear. However, for higher gear ratios, multiple stages can be used, each with its own set of sun, planet, and ring gears.
In a single-stage planetary gearbox, there is one sun gear, one ring gear, and multiple planet gears. The number of planet gears can vary but is typically between three and four.

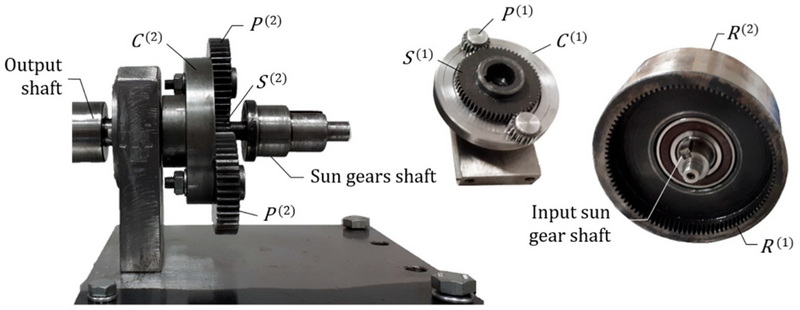

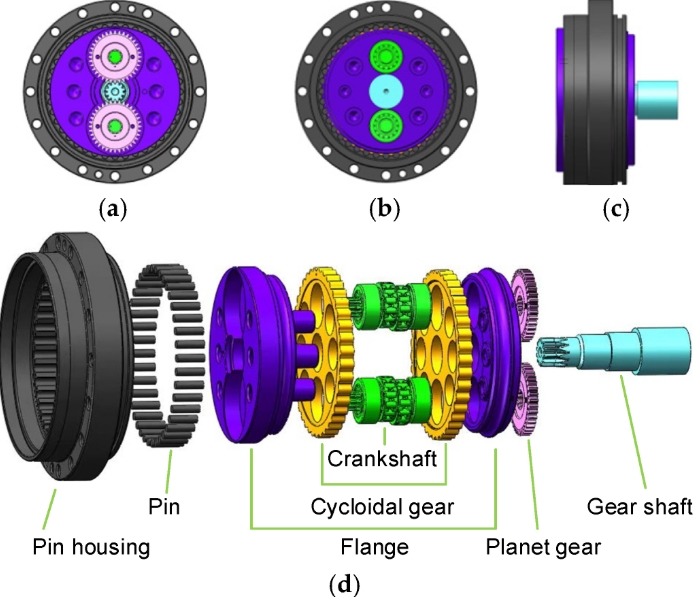

For applications requiring higher gear ratios, multiple stages can be combined. Each stage consists of a sun gear, planet gears, and a ring gear. This setup allows for a wide range of gear ratios and increased torque output.
Planetary gearboxes offer several advantages that make them preferred in many applications:
- High Precision: They provide high precision with backlash as low as 1 arcmin, making them suitable for precise motion control[6].
- Low Noise: The operation noise is minimal, typically around 55 decibels, which is beneficial in environments where noise reduction is crucial[6].
- High Efficiency: Planetary gearboxes have high transmission efficiency, reaching up to 97%, which minimizes energy loss[8].
- High Torque Density: They can withstand higher torque than other gearboxes of the same size, making them ideal for applications requiring high torque at low speeds[5].
- Economic Benefits: By using a planetary gearbox with a lower power motor, the overall cost of the system can be reduced while maintaining or increasing output torque[8].
To ensure the longevity and optimal performance of planetary gearboxes, regular maintenance is essential. This includes:
- Checking for Loose Parts: Regularly inspect the installation and ensure that all parts, including drive shafts, are securely fastened.
- Lubricant Management: Monitor the lubricant level and temperature. Use appropriate lubricants for different operating conditions, such as low coagulation point lubricants in cold environments[3].
- Inspection and Replacement: Periodically inspect gears and bearings. Replace any worn-out components to prevent damage to other parts of the gearbox[3].
The future of planetary gearboxes is promising, with ongoing advancements in materials and design. The integration of IoT and smart technologies is expected to enhance maintenance and performance monitoring, allowing for predictive maintenance and reduced downtime[4]. Additionally, the use of lightweight materials like carbon fiber-reinforced composites will further improve efficiency and durability in applications such as electric vehicles and aerospace[4].
The use of lightweight materials like carbon fiber-reinforced composites is becoming increasingly popular in planetary gearbox design. These materials not only reduce the overall weight of the gearbox but also enhance its durability and efficiency, making them ideal for applications in aerospace and electric vehicles[4].
The integration of IoT and smart technologies into planetary gearboxes allows for real-time monitoring of parameters such as lubricant levels, vibration, and temperature. This data can be used to predict potential failures, enabling proactive maintenance and reducing downtime[4].
The trend towards miniaturization in industries like electronics and medical devices has led to the development of micro planetary gearboxes. These compact and precise gearboxes enable precise motion control and power transmission in small-scale applications[5].
Digital twin technology involves creating a virtual model of the gearbox that mirrors its physical counterpart. This allows for real-time performance monitoring, virtual testing, and simulation-based optimization, facilitating efficient design iterations and predictive maintenance strategies[5].
In summary, a planetary gearbox typically consists of a sun gear, multiple planet gears, and a ring gear in a single stage. The number of gears can increase with multi-stage configurations to achieve higher gear ratios and increased torque. Their versatility, efficiency, and compact design make planetary gearboxes essential in various industries.
A planetary gearbox consists of a sun gear, planet gears, a ring gear, and a carrier. The sun gear is the central driving gear, the planet gears orbit around it, and the ring gear encloses the planet gears. The carrier holds the planet gears in place and often serves as the output shaft.
Different gear ratios are achieved by fixing one component (sun gear, ring gear, or carrier) and using another as the input and a third as the output. This allows for various configurations such as underdrive, overdrive, and direct drive.
Planetary gearboxes offer high torque density, wide range of reduction ratios, high precision, low noise, and high efficiency. They are also economical as they can be used with lower power motors to achieve the desired output torque.
Planetary gearboxes are widely used in automotive transmissions, industrial machinery, robotics, aerospace, renewable energy, and medical devices due to their ability to provide high torque and efficient power transmission.
Yes, planetary gearboxes can be customized by adjusting the number of teeth on the sun and ring gears, using multiple stages, or incorporating different types of braking systems. This allows them to be tailored for specific torque and speed requirements.
