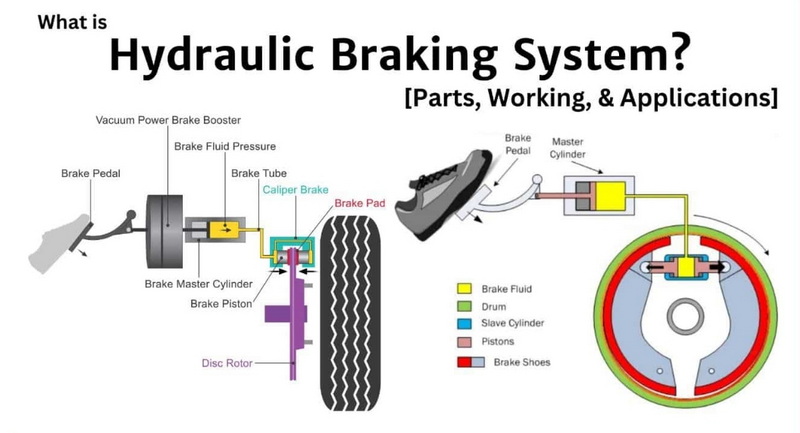

A hydraulic brake system is a braking mechanism that uses brake fluid, typically containing glycol ethers or diethylene glycol, to transfer pressure. Hydraulic brakes are standard in modern vehicles because they are efficient and long-lasting. When a driver presses the brake pedal, the force is converted into hydraulic pressure, which is then distributed throughout the system via hydraulic lines.
When the brake pedal is pressed, a pushrod exerts force on the pistons in the master cylinder, causing brake fluid from the reservoir to flow into a pressure chamber through a compensating port. This increases the pressure in the hydraulic system, forcing fluid through the hydraulic lines to the calipers, where it acts upon the caliper pistons. These pistons are sealed by O-rings to prevent fluid leakage.
The brake caliper pistons then apply force to the brake pads, pushing them against the spinning rotor. The friction between the pads and the rotor generates a braking torque, slowing the vehicle. The heat generated by this friction is dissipated through vents and channels in the rotor or conducted through the pads, which are made of heat-tolerant materials like Kevlar or sintered glass.
Alternatively, in a drum brake, the fluid enters a wheel cylinder and presses one or two brake shoes against the inside of the spinning drum. The brake shoes use a similar heat-tolerant friction material to the pads used in disc brakes.
When the brake pedal is released, the springs in the master cylinder assembly return the master pistons to their original position. This relieves the hydraulic pressure on the caliper and applies suction to the brake piston in the caliper assembly, moving it back into its housing and allowing the brake pads to release the rotor.
The hydraulic braking system is designed as a closed system, meaning that the brake fluid doesn't leave or enter the system unless there is a leak. Leaks can occur from cracks in the O-rings or a puncture in the brake line, often caused by mixing brake fluids or contamination with water, alcohol, or antifreeze.

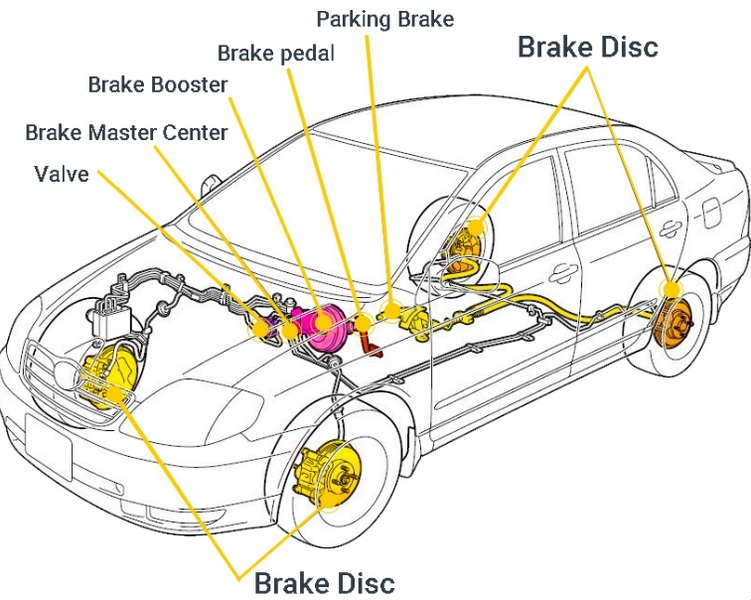

The key components of a hydraulic brake system include:
- Brake pedal: The driver applies force to this, initiating the braking process.
- Actuating or push rod: Connects the brake pedal to the master cylinder.
- Master cylinder: Contains brake fluid and generates hydraulic pressure when the brake pedal is pressed.
- Reinforced hydraulic lines: Transmit the hydraulic pressure to the brake calipers.
- Brake caliper assembly: Contains pistons that move, creating friction between the brake pads and the brake disc.
Braking systems vary across different vehicles, but they all aim to bring the vehicle to a safe stop. Here's a comparison of some common brake systems:
- Bicycle: Squeezing the brake levers on the handlebars pulls on calipers, forcing rubber blocks against the wheels. The friction generates heat, reducing kinetic energy and stopping the bicycle. Some bicycles use disc or drum brakes.
- Car: Most cars have disc, drum, and handbrake systems.
- Handbrake: Applies the rear brakes in a slower, less forceful way through a lever. It is a mechanical system that doesn't use hydraulic fluid, allowing it to be used as an emergency braking system if the normal brakes fail.
| Feature | Disc Brakes | Drum Brakes |
|---|---|---|
| Mechanism | Use a caliper to squeeze brake pads against a rotor. | Use a wheel cylinder to press brake shoes against the inside of a spinning drum. |
| Heat Tolerance | Heat is dissipated through vents and channels in the rotor or conducted through the pads. | Similar heat-tolerant friction material to the pads used in disc brakes. |
| Application | Commonly used in the front wheels of cars due to their better stopping power and heat dissipation. | Often used in the rear wheels of cars and in older vehicles. |
| Maintenance | Generally easier to maintain and replace brake pads. | Can be more complex to service due to the enclosed design. |
| Performance | Provide more consistent stopping power, especially in wet conditions. | Can suffer from brake fade (reduced stopping power) when overheated. |
| Complexity | Simpler design with fewer parts. | More complex design with more components. |
| Weight | Typically lighter than drum brakes. | Generally heavier than disc brakes. |
| Cost | Can be more expensive initially, but often more cost-effective in the long run due to better performance and longer lifespan. | Typically less expensive to manufacture. |
| Self-Adjusting | Some disc brake systems have self-adjusting mechanisms to compensate for brake pad wear. | Drum brakes often have automatic adjustment mechanisms to ensure the shoes move out a little bit further as they start to wear out. |
| Enclosure | Open design allows for better cooling and debris expulsion. | Enclosed design can trap heat and debris, leading to reduced performance. |
| Braking Force | Generally provide a stronger and more linear braking force. | Can provide a strong initial braking force, but may become less effective as heat builds up. |
| Applications | High-performance vehicles, motorcycles, and bicycles. | Trucks, buses, and older model cars. |
| Maintenance Access | Easier access for inspection and maintenance. | More difficult access, requiring more time for maintenance and repairs. |
| Wear Rate | Brake pads generally wear out more quickly than brake shoes. | Brake shoes tend to last longer due to the larger surface area and enclosed design. |
| Response Time | Faster response time due to direct contact between pads and rotor. | Slower response time due to the need for the shoes to move outward and contact the drum. |
| Weight Distribution | Can affect weight distribution due to being lighter and typically mounted on the front wheels. | Can contribute to a higher center of gravity due to being heavier and often mounted on the rear wheels. |
| Noise | Can produce squealing noises if the brake pads are worn or of low quality. | Can produce grinding or squeaking noises if the brake shoes are worn or if debris gets trapped inside the drum. |
| Complexity of Repair | Simpler repair process, often requiring fewer specialized tools. | More complex repair process, potentially requiring specialized tools and expertise. |
A speeding car has a lot of energy, and when you stop, almost all of that energy is converted into heat in the brake pads. Brakes in a typical car can easily heat up to temperatures of 500°C (950°F), and Formula 1 cars can reach as high as 750°C (1400°F). Therefore, brake pads must be made of materials that won't melt, such as alloys, ceramics, or carbon-based composites. Asbestos was once a popular choice for brake pads but is no longer used due to safety risks. Brakes wear out over time, and the fine dust from disintegrating brakes is now recognized as a significant source of air pollution.
Brake fluid is a critical component of hydraulic brake systems. It is typically made of glycol ethers and/or diethylene glycol. The fluid transmits the pressure from the master cylinder to the wheel cylinders or calipers, enabling the vehicle to stop. It is essential to maintain the correct type and level of brake fluid to ensure the braking system operates effectively. Contaminated or low brake fluid can lead to reduced braking performance or brake failure.
The fluid pressure from the master cylinder travels through steel brake tubes to a pressure differential valve, sometimes called a "brake failure valve". This valve has two functions: it equalizes pressure between the two systems and provides a warning if one system loses pressure. The pressure differential valve has two chambers with a piston between them. When the pressure in either line is balanced, the piston does not move. If the pressure on one side is lost, the pressure from the other side moves the piston. When the piston contacts a simple electrical probe in the center of the unit, a circuit is completed, and the operator is warned of a failure in the brake system.
From the pressure differential valve, brake tubing carries the pressure to the brake units at the wheels. Since the wheels do not maintain a fixed relation to the automobile, it is necessary to use hydraulic brake hose from the end of the steel line at the vehicle frame to the caliper at the wheel. Allowing steel brake tubing to flex invites metal fatigue and, ultimately, brake failure. A common upgrade is to replace the standard rubber hoses with a set which are externally reinforced with braided stainless-steel wires. The braided wires have negligible expansion under pressure and can give a firmer feel to the brake pedal with less pedal travel for a given braking effort.

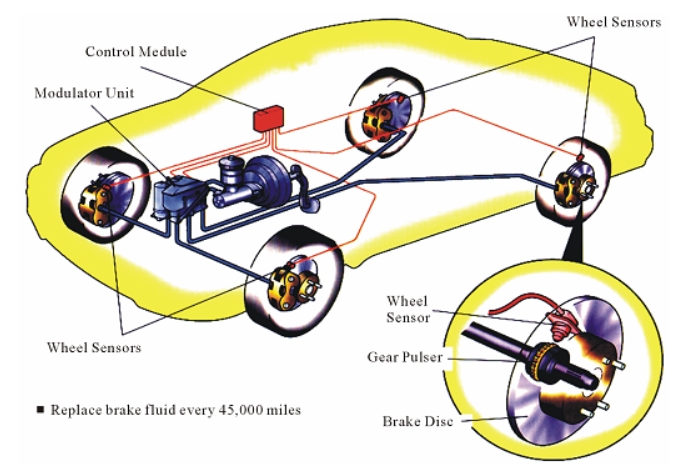

ABS is a safety system that prevents the wheels from locking up during braking. It modulates the brake pressure to each wheel, allowing the driver to maintain steering control and reduce stopping distances, especially on slippery surfaces. ABS uses sensors to monitor the speed of each wheel. If a wheel is detected to be locking up, the ABS module rapidly pulses the brake pressure to that wheel, preventing it from skidding.
EBD is a system that automatically varies the amount of force applied to each of a vehicle's wheels, based on road conditions, speed, loading, etc. It works in conjunction with ABS and optimizes stopping distances by ensuring that each wheel is braking with the optimal force. EBD prevents wheel lockup and improves vehicle stability during braking.
TCS is designed to prevent wheel spin during acceleration. It works by monitoring the speed of each wheel and, if it detects that a wheel is spinning, it reduces engine power and/or applies the brakes to that wheel. TCS helps maintain traction and improves vehicle stability during acceleration, particularly on slippery surfaces.
BAS is a technology designed to assist drivers in emergency braking situations. It detects when a driver is attempting to perform an emergency stop by monitoring the speed and force with which the brake pedal is depressed. If BAS detects an emergency braking situation, it applies maximum braking force to help reduce stopping distances.
Brake pads are subjected to intense friction and heat, and they gradually wear down over time. Regular inspection of brake pad thickness is essential. Worn brake pads should be replaced promptly to avoid damage to the rotors and maintain optimal braking performance.
Brake fluid leaks can lead to reduced braking performance or brake failure. Regular checks of the brake fluid level and inspection of hydraulic lines for leaks are crucial. If a leak is detected, it should be repaired immediately.
Brake rotors can warp due to excessive heat or uneven wear. Warped rotors can cause vibrations and reduced braking performance. Resurfacing or replacing warped rotors can restore smooth and effective braking.
Air can enter the brake lines, causing a spongy brake pedal feel and reduced braking performance. Bleeding the brakes to remove air from the lines is necessary to restore proper braking function.
Corrosion can affect various components of the braking system, including calipers, rotors, and hydraulic lines. Regular cleaning and inspection can help prevent corrosion. Applying protective coatings to exposed metal parts can also extend the lifespan of braking components.
- Regular Inspections: Check brake pads, rotors, and fluid levels regularly.
- Use Correct Brake Fluid: Always use the brake fluid type recommended by the vehicle manufacturer.
- Avoid Overloading: Overloading the vehicle can increase braking distances and stress on the braking system.
- Safe Driving Habits: Maintain a safe following distance and avoid sudden stops to minimize wear on the braking system.
- Professional Service: Have the braking system serviced by a qualified mechanic at recommended intervals.
The hydraulic brake system is a marvel of automotive engineering, providing a safe and efficient way to stop a moving vehicle. By understanding the components and how they work together, drivers and enthusiasts can better appreciate the technology that keeps them safe on the road. Regular maintenance and timely repairs are essential to ensure the hydraulic brake system functions optimally, providing reliable stopping power when needed. The integration of advanced braking technologies such as ABS, EBD, TCS, and BAS further enhances the safety and performance of modern vehicles. By adhering to safety tips and maintaining the braking system properly, drivers can ensure a safe and reliable driving experience.
Brake fluid transmits the pressure from the master cylinder to the wheel cylinders or calipers, enabling the vehicle to stop. It ensures that the force applied to the brake pedal is effectively transferred to the brakes.
When the driver presses the brake pedal, the force is converted into hydraulic pressure in the master cylinder. This pressure is then transmitted through hydraulic lines to the wheel cylinders or calipers, which press the brake pads against the rotors or drums, creating friction and slowing the vehicle.
Disc brakes use a caliper to squeeze brake pads against a rotor, while drum brakes use a wheel cylinder to press brake shoes against the inside of a spinning drum. Disc brakes generally offer better stopping power and heat dissipation, while drum brakes are typically less expensive to manufacture.
Maintaining the correct type and level of brake fluid ensures that the braking system operates effectively. Contaminated or low brake fluid can lead to reduced braking performance or brake failure.
The pressure differential valve equalizes pressure between the two brake systems and provides a warning if one system loses pressure. This helps to ensure that the vehicle can still be stopped safely even if one part of the braking system fails.
