Hydraulic systems are the backbone of numerous industrial and mobile applications, offering immense power and precise control. At the heart of these systems lies the hydraulic motor, which converts hydraulic energy into mechanical energy. Ensuring the safe and efficient operation of a hydraulic motor requires careful management of pressure within the system. This is where the relief valve comes into play. A relief valve is a crucial component designed to protect the hydraulic system from overpressure by providing an escape route for excess fluid when pressure exceeds a pre-set limit.
This article provides a comprehensive guide on how to adjust a relief valve on a hydraulic motor, covering the tools required, step-by-step instructions, safety precautions, and troubleshooting tips.
Before diving into the adjustment process, it's essential to understand the function of a relief valve within a hydraulic system. The primary role of a relief valve is to limit the maximum pressure in the hydraulic circuit, preventing damage to the pump, motor, cylinders, and other components. When the pressure in the system rises above the valve's set point, the relief valve opens, diverting excess oil back to the reservoir. This prevents pressure from building up to dangerous levels.
There are several types of relief valves, each designed for specific applications and pressure ranges. The most common types include:

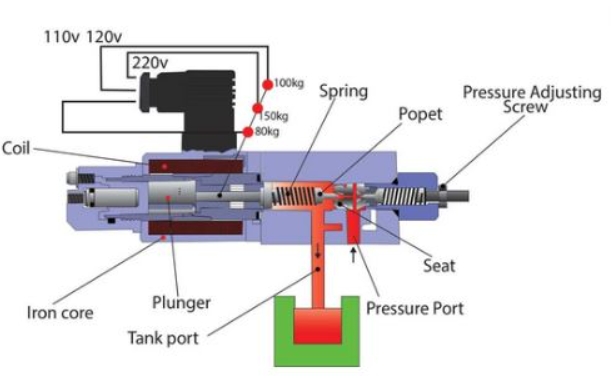

- Direct-acting relief valves: These are simple valves that directly respond to pressure changes in the system. They consist of a spring-loaded poppet or ball that lifts off its seat when the pressure exceeds the spring force.

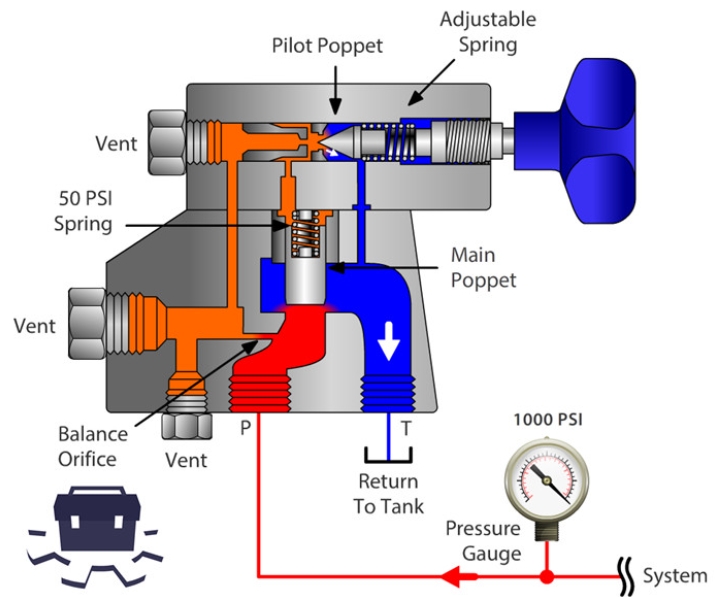

- Pilot-operated relief valves: These valves use a pilot stage to control the main valve. They offer more precise pressure control and are less susceptible to pressure spikes.
- Differential relief valves: These valves maintain a constant pressure difference between two points in the hydraulic circuit.
The first step in adjusting a relief valve is to locate it within the hydraulic system. Relief valves are typically installed close to the hydraulic pump or on the valve manifold. They are often identified by their adjustable screw or knob, which is used to set the pressure relief point. Refer to the equipment's operator's manual or hydraulic system schematics to pinpoint the exact location of the relief valve.
Before you begin the adjustment process, gather the necessary tools and materials. Having everything on hand will streamline the procedure and minimize downtime. Here's a list of essential items:
- Hydraulic Pressure Gauge: A pressure gauge is crucial for monitoring the system pressure during the adjustment process. Ensure the gauge has an appropriate pressure range for the hydraulic system.
- Wrenches and Allen Wrenches: Depending on the type of relief valve, you may need a set of standard wrenches and Allen wrenches to loosen locknuts and adjust the valve setting.
- Screwdriver: Some relief valves use a screwdriver to make fine adjustments to the spring tension.
- T-Fitting: If the hydraulic system does not have a pressure gauge, a T-fitting can be used to install one temporarily.
- Gloves and Safety Glasses: Safety is paramount when working with hydraulic systems. Wear gloves and safety glasses to protect yourself from oil and potential hazards.
- Operator's Manual: Always consult the equipment's operator's manual for specific instructions and recommended pressure settings.
Follow these steps to safely and effectively adjust the relief valve on a hydraulic motor:
1. Ensure the hydraulic system is shut down: Turn off the power to the hydraulic pump and ensure that the system is not under pressure.
2. Locate the relief valve: Identify the relief valve you need to adjust. Consult the equipment's manual or hydraulic schematics if necessary.
3. Inspect the valve: Check the valve for any signs of damage, leaks, or corrosion. If any issues are found, address them before proceeding.
1. Identify a suitable location: Find a port on the hydraulic system where you can install a pressure gauge. This is often near the pump or on the valve manifold.
2. Install the T-fitting: If there is no existing pressure gauge, install a T-fitting to create a port for the gauge.
3. Connect the pressure gauge: Thread the pressure gauge into the T-fitting, ensuring it is securely tightened.
1. Loosen the locknut: Use a wrench to loosen the locknut on the relief valve. This will allow you to adjust the valve setting.
2. Adjust the set screw: Use a screwdriver or Allen wrench to adjust the set screw.

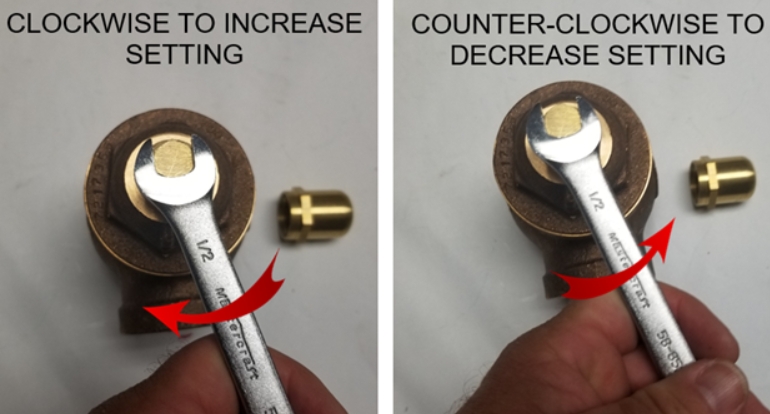

- Clockwise rotation: Turning the set screw clockwise typically increases the pressure setting.
- Counterclockwise rotation: Turning the set screw counterclockwise decreases the pressure setting.
3. Make small adjustments: Adjust the set screw in small increments (e.g., quarter turns) to avoid overcompensation.
4. Monitor the pressure gauge: While adjusting the set screw, observe the pressure gauge to see how the system pressure changes.
1. Start the hydraulic system: Turn on the hydraulic pump and allow the system to reach its normal operating temperature.
2. Operate the system: Activate the hydraulic motor and observe the pressure gauge.
3. Check the maximum pressure: Ensure that the maximum pressure does not exceed the manufacturer's recommended limit. If it does, continue to adjust the relief valve.
4. Fine-tune the adjustment: Make further adjustments to the set screw as needed until the desired pressure setting is achieved.
1. Tighten the locknut: Once the desired pressure setting is achieved, tighten the locknut to secure the valve's position.
2. Recheck the pressure: After tightening the locknut, recheck the system pressure to ensure that it has not changed during the tightening process.
3. Document the setting: Record the date and the new pressure setting for future reference.
Working with hydraulic systems can be hazardous if proper safety precautions are not followed. Keep these safety tips in mind when adjusting a relief valve:
- Depressurize the system: Always ensure that the hydraulic system is fully depressurized before beginning any maintenance or adjustment work.
- Wear safety gear: Wear safety glasses and gloves to protect yourself from hydraulic fluid and potential hazards.
- Avoid over-tightening: Do not over-tighten the valve components, as this can damage the valve or cause leaks.
- Consult the manual: Always refer to the equipment's operator's manual for specific safety guidelines and procedures.
- Proper Lockout/Tagout Procedures: Follow company-specific lockout/tagout procedures to ensure that the equipment remains de-energized and safe to work on.
If you encounter issues while adjusting the relief valve, consider these troubleshooting tips:
- Pressure gauge not reading correctly: Check the pressure gauge for damage or malfunction. Replace it if necessary.
- Valve not adjusting: Ensure that the locknut is fully loosened before attempting to adjust the set screw. If the valve is still not adjusting, it may be damaged or clogged.
- System pressure unstable: Fluctuating pressure readings may indicate air in the hydraulic system or a faulty pump. Bleed the system and inspect the pump.
- Oil Leaks: Check for leaks around the relief valve and fittings. Tighten connections or replace seals as needed.
- Valve Chatter: Excessive noise or vibration from the relief valve can indicate issues with the valve's internal components or excessive flow. Inspect the valve and address any underlying hydraulic system issues.
Adjusting a relief valve on a hydraulic motor is a critical maintenance task that ensures the safe and efficient operation of the hydraulic system. By understanding the role of the relief valve, following the step-by-step adjustment procedure, and adhering to safety precautions, you can effectively manage the pressure within the system and prevent costly damage. Always remember to consult the equipment's operator's manual for specific instructions and recommended pressure settings.
A relief valve is designed to limit the maximum pressure in the hydraulic circuit, preventing damage to the pump, motor, cylinders, and other components. When the pressure in the system rises above the valve's set point, the relief valve opens, diverting excess oil back to the reservoir.
Signs that your relief valve may need adjustment include:
- The hydraulic system is operating at pressures higher or lower than the recommended levels.
- The system is experiencing frequent overpressure events.
- You notice unusual noise or vibration from the relief valve.
The tools required to adjust a relief valve typically include:
- Hydraulic pressure gauge
- Wrenches and Allen wrenches
- Screwdriver
- T-fitting (if the system does not have a pressure gauge)
- Gloves and safety glasses
If the relief valve is not adjusting properly, check the following:
- Ensure that the locknut is fully loosened.
- Inspect the valve for damage or clogs.
- Verify that the pressure gauge is functioning correctly.
- Consult the equipment's operator's manual for troubleshooting steps.
The frequency of checking and adjusting the relief valve depends on the specific application and operating conditions. As a general guideline:
- Check the relief valve setting during routine maintenance inspections.
- Adjust the valve whenever you notice signs of overpressure or underpressure in the system.
- Follow the manufacturer's recommendations for maintenance intervals.
