Variable displacement hydraulic motors are essential components in many heavy-duty and high-precision machines, such as cranes. These motors offer the advantage of adjusting their displacement, which means controlling the amount of fluid they use per revolution. This adjustment allows for variable torque and speed, making them highly versatile in various applications. Understanding how these motors work and how to adjust them is crucial for optimizing performance and ensuring the longevity of the equipment.
This article will delve into the working principles of variable displacement motors, provide step-by-step guidance on how to adjust them, discuss troubleshooting and maintenance, and answer frequently asked questions. The goal is to provide you with a comprehensive understanding of variable displacement hydraulic motors and their adjustments.
A variable displacement motor is a hydraulic motor with adjustable displacement and theoretical input. Unlike fixed displacement motors, which deliver a constant amount of fluid per revolution, variable displacement motors can change the amount of fluid they use. This is achieved through internal mechanisms that alter the motor's geometry, thereby changing the displacement.

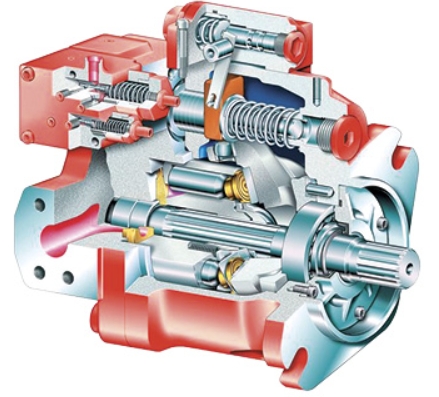

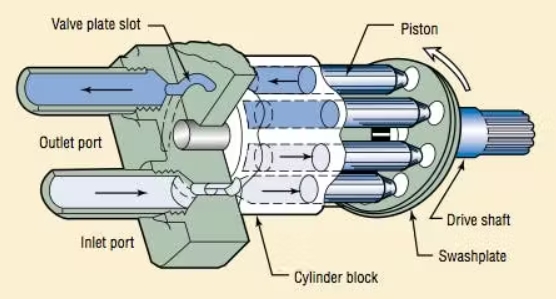

The key components of a variable displacement motor include:
- Cylinder Block: Contains the cylinders in which the pistons move.
- Pistons: Translate hydraulic pressure into mechanical motion.
- Swash Plate (or Wobble Plate): An angled plate that causes the pistons to reciprocate as the cylinder block rotates.
- Control Mechanism: Allows for the adjustment of the swash plate angle, thereby changing the displacement.
- Valve Plate: Controls the flow of hydraulic fluid into and out of the cylinders.
The motor's displacement is adjusted by changing the angle of the swash plate. When the swash plate is at a greater angle, the pistons travel further in each stroke, resulting in a larger displacement. Conversely, when the swash plate is at a smaller angle, the piston stroke is reduced, resulting in a smaller displacement.
Here's a step-by-step explanation of the working process:
1. Initial State: The motor starts with a large displacement.
2. Pilot Pressure Control: The displacement changes steplessly between large and small, depending on the pilot control pressure.
3. Pressure Oil Supply: When pressure oil is supplied through the motor ports, it enters a variable cylinder.
4. Servo Valve Action: As the pilot control pressure increases, it moves the servo valve, allowing motor working pressure oil to enter the variable cylinder.

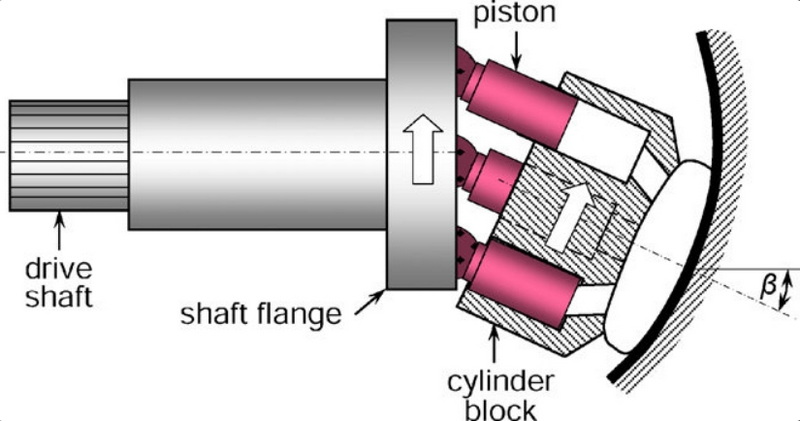

5. Variable Piston Movement: The variable piston moves, driving the oil distribution plate and cylinder block to swing, which reduces the angle between the cylinder block and the main shaft.
6. Displacement Reduction: This swinging action reduces the motor's displacement.
7. Control Pressure Change: When the control pressure decreases, the process reverses, increasing the motor's displacement.
Several types of control mechanisms are used in variable displacement motors, including:
- Manual Control: The swash plate angle is adjusted manually using a lever or screw.
- Hydraulic Control: The swash plate angle is adjusted using hydraulic pressure. This can be pilot pressure control or pressure compensation.
- Electrical Control: The swash plate angle is adjusted using an electric motor or solenoid. This allows for precise and automated control.
Pressure-compensated control is one of the most common types, where the swash plate is offset by a heavy spring and an internal piston, holding the pump at maximum displacement. As the system pressure changes, it alters the angle of the swash plate, and the pump produces just enough flow to maintain the set pressure.
Before you begin, ensure you have the following:
- Safety Gear: Wear safety glasses, gloves, and appropriate work attire.
- Tools: Wrenches, screwdrivers, pressure gauges, and a hydraulic oil analyzer.
- Service Manual: Refer to the motor's service manual for specific instructions and safety guidelines.
- Clean Environment: Work in a clean, well-lit area to prevent contamination of hydraulic components.
1. Isolate the Motor: Disconnect the motor from the power source and hydraulic system to prevent accidental operation.
2. Relieve Pressure: Ensure that all hydraulic pressure in the system is relieved before starting any adjustments.
1. Visual Inspection: Check for any visible signs of damage, such as leaks, cracks, or worn components.
2. Check Fluid Levels: Ensure the hydraulic fluid level in the reservoir is adequate. Low fluid levels can cause the pump to overheat or perform poorly.
3. Inspect Filters: Check the hydraulic filters and replace them if they are dirty or clogged. Clean filters are essential for maintaining hydraulic system cleanliness.
1. Locate the Control Mechanism:
Identify the control mechanism for adjusting the swash plate angle. This could be a manual lever, hydraulic valve, or electrical actuator.
2. Manual Adjustment:
- Loosen the lock nut on the adjustment screw.
- Turn the adjustment screw to increase or decrease the displacement. Refer to the service manual for the correct direction.
- Tighten the lock nut to secure the adjustment.
3. Hydraulic Adjustment:
- Locate the pilot pressure valve.
- Adjust the pilot pressure using a pressure gauge to monitor the pressure.
- Increase the pressure to decrease displacement and vice versa.
4. Electrical Adjustment:
- Use a diagnostic tool to connect to the motor's control system.
- Adjust the displacement using the control software, following the on-screen instructions.
1. Reassemble the System: Reconnect the motor to the hydraulic system and power source.
2. Start the Motor: Start the motor and monitor its performance.
3. Measure Flow and Pressure: Use pressure gauges and flow meters to measure the motor's output flow and pressure.
4. Calibrate: Adjust the displacement until the motor meets the required performance specifications.
5. Fine-Tuning: Make small adjustments as needed to optimize the motor's performance.
Issue | Possible Cause(s) | Solution(s) |
Motor Not Responding | Control mechanism malfunction, blocked pilot line | Check the control mechanism, clean or replace the pilot line |
Erratic Displacement | Worn components, fluctuating pilot pressure | Replace worn parts, stabilize pilot pressure |
Low Output Flow | Incorrect displacement setting, internal leakage | Readjust displacement, inspect and replace leaking seals |
High Case Drain Flow | Worn internal components | Overhaul or replace the motor; high case drain flow indicates excessive internal wear |
Overheating | Low fluid level, cooling system malfunction | Check and top up fluid level, repair or replace cooling system |
Regular inspections can help identify potential issues before they become major problems. Check for:
- Leaks: Look for hydraulic fluid leaks around the motor and its connections.
- Noise: Listen for unusual noises, such as whining or knocking, which can indicate worn components.
- Vibration: Check for excessive vibration, which can be a sign of misalignment or imbalance.
Hydraulic fluid is the lifeblood of the system. Regular fluid maintenance includes:
- Checking Fluid Levels: Ensure the fluid level is within the recommended range.
- Changing Fluid: Replace the hydraulic fluid at the intervals specified in the service manual.
- Filtering Fluid: Use high-quality filters to remove contaminants from the fluid.
Replace worn or damaged components promptly to prevent further damage. Common components that may need replacement include:
- Seals and Gaskets: Replace any damaged or worn seals and gaskets to prevent leaks.
- Pistons: Replace worn pistons to maintain proper motor function.
- Swash Plate: Replace the swash plate if it shows signs of wear or damage.
- Low Fluid Level: Check for leaks and top up as necessary.
- Overheating: Check fluid level and cooling system.
- Poor Performance: Check fluid level, filters, and hoses.
Variable displacement motors are often used in closed-loop hydrostatic systems, which are commonly found in heavy machinery. In these systems, the motor is directly coupled to a hydraulic pump, and the fluid circulates in a closed loop.
Troubleshooting tips for closed-loop systems include:
- Charge Pump Pressure Drops: Indicates a scored valve plate.
- Check Valves: Inspect for damage or leaks.
- Leakage Across Loop Lines: Could be a faulty shuttle valve.
To optimize the performance of a variable displacement motor:
- Use High-Quality Hydraulic Fluid: Use the type of fluid recommended by the motor manufacturer.
- Maintain Proper Filtration: Keep the hydraulic fluid clean to prevent wear and damage.
- Regularly Calibrate the Motor: Ensure the motor is properly calibrated to meet the required performance specifications.
Variable displacement hydraulic motors are versatile and essential components in many hydraulic systems. Understanding their working principles, adjustment procedures, and maintenance requirements is crucial for ensuring optimal performance and longevity. By following the guidelines outlined in this article, you can effectively adjust and maintain your variable displacement hydraulic motor, ensuring it operates efficiently and reliably. Regular maintenance, prompt troubleshooting, and adherence to safety protocols will help you maximize the lifespan and performance of your hydraulic motor.
A variable displacement hydraulic motor is a motor that can adjust the amount of hydraulic fluid it uses per revolution, allowing for variable torque and speed. This adjustability makes it suitable for applications requiring different power outputs and speeds.
The motor works by adjusting the angle of the swash plate, which changes the stroke of the pistons. A larger swash plate angle results in a larger displacement, while a smaller angle reduces the displacement. The control mechanism can be manual, hydraulic, or electrical.
Common issues include the motor not responding, erratic displacement, low output flow, high case drain flow, and overheating. These issues can be caused by worn components, fluctuating pilot pressure, incorrect displacement settings, and cooling system malfunctions.
Regular inspections should be conducted weekly, with more thorough maintenance performed every 250 to 500 hours of operation. Hydraulic fluid and filters should be changed according to the manufacturer's recommendations.
Yes, in many systems, the displacement can be adjusted while the motor is running, especially in systems with hydraulic or electrical control mechanisms. However, always refer to the manufacturer's guidelines and safety protocols before making any adjustments.
