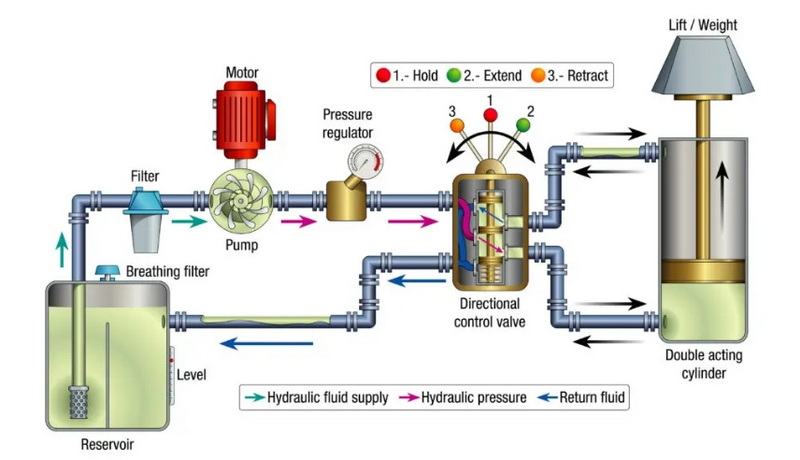

Hydraulic pumps are essential components in various mechanical systems, converting mechanical energy into hydraulic energy to power machinery. Connecting a hydraulic pump to a motor is a fundamental task in setting up these systems. Proper installation ensures optimal performance and longevity of the equipment. This article provides a comprehensive guide on how to correctly attach a hydraulic pump to a motor, covering key steps and considerations.
Before starting the installation, thoroughly inspect the hydraulic pump and its components for any visible damage or defects. Verify that you have the correct pump model and all necessary parts are included. This initial check can prevent potential issues during and after installation. Look for signs of damage such as cracks, dents, or corrosion on the pump housing, ports, and mounting surfaces. Ensure that all seals and gaskets are in good condition.
Check the motor shaft for any bends or damage, and verify that the motor's specifications match the requirements of the hydraulic pump. Confirm that you have the correct coupling or adapter to connect the pump and motor shafts.
This initial inspection helps in identifying potential problems early on, preventing delays and ensuring a smoother installation process. It also ensures that all components are in optimal condition to deliver reliable performance.
The mounting surface must be clean and free of debris, oil, or dirt. Ensure the surface is flat and sturdy to provide proper support for the pump and minimize vibrations. A well-prepared mounting surface is crucial for the stability and performance of the hydraulic pump. Use a wire brush or scraper to remove any rust, scale, or old paint from the mounting surface.
Clean the surface with a suitable degreaser to remove any oil or grease. Ensure that the mounting surface is level by using a spirit level or similar tool. If the surface is uneven, shim it with steel plates or shims to create a flat and level base.
The mounting surface should be strong enough to support the weight of the pump and motor without flexing or deforming. Consider reinforcing the mounting surface if necessary, especially in applications where the pump and motor are subjected to high loads or vibrations.
Proper alignment between the pump and the drive (such as an electric motor or internal combustion engine) is crucial for preventing premature wear and tear on the components. Misalignment can cause excessive stress on the pump bearings, seals, and coupling, leading to reduced pump life and potential failures. Follow the manufacturer's recommendations for aligning the pump and drive, using appropriate alignment tools such as straight edges, feeler gauges, or laser alignment tools.
There are two main types of misalignment: angular and parallel. Angular misalignment occurs when the pump and motor shafts are at an angle to each other, while parallel misalignment occurs when the shafts are offset but parallel.
To correct angular misalignment, use shims under the motor or pump feet to raise or lower one side until the shafts are parallel. To correct parallel misalignment, move the motor or pump laterally until the shafts are aligned.
Use a straight edge to check the alignment by placing it across the coupling flanges and ensuring that it sits flush on both sides. Use feeler gauges to measure the gap between the coupling flanges at several points around the circumference. The gap should be uniform at all points.
Laser alignment tools provide a more accurate and efficient method for aligning the pump and motor. These tools use a laser beam to measure the misalignment and provide precise adjustments to correct it. Follow the manufacturer's instructions for using the laser alignment tool.
Mount the hydraulic pump on the prepared surface, following the manufacturer's guidelines for proper torque specifications and fastener types. Ensure that the pump is securely fastened to prevent vibrations and movement during operation. Use bolts, nuts, and washers of the correct size and material grade.
Apply a thread-locking compound to the bolts to prevent them from loosening due to vibration. Tighten the bolts in a crisscross pattern to evenly distribute the load. Use a torque wrench to tighten the bolts to the specified torque value. Overtightening the bolts can damage the pump housing or mounting surface, while undertightening can cause the pump to vibrate and loosen over time.
Check the tightness of the bolts periodically, especially during the initial hours of operation. Retighten the bolts if necessary.
Connect the hydraulic lines to the pump, ensuring that the inlet and outlet ports are correctly identified. Use appropriate fittings and hoses rated for the system's operating pressure. Tighten all connections securely to prevent leaks but avoid overtightening, as this may damage the fittings or pump housing.
The inlet line should be sized to provide adequate flow to the pump without causing excessive pressure drop. The outlet line should be sized to handle the pump's maximum flow rate. Use hydraulic hoses that are compatible with the hydraulic fluid being used.
Ensure that the hydraulic lines are routed in a way that prevents them from rubbing against sharp edges or hot surfaces. Use clamps or supports to secure the lines and prevent them from vibrating.
Before connecting the hydraulic lines, clean them thoroughly to remove any dirt, debris, or contaminants. Use a clean, lint-free cloth and a suitable solvent.
When connecting the hydraulic lines, use thread sealant or Teflon tape on the threads of the fittings to prevent leaks. Tighten the fittings to the specified torque value. Overtightening the fittings can damage the threads or the pump housing.
Refer to the manufacturer's instructions to determine if the pump requires priming. Priming involves filling the pump with hydraulic fluid before starting it to ensure proper lubrication and prevent cavitation. Cavitation occurs when air or vapor bubbles form in the hydraulic fluid and collapse, causing damage to the pump components.
To prime the pump, open the priming port or vent on the pump housing. Fill the pump with hydraulic fluid until fluid flows out of the priming port. Close the priming port and start the pump. Monitor the pump's performance and check for any signs of cavitation, such as excessive noise or vibration.
If the pump does not prime easily, check the inlet line for air leaks or obstructions. Ensure that the hydraulic fluid reservoir is properly vented and that the fluid level is adequate.
The coupling between the motor and hydraulic pump is a critical component. It must be able to transmit the torque from the motor to the pump without slippage or vibration. Several types of couplings are available, each with its own advantages and disadvantages.
- Rigid Couplings: These couplings provide a direct and positive connection between the motor and pump shafts. They are suitable for applications where precise alignment is maintained and there is minimal vibration.
- Flexible Couplings: These couplings are designed to accommodate some degree of misalignment between the motor and pump shafts. They can also absorb some vibration and shock. Common types of flexible couplings include jaw couplings, gear couplings, and disc couplings.
- Elastomeric Couplings: These couplings use a flexible element made of rubber or polyurethane to transmit torque and absorb vibration. They are well-suited for applications where vibration is a concern.
The hydraulic fluid is the lifeblood of the hydraulic system. It must provide lubrication, cooling, and power transmission. Selecting the right hydraulic fluid is crucial for the performance and longevity of the system.
- Mineral Oil-Based Fluids: These are the most common type of hydraulic fluid. They offer good lubrication and are compatible with most hydraulic components.
- Synthetic Fluids: These fluids offer superior performance compared to mineral oil-based fluids. They have better thermal stability, oxidation resistance, and lubricity. However, they are more expensive than mineral oil-based fluids.
- Water-Based Fluids: These fluids are environmentally friendly and offer good fire resistance. However, they have lower lubricity and are not compatible with all hydraulic components.
Vibration analysis is a valuable tool for monitoring the condition of the hydraulic pump and motor. By measuring the vibration levels and frequencies, it is possible to detect early signs of wear, misalignment, or other problems.
Vibration analysis can be performed using a handheld vibration meter or a more sophisticated vibration analysis system. The data collected can be used to identify the source of the vibration and to predict when maintenance may be required.
- Direct Drive Units: Direct drive units typically involve a pump directly coupled to a motor on a common base plate. These include one coupling and guard and require shaft alignment. Direct drives are generally reserved for smaller pumps since these pumps will run at the same speed as the motor.
- Motor Mounted Drives: Some Viking pumps are designed to mount directly to a Nema or IEC C flange motor. These motor-mounted drives do not require a base plate, which helps reduce the overall size and weight of the pump unit. Some require a mounting bracket to connect the pump to the motor. Others, like the Viking 75 series, slide over the motor shaft and mount directly to the face of the motor, eliminating the bracket and coupling altogether.
Correctly attaching a hydraulic pump to a motor involves several critical steps, from inspecting the components to properly aligning and securing the pump. Following the manufacturer's guidelines and using the appropriate tools ensures the hydraulic system operates efficiently and reliably. Proper installation minimizes wear and tear, extends the lifespan of the components, and prevents costly downtime. Regularly scheduled maintenance and inspections can further enhance the longevity and performance of the hydraulic system.
Appropriate alignment tools such as straight edges, feeler gauges, or laser alignment tools are needed. These tools help ensure that the pump and motor shafts are properly aligned, preventing premature wear and tear on the components.
Proper alignment between the pump and the drive is crucial for preventing premature wear and tear on the components. Misalignment can cause excessive stress on the pump bearings, seals, and coupling, leading to reduced pump life and potential failures.
Inspect the hydraulic pump and its components for any visible damage or defects. Verify that you have the correct pump model and all necessary parts are included. This initial inspection helps in identifying potential problems early on, preventing delays and ensuring a smoother installation process.
Mount the hydraulic pump on the prepared surface, following the manufacturer's guidelines for proper torque specifications and fastener types. Use bolts, nuts, and washers of the correct size and material grade. Apply a thread-locking compound to the bolts to prevent them from loosening due to vibration.
Ensure that the inlet and outlet ports are correctly identified and that all connections are tightened securely to prevent leaks but avoid overtightening, as this may damage the fittings or pump housing. Check the hydraulic lines for proper routing and support to prevent rubbing or vibration.
