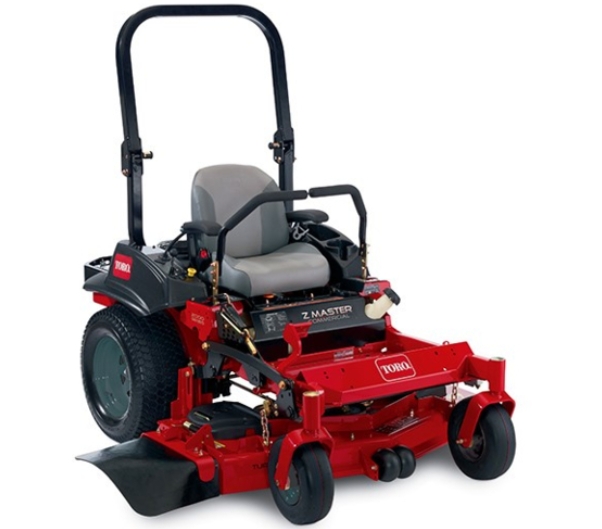

Zero-turn mowers have become increasingly popular due to their maneuverability and efficiency in cutting grass. These machines utilize a hydraulic system to power their wheels, allowing for precise control and tight turns. However, like any hydraulic system, air can become trapped within the system, leading to reduced performance or even complete failure. Bleeding the hydraulic system is a crucial maintenance task that ensures optimal operation. This article provides a comprehensive guide on how to bleed a hydraulic zero-turn motor, including step-by-step instructions, troubleshooting tips, and frequently asked questions.
A hydraulic system in a zero-turn mower uses fluid to transmit power from the engine to the wheels. This system consists of several key components:
- Hydraulic Pump: Driven by the engine, the pump generates the necessary fluid pressure.

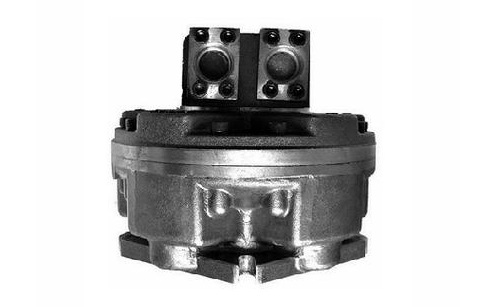

- Hydraulic Motor: Converts the hydraulic pressure into rotational motion, driving the wheels.
- Reservoir: Stores the hydraulic fluid.
- Filter: Cleans the hydraulic fluid, preventing contaminants from damaging the system.
- Hoses and Valves: These components control the direction and flow of hydraulic fluid.
When air enters the hydraulic system, it can compress and cause several problems:
- Reduced Power: Air bubbles reduce the system's ability to transmit power effectively.
- Inconsistent Performance: The mower may exhibit jerky movements or inconsistent speed.
- Overheating: Air can cause the hydraulic fluid to overheat, potentially damaging components.
- Noise: A whining or grinding noise may indicate air in the system.
Before starting the bleeding process, gather the necessary tools and materials. This includes:
- Wrench Set: To open and close bypass valves and access other components.
- Jack and Jack Stands: To lift the mower safely off the ground.
- Hydraulic Fluid: Ensure you have the correct type of hydraulic fluid as specified in your mower's manual.
- Drain Pan: To catch any spilled fluid.
- Gloves and Safety Glasses: To protect yourself from hydraulic fluid.
- Operator's Manual: Refer to your mower's manual for specific instructions and safety information.
Safety should always be a priority when working on any machinery. Before beginning, make sure of the following:
- Park the mower on a level surface.
- Engage the parking brake.
- Allow the engine to cool completely.
- Disconnect the spark plug wire to prevent accidental starting.
Follow these steps to effectively bleed the hydraulic system of your zero-turn mower:
Use a jack to lift the mower so that the drive wheels are off the ground. Secure the mower with jack stands to prevent it from falling.
The bypass valves are usually located on or near the hydraulic pumps or wheel motors. Refer to your operator's manual for their exact location.
Using a wrench, open the bypass valves by turning them counterclockwise one to two turns. Do not remove the valves completely.
Start the engine and allow it to run at normal operating speed. Disengage the brake if it's activated.
Slowly move the directional controls (forward, neutral, and reverse) several times. When the bypass valve is open, the drive wheels should not turn. Repeat this process about half a dozen times.
Turn off the engine and close the bypass valves by turning them clockwise until they are snug, but not overly tight.
Restart the engine, advance the throttle, and disengage the brake if needed. Move the directional controls through a forward and reverse cycle about half a dozen times. With the bypass valves closed, the wheels should now be turning.
Turn off the engine and check the hydraulic fluid level in the reservoir. Add fluid if necessary, using the correct type specified in your operator's manual.
Lower the mower and test the drive system to confirm that it is performing correctly. The mower should move smoothly in forward and reverse at normal speeds, and the noise levels should be normal.
If the drive system is still not performing correctly, repeat the purging process until all the air is completely removed from the system.
- Video 1: Hydro-Gear Pump & Wheel Motor Air Purge Instructions
- Video 2: Hydro-Gear Purge Procedure
- Video 3: Hydro-Gear Transaxle Air-Purge Process
These visual aids can provide additional clarity and guidance during the bleeding process.
If you encounter problems during or after the bleeding process, consider these troubleshooting tips:
- Persistent Noise: If the whining or grinding noise persists after bleeding, there may be a more significant issue, such as a failing pump or motor.
- Loss of Power: Check for leaks in the hydraulic lines or fittings. Low fluid levels can also cause a loss of power.
- Jerky Movements: This may indicate that air is still present in the system. Repeat the bleeding process and ensure all bypass valves are properly closed.
- Overheating: Ensure the hydraulic fluid is the correct type and that the system is not being overworked. Check the filter for clogs.
Regular maintenance is crucial for prolonging the life of your hydraulic system. Here are some maintenance tips:
- Check Fluid Levels: Regularly check the hydraulic fluid level and add fluid as needed.
- Change the Filter: Replace the hydraulic filter according to the manufacturer's recommendations.
- Inspect Hoses and Fittings: Look for leaks, cracks, or damage to hoses and fittings. Replace any worn or damaged parts.
- Keep the System Clean: Prevent dirt and debris from entering the hydraulic system.
Some zero-turn mowers are equipped with more sophisticated hydraulic systems. Understanding these systems can be beneficial for advanced troubleshooting and maintenance.
- Cutaway Circuit Diagrams: These diagrams illustrate the internal construction of hydraulic components and oil flow paths.
- Hydraulic Schematics: Accurate diagrams are essential for diagnosing hydraulic problems. They show how components interact.
- Remote Hydraulic Circuits: Some mowers have remote hydraulic circuits for attaching accessories. These circuits can be stationary or mobile.
Bleeding the hydraulic system of a zero-turn mower is a straightforward process that can significantly improve its performance and longevity. By following the steps outlined in this guide, you can effectively remove air from the system and ensure smooth, consistent operation. Regular maintenance and prompt attention to any issues will help keep your mower running efficiently for years to come.
Air can enter the hydraulic system during maintenance or due to leaks, causing reduced power, inconsistent performance, overheating, and noise. Bleeding the system removes this air, restoring optimal performance.
Bleed the hydraulic system whenever you notice symptoms of air in the system, such as reduced power or jerky movements. Also, bleed the system after any maintenance that involves opening the hydraulic lines.
Use the type of hydraulic fluid specified in your mower's operator manual. Using the wrong type of fluid can damage the hydraulic system.
No, automotive oil is not compatible with hydraulic systems. Always use hydraulic fluid that meets the specifications in your mower's manual.
If the problem persists after bleeding, there may be a more significant issue, such as a failing pump or motor. Consult a qualified mechanic for further diagnosis and repair.
