Introduction

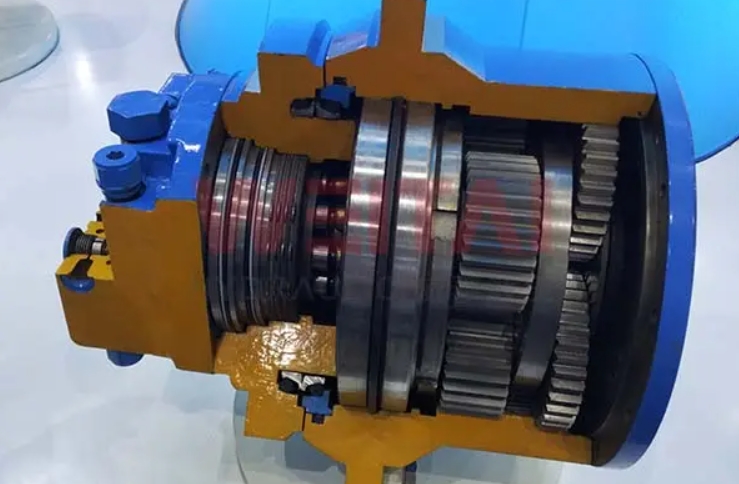

Hydraulic systems are the unsung heroes of countless machines, providing the muscle for everything from heavy construction equipment to the power steering in your car. At the heart of many of these systems lies the hydraulic wheel motor, a component that converts hydraulic pressure into rotational force, driving wheels with impressive power and precision. However, like any mechanical system, hydraulic wheel motors are susceptible to problems, one of the most common being the presence of air in the hydraulic fluid. This air can compromise the system's efficiency and responsiveness, leading to jerky movements, reduced power, and even damage to components. Bleeding a hydraulic wheel motor is the process of removing this unwanted air, restoring the system to its optimal performance. This article provides a comprehensive guide on how to bleed a hydraulic wheel motor, covering everything from identifying the symptoms of air in the system to step-by-step instructions and frequently asked questions.

Why Bleeding is Necessary

Air in a hydraulic system is like a tiny saboteur, disrupting the smooth operation of precisely engineered machinery. Hydraulic fluid is incompressible, meaning it transmits force efficiently. Air, on the other hand, is compressible. When air is present in the system, some of the energy from the pump is used to compress the air instead of turning the wheel motor. This results in a loss of power, reduced efficiency, and sluggish response times.

Here's a breakdown of the problems caused by air in a hydraulic wheel motor:

- Reduced Power: Air pockets reduce the effective pressure transmitted to the motor, diminishing its torque and overall power.

- Erratic Movement: Air bubbles can cause inconsistent flow, leading to jerky or uneven wheel movement.

- Increased Noise: Air in the system can cause the pump and motor to cavitate, creating excessive noise and vibration.

- Overheating: The system may overheat due to the increased friction and inefficiency caused by air.

- Component Damage: Prolonged operation with air in the system can lead to premature wear and tear on hydraulic components, such as the pump, motor, and seals.

Identifying the Symptoms

Before you start bleeding your hydraulic wheel motor, it's essential to confirm that air is indeed the problem. Here are some common symptoms that indicate air in the system:

- Spongy or Slow Response: The wheel motor responds slowly or feels spongy when you try to operate it.

- Jerky Movements: The wheel motor moves in a jerky or uneven manner, especially at low speeds.

- Unusual Noises: You hear gurgling, hissing, or whining sounds coming from the hydraulic system.

- Foamy Hydraulic Fluid: The hydraulic fluid in the reservoir appears foamy or milky, indicating the presence of air bubbles.

- Overheating: The hydraulic system overheats more quickly than usual.

If you notice one or more of these symptoms, bleeding the hydraulic wheel motor is likely necessary.

Safety Precautions

Before you begin any maintenance on a hydraulic system, it's crucial to prioritize safety. Hydraulic systems operate under high pressure, and improper handling can lead to serious injury.

- Wear Safety Glasses: Hydraulic fluid can be harmful to your eyes. Always wear safety glasses or a face shield to protect your eyes.

- Wear Gloves: Hydraulic fluid can also irritate the skin. Wear gloves to protect your hands.

- Relieve Pressure: Before disconnecting any hydraulic lines or fittings, relieve the pressure in the system. Consult your machine's service manual for instructions on how to do this safely.

- Work in a Well-Ventilated Area: Hydraulic fluid can release harmful vapors. Work in a well-ventilated area to avoid inhaling these vapors.

- Clean Up Spills Immediately: Hydraulic fluid spills can be slippery and pose a safety hazard. Clean up any spills immediately with an absorbent material.

- Dispose of Fluids Properly: Dispose of used hydraulic fluid and rags in accordance with local environmental regulations.

- Consult the Manual: Always refer to your machine's service manual for specific safety instructions and procedures.

Tools and Materials Needed

- Wrench set

- Socket set

- Screwdrivers

- Hydraulic fluid (check your machine's manual for the correct type)

- Clean containers to collect fluid

- Rags or absorbent pads

- Jack and jack stands (if you need to lift the machine)

- Bleeding kit (optional, but can make the process easier)

- Operator's manual

Step-by-Step Bleeding Process

The exact bleeding procedure can vary depending on the specific design of your hydraulic system. Always consult your machine's service manual for the manufacturer's recommended procedure. However, here is a general step-by-step guide that applies to most hydraulic wheel motors:

1. Prepare the Machine: Park the machine on a level surface, engage the parking brake, and turn off the engine. Allow the hydraulic system to cool down.

2. Locate the Bleed Points: Identify the bleed points on the hydraulic wheel motor and any other components in the system, such as the hydraulic pump or control valve. Bleed points are typically small screws or fittings located on the highest point of the component.

3. Check the Fluid Level: Inspect the hydraulic fluid reservoir and ensure that it is filled to the proper level. If the fluid level is low, add the correct type of hydraulic fluid as specified in your machine's service manual.

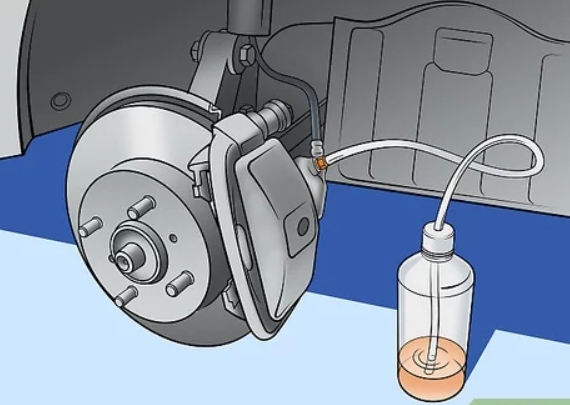

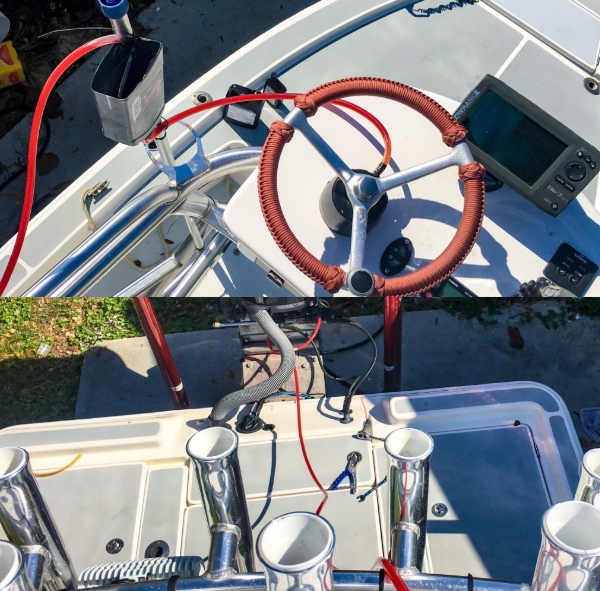

4. Loosen the Bleed Point: Place a clean container beneath the first bleed point to catch any fluid that may escape. Use a wrench or socket to carefully loosen the bleed point screw or fitting. Do not remove it completely.

5. Purge the Air: With the bleed point loosened, air and fluid will begin to escape. Allow the fluid to flow until it is free of air bubbles. You may need to gently rock the wheel motor or cycle the hydraulic system to help dislodge trapped air.

6. Tighten the Bleed Point: Once the fluid flows smoothly and without air bubbles, tighten the bleed point screw or fitting to the manufacturer's specified torque. Be careful not to overtighten it, as this can damage the fitting.

7. Repeat for All Bleed Points: Repeat steps 4-6 for all other bleed points in the hydraulic system, working from the highest point to the lowest.

8. Check the Fluid Level Again: After bleeding all the components, check the hydraulic fluid level in the reservoir again and add fluid if necessary.

9. Test the System: Start the engine and operate the hydraulic system to test its performance. Check for any signs of air in the system, such as spongy response, jerky movements, or unusual noises. If necessary, repeat the bleeding process until all the air is removed.

Specific Instructions for Hydro-Gear Systems

If you are working with a Hydro-Gear pump and wheel motor drive system, here's a specific method for purging air:

1. Preparation: Ensure the hydraulic oil is at the correct level. If not, fill it with the specified oil type in your operator's manual.

2. Lifting: Block the non-powered wheels and lift the drive wheels off the ground.

3. Bypass Valves: Open the bypass valve on each pump by turning it counterclockwise one to two turns without fully removing it.

4. Engine Start: Start the engine and set the throttle to normal operating speed. Disengage the brake if it's on.

5. Directional Control: Slowly move the directional control to forward, neutral, and reverse multiple times. Note: the drive wheels won't turn when the bypass valve is open.

6. Close Bypass Valves: Shut off the engine, then close the bypass valves. Restart the engine.

7. Repeat Cycle: Advance the throttle, disengage the brake if needed, and move the directional control through forward and reverse cycles several times with the bypass valve closed. The wheels should now turn without a load.

8. Check Oil Level: Shut down the engine and check the oil level in the reservoir, adding oil if needed.

9. Test: Once finished, test the machine to ensure the drive system performs correctly under normal conditions. Repeat the purge process if necessary until all air is removed and the system operates smoothly at normal noise levels and speeds.

Tips and Tricks

- Use a Bleeding Kit: A hydraulic bleeding kit can make the process easier and more efficient. These kits typically include a vacuum pump and collection bottle that help to draw air out of the system.

- Elevate the Wheel Motor: If possible, elevate the wheel motor so that the bleed point is the highest point in the system. This will help to ensure that air rises to the bleed point and is easily purged.

- Tap the Hydraulic Lines: Gently tap on the hydraulic lines and components with a rubber mallet to help dislodge trapped air bubbles.

- Cycle the System: Cycle the hydraulic system by moving the wheel motor back and forth. This will help to circulate the fluid and bring any trapped air to the bleed points.

- Be Patient: Bleeding a hydraulic system can take time and patience. Don't rush the process. Take your time and make sure that all the air is removed before you finish.

When to Seek Professional Help

While bleeding a hydraulic wheel motor is a task that many homeowners and mechanics can perform, there are certain situations where it's best to seek professional help.

- If you're not comfortable working on hydraulic systems.

- If you've tried bleeding the system multiple times and you're still experiencing problems.

- If you suspect that there is a more serious problem with the hydraulic system, such as a faulty pump or motor.

A qualified mechanic will have the knowledge, experience, and tools necessary to diagnose and repair any hydraulic system problems.

Conclusion

Bleeding a hydraulic wheel motor is a crucial maintenance task that ensures optimal performance, efficiency, and longevity of your machinery. By understanding the symptoms of air in the system, following the proper bleeding procedure, and taking necessary safety precautions, you can effectively remove air from your hydraulic system and restore it to its peak operating condition. Remember to consult your machine's service manual for specific instructions and guidelines, and don't hesitate to seek professional help if you're unsure about any aspect of the process.

FAQ

1. What are the main reasons for air entering a hydraulic system?

Air can enter a hydraulic system through various means, including:

- Low Fluid Level: A low fluid level in the reservoir can allow air to be drawn into the system through the pump.

- Loose Fittings: Loose fittings or connections can create leaks that allow air to enter the system.

- Damaged Seals: Damaged or worn seals on the pump, motor, or cylinders can allow air to be drawn into the system.

- Hydraulic Fluid Contamination: Contaminated hydraulic fluid can cause foaming, which introduces air into the system.

- Improper Maintenance: Improper maintenance practices, such as not properly bleeding the system after repairs, can leave air trapped in the system.

2. How often should I bleed my hydraulic wheel motor?

The frequency with which you need to bleed your hydraulic wheel motor depends on several factors, including the type of machine, the operating conditions, and the maintenance schedule. As a general rule, you should bleed your hydraulic wheel motor:

- After any repairs or maintenance that involves opening the hydraulic system.

- If you notice any of the symptoms of air in the system.

- As part of your machine's regular maintenance schedule (consult your service manual for recommended intervals).

3. Can I use any type of hydraulic fluid in my system?

No, it's crucial to use the correct type of hydraulic fluid as specified in your machine's service manual. Using the wrong type of fluid can damage the hydraulic components and void the warranty.

4. What happens if I don't bleed the air from my hydraulic system?

If you don't bleed the air from your hydraulic system, you may experience a range of problems, including:

- Reduced power and efficiency

- Jerky or uneven movements

- Increased noise and vibration

- Overheating

- Premature wear and tear on hydraulic components

- System failure

5. Is it possible to over-bleed a hydraulic system?

While it's not possible to "over-bleed" a hydraulic system in the sense of removing too much fluid, it is possible to waste fluid by bleeding the system unnecessarily. Only bleed the system when there is evidence of air in the system, and stop bleeding once the fluid flows smoothly and without air bubbles.
