How To Calculate Efficiency of Hydraulic Motor?

Content Menu

● Understanding Hydraulic Motor Efficiency

● Key Formulas for Calculating Hydraulic Motor Efficiency

>> 1. Hydraulic Motor Efficiency Formula:

>> 2. Volumetric Efficiency (η_v):

>> 3. Mechanical Efficiency (η_m):

>> 4. Overall Efficiency (η_o):

● Steps to Calculate Hydraulic Motor Efficiency

>> Step 1: Determine Theoretical Torque (T_T)

>> Step 2: Measure Actual Torque (T_A)

>> Step 3: Calculate Hydraulic Motor Efficiency (E_hm)

>> Step 4: Determine Theoretical Flow Rate (Q_T)

>> Step 5: Measure Actual Flow Rate (Q_A)

>> Step 6: Calculate Volumetric Efficiency (η_v)

>> Step 7: Calculate Mechanical Efficiency (η_m)

>> Step 8: Calculate Overall Efficiency (ηo)

● Factors Affecting Hydraulic Motor Efficiency

>> 1. Fluid Viscosity:

>> 2. Temperature:

>> 3. Internal Leakage:

>> 4. Mechanical Friction:

>> 5. Motor Design and Condition:

>> 6. Operating Pressure:

>> 7. Contamination:

● Practical Examples of Hydraulic Motor Efficiency Calculation

>> Example 1: Basic Efficiency Calculation

>> Example 2: Comprehensive Efficiency Calculation

● Calculations:

>> 1. Theoretical Torque (T_T):

>> 2. Hydraulic Motor Efficiency (E_hm):

>> 3. Theoretical Flow Rate (Q_T):

>> 4. Volumetric Efficiency (η_v):

>> 5. Mechanical Efficiency (η_m):

>> 6. Overall Efficiency (η_o):

>> Results:

● Conclusion

● FAQ: Frequently Asked Questions

>> 1. What is Hydraulic Motor Efficiency?

>> 2. How is Volumetric Efficiency Calculated?

>> 3. What Factors Affect Hydraulic Motor Efficiency?

>> 4. Why is it Important to Calculate Overall Efficiency?

>> 5. How Can I Improve Hydraulic Motor Efficiency?

● Citations:

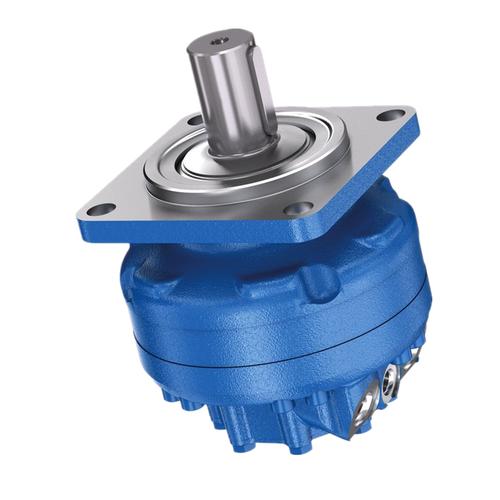

Hydraulic motors are essential components in various mechanical systems, converting hydraulic energy into mechanical energy to perform work. Understanding and calculating the efficiency of these motors is crucial for optimizing system performance, reducing energy waste, and ensuring cost-effectiveness. This article provides a comprehensive guide on how to calculate the efficiency of a hydraulic motor, covering the necessary formulas, factors affecting efficiency, and practical examples.

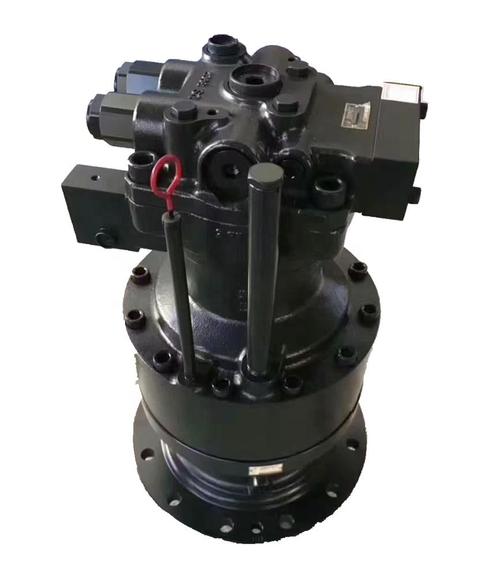

Understanding Hydraulic Motor Efficiency

Definition: Hydraulic motor efficiency is the ratio of the actual mechanical power output to the hydraulic power input. It indicates how effectively a hydraulic motor converts fluid power into mechanical work.

Importance:

- Performance Optimization: Knowing the efficiency helps in optimizing the hydraulic system for better performance.

- Energy Conservation: Identifying inefficiencies allows for targeted improvements to reduce energy consumption.

- Cost Reduction: Higher efficiency translates to lower operating costs and prolonged equipment life.

Key Formulas for Calculating Hydraulic Motor Efficiency

To calculate the efficiency of a hydraulic motor, several formulas are used, each providing a different perspective on the motor's performance. The primary formulas include:

1. Hydraulic Motor Efficiency Formula:

E_hm=T_T/T_A×100

Where:

- E_hm is the Hydraulic Motor Efficiency (%).

- T_T is the theoretical torque (N-m).

- T_A is the actual torque (N-m).

2. Volumetric Efficiency (η_v):

η_v=Q_T/Q_A

Where:

-Q_T is the theoretical flow rate.

-Q_A is the actual flow rate.

Volumetric efficiency measures the motor's ability to use the fluid flow effectively without leakage.

3. Mechanical Efficiency (ηm):

η_m=T_A/T_T

Where:

- T_A is the actual torque delivered by the motor.

- T_T is the theoretical torque the motor should deliver.

Mechanical efficiency reflects the losses due to mechanical friction within the motor.

4. Overall Efficiency (ηo):

η_o=Actual Power Delivered by the Motor Mechanical/Actual Power Delivered to the Motor Hydraulic=(T_A×N)/(P×Q_A)

Where:

- N is the motor speed.

- P is the pressure.

-Q_A is the actual flow rate.

Overall efficiency combines both volumetric and mechanical efficiencies to provide a comprehensive measure of the motor's performance.

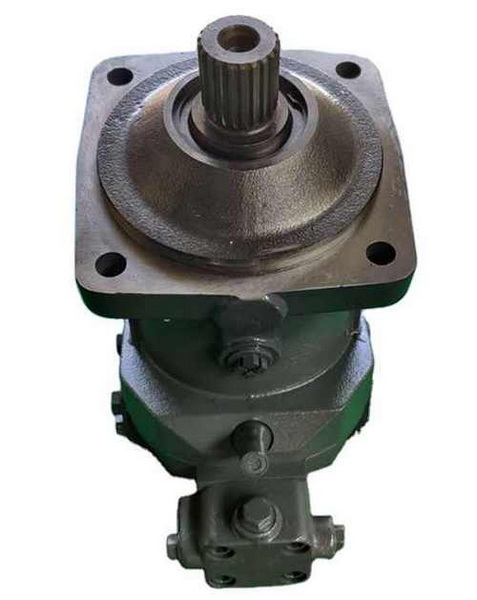

Steps to Calculate Hydraulic Motor Efficiency

Calculating hydraulic motor efficiency involves several steps, ensuring accurate and reliable results.

Step 1: Determine Theoretical Torque (T_T)

Theoretical torque is the ideal torque that the motor should produce based on the input pressure and motor displacement. It can be calculated using the formula:

T_T=(D_m×P)/2π

Where:

- D_m is the motor displacement (volume of fluid required per revolution).

- P is the pressure of the hydraulic fluid.

Step 2: Measure Actual Torque (T_A)

Actual torque is the torque that the motor delivers in real-world conditions. It can be measured using a dynamometer or other torque-measuring devices. Ensure accurate measurements by calibrating the equipment and accounting for any external factors.

Step 3: Calculate Hydraulic Motor Efficiency (E_hm)

Using the values obtained for theoretical and actual torque, calculate the hydraulic motor efficiency using the formula:

E_hm=T_T/T_A×100

This calculation provides the efficiency percentage, indicating the motor's effectiveness in converting hydraulic power to mechanical power.

Step 4: Determine Theoretical Flow Rate (Q_T)

Theoretical flow rate is the ideal flow rate required to achieve a particular speed, assuming no leakage. It can be calculated using the formula:

Q_T=D_m×N

Where:

-D_m is the motor displacement.

- N is the motor speed (revolutions per unit time).

Step 5: Measure Actual Flow Rate (Q_A)

Actual flow rate is the flow rate supplied to the motor in real-world conditions. It can be measured using a flow meter installed in the hydraulic line. Accurate measurement is crucial for determining volumetric efficiency.

Step 6: Calculate Volumetric Efficiency (η_v)

Using the values obtained for theoretical and actual flow rates, calculate the volumetric efficiency using the formula:

η_v=Q_T/Q_A

Volumetric efficiency indicates the motor's ability to minimize internal leakage and effectively use the supplied fluid.

Step 7: Calculate Mechanical Efficiency (η_m)

Mechanical efficiency is the ratio of actual torque delivered to the theoretical torque. It can be calculated using the formula:

η_m=T_A/T_T

This calculation reflects the losses due to mechanical friction within the motor.

Step 8: Calculate Overall Efficiency (η_o)

Overall efficiency combines both volumetric and mechanical efficiencies to provide a comprehensive measure of the motor's performance. It can be calculated using the formula:

η_o=η_v×η_m

Alternatively, it can be directly calculated using:

η_o=Actual Power Delivered by the Motor Mechanical/Actual Power Delivered to the Motor Hydraulic =(T_A×N)/(P×Q_A)

This provides a single value representing the motor's total efficiency in converting hydraulic power to mechanical power.

Factors Affecting Hydraulic Motor Efficiency

Several factors can affect the efficiency of hydraulic motors, including fluid properties, temperature, and mechanical conditions. Understanding these factors is essential for maintaining and improving motor performance.

1. Fluid Viscosity:

- Impact: Oil viscosity significantly affects hydraulic efficiency. High viscosity increases friction, while low viscosity can lead to increased internal leakage.

- Mitigation: Use hydraulic fluids with appropriate viscosity for the operating temperature range. Monitor and control fluid temperature to maintain optimal viscosity.

2. Temperature:

- Impact: Temperature affects fluid viscosity. High temperatures can decrease viscosity, increasing leakage, while low temperatures increase viscosity, raising friction.

- Mitigation: Maintain the hydraulic system within the recommended temperature range using coolers and heaters.

3. Internal Leakage:

- Impact: Internal leakage reduces volumetric efficiency as fluid bypasses the intended flow path.

- Mitigation: Ensure proper sealing and maintenance of internal components. Replace worn or damaged parts to minimize leakage.

4. Mechanical Friction:

- Impact: Friction between moving parts reduces mechanical efficiency.

- Mitigation: Use high-quality lubricants and ensure proper alignment of components. Regularly inspect and replace worn parts.

5. Motor Design and Condition:

- Impact: The design and condition of the motor significantly affect its efficiency.

- Mitigation: Choose motors designed for high efficiency. Regularly inspect and maintain the motor, replacing worn parts as needed.

6. Operating Pressure:

- Impact: Operating pressure affects the motor's performance. Extremely high or low pressures can reduce efficiency and increase wear.

- Mitigation: Operate the motor within the recommended pressure range. Use pressure-regulating valves to maintain stable pressure.

7. Contamination:

- Impact: Contaminants in the hydraulic fluid can cause wear and damage to motor components, reducing efficiency.

- Mitigation: Use filters to maintain fluid cleanliness. Regularly flush and replace hydraulic fluid to remove contaminants.

Practical Examples of Hydraulic Motor Efficiency Calculation

To illustrate the calculation of hydraulic motor efficiency, consider the following examples.

Example 1: Basic Efficiency Calculation

Scenario: A hydraulic motor has a theoretical torque of 56 N-m and an actual torque of 100 N-m.

Calculation:

Ehm=56/100×100=56%

Result: The hydraulic motor efficiency is 56%.

Example 2: Comprehensive Efficiency Calculation

Scenario: A hydraulic motor has the following parameters:

- Motor displacement  (D_m): 50 cm³/rev = 0.00005 m³/rev

- Pressure (P): 200 bar = 20,000,000 Pa

- Actual Torque (T_A): 140 N-m

- Motor Speed (N): 1500 rpm = 25 rev/s

- Actual Flow Rate (Q_A): 1.3 L/s = 0.0013 m³/s

Calculations:

1. Theoretical Torque (T_T):

T_T=(D_m×P)/2π=(0.00005×20,000,000)/2π≈159.15 N m

2. Hydraulic Motor Efficiency (E_hm):

E_hm=T_A/T_T×100=140/159.15×100≈87.96%

3. Theoretical Flow Rate (Q_T):

Q_T=D_m×N=0.00005×25=0.00125 m³ s=1.25 L s

4. Volumetric Efficiency (η_v):

η_v=Q_T/Q_A=1.25/1.3≈0.9615=96.15%

5. Mechanical Efficiency (η_m):

η_m=T_A/T_T=140/159.15≈0.8796=87.96%

6. Overall Efficiency (η_o):

η_o=η_v×η_m=0.9615×0.8796≈0.8458=84.58%

Alternatively:

η_o=(T_A×N)/(P×Q_A)=(140×25)/(20,000,000×0.0013)≈0.8462=84.62%

Results:

-  Hydraulic Motor Efficiency: 87.96%

-  Volumetric Efficiency: 96.15%

-  Mechanical Efficiency: 87.96%

-  Overall Efficiency: 84.58%

These examples demonstrate how to calculate different efficiency metrics for hydraulic motors, providing a comprehensive understanding of their performance.

Conclusion

Calculating the efficiency of hydraulic motors is essential for optimizing hydraulic systems, reducing energy consumption, and ensuring cost-effectiveness. By understanding the key formulas, following the step-by-step calculation process, and addressing the factors that affect efficiency, engineers and technicians can maintain and improve the performance of hydraulic motors in various applications. Regular monitoring and maintenance are crucial for sustaining high efficiency and prolonging the lifespan of hydraulic motors.

FAQ: Frequently Asked Questions

1. What is Hydraulic Motor Efficiency?

Hydraulic motor efficiency is the ratio of the mechanical power output to the hydraulic power input. It measures how effectively a hydraulic motor converts fluid power into mechanical work.

2. How is Volumetric Efficiency Calculated?

Volumetric efficiency is calculated by dividing the theoretical flow rate by the actual flow rate. It indicates the motor's ability to use fluid flow effectively without leakage.

3. What Factors Affect Hydraulic Motor Efficiency?

Factors affecting hydraulic motor efficiency include fluid viscosity, temperature, internal leakage, mechanical friction, motor design and condition, operating pressure, and contamination.

4. Why is it Important to Calculate Overall Efficiency?

Calculating overall efficiency provides a comprehensive measure of the motor's performance, combining both volumetric and mechanical efficiencies to give a single value representing the motor's total efficiency in converting hydraulic power to mechanical power.

5. How Can I Improve Hydraulic Motor Efficiency?

To improve hydraulic motor efficiency, maintain proper fluid viscosity, control temperature, minimize internal leakage, reduce mechanical friction, ensure proper motor design and condition, operate within the recommended pressure range, and prevent contamination.
