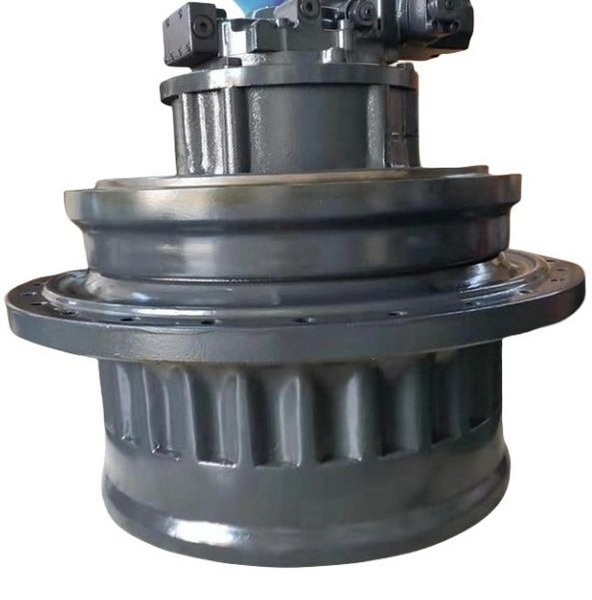

Hydraulic motors are essential components in many industrial and mobile applications, converting hydraulic energy into mechanical energy to perform tasks such as lifting, rotating, or driving machinery. Understanding how to calculate hydraulic motor power is critical for system design, ensuring efficiency and reliability while avoiding overloading or underpowering the motor. This guide provides a detailed explanation of the calculations involved, practical examples, and answers to frequently asked questions.

Introduction

Hydraulic systems are widely used in industries such as construction, agriculture, manufacturing, and mining due to their ability to generate high power with compact components. Hydraulic motors are a key part of these systems, converting pressurized hydraulic fluid into rotational motion or torque.

To ensure that a hydraulic motor operates efficiently and meets the demands of the application, it is essential to calculate the required power accurately. This involves understanding the relationship between flow rate, pressure, torque, and efficiency.

Key Concepts in Hydraulic Motor Power

Before diving into calculations, let's review some critical terms:

- Flow Rate (Q): The volume of hydraulic fluid delivered to the motor per unit time. It is typically measured in liters per minute (L/min) or gallons per minute (GPM). Flow rate determines the speed of the motor.

- Pressure (P): The force exerted by the hydraulic fluid on the motor's internal components, measured in bar or pounds per square inch (PSI). Pressure influences the torque generated by the motor.

- Torque (T): The rotational force produced by the motor, measured in Newton-meters (Nm) or pound-feet (lb-ft). Torque is directly proportional to pressure and displacement.

- Displacement (D): The volume of fluid required to turn the motor once, measured in cubic centimeters per revolution (cm³/rev) or cubic inches per revolution (in³/rev). Larger displacement results in higher torque but lower speed.

- Efficiency (η): The ratio of useful output power to input power. Efficiency accounts for energy losses due to friction, leakage, and heat.

Understanding these concepts is crucial for accurate calculations and system optimization.

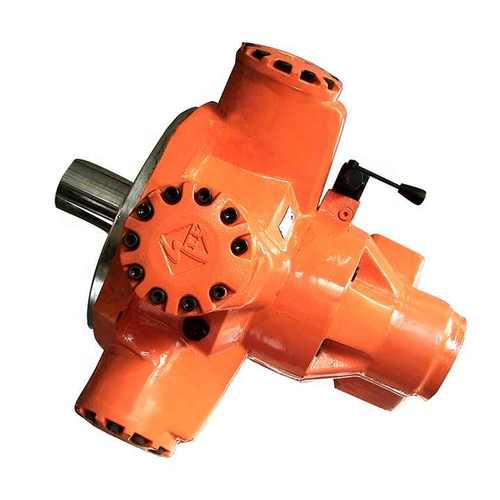

Formulas for Hydraulic Motor Power Calculation

Several formulas are used to calculate different aspects of hydraulic motor performance:

1. Hydraulic Power (kW):

The formula for calculating hydraulic power is:

P_h=(Q×P)/600

Where:

- P_h= Hydraulic power (kW)

- Q = Flow rate (L/min)

- P = Pressure (bar)

This formula calculates the theoretical power delivered by the hydraulic system.

2. Motor Torque (Nm):

The torque produced by a hydraulic motor can be calculated using:

T=(D×P)/20π

Where:

- T= Torque (Nm)

- D= Displacement per revolution (cm³/rev)

- P= Pressure (bar)

This formula relates torque to displacement and pressure.

3. Motor Shaft Power (kW):

The shaft power output of a hydraulic motor is given by:

P_s=(T×n)/9554

Where:

- P_s= Shaft power (kW)

- T= Torque (Nm)

- n = Speed (RPM)

4. Required Motor Power with Efficiency:

To account for efficiency losses:

P_motor=P_h/η

Where:

- P_motor = Required motor power (kW)

- η= Efficiency of the system

Step-by-Step Calculation Example

Let's calculate the required motor power for a hydraulic system with these parameters:

- Flow rate (Q) = 30 L/min

- Pressure (P) = 210 bar

- System efficiency (η) = 0.81

Step 1: Calculate Hydraulic Power

Using the formula:

Ph=(Q×P)/600

Substitute values:

Ph=(30×210)/600=10.5 kW

Step 2: Calculate Required Motor Power

Using the formula:

P_motor=P_h/η

Substitute values:

P_motor=10.5/0.81≈12.96 kW

Step 3: Select a Suitable Motor

Choose a motor with a power rating slightly above the calculated value—for example, a 15 kW motor.

This ensures that the motor can handle variations in operating conditions without being overloaded.

Factors Affecting Hydraulic Motor Power

Several factors influence hydraulic motor performance:

1. Flow Rate: Higher flow rates increase speed but may require larger pumps.

2. Pressure: Increased pressure generates more torque but can lead to higher stress on components.

3. Efficiency: Energy losses due to friction, leakage, and heat reduce overall efficiency.

4. Temperature: Excessive heat can degrade fluid viscosity and reduce system performance.

5. Pump Type: Gear pumps, vane pumps, and piston pumps have different efficiencies and performance characteristics.

Common Applications of Hydraulic Motors

Hydraulic motors are used in various industries due to their versatility and high-power density:

1. Construction Equipment: Excavators, loaders, and cranes rely on hydraulic motors for lifting and rotating heavy loads.

2. Agricultural Machinery: Tractors and harvesters use hydraulic systems for plowing, seeding, and other tasks.

3. Industrial Automation: Conveyor belts, presses, and robotic arms use hydraulic motors for precise motion control.

4. Marine Applications: Winches and steering systems on ships often use hydraulics due to their reliability in harsh environments.

5. Mining Equipment: Drills and conveyors in mining operations depend on hydraulic motors for high-torque applications.

Tips for Optimizing Hydraulic Motor Efficiency

To maximize efficiency and extend the lifespan of your hydraulic system:

1. Choose High-Efficiency Components: Select motors and pumps with high efficiency ratings.

2. Maintain Proper Fluid Levels: Ensure that hydraulic fluid is clean and at the correct level.

3. Monitor Operating Conditions: Regularly check temperature, pressure, and flow rate to prevent system overloads.

4. Use Quality Seals: Prevent leaks by using high-quality seals and gaskets.

5. Perform Regular Maintenance: Inspect components for wear and replace them as needed.

Conclusion

Calculating hydraulic motor power is an essential step in designing efficient hydraulic systems that meet operational demands without wasting energy or resources. By understanding key concepts like flow rate, pressure, torque, and efficiency—and applying the formulas provided—you can optimize your system for maximum performance.

Whether you're designing a new system or troubleshooting an existing one, accurate calculations ensure that your hydraulic motor operates reliably under all conditions.

FAQs

1. What is the formula for calculating hydraulic power?

The formula is:

P_h=(Q×P)/600

Where Q is flow rate in L/min and P is pressure in bar.

2. How do I calculate torque for a hydraulic motor?

Use this formula:

T=(D×P)/20π

Where D is displacement per revolution in cm³/rev and P is pressure in bar.

3. What factors affect hydraulic motor efficiency?

Efficiency depends on pump type, fluid viscosity, temperature control, mechanical losses due to friction, and leakage prevention.

4. How do I select a suitable motor size?

Calculate required power using:

P_motor=P_h/η

Choose a motor with a slightly higher rating than your calculation to handle variations safely.

5. Can I use horsepower instead of kilowatts?

Yes! To convert kilowatts to horsepower:

1 kW ≈ 1.341 HP.
