Hydraulic systems are the backbone of many industrial, construction, and agricultural applications, offering unmatched power transmission efficiency. However, selecting the correct motor size for a hydraulic pump is critical to ensure optimal performance, prevent overheating, and avoid system failures. A motor that is too small may fail under load, while an oversized motor can lead to wasted energy and increased costs. This comprehensive guide will walk you through the process of calculating the required motor kW (kilowatt) for a hydraulic pump, covering essential formulas, practical examples, and key considerations.

Understanding the Basics of Hydraulic Power

Hydraulic power refers to the energy transmitted through fluid in a hydraulic system to perform mechanical work. It is determined by three primary parameters:

- Flow Rate (Q): The volume of fluid moved per unit time, typically measured in liters per minute (L/min) or cubic meters per hour (m³/h).

- Pressure (P): The force exerted by the fluid, measured in bar or Pascal (Pa).

- Efficiency (η): The ratio of useful output power to input power, expressed as a percentage.

Key Components of Hydraulic Systems

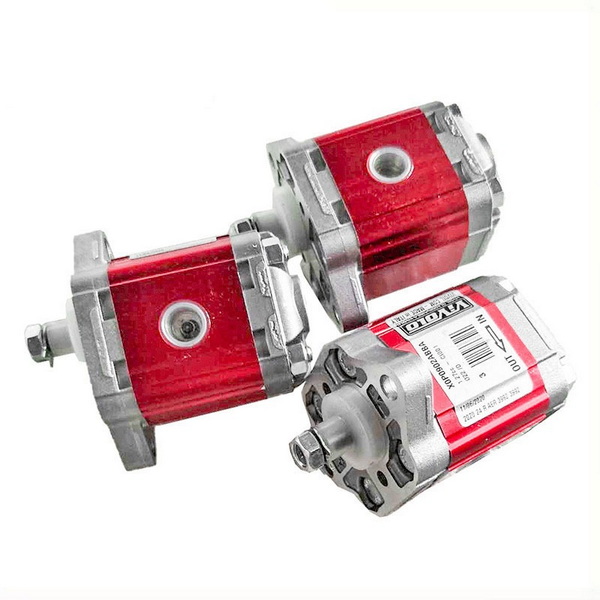

1. Hydraulic Pump: Converts mechanical energy into hydraulic energy by moving fluid.

2. Electric Motor: Provides the mechanical energy required to drive the pump.

3. Control Valves: Regulate flow and pressure within the system.

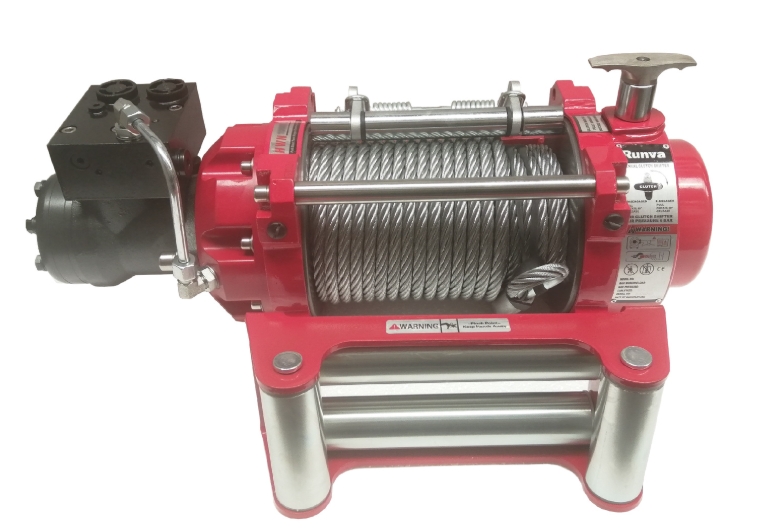

4. Actuators (Cylinders or Motors): Convert hydraulic energy back into mechanical work.

Why Is Motor Sizing Important?

Proper motor sizing ensures:

- Efficient operation without overloading or underutilizing the motor.

- Reduced risk of overheating or mechanical failure.

- Lower energy consumption and operational costs.

Key Formulas for Motor kW Calculation

To calculate the motor kW required for a hydraulic pump, you need to use three key formulas:

1. Hydraulic Power:

P_hydraulic=(Q×P)/600

Where:

- P_hydraulic = Hydraulic power in kW

- Q = Flow rate in liters per minute (L/min)

- P = Pressure in bar

2. Shaft Power:

P_shaft=P_hydraulic/η

Where:

- P_shaft = Shaft power in kW

- η= Pump efficiency (typically 85–95%)

3. Motor Power:

P_motor=P_shaft×Safety Margin

A safety margin of 1.2–1.3 is commonly used to account for unexpected loads or inefficiencies.

Step-by-Step Guide to Calculate Motor kW

Step 1: Gather System Parameters

Before starting your calculation, collect the following information:

- Flow rate (Q) in L/min.

- Operating pressure (P) in bar.

- Pump efficiency (η), typically provided by the manufacturer.

Step 2: Calculate Hydraulic Power

Use the formula:

P_hydraulic=(Q×P)/600

This gives you the theoretical power required by the pump.

Step 3: Calculate Shaft Power

Account for pump efficiency by dividing hydraulic power by η:

P_shaft=P_hydraulic/η

This step adjusts for real-world losses in the pump.

Step 4: Determine Motor Power

Multiply shaft power by a safety margin (e.g., 1.25):

P_motor=P_shaft×1.25

This ensures the motor can handle peak loads and minor inefficiencies.

Factors Affecting Motor Sizing

Several factors influence motor sizing beyond basic calculations:

1. Pump Efficiency

Pump efficiency varies based on design and operating conditions. Lower efficiency increases required motor power.

2. Fluid Properties

The viscosity and density of the hydraulic fluid affect system performance. High-viscosity fluids require more power to move through hoses and fittings.

3. System Losses

Frictional losses in hoses, valves, and fittings reduce overall efficiency, necessitating a larger motor.

4. Load Cycles

Applications with frequent starts/stops or varying loads may require higher motor capacity to handle peak demands.

5. Ambient Conditions

Extreme temperatures or high altitudes can reduce motor performance, requiring adjustments in sizing.

Common Mistakes in Motor Sizing

Avoid these common errors when calculating motor kW:

1. Ignoring Efficiency: Using theoretical power without accounting for efficiency leads to undersized motors.

2. Skipping Safety Margins: Omitting safety factors can result in motors that fail under peak loads.

3. Incorrect Units: Ensure consistency in units (e.g., converting pressure from psi to bar if needed).

4. Overlooking System Losses: Neglecting frictional losses can lead to inaccurate calculations.

5. Assuming Constant Load: Many applications have variable loads that require careful consideration.

Practical Example: Motor Sizing for a Hydraulic Pump

Let's apply what we've learned with a practical example:

Scenario:

- Flow rate (Q) = 150 L/min

- Pressure (P) = 200 bar

- Pump efficiency (η) = 0.9

- Safety margin = 1.25

Step 1: Calculate Hydraulic Power

Using the formula:

P_hydraulic=(150×200)/600=50kW

Step 2: Calculate Shaft Power

Adjusting for efficiency:

P_shaft=50/0.9=55.56kW

Step 3: Determine Motor Power

Adding a safety margin:

P_motor=55.56×1.25=69.45kW

Result: A motor with at least 70 kW capacity is required.

Tips for Selecting the Right Motor

1. Consult Manufacturer Data: Always refer to pump and motor datasheets for accurate specifications.

2. Consider Variable Speed Drives (VSDs): VSDs allow motors to adjust speed based on load requirements, improving efficiency.

3. Plan for Future Expansion: If your system may require higher capacity later, consider sizing up slightly.

4. Test Under Real Conditions: Verify calculations with real-world testing whenever possible.

Conclusion

Calculating the correct motor kW for a hydraulic pump is essential for ensuring efficient and reliable system operation. By understanding hydraulic principles, using accurate formulas, and considering factors like efficiency and safety margins, you can select a motor that meets your system's needs while minimizing energy consumption and costs.

Remember that proper maintenance of both the pump and motor also plays a vital role in long-term performance. Regularly check system components for wear and tear to avoid unexpected failures.

FAQs

1: What is the formula for calculating hydraulic power?

A: The formula is:

P_hydraulic=Q×P/600

Where Q is flow rate in L/min and P is pressure in bar.

2: What is pump efficiency, and why does it matter?

A: Pump efficiency (η) measures how effectively a pump converts input power into hydraulic power; lower efficiency requires more motor power to achieve desired performance.

3: How do I account for safety margins?

A: Multiply shaft power by a factor of 1.2–1.3 to ensure your motor can handle peak loads and minor inefficiencies.

4: Can I use these calculations for any fluid type?

A: Yes, but you must adjust for fluid density if it differs significantly from water or standard hydraulic oil.

5: What happens if I undersize the motor?

A: An undersized motor may overheat, fail prematurely, or cause inefficiencies that disrupt system operation.
