Replacing the hydraulic wheel motor on a John Deere 3235B Fairway Mower is a crucial maintenance task to ensure the machine operates efficiently. While it might seem daunting, this guide will break the process into manageable steps, providing you with the knowledge and confidence to complete the job successfully. Whether you're a seasoned mechanic or a DIY enthusiast, this article will help you navigate the replacement process safely and effectively.
The John Deere 3235B Fairway Mower is a reliable piece of equipment designed for maintaining golf courses, parks, and other large grassy areas. Its hydraulic wheel motor plays a vital role in powering its wheels, allowing it to traverse uneven terrain with ease. However, over time, wear and tear can lead to reduced performance or complete failure of the hydraulic motor.
Replacing a faulty hydraulic motor promptly is essential to avoid further damage to your mower and ensure it continues to perform at its best. This guide provides detailed instructions on how to replace the wheel hydraulic motor while adhering to safety protocols.
Before diving into the replacement process, it's important to understand what a hydraulic wheel motor does and why it matters.
The hydraulic wheel motor converts hydraulic pressure into mechanical power, driving the wheels of your mower. This system allows for smooth operation and precise control, even on challenging terrain.
- Reduced wheel movement or power
- Unusual noises (e.g., grinding or whining)
- Leaking hydraulic fluid near the motor
- Overheating of the hydraulic system
- Difficulty steering or maneuvering
If you notice any of these symptoms, it's time to inspect and potentially replace the hydraulic motor.
To complete this task, you'll need:
- Socket set (various sizes)
- Wrenches (standard and hydraulic line wrenches)
- Torque wrench
- Jack and jack stands (or a lift)
- Drain pan for hydraulic fluid
- Thread sealant or Teflon tape
- Shop rags or paper towels
- Safety gloves and goggles
Ensure you have:
- A replacement hydraulic motor (OEM or high-quality aftermarket)
- New O-rings and seals (usually included with the motor)
- Hydraulic fluid (as specified in your John Deere manual)
Pro Tip: Always use genuine John Deere parts or high-quality equivalents to ensure compatibility and durability.
1. Park your mower on a flat, stable surface.
2. Turn off the engine and disconnect the battery to prevent accidental starts.
3. Relieve any residual hydraulic pressure by moving control levers back and forth with the engine off.
4. Use a jack to lift the mower securely and place it on jack stands.
Safety Note: Always use properly rated jack stands to support heavy machinery like your mower.
1. Use a socket set or lug wrench to remove the lug nuts holding the wheel in place.
2. Carefully pull off the wheel and set it aside in a safe location.
Removing the wheel provides clear access to the hydraulic motor for easier replacement.
1. Place a drain pan under the mower's hydraulic system.
2. Slowly loosen fittings on the hydraulic lines connected to the motor, allowing fluid to drain into the pan.
3. Tighten or cap open fittings after draining to minimize spillage during removal.
Properly dispose of used hydraulic fluid according to local regulations.
1. Use hydraulic line wrenches to loosen and disconnect hoses attached to the motor.
2. Label each hose with tape or tags for easy reassembly later.
3. Clean up any residual fluid using shop rags or paper towels.
Tip: Take photos before disconnecting hoses as an additional reference for reassembly.
1. Locate all mounting bolts securing the old motor in place.
2. Use a socket wrench to remove these bolts carefully.
3. Gently pull out the old motor from its housing, ensuring no damage is done to surrounding components.
Be mindful of any remaining fluid that may leak during this step.

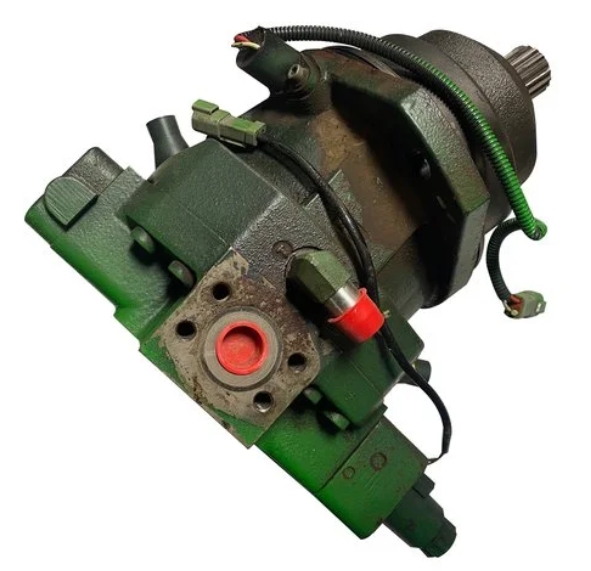

1. Position your new hydraulic motor in place within its housing.
2. Hand-tighten all mounting bolts first to ensure proper alignment.
3. Use a torque wrench to tighten bolts according to specifications outlined in your John Deere manual.
4. Reconnect all hydraulic lines in their labeled positions, ensuring each connection is secure.
5. Apply thread sealant or Teflon tape as needed for leak prevention.
Double-check all connections before proceeding further.
1. Refill your mower's hydraulic system with fresh fluid as specified in your manual.
2. Start your mower's engine and let it idle for a few minutes while checking for leaks around connections.
3. Test drive your mower at low speeds, ensuring smooth operation of its wheels.
If you notice any issues during testing, recheck connections or consult your manual for troubleshooting tips.
To extend your mower's lifespan and avoid future issues:
- Regularly inspect hydraulic lines for wear or leaks.
- Replace filters as recommended by John Deere.
- Keep your mower clean to prevent debris buildup around critical components.
- Perform routine maintenance checks every 400 operating hours or as specified by your manual.
By following these practices, you can reduce downtime and keep your mower running efficiently year-round.
Replacing a faulty hydraulic wheel motor on your John Deere 3235B is an essential maintenance task that ensures optimal performance and longevity of your equipment. By following this detailed guide, you can complete this job safely and efficiently without needing professional assistance.
Remember, taking care of your mower's components not only saves money but also ensures that it performs reliably when you need it most.
Signs include reduced wheel movement, unusual noises like grinding or whining, visible fluid leaks near the motor, or difficulty steering/maneuvering.
Yes, but ensure they meet John Deere's specifications for compatibility, durability, and performance.
Refer to your John Deere manual for recommended fluids such as Low Viscosity Hy-Gard™ Hydraulic Oil.
Inspect it during routine maintenance intervals or every 400 hours of operation as recommended by John Deere guidelines.
If you face challenges during installation, consult your owner's manual or contact an authorized John Deere service technician for assist
