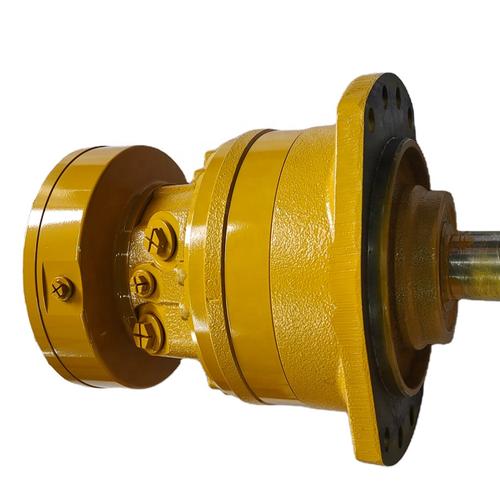

Hydraulic motors are the unsung heroes of countless industrial and mobile applications. From powering the massive arms of excavators to driving the precision movements of robotic machinery, these devices convert the energy of pressurized hydraulic fluid into rotational force, making them indispensable across a diverse range of industries. However, selecting the right hydraulic motor isn't a simple task. With a vast array of types, sizes, and configurations available, choosing the wrong motor can lead to inefficiency, poor performance, or even catastrophic system failure.
This article serves as a comprehensive guide to navigating the complex world of hydraulic motors. We'll explore the fundamental principles behind their operation, delve into the crucial factors that influence motor selection, examine the different types of motors available, and provide a step-by-step process to ensure you make the right choice for your specific application. Whether you're a seasoned engineer or new to the field of hydraulics, this guide will equip you with the knowledge you need to select a hydraulic motor that delivers optimal performance, reliability, and longevity.
A hydraulic motor is a mechanical actuator that converts hydraulic energy (the potential energy stored in pressurized fluid) into mechanical energy in the form of rotational motion. Think of it as the rotational counterpart to a hydraulic cylinder, which converts hydraulic energy into linear motion. These motors are a vital part of any hydraulic system, providing the power to drive wheels, rotate equipment, and perform a myriad of other tasks.
Hydraulic motors are often categorized based on their speed and torque characteristics. High-speed, low-torque (HSLT) motors are designed to operate at higher rotational speeds but produce less torque, making them suitable for applications requiring quick movements with lighter loads. Conversely, low-speed, high-torque (LSHT) motors excel at producing substantial rotational force at lower speeds, ideal for applications requiring powerful, slow movements, such as driving the tracks of heavy machinery or operating large winches.
Although the specific design and complexity may vary depending on the type of motor, most hydraulic motors share a set of core components:
- Housing: The housing provides the structural support and protection for the internal components of the motor. It typically includes ports for the inlet and outlet of hydraulic fluid.
- Shaft: The shaft is the rotating output component that transmits the mechanical energy generated by the motor to the driven load.
- Pistons, Vanes, or Gears: These are the internal components that convert the hydraulic energy into mechanical motion. The specific mechanism (pistons, vanes, or gears) depends on the type of motor.
- Fluid Ports: The inlet port allows pressurized hydraulic fluid to enter the motor, while the outlet port allows the fluid to exit after it has been used to generate motion.
- Distribution Mechanism: This component controls the flow of hydraulic fluid to the active elements (pistons, vanes, or gears) to ensure proper sequencing and efficient energy conversion.
- Seals: Hydraulic motors use seals to prevent leakage of hydraulic fluid and maintain pressure within the motor.
The fundamental principle behind the operation of a hydraulic motor is relatively straightforward: pressurized hydraulic fluid is directed into the motor, where it acts on internal components (pistons, vanes, or gears). This force causes the internal components to move, generating rotary motion, which is then transmitted through the motor shaft to the connected load.
Imagine a simple piston motor: Pressurized fluid enters a cylinder and pushes against a piston. This linear motion of the piston is converted into rotary motion through a connecting rod and crankshaft mechanism, similar to the engine in a car. As the piston moves, it turns the crankshaft, which in turn rotates the motor shaft. The spent hydraulic fluid is then discharged through the outlet port.
The specific mechanics of energy conversion differ depending on the type of motor. For example, in a gear motor, pressurized fluid flows between the teeth of two meshing gears, causing them to rotate. In a vane motor, pressurized fluid acts on vanes that slide in and out of a rotor, causing the rotor to spin. However, the underlying principle remains the same: converting the energy of pressurized fluid into rotational motion.
Selecting the right hydraulic motor requires careful consideration of several factors. Failing to adequately assess these factors can result in suboptimal performance, reduced efficiency, and premature motor failure. It's critical to understand your application's specific needs before making a selection.
- Torque: Torque is the rotational force required to perform the work. It is the single most important factor in determining motor size.
- Speed: The motor must provide the necessary speed for the application. Some applications require high speeds with low torque, others require low speeds with high torque.
- Operating Pressure and Flow: The motor must be compatible with the hydraulic system's pressure and flow capabilities. Exceeding the motor's pressure rating can cause damage.
- Horsepower: Horsepower is the power output of the motor, related to both torque and speed. It represents the overall work the motor can perform.
- Fluid Compatibility: Ensure the motor is compatible with the type of hydraulic fluid used in the system. Incompatible fluids can cause seal degradation and component failure.
- Filtration: Proper filtration is essential to protect the motor from contamination. Select a motor that is compatible with the system's filtration level.
- Operating Temperature: Consider the operating temperature range. Extreme temperatures can affect fluid viscosity and motor performance.
- Contamination Potential: Environments with high levels of dust, dirt, or other contaminants can significantly impact motor life. Choose a motor with robust sealing and consider additional filtration.
- Operating Temperature: Extreme temperatures can affect motor performance and lifespan.
- Noise Level: Certain applications may have noise level restrictions. Vane motors tend to be quieter than gear motors. Piston motors can vary depending on their design.
- Duty Cycle: Determine whether the motor will operate continuously or intermittently. Continuous operation requires a motor designed for heavy-duty use.
- Starting Torque: Ensure the motor can provide sufficient torque to start the load under load.
- Load Type: Understand the nature of the load. Constant loads are easier to manage than variable or shock loads.
- Ease of Installation: Consider how easy it is to install the motor in the system. Some motors require more complex mounting and plumbing.
- Maintenance Requirements: Understand the level of maintenance needed to keep the motor in good working condition.
- Expected Motor Life: Consider the anticipated lifespan of the motor. Higher-quality motors typically offer longer lifespans.
- Initial Cost: The purchase price of the motor is an important factor.
- Long-Term Cost: Consider factors like maintenance, repairs, and efficiency. A cheaper motor may cost more in the long run if it requires frequent repairs or is less efficient.
- Availability of Spare Parts: Ensure that spare parts are readily available.
Gear motors are among the simplest and most cost-effective types of hydraulic motors. They are commonly used in a wide range of applications where high speed and moderate torque are required. Gear motors operate by using the pressure of hydraulic fluid to rotate a set of meshing gears.
Types:
- External Gear Motors: Use two external gears to transfer fluid and generate rotary motion.
- Internal Gear Motors: Employ an internal gear and a crescent-shaped element to direct fluid flow.
Advantages:
- Simple design
- Cost-effective
- High speed capabilities
- Relatively tolerant to contamination
Disadvantages:
- Lower efficiency compared to other motor types
- Higher noise levels
- Limited pressure capabilities
Applications:
- Agricultural machinery
- Conveyors
- Fluid transfer pumps
- Low-power hydraulic systems
Vane motors offer a good balance of performance, size, and cost. They are known for their compact design, relatively quiet operation, and good efficiency. Vane motors use a slotted rotor with sliding vanes that are forced outward by centrifugal force or springs. Pressurized hydraulic fluid acts on these vanes, causing the rotor to spin.
Types:
- Balanced Vane Motors: Have a design that balances hydraulic forces, resulting in reduced bearing loads and improved efficiency.
- Unbalanced Vane Motors: Simpler in design but may experience higher bearing loads.
Advantages:
- Compact size
- Relatively quiet operation
- Good efficiency
- Moderate speed capabilities
Disadvantages:
- More sensitive to contamination than gear motors
- Moderate torque capabilities
- Vane wear can reduce efficiency over time
Applications:
- Machine tools
- Mobile equipment
- Power steering systems
- Hydraulic pumps
Piston motors are the workhorses of high-pressure, high-torque applications. They are known for their high efficiency, high power density, and ability to operate at high pressures. Piston motors use a series of pistons that reciprocate within cylinders, driven by pressurized hydraulic fluid.
Types:
- Axial Piston Motors: Pistons move parallel to the motor shaft.
- Swashplate Design: Pistons bear against a swashplate, which is angled to convert linear motion into rotary motion.
- Bent Axis Design: The cylinder block and shaft are angled relative to each other, allowing for high-speed and high-torque capabilities.
- Radial Piston Motors: Pistons move perpendicular to the motor shaft.
Advantages:
- High efficiency
- High pressure operation
- High torque capabilities
- Variable displacement options available
Disadvantages:
- Higher cost compared to gear and vane motors
- More complex design
- Can be more sensitive to contamination
Applications:
- Construction equipment
- Industrial machinery
- Mining equipment
- Hydraulic winches
- Heavy-duty applications
Gerotor motors are specialized hydraulic motors designed for low-speed, high-torque applications. They are known for their compact size, smooth operation, and high starting torque. Gerotor motors utilize an inner gear (rotor) that meshes with an outer gear (stator), with one gear having one fewer tooth than the other. Pressurized fluid flows into the spaces between the gears, causing the rotor to rotate.
Advantages:
- Smooth operation
- High starting torque
- Compact size
- Relatively low cost
Disadvantages:
- Lower speed capabilities
- Less efficient at higher speeds
- Limited pressure capabilities
Applications:
- Augers
- Sweepers
- Low-speed conveyor drives
- Agricultural equipment
- Material handling equipment
1. Define the Application Requirements: Start by thoroughly understanding your application's needs. What are the required torque and speed? What is the operating pressure and flow rate?
2. Evaluate the Hydraulic System: Assess the capabilities of your existing hydraulic system. What is the available flow rate, pressure, fluid type, and filtration level?
3. Consider Environmental Factors: Account for the operating environment. What are the temperature extremes? Is there a high risk of contamination? What are the noise level requirements?
4. Choose the Motor Type: Based on the above factors, select the motor type that best fits your needs. Consider the advantages and disadvantages of each type.
5. Check Mounting and Space Requirements: Ensure the motor fits the available space and can be properly mounted.
6. Evaluate Costs: Compare the initial costs, maintenance costs, and long-term operational costs of different motors.
7. Consult with Experts: Seek advice from hydraulic specialists or suppliers. They can help you select the right motor for your specific application.
- Proper Installation: Always follow the manufacturer's instructions for installation.
- Regular Maintenance: Implement a routine maintenance schedule, including fluid changes, filter replacements, and inspections.
- Fluid Cleanliness: Maintain fluid cleanliness to prevent contamination. Use proper filtration and sealing.
- Monitoring Performance: Regularly monitor motor performance and address any issues promptly.
- Avoid Overloading: Do not exceed the motor's rated torque or pressure.
Choosing the right hydraulic motor is crucial for optimizing system performance, ensuring reliability, and preventing costly downtime. By carefully considering the factors outlined in this article, you can make an informed decision that meets your application's specific needs. Remember to define your requirements clearly, evaluate your hydraulic system, consider environmental factors, and consult with experts when needed. With the right motor and proper maintenance, you can ensure years of reliable operation.
A hydraulic pump converts mechanical energy into hydraulic energy by pumping fluid into a system, while a hydraulic motor converts hydraulic energy back into mechanical energy to produce motion. One creates flow, the other uses it to generate rotation.
Determine the required torque and speed for your application. Use these values to calculate the necessary displacement and select a motor with appropriate ratings. Torque dictates size, speed dictates flow requirements. Always factor in safety margins.
Common causes include contamination (dirt, debris), overheating (due to insufficient cooling or overworking the motor), overloading (exceeding torque or pressure limits), cavitation (air bubbles eroding internal components), and using the wrong type of fluid (incompatible viscosity or additives).
Yes, most hydraulic motors are designed to operate in both directions, allowing for reversible motion. This is typically achieved by simply reversing the flow of hydraulic fluid. Check the motor's specifications to confirm its bi-directional capabilities.
The replacement frequency depends on the operating conditions, fluid type, and the system's filtration. Generally, it should be done every 1,000 to 2,000 hours of operation, or as recommended by the fluid manufacturer. Regular fluid analysis can also help determine when a change is necessary.
