Hydraulic systems are the backbone of many industrial and mobile applications, providing the power needed to lift heavy loads, move machinery, and operate complex equipment. At the heart of these systems lies the hydraulic pump, which converts mechanical energy into hydraulic energy. Connecting a hydraulic pump to a motor is a critical process that requires careful attention to detail to ensure safe and efficient operation. This article provides a step-by-step guide on how to connect a hydraulic pump to a motor, covering essential tools, safety precautions, and best practices.
Before diving into the connection process, it's essential to understand the basic components of a hydraulic system and how they work together. A typical hydraulic system includes:
- Hydraulic Pump: The core component that generates the flow of hydraulic fluid.
- Motor: Provides the mechanical energy to drive the hydraulic pump.
- Reservoir: Stores the hydraulic fluid.
- Valves: Control the direction, pressure, and flow rate of the hydraulic fluid.
- Cylinders or Actuators: Convert hydraulic energy into mechanical work.
- Hydraulic Fluid: The medium that transmits power within the system.
- Hoses and Fittings: Connect the various components, allowing the fluid to flow through the system.
Hydraulic pumps come in various designs, each suited for specific applications. The most common types include:
- Gear Pumps: Simple and robust, suitable for low to medium pressure applications. They are often used in mobile equipment due to their reliability.
- Vane Pumps: Offer better efficiency and quieter operation compared to gear pumps. They are commonly found in industrial applications where noise reduction is important.

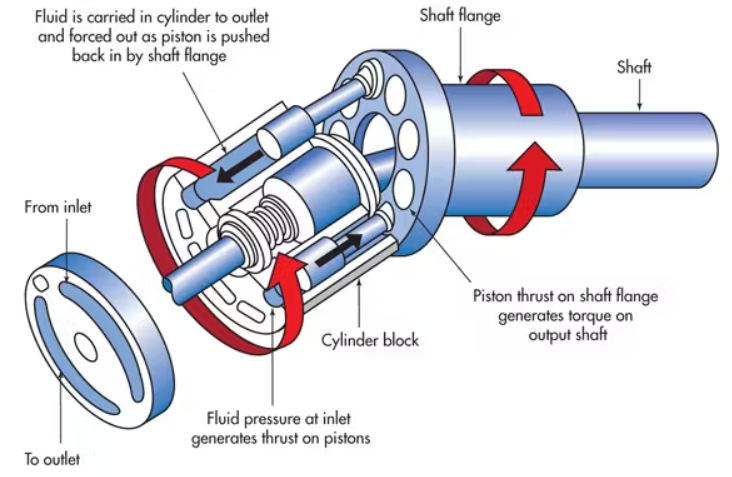

- Piston Pumps: Provide high pressure and high efficiency, ideal for demanding applications such as construction machinery and aerospace.
Motors used to drive hydraulic pumps can be electric, pneumatic, or internal combustion engines. Electric motors are the most common in stationary industrial applications due to their efficiency and ease of control. Internal combustion engines are typical in mobile equipment where electrical power is not readily available.
Safety should always be a top priority when working with hydraulic systems. High-pressure hydraulic fluid can cause serious injury if it comes into contact with skin. Before starting any work, ensure the following safety measures are in place:
- Disconnect Power: Always disconnect the power source to the motor to prevent accidental startup.
- Relieve Pressure: Release any stored pressure in the hydraulic system before disconnecting any lines or components.
- Wear Safety Gear: Wear safety glasses, gloves, and appropriate clothing to protect yourself from hydraulic fluid and sharp objects.
- Work Area: Keep the work area clean and free of obstructions. A clutter-free workspace reduces the risk of accidents.
- Hydraulic Fluid Spills: Clean up any spills immediately to prevent slips and falls. Hydraulic fluids can be slippery and hazardous.
Gathering the necessary tools and materials beforehand will streamline the connection process. Here's a list of essential items:
- Wrenches: Various sizes to fit hydraulic fittings and mounting bolts.
- Sockets: For tightening bolts and nuts securely.
- Screwdrivers: Both flathead and Phillips head for various fasteners.
- Wire Stripper/Crimper: For electrical connections if using an electric motor.
- Multimeter: To check voltage and continuity during electrical connections.
- Hydraulic Fittings and Adapters: Ensure they are rated for the system's operating pressure to prevent failures.
- Hydraulic Hoses: Select hoses that are compatible with the hydraulic fluid type (e.g., oil-based or water-based) and pressure requirements.
- Thread Sealant: To prevent leaks at threaded connections; use a sealant compatible with your hydraulic fluid.
- Rags: For cleaning up spills or wiping down components before assembly.
- Torque Wrench: To tighten bolts to the manufacturer's specified torque settings for safety.
Before starting the connection, thoroughly inspect both the hydraulic pump and motor for any signs of damage or wear. Check for cracks, leaks, or worn components. Ensure that both units are compatible in terms of mounting configuration, shaft size, power requirements, and operating specifications.
Prepare the mounting surface by cleaning it thoroughly. Ensure it is level and free of debris or obstructions that may interfere with installation. The mounting surface should provide a stable base for both pump and motor; this stability is crucial for preventing vibrations during operation.
Proper alignment between the pump and motor is crucial to prevent premature wear on bearings, shafts, and couplings. Misalignment can lead to excessive stress on these components.
1. Use a laser alignment tool or a straightedge along with feeler gauges to ensure that both shafts are aligned horizontally as well as vertically.
2. Adjust as necessary until you achieve perfect alignment; this may involve shimming one side or adjusting mounting brackets.
The coupling connects the motor shaft to the pump shaft, transmitting rotational force from one component to another. There are various types of couplings available:
1. Flexible Couplings: Allow for some misalignment between shafts while transmitting torque effectively.
2. Rigid Couplings: Provide a solid connection but require precise alignment.
1. Install Coupling Hubs: Attach coupling hubs onto both motor and pump shafts securely using set screws or clamping bolts according to manufacturer specifications.
2. Assemble Coupling Elements: Depending on your coupling type (e.g., jaw coupling), assemble any additional elements between hubs ensuring they fit snugly without excessive play.
3. Recheck Alignment: After assembling your coupling system, double-check alignment once more before proceeding.
Connecting hydraulic lines properly is essential for effective operation:
1. Identify Inlet/Outlet Ports:
- Locate inlet port (where fluid enters) & outlet port (where pressurized fluid exits) on your pump unit.
2. Install Fittings:
- Use appropriate fittings designed for your system's operating pressure; apply thread sealant on threads if required by manufacturer guidelines.
3. Connect Hoses:
- Attach hoses ensuring they're rated adequately for pressure & compatible with fluids being used (e.g., oil-based). Avoid sharp bends/kinks in hoses during installation.
4. Secure Connections:
- Tighten all connections securely using two wrenches; this prevents twisting hoses while tightening fittings which could lead to leaks later on.

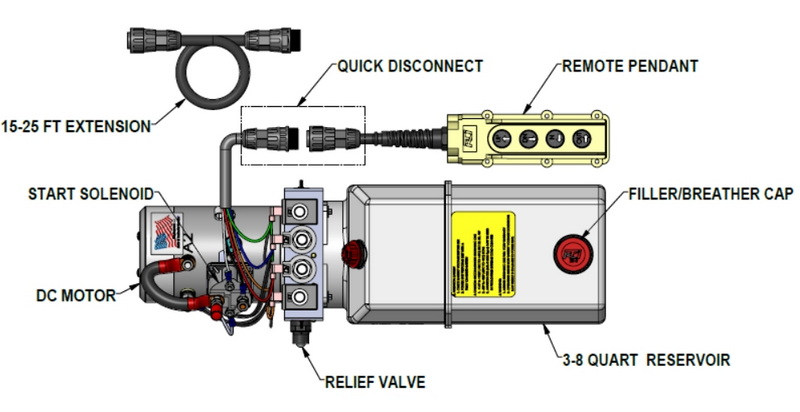

If you're using an electric motor:
1. Disconnect Power:
- Ensure power supply is completely disconnected before starting any electrical work.
2. Identify Terminals:

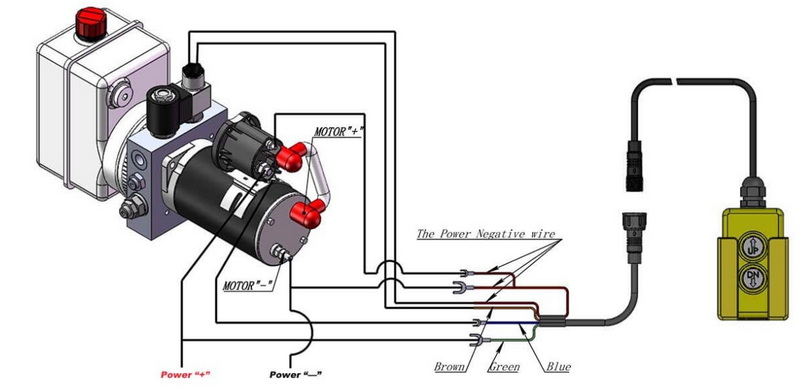

- Refer to wiring diagrams provided by manufacturers; identify how power supply wires connect with motor terminals correctly.
3. Grounding:
- Connect ground wire securely at grounding terminal on motor; proper grounding is essential for safety against electrical faults.
4. Power Connections:
- Connect power supply wires per wiring diagram ensuring secure connections & proper insulation against short circuits.
5. Solenoid Valves:
- If applicable, wire solenoid valves according to specifications ensuring correct polarity during installation.
Priming involves filling your pump with hydraulic fluid before initial start-up:
1. Fill Reservoir:
- Ensure reservoir has adequate levels of hydraulic fluid (check manufacturer recommendations).
2. Open Inlet Line Valve:
- Open valve on inlet line allowing fluid access into pump chamber.
3. Manually Rotate Shaft:
- Rotate pump shaft manually until you observe fluid flowing freely from outlet port indicating successful priming has occurred.
After completing all connections:
1. Initial Start-up:
- Start motor observing closely for unusual noises/vibrations during operation—these could indicate misalignment or other issues needing attention.
2. Check Pressure:
- Use pressure gauge verifying that system operates within specified range—this ensures effective performance without damaging components due excessive load/pressure levels.
3. Inspect For Leaks:
- Carefully check all connections visually inspecting them closely; tighten any leaking connections as necessary until resolved completely.
4. Operate System:
- Run through full range motions testing various functions ensuring everything operates smoothly without any hitches—this confirms successful installation!
5. Monitor Fluid Level:
- While running monitor reservoir levels keeping an eye out adding more fluid as needed maintaining proper levels throughout operation cycle!
While connecting your hydraulic pump/motor setup may seem straightforward there can be issues arising post-installation requiring troubleshooting efforts:
- Issue: Pump runs but fails build pressure adequately
- Solution: Check rotation direction (should match specified orientation), inspect for air leaks within system causing cavitation issues & verify no internal damage exists within pump itself!
- Issue: Hydraulic fluid leaking from connections
- Solution: Tighten fittings where necessary replacing damaged hoses if needed & apply thread sealant on threaded connections preventing future leaks!
- Issue: Hydraulic fluid overheats during operation cycles
- Solution: Check reservoir levels ensuring adequate supply exists along with proper ventilation around unit—consider adding cooler if necessary!
- Issue: Pump emits excessive noise during operations
- Solution: Investigate potential cavitation issues caused by air entering system along with checking overall condition/wear status of internal components!
Regular maintenance is essential not only for longevity but also reliability within your entire setup! Here are some best practices worth adhering too:
1. Regular Inspections:
- Conduct frequent inspections across all major components including pumps/motors/hydraulic lines ensuring nothing looks out-of-place!
2. Fluid Analysis:
- Perform regular analysis testing quality & contamination levels within fluids being used—replace them according manufacturer guidelines when necessary!
3. Filter Replacement:
- Replace filters periodically keeping dirt/debris out from contaminating rest of system helping maintain optimal performance over time!
4.Proper Lubrication:
- Ensure all moving parts receive adequate lubrication preventing wear/failure down road!
5.Tighten Connections:
- Periodically check/tighten all connections preventing leaks from forming over time leading costly repairs later down line!
Connecting a hydraulic pump to a motor is a critical task that requires careful attention to detail along with adherence safety precautions throughout entire process! By following this step-by-step guide you can ensure safe/effective connection maximizing performance lifespan your entire hydraulic system! Regular maintenance/troubleshooting further enhances reliability providing years dependable service ahead!
To connect a hydraulic pump to a motor, you will need wrenches, sockets, screwdrivers, a wire stripper/crimper, a multimeter, hydraulic fittings/adapters rated for operating pressure along with hoses compatible with your specific application requirements!
When working with hydraulics always disconnect power source first relieve any stored pressure before starting work while wearing appropriate safety gear like goggles/gloves etc.! Keep workspace clean avoiding clutter/slips/falls due spills!
Proper alignment achieved using laser alignment tools straightedges feeler gauges ensuring both shafts aligned horizontally vertically—adjustments made as necessary until perfect alignment achieved!
If your pump isn't building pressure check rotation direction air leaks within system inspect internal damages possibly affecting performance!
Regular maintenance should occur frequently conducting inspections across major components performing analyses replacing filters lubricating moving parts checking/tightening connections preventing future issues arising down line!
