Mounting a planetary gearbox is a precise process that requires careful attention to detail to ensure optimal performance and longevity. This article will guide you through the steps involved in mounting a planetary gearbox, highlighting key considerations and providing visual aids to enhance understanding.
Planetary gearboxes are versatile and efficient power transmission systems used in various applications, including robotics, automation, and machinery. They offer high torque density, compact design, and flexibility in speed reduction ratios. Understanding the components and functionality of a planetary gearbox is essential before proceeding with the mounting process.

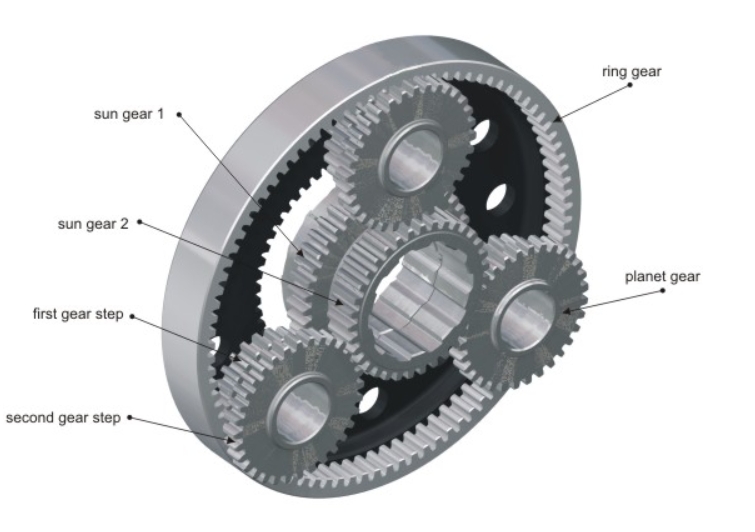

- Sun Gear: The central gear that drives the planetary gears.
- Planetary Gears: These gears orbit around the sun gear and are attached to a carrier.
- Ring Gear: The outer gear that encloses the planetary gears.
- Carrier: Holds the planetary gears and transmits the output.
The mounting process involves several critical steps to ensure proper alignment and secure connection between the gearbox and the motor.
Before installation, inspect the motor and gearbox for any damage or debris. Ensure all components are in good condition and compatible with each other. Remove any motor keys or stoppers as required.
Proper alignment is crucial for efficient operation. Use tools like straightedges or laser alignment devices to ensure axial and radial alignment of the motor and gearbox shafts.
Align the flanges of the motor and gearbox to prevent misalignment, which can lead to vibration and wear. Use a dial indicator to check flange runout.

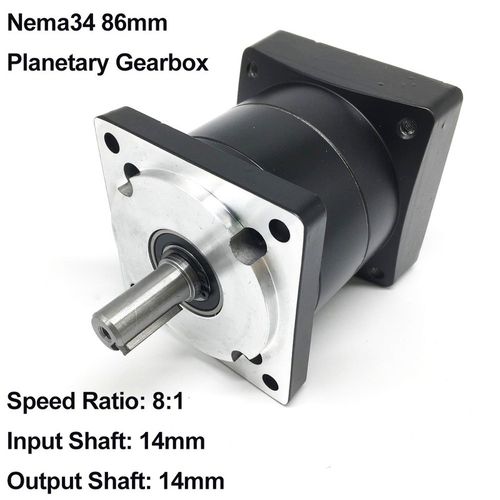

Mount the motor onto the gearbox using appropriate bolts. Ensure the motor is securely fastened but not over-tightened, as this can distort the flanges.
Tighten the screws in a sequence to avoid uneven stress. Typically, this involves lightly tightening diagonal screws first, then fully tightening them.
Perform a final inspection to ensure all connections are secure and properly aligned. Check for any signs of wear or misalignment.
Different types of planetary gearboxes, such as right-angle or inline configurations, may have specific mounting requirements.

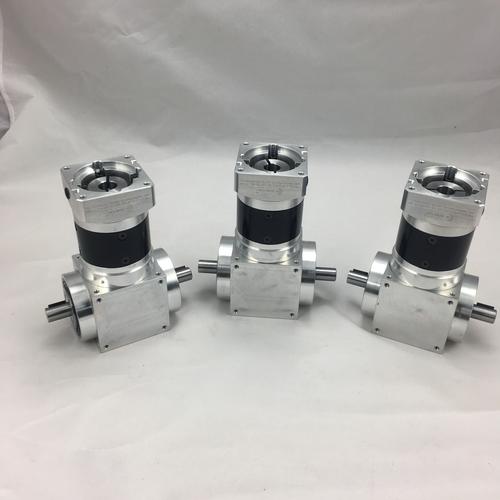

These gearboxes are designed for flexibility and can be mounted in various positions. They often feature a square output flange, which simplifies the mounting process.
Inline configurations are more straightforward but require precise alignment to ensure smooth operation. They are commonly used in applications where space is limited.
Common issues during installation include misalignment, loose connections, and oil leakage. Regular maintenance and inspections can prevent these problems.
Oil leakage can occur from the screw plug, joint surfaces, or seals. Ensure all connections are tightened properly and seals are intact.
Many modern planetary gearboxes are lifetime-lubricated, eliminating the need for regular lubrication checks. However, inspecting for wear and ensuring proper alignment remains crucial.
Modern planetary gearboxes often incorporate advanced features to enhance performance and durability.
These gearboxes offer reduced backlash and high power density, making them ideal for applications requiring precise positioning and high torque output.
Modular designs allow for easy integration with various motors and applications, providing flexibility in system design. For example, the MAXPlanetary gearbox is designed for use with NEO-class motors and offers high torque density.
Planetary gearboxes must be operated within specified environmental conditions to ensure optimal performance. Factors such as ambient temperature, humidity, and protection class (e.g., IP65) should be considered.
Ensure the gearbox operates within the recommended temperature range (-10°C to 90°C) to prevent overheating or freezing of components.
Gearboxes with a higher protection class (e.g., IP65) can withstand harsher environments, including dust and moisture, making them suitable for outdoor applications.
The selection of bearings and their arrangement is crucial for the smooth operation of planetary gearboxes. Common arrangements include locating/non-locating, adjusted, and floating bearing setups. The floating bearing arrangement is particularly useful as it allows for axial displacement without stressing the bearings.
This arrangement is simple and economical, allowing the planetary gear to move axially without stressing the bearings. It is essential for maintaining the required guidance accuracy and preventing axial stress on the bearings.
When assembling modular gearboxes like the MAXPlanetary system, ensure that the stack is fully seated and no gap is present between the stack and the input plate before inserting and tightening the gearbox components.
1. Motor Preparation: Place the motor with the motor shaft and Universal Input Stage facing upwards.
2. Input Coupler Installation: Slide the Input Coupler onto the motor shaft, ensuring the key is engaged.
3. Gear Cartridge Alignment: Align the stacked output stages and gear cartridges with the Universal Input Stage.
4. Stack Assembly: Slide the stack of gear cartridges onto the motor shaft and input stage, ensuring proper engagement of the input spline.
Different applications may require specific mounting techniques to optimize performance.
Flange mounting is common for planetary gearboxes, providing a stable base for the gearbox. Ensure that the flange is securely bolted to the mounting surface.
Foot mounting is used for gearboxes that need to be mounted directly to a base or frame. It provides additional stability and support.
Improper installation can lead to common failures such as misalignment, vibration, and premature bearing failure. Ensuring proper alignment and using the correct mounting techniques can prevent these issues.
Misalignment can cause gear wear and vibration. Use alignment tools to ensure the motor and gearbox shafts are properly aligned.
Vibration can lead to noise and fatigue in components. Proper mounting and support structures can minimize vibration.
Proper lubrication is essential for maintaining the longevity of planetary gearboxes. Ensure that the gearbox is filled with the recommended type and amount of lubricant. Cooling systems may also be necessary for high-load applications to prevent overheating.
- Grease: Suitable for low-speed applications.
- Oil: Ideal for high-speed applications, providing better cooling and lubrication.
Advanced mounting techniques involve using specialized tools and methods to ensure precise alignment and secure connections. For instance, using a torque wrench to tighten screws ensures that the specified torque is applied, preventing over-tightening or under-tightening.
A torque wrench is essential for applying the correct amount of torque to the screws, ensuring that they are neither too loose nor too tight. This helps prevent damage to the gearbox components.
Proper mounting is crucial to prevent premature gearbox failure. Misalignment, excessive vibration, and improper installation can lead to bearing failure and gear damage[6]. Ensuring that the coupling is at the specified distance from the motor face and using a torque wrench for tightening can help avoid these issues[6].
Mounting a planetary gearbox requires careful attention to detail and adherence to specific procedures to ensure optimal performance and longevity. By following these steps and maintaining regular inspections, you can prevent common issues and ensure efficient operation of your machinery.
Proper alignment involves ensuring both axial and radial alignment of the motor and gearbox shafts. Use tools like straightedges or laser alignment devices for precise alignment.
Screws should be tightened in a sequence to avoid uneven stress. Typically, this involves lightly tightening diagonal screws first, then fully tightening them to ensure even distribution of force.
Oil leakage can occur due to loose screw plugs, damaged seals, or improper joint surface sealing. Regular inspections and proper tightening of connections can prevent these issues.
Using a hammer can apply excessive axial or radial forces, potentially damaging the bearings or gears inside the gearbox. Always handle components gently to prevent damage.
Regular inspections for signs of wear, ensuring proper alignment, and maintaining clean connections are crucial. Regular lubrication checks and replacing worn parts can extend the gearbox's lifespan.
