Planetary gearboxes are complex mechanical systems used in various industrial applications for speed reduction and torque multiplication. Disassembling a Laird planetary gearbox requires careful attention to detail and the right tools. This guide will walk you through the process, highlighting key steps and providing visual aids where possible.

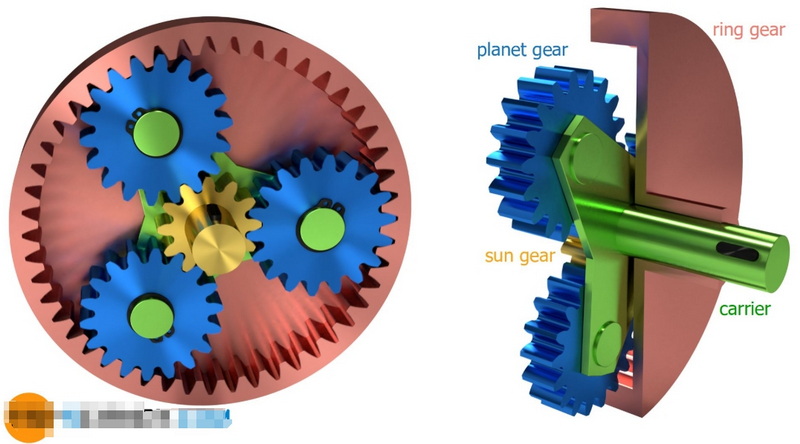

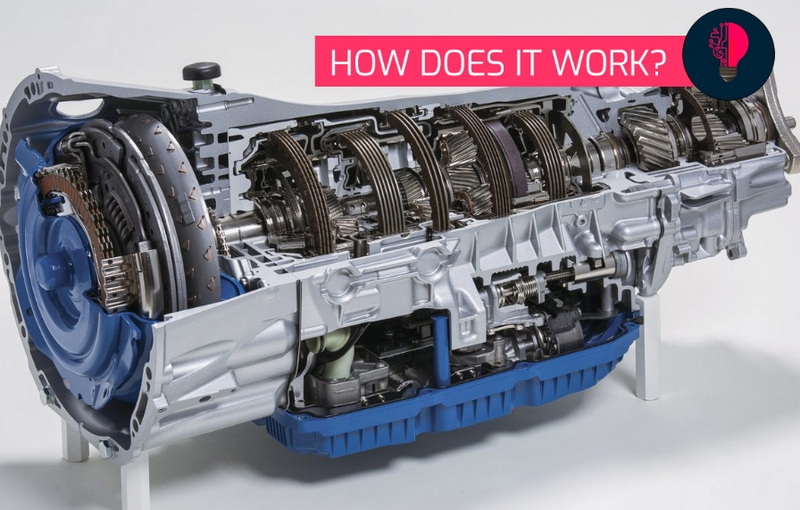

Planetary gearboxes consist of a sun gear, planet gears, and a ring gear. The sun gear is typically connected to the input shaft, while the planet gears orbit around it and engage with the ring gear. This configuration allows for high gear ratios and efficient power transmission.

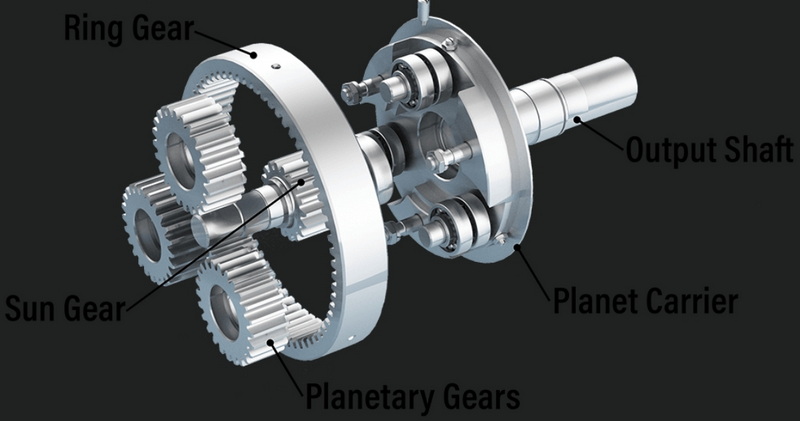

- Sun Gear: The central gear connected to the input shaft.
- Planet Gears: These orbit around the sun gear and engage with the ring gear.
- Ring Gear: The outer gear that encloses the planet gears.
- Carrier: Holds the planet gears in place.
Disassembling a Laird planetary gearbox involves several steps. It's crucial to follow these steps carefully to avoid damaging components.
1. Disconnect Power Source: Ensure the gearbox is not connected to any power source.
2. Remove Mounting Bolts: Take out the bolts holding the gearbox in place.
3. Drain Oil: If applicable, drain the oil from the gearbox. Warm oil drains more easily.
1. Remove Cover: Take off the gearbox cover to access internal components.
2. Remove Thrust Washers and Input Gear: Gently lift out the thrust washers and input gear.
1. Lift Primary Planet Carrier: Carefully remove the primary planet carrier assembly.
2. Remove Sun Gear: If not already removed, take out the sun gear.
3. Remove Primary Ring Gear: Inspect and remove the primary ring gear.
1. Remove Secondary Planet Carrier: Use a puller if necessary.
2. Remove Secondary Ring Gear: Inspect for damage.
3. Remove Carrier Thrust Washer: Discard if damaged.
1. Inspect for Damage: Check all components for wear or damage.
2. Clean Components: Use appropriate cleaning solutions to remove dirt and debris.
During the inspection phase, it's essential to check each component thoroughly for signs of wear or damage. This includes inspecting the gear teeth for spalling or bruising, checking bearings for smooth rotation, and ensuring all surfaces are free from debris.
- Magnifying Glass: For detailed visual inspection.
- Soft Brushes: For cleaning delicate surfaces.
- Solvent: For removing grease and grime.
Planetary gearboxes can experience several common faults during operation. Understanding these issues and how to troubleshoot them is crucial for maintaining efficiency.
- Causes: Loose screw plugs, joint surface gaps, seal failures.
- Solutions: Tighten screw plugs, clean and seal joint surfaces, replace damaged seals.
- Causes: Insufficient lubrication, poor gear material quality.
- Solutions: Regular lubrication, replace worn gears.
- Causes: Overload, poor lubrication.
- Solutions: Replace bearings, ensure proper lubrication.
Reassembling the gearbox requires reversing the disassembly steps with precision.
1. Install Planet Gears: Ensure proper alignment with the ring gear.
2. Install Planet Shafts: Use roll pins to secure them in place.
1. Install Sun Gear: Align with the planet gears.
2. Install Ring Gears: Ensure notches align with lubricant holes.
1. Replace Cover: Secure with bolts.
2. Refill Oil: Use the recommended type and amount.
Regular maintenance is crucial for extending the lifespan of planetary gearboxes. Here are some key tips:
- Check gears for wear and pitting.
- Ensure bearings are properly lubricated.
- Use the recommended oil type and amount.
- Regularly change oil to prevent degradation.
- Operate within recommended parameters to prevent damage.
- Keep the machine and surrounding area clean to prevent debris entry.
Safety is paramount when working with mechanical systems. Always wear protective gear, including gloves and safety goggles, and ensure the workspace is well-lit and free from hazards.
- Safety Goggles: Protect eyes from debris.
- Gloves: Prevent cuts and abrasions.
- Steel-Toed Boots: Protect feet from heavy objects.
For more complex issues, advanced troubleshooting techniques may be required. This includes using specialized tools to diagnose problems such as misaligned gears or faulty bearings.
- Use Alignment Tools: Ensure all gears are properly aligned to prevent wear and noise.
- Inspect for Misalignment: Check for any signs of misalignment, such as uneven wear on gear teeth.
- Use Vibration Analysis: Detect abnormal vibrations that may indicate bearing failure.
- Perform Visual Inspection: Check for signs of wear or damage on bearings.
Disassembling a Laird planetary gearbox is a meticulous process that requires patience, precision, and the right tools. Following these steps carefully will help ensure that your gearbox is properly disassembled and ready for inspection or repair.
- Vise: To hold components securely.
- Heat Gun: To soften thread adhesives.
- Puller: For removing stuck components.
- Hex Keys: For removing setscrews.
- Arbor Press: For pressing bearings.
- Initial Change: After the first 50 hours of operation.
- Subsequent Changes: Every 500 hours thereafter.
- GL-5 Grade EP 80/90 Gear Oil: Recommended for planetary gearboxes.
- Inspect for Spalling or Bruising: Check the gear teeth for signs of wear.
- Check for Abnormal Noise: Listen for unusual sounds during operation.
- No: It's generally recommended to replace bearings during reassembly to ensure reliability and efficiency.
