Trimming an outboard motor is essential for optimizing the performance of your boat, ensuring it runs efficiently and safely. While many modern boats are equipped with hydraulic trim systems, older models or smaller outboards might not have this feature. In this article, we will explore how to trim an outboard motor without a hydraulic system, focusing on manual adjustments and troubleshooting tips.
Boat trim refers to the angle at which the outboard motor is positioned relative to the transom of the boat. Proper trim affects the boat's speed, fuel efficiency, and stability. When the motor is trimmed correctly, the propeller is parallel to the water surface, maximizing forward thrust and minimizing drag.
- Speed and Efficiency: Proper trim helps the boat reach its optimal speed by ensuring that the propeller is fully engaged with the water.
- Fuel Efficiency: A well-trimmed boat uses less fuel because it encounters less resistance.
- Safety: Incorrect trim can lead to instability, making the boat harder to control.
For outboards without hydraulic trim systems, manual adjustments are necessary. This involves moving a pin in the motor bracket to change the motor's angle.
1. Locate the Motor Bracket: Identify the series of holes in the bracket where the pin is located.
2. Adjust the Pin: Move the pin up or down one hole at a time while the engine is off and the boat is stationary.
3. Test the Trim: Start the engine and test the boat's performance. Adjust the pin until the boat planes efficiently and handles well.
- Compromise Setting: Find a balance between ease of planing and stability at speed.
- Adjust for Load: Trim down for heavy loads and up for lighter loads.
- Monitor Performance: Observe how the boat responds to different trim settings.
Even with manual trim, issues can arise. Here are some common problems and solutions:
- Cause: Trim too high or too much weight in the bow.
- Solution: Lower the trim or redistribute weight.
- Cause: Trim too high or uneven weight distribution.
- Solution: Lower the trim slightly or adjust weight.
- Cause: Trim too low or propeller not fully engaged.
- Solution: Raise the trim or check propeller condition.
- Cause: Air entering the propeller due to incorrect trim or propeller damage.
- Solution: Adjust trim to ensure the propeller is fully submerged, or inspect and repair the propeller.
- Cause: Incorrect trim causing the engine to work harder.
- Solution: Adjust trim to reduce engine load and ensure proper water flow.
While manual trim systems are less complex than hydraulic ones, regular maintenance is still crucial.
- Apply lubricant to moving parts to prevent wear and corrosion.
- Regularly inspect the motor bracket and pin for signs of wear or damage.
- Clean the motor and surrounding areas to prevent debris buildup.
For those looking to optimize their manual trim further, here are some advanced techniques:

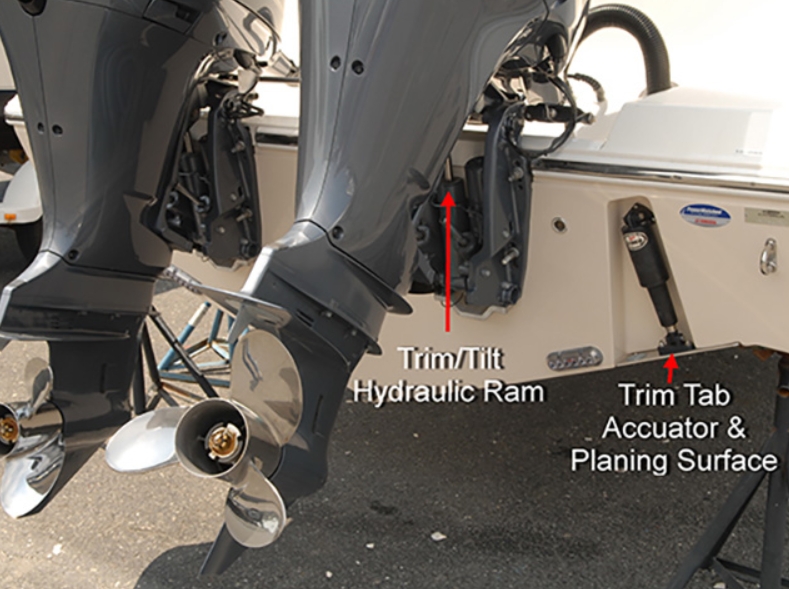

- Purpose: Trim tabs are small flaps on the transom that can be adjusted to fine-tune the boat's attitude.
- Use: They can help stabilize the boat and improve handling, especially in rough conditions.
- Impact on Trim: The right propeller can significantly affect how the boat trims. A propeller with the correct pitch and diameter ensures optimal performance.
- Adjustments: Consider changing the propeller if you find that your boat consistently struggles with trim, regardless of adjustments.
- Effect on Trim: How weight is distributed on the boat affects trim. Proper distribution can improve stability and performance.
- Adjustments: Move passengers or cargo to achieve a balanced load.
Trimming an outboard motor without a hydraulic system requires patience and practice. By understanding how to manually adjust the trim and troubleshoot common issues, you can optimize your boat's performance and ensure safe operation. Remember, the key to successful manual trimming is incremental adjustments and careful observation of the boat's response.
Trimming adjusts the motor's angle to optimize speed, fuel efficiency, and stability by ensuring the propeller engages with the water correctly.
Move the pin in the motor bracket up or down while the engine is off. Test the boat's performance and adjust until it planes efficiently and handles well.
Porpoising is often due to trim being too high or uneven weight distribution. Lower the trim slightly or adjust the weight to resolve the issue.
Regular maintenance, such as lubrication and inspection, prevents wear and corrosion, ensuring the system functions smoothly.
While possible, installing a hydraulic trim system requires significant modifications and may not be feasible for all boats. It's best to consult a professional mechanic.
