Troubleshooting Denison vane motors involves identifying and addressing various mechanical and operational issues that can affect their performance. These motors are widely used in hydraulic systems due to their efficiency and reliability. However, like any mechanical component, they can experience problems that require prompt attention to prevent downtime and ensure optimal operation. This article will guide you through common issues and troubleshooting methods for Denison vane motors.

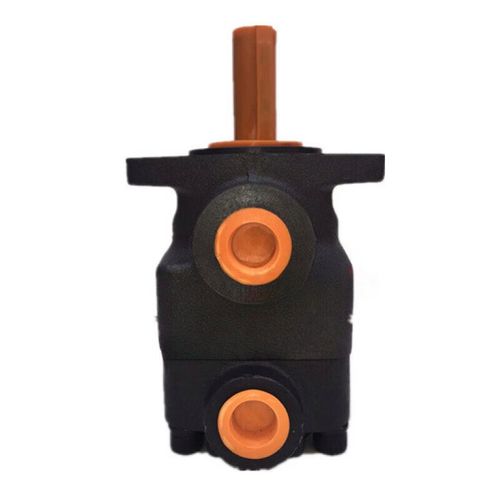

Denison vane motors are part of the Parker Hannifin product line, known for their high-quality hydraulic components. These motors are designed to convert hydraulic pressure into rotational energy, making them essential in applications requiring precise control over speed and torque.
1. Rotor and Vanes: The rotor is the central component that rotates when driven by hydraulic pressure. Vanes are attached to the rotor and extend into the cam ring, creating chambers that fill and empty with fluid to produce rotation.
2. Cam Ring: This is a circular component with an offset center that guides the vanes, ensuring they move in and out as the rotor turns.
3. Port Plates: These plates have inlet and outlet ports through which hydraulic fluid enters and exits the motor.
4. Seals and Bearings: These components ensure that the motor operates with minimal leakage and smooth rotation.
- Causes: Low inlet pressure, insufficient fluid flow, or increased clearance between internal parts.
Troubleshooting:
- Check the main pump's output pressure and flow rate.
- Inspect the motor's internal components for wear or excessive clearance.
- Measure pressure and flow under load conditions to compare with specifications.
- Causes: Misaligned or loose components, worn vanes, or improper fluid conditions.
Troubleshooting:
- Check for misalignment or loose connections.
- Inspect vanes for wear or damage.
- Ensure proper fluid quality and temperature.
- Causes: Worn seals, damaged port plates, or excessive pressure.
Troubleshooting:
- Inspect seals for wear or damage.
- Check port plates for scratches or damage.
- Adjust pressure settings to ensure they are within recommended limits.
- Causes: Air in the system, low fluid level, or blockages in the inlet line.
Troubleshooting:
- Bleed air from the system.
- Check fluid levels and ensure proper suction conditions.
- Inspect inlet lines for blockages.
1. Visual Inspection: Look for signs of wear, damage, or misalignment on components like vanes, seals, and bearings.
2. Performance Testing: Measure pressure, flow, and speed under various operating conditions to identify deviations from specifications.
3. System Checks: Ensure the hydraulic system is properly configured, with no blockages or restrictions in the lines.
4. Maintenance and Repair: Replace worn parts, adjust settings as needed, and perform routine maintenance tasks like cleaning and lubrication.
- Service Manuals: Refer to Denison's official service manuals for detailed repair procedures and troubleshooting guides.
- Diagnostic Equipment: Use pressure gauges, flow meters, and other tools to measure system performance.
- Training and Support: Consult with experienced technicians or contact Parker Hannifin for technical assistance.
Regular maintenance is crucial for extending the life of Denison vane motors and preventing common issues:
- Regular Inspections: Conduct visual inspections to check for leaks, loose fittings, or abnormal wear.
- System Priming: Purge air from the hydraulic system and motor by cycling the fluid through the system several times.
- Load Testing: Gradually introduce the motor to the operational load, monitoring performance and addressing any anomalies.
- Lubrication: Follow the manufacturer's guidelines for lubrication intervals and use recommended lubricants.
- Filter Maintenance: Clean or replace hydraulic filters as recommended to prevent clogging and maintain optimal fluid quality.
Understanding the common failure-prone parts of vane hydraulic motors can help in early detection and prevention:
- Oil Distribution Disk: Wear on its end face can lead to performance degradation.
- Rotor: Wear on the rotor end face affects efficiency.
- Stator: Inner surface wear impacts fluid distribution and motor speed.
- Blades: Stuck or damaged blades due to dirt or burrs can prevent smooth operation.
- Bearings: Wear or failure can cause noise and vibration.
1. Inadequate Output Speed and Torque: Check for excessive clearance between the rotor and oil distribution disk, or dirt and burrs in the rotor groove. Inspect and clean the rotor, stator, and blades. Replace worn components if necessary.
2. Reduced Speed Under Load: Ensure back pressure, inlet pressure, and pump flow are within optimal ranges. Address any control valve issues.
3. Noise and Vibration: Inspect internal components like bearings and the stator for damage. Replace worn parts and ensure the torsion spring is functioning correctly.
4. Internal and External Leaks: Inspect and replace seals, O-rings, and gaskets. Tighten fasteners and check for cracks in the housing.
5. Hydraulic Motor Fails to Start: Check system pressure and adjust as necessary. Inspect the pump for flow output and verify that the relief valve is functioning correctly.
1. Pressure Testing: Use pressure gauges to measure inlet and outlet pressures. Compare these readings with the manufacturer's specifications to identify any discrepancies.
2. Flow Rate Testing: Measure the flow rate of the hydraulic fluid entering and exiting the motor. This helps in identifying issues related to fluid flow restrictions or pump performance.
3. Thermal Imaging: Use thermal imaging cameras to detect overheating components, which can indicate friction, misalignment, or excessive pressure.
4. Vibration Analysis: Perform vibration analysis to identify misalignment, imbalance, or worn bearings.
- Seal Drivers: Use specialized seal drivers to replace seals without damaging the housing.
- Port Plate Tools: Utilize tools designed for handling port plates to avoid scratching or damaging these components during maintenance.
Develop a maintenance schedule based on the motor's operating conditions. Regular checks should include:
- Fluid Quality: Monitor hydraulic fluid for contamination and degradation.
- Component Wear: Inspect components like vanes, seals, and bearings for signs of wear.
- System Pressure: Ensure system pressure is within recommended limits to prevent overloading the motor.
By integrating these advanced techniques and tools into your maintenance routine, you can significantly extend the lifespan of your Denison vane motor and reduce downtime.
Real-world examples of successful troubleshooting and maintenance can provide valuable insights:
- Case Study 1: A manufacturing plant experienced frequent failures of their Denison vane motors due to improper fluid quality. Implementing regular fluid checks and replacing filters more frequently resolved the issue.
- Case Study 2: A construction company noticed reduced performance in their hydraulic systems. After conducting thorough inspections and replacing worn components, they achieved optimal performance and reduced maintenance costs.
These case studies highlight the importance of proactive maintenance and thorough troubleshooting in maintaining the efficiency and reliability of Denison vane motors.
When troubleshooting Denison vane motors, it's essential to consider environmental factors such as temperature and humidity, which can affect performance. Additionally, ensuring that all maintenance and repairs are performed by trained personnel can help prevent further damage and ensure safety.
Pursuing training and certification programs offered by Parker Hannifin or other reputable organizations can enhance your skills in troubleshooting and maintaining Denison vane motors. These programs provide in-depth knowledge of hydraulic systems and hands-on experience with diagnostic tools.
As technology advances, Denison vane motors are likely to incorporate more sophisticated control systems and materials, enhancing their efficiency and reliability. Staying updated with these developments can help technicians adapt their troubleshooting strategies to newer models and technologies.
1. Acoustic Emission Testing: This method involves using sensors to detect high-frequency sounds emitted by components under stress, which can indicate impending failure.
2. Predictive Maintenance Software: Utilize software tools that analyze operational data to predict potential failures, allowing for proactive maintenance.
A manufacturing facility implemented predictive maintenance software to monitor their Denison vane motors. By analyzing data on pressure, flow, and temperature, they were able to predict and prevent several potential failures, resulting in significant cost savings and reduced downtime.
Troubleshooting Denison vane motors requires a systematic approach that involves identifying symptoms, inspecting components, and performing diagnostic tests. By following these steps and using the right tools and resources, technicians can efficiently resolve common issues and ensure the motor operates at its best.
- Common causes include insufficient inlet pressure, low fluid flow, or increased clearance between internal parts. Check the main pump's performance and inspect the motor for wear or misalignment.
- Start by checking for misalignment or loose connections. Inspect vanes for wear and ensure proper fluid conditions. Adjust settings or replace parts as needed.
- First, bleed air from the system. Check fluid levels and ensure there are no blockages in the inlet line. If issues persist, consult the service manual for detailed procedures.
- Regular maintenance should include checking fluid quality, inspecting seals and bearings, and performing routine cleaning. The frequency depends on usage and operating conditions.
- Refer to Parker Hannifin's official service manuals or contact their technical support for detailed repair procedures and troubleshooting guides.
