Veljan vane motors are widely recognized for their reliability, efficiency, and versatility in hydraulic systems across various industrial applications. However, like all mechanical devices, they can encounter operational issues that affect performance. This comprehensive guide will help you troubleshoot common problems with Veljan vane motors, including detailed explanations, maintenance tips, and solutions. We will also discuss the integration of hydraulic motors with gear reducers, which are often used alongside vane motors to optimize torque and speed control.

Understanding Veljan Vane Motors and Their Applications

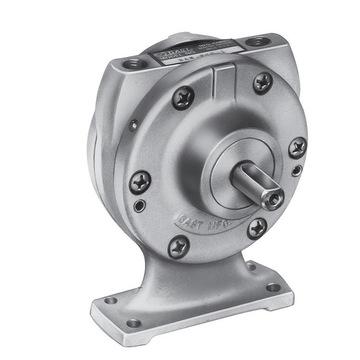

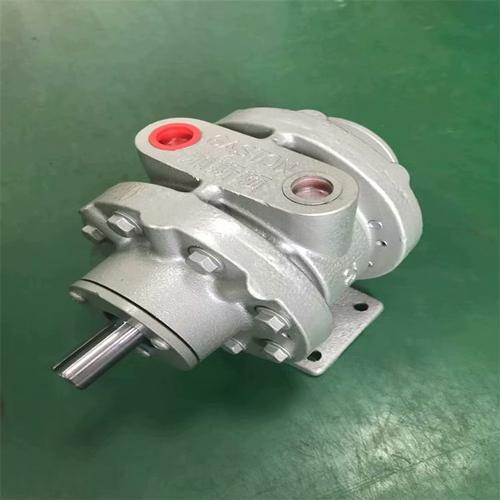

Veljan vane motors are fixed displacement hydraulic motors known for their reversible shaft rotation, wide torque range, and compatibility with pressures up to 3000 psi and speeds up to 4000 rpm. They are used in industries such as marine, defense, energy, mobile machinery, and industrial automation. Their design allows for smooth operation, quiet performance, and easy maintenance, making them a preferred choice for demanding hydraulic applications.

Hydraulic Motor with Gear Reducer: An Overview

A hydraulic motor with a gear reducer combines the hydraulic motor's power with a gear reduction system to increase output torque while reducing speed. This setup is essential in applications requiring high torque at low speeds, such as construction machinery, agricultural equipment, and heavy-duty industrial machines. The gear reducer can be planetary, external gear, or orbital type, each offering different efficiency and torque characteristics.

Common Problems in Veljan Vane Motors and How to Troubleshoot Them

1. No Rotation or Motor Fails to Start

Causes:

- Insufficient system pressure or flow.

- Relief valve malfunction or incorrect setting.

- Pump failure or blockage in the hydraulic circuit.

- Incorrect motor rotation direction.

Troubleshooting Steps:

- Verify system pressure and ensure it meets the motor's requirements.

- Inspect and adjust the relief valve to the correct pressure setting.

- Check the hydraulic pump for proper flow and operation.

- Confirm the motor's rotation direction matches the system design; reverse if necessary.

2. Reduced Speed or Torque Under Load

Causes:

- Excessive clearance between rotor and oil distribution disk.

- Dirt, burrs, or damage in rotor grooves or blades.

- Low inlet oil pressure or insufficient pump flow.

- Excessive back pressure in the system.

Troubleshooting Steps:

- Inspect and clean the rotor, stator, and blades; replace worn parts.

- Check inlet pressure and pump flow; adjust or repair as needed.

- Measure back pressure and reduce if above recommended levels.

- Ensure hydraulic fluid is clean and at proper viscosity.

3. Unusual Noise and Vibration

Causes:

- Bearing wear or damage.

- Stator or rotor wear.

- Torsion spring failure.

- Cavitation due to low inlet pressure or air in the system.

Troubleshooting Steps:

- Inspect bearings and replace if worn.

- Check stator and rotor surfaces for wear; repair or replace.

- Verify torsion spring condition and replace if broken.

- Purge air from the system and maintain proper fluid levels to prevent cavitation.

4. Hydraulic Fluid Leaks (Internal and External)

Causes:

- Worn or damaged shaft seals and O-rings.

- Poor fitting of components such as oil distribution disks.

- High oil temperature or low oil viscosity.

Troubleshooting Steps:

- Inspect and replace seals, O-rings, and gaskets.

- Tighten fasteners and check for housing cracks.

- Monitor oil temperature and use recommended hydraulic fluids.

- Regularly maintain seals to prevent leakage.

5. Erratic or Unstable Speed Control

Causes:

- Failure of flow control valves or variable pump controls.

- Air entrainment in the hydraulic fluid.

- Excessive internal leakage.

Troubleshooting Steps:

- Inspect and repair or replace faulty control valves.

- Bleed air from the hydraulic system.

- Check for worn internal components causing leakage and replace as necessary.

- Consider installing an accumulator to stabilize low-speed operation.

Advanced Troubleshooting Techniques

When basic troubleshooting does not resolve the issue, more advanced diagnostic methods may be necessary.

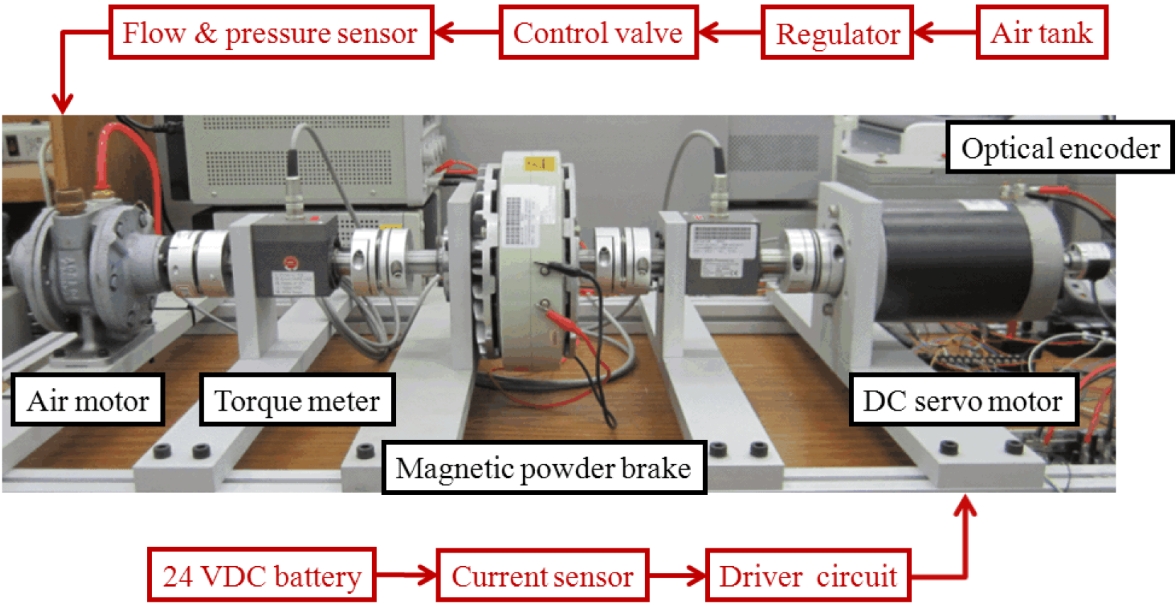

Pressure and Flow Testing

Using pressure gauges and flow meters at various points in the hydraulic circuit can help identify restrictions, leaks, or pump inefficiencies. For example, a drop in pressure between the pump and motor inlet may indicate a clogged filter or hose damage.

Thermal Imaging

Overheating components can be detected using thermal imaging cameras. Excessive heat in the motor housing or gear reducer may signal internal friction, worn bearings, or fluid contamination.

Vibration Analysis

Vibration sensors can detect abnormal frequencies caused by misalignment, imbalance, or bearing defects. This data helps pinpoint the source of noise and vibration issues.

Maintenance Tips for Veljan Vane Motors

- Regular Inspection: Periodically check rotor, stator, blades, seals, and bearings for wear or damage.

- Fluid Quality: Use high-quality hydraulic oil and replace filters regularly to prevent contamination.

- Lubrication: Ensure proper lubrication of moving parts to reduce friction and wear.

- Alignment: Maintain correct shaft and coupling alignment to avoid mechanical failures.

- Temperature Control: Monitor operating temperatures and use cooling systems if necessary to prevent overheating.

- Scheduled Overhaul: Plan for periodic motor overhauls based on operating hours and conditions to replace worn components before failure.

How to Replace a Hydraulic Vane Pump Cartridge (Video Guide)

Replacing the cartridge in a hydraulic vane pump is a common maintenance task that can restore motor performance. The process involves:

- Marking the alignment between the inlet cover and outlet body.

- Removing the inlet cover and extracting the old cartridge.

- Inspecting the shaft and bearings for wear.

- Installing the new cartridge, ensuring correct rotation direction.

- Reassembling with new O-rings and aligning marks for proper porting.

Integration of Hydraulic Motor with Gear Reducer in Veljan Systems

Hydraulic motors with gear reducers are often paired with Veljan vane motors to enhance torque output and control speed. The gear reducer allows the motor to operate efficiently at lower speeds while delivering higher torque, which is critical in heavy-duty applications.

Benefits of Using Gear Reducers with Veljan Vane Motors

Feature	Description
Increased Torque	Gear reducers amplify the motor’s torque output, enabling heavy load handling.
Speed Control	They reduce output speed, allowing precise control over machinery movement.
Durability	Gear reducers are built with robust materials like cast iron and chromium-plated shafts.
Noise Reduction	Some gear reducer types offer quieter operation compared to direct motor drive.
Versatility	Suitable for various applications including construction, agriculture, and marine equipment.

Types of Gear Reducers Commonly Used

- Planetary (Epicyclic) Gear Reducers: Provide high torque and smooth operation, ideal for heavy-duty tasks.

- External Gear Reducers: Simpler and more cost-effective, suitable for low to medium torque applications.

- Orbital (Gerotor) Gear Reducers: Compact and efficient, used in medium-duty machinery.

Additional Tips for Optimizing Hydraulic Motor with Gear Reducer Performance

- Proper Mounting: Ensure the gear reducer is securely mounted and aligned with the hydraulic motor shaft to prevent premature wear.

- Lubrication of Gear Reducer: Use manufacturer-recommended lubricants and change them at specified intervals to maintain gear reducer efficiency.

- Load Management: Avoid sudden load changes that can cause shock loads damaging the motor and gear reducer.

- Temperature Monitoring: Both the hydraulic motor and gear reducer should be monitored for temperature spikes to prevent overheating and damage.

- Regular Inspection: Check for gear wear, backlash, and bearing condition in the gear reducer to avoid unexpected failures.

Troubleshooting Hydraulic Motor with Gear Reducer Specific Issues

While hydraulic motors with gear reducers offer many advantages, they also introduce additional points of failure that require attention.

Gear Reducer Noise and Vibration

Causes:

- Worn or damaged gears.

- Insufficient lubrication.

- Misalignment between motor and gear reducer shafts.

Solutions:

- Inspect gears for wear or damage and replace if necessary.

- Maintain proper lubrication levels and use recommended oils.

- Realign shafts and couplings to manufacturer specifications.

Gear Reducer Overheating

Causes:

- Excessive load or continuous operation beyond rated capacity.

- Poor lubrication or contaminated oil.

- Blocked cooling passages or inadequate ventilation.

Solutions:

- Reduce load or allow cooling periods during operation.

- Change lubricant regularly and ensure oil cleanliness.

- Clean cooling fins and ensure proper airflow around the gear reducer.

Conclusion

Veljan vane motors are robust and efficient hydraulic components widely used in industrial applications. However, they can experience common issues such as no rotation, reduced speed, noise, leaks, and unstable speed control. Troubleshooting these problems involves systematic inspection of hydraulic pressures, mechanical parts, seals, and control valves. Advanced diagnostic tools like pressure testing, thermal imaging, and vibration analysis can further aid in identifying root causes.

Regular maintenance, including fluid quality management, component inspection, and scheduled overhauls, is essential to prolong motor life. Integrating hydraulic motors with gear reducers enhances the performance of Veljan vane motors by increasing torque and enabling precise speed control, making them suitable for heavy-duty applications.

By following the troubleshooting steps and maintenance tips outlined in this guide, operators can ensure optimal performance and reliability of their Veljan vane motors and associated hydraulic systems.

FAQ

1. What causes a Veljan vane motor to stall or not rotate?

Stalling or no rotation is often caused by insufficient hydraulic pressure, relief valve issues, or incorrect motor rotation direction. Checking system pressure, valve settings, and motor installation can resolve this.

2. How do I know if the hydraulic motor's seals are leaking?

Signs of seal leakage include visible oil leaks around the shaft, reduced system pressure, and overheating. Inspect seals and replace worn or damaged ones promptly.

3. Can a hydraulic motor with gear reducer improve Veljan vane motor performance?

Yes, gear reducers increase output torque and allow for better speed control, enhancing the motor's efficiency in heavy-duty applications.

4. How often should I replace the hydraulic fluid in a Veljan vane motor system?

Hydraulic fluid should be replaced according to the manufacturer's recommendations, typically every 1,000 to 2,000 operating hours, or sooner if contamination is detected.

5. What maintenance is required to prevent vane motor noise and vibration?

Regular inspection of bearings, rotor, stator, and torsion springs, along with maintaining proper fluid levels and purging air, helps prevent noise and vibration issues.
