Vickers vane motors are widely used in hydraulic systems for their reliability, efficiency, and smooth operation. However, like any mechanical device, they can encounter issues that affect performance and longevity. This comprehensive guide will help you understand how to troubleshoot common problems with Vickers vane motors, identify their causes, and apply effective solutions. Throughout the article, we will include detailed explanations, images, and videos to assist you in diagnosing and repairing your Vickers vane motor.

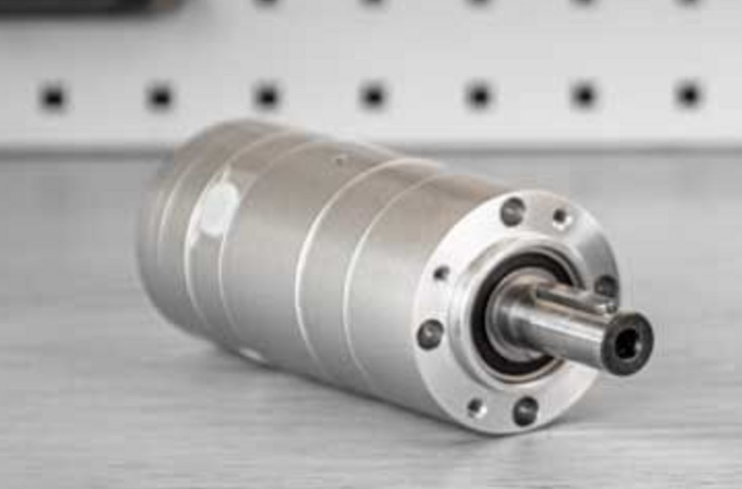

A Vickers vane motor is a type of hydraulic motor that converts hydraulic energy into mechanical energy using a rotor with sliding vanes inside a cam ring. The vanes create chambers that vary in volume as the rotor turns, producing torque and rotation. These motors are known for their compact size, high efficiency, and ability to provide variable speed and torque.
The motor consists of a rotor mounted eccentrically inside a cam ring. The rotor has several radial slots, each containing a sliding vane. Hydraulic fluid enters the motor and pushes against the vanes, causing the rotor to turn. The vanes slide in and out of the rotor slots to maintain contact with the cam ring, creating sealed chambers that expand and contract to generate torque.
This design allows for smooth, continuous rotation with minimal pulsation, making Vickers vane motors ideal for applications requiring precise speed control and high torque at low speeds.
Despite their robust design, Vickers vane motors can experience several common problems. Understanding these issues and their root causes is essential for effective troubleshooting.
Symptoms:
- Motor does not rotate when hydraulic power is applied.
- No noise or vibration from the motor.
Possible Causes:
- Inadequate fluid supply or low fluid level in the reservoir.
- System leakage due to loose port connections or broken lines.
- Restricted return or drain lines causing back pressure.
- Air trapped in the hydraulic system causing cavitation.
- Drive train damage or motor coupling issues.
- Motor driven in the wrong direction causing mechanical lock.
Troubleshooting Steps:
- Check Fluid Level: Ensure the hydraulic reservoir is filled to the recommended level with the correct fluid.
- Inspect Hydraulic Lines: Look for leaks, loose fittings, or damaged hoses. Tighten or replace as necessary.
- Check Return and Drain Lines: Clean or replace clogged filters and ensure lines are free of restrictions.
- Bleed Air: Remove air pockets by bleeding the system at high points or using a vacuum pump.
- Inspect Drive Train: Check couplings, shafts, and gears for damage or misalignment.
- Verify Rotation Direction: Confirm the motor is installed for the correct rotation; reverse if necessary.
Symptoms:
- Motor runs slower than expected under load.
- Motor stalls or struggles to maintain speed.
- Reduced torque output causing poor system performance.
Possible Causes:
- Excessive clearance between rotor and oil distribution disk leading to internal leakage.
- Dirt, burrs, or damage in the rotor groove or blades causing binding or slippage.
- Low inlet oil pressure or insufficient pump flow.
- Excessive back pressure on the motor outlet.
- System overload or relief valve set too low, limiting pressure.
Troubleshooting Steps:
- Inspect Internal Components: Remove the cartridge and check the rotor, vanes, and cam ring for wear or damage. Clean or replace parts as needed.
- Check Hydraulic Pump: Measure inlet pressure and flow rate to ensure they meet motor specifications.
- Adjust Relief Valve: Verify and adjust relief valve settings to allow adequate pressure.
- Reduce Load: Confirm the motor is not overloaded beyond its rated capacity.
Symptoms:
- Loud whining, knocking, or rattling noises during operation.
- Noticeable vibration transmitted to the mounting structure.
Possible Causes:
- Air entrainment in the hydraulic fluid causing cavitation noise.
- Internal damage to bearings or stator wear causing mechanical noise.
- Torsion spring issues affecting vane movement.
- Noise transmitted from other system components such as pumps or valves.
Troubleshooting Steps:
- Bleed Air: Remove air from the system to eliminate cavitation.
- Inspect Bearings and Stator: Check for wear or damage and replace if necessary.
- Check Torsion Springs: Ensure springs are intact and functioning properly.
- Isolate Noise Sources: Temporarily disconnect the motor and run other components to identify noise origin.
Symptoms:
- Visible hydraulic fluid leaks around motor housing or shaft.
- Loss of system pressure or fluid level drop.
- Reduced motor performance due to internal leakage.
Possible Causes:
- Worn or damaged oil seals and O-rings.
- Poor fitting of components such as oil distribution disks or cartridge seals.
- High oil temperature causing seal degradation.
- Cracks or damage in the motor housing.
Troubleshooting Steps:
- Replace Seals: Use high-quality replacement seals and O-rings from a seal kit.
- Check Assembly Fit: Ensure all components are properly seated and tightened.
- Maintain Oil Temperature: Use cooling systems or heat exchangers to keep oil within recommended temperature range.
- Inspect Housing: Look for cracks or damage and repair or replace the motor if necessary.
Symptoms:
- Motor surface temperature exceeds normal operating range.
- Hydraulic fluid temperature rises excessively.
- Reduced motor efficiency and possible damage to seals.
Possible Causes:
- Internal leakage causing fluid slippage and heat generation.
- Heat exchanger or cooling system malfunction.
- Low fluid level or poor fluid quality reducing heat dissipation.
Troubleshooting Steps:
- Identify Internal Leaks: Inspect internal components for wear causing fluid bypass.
- Check Cooling System: Ensure heat exchangers and coolers are functioning properly.
- Maintain Fluid Levels: Keep reservoir filled with clean, recommended hydraulic oil.
- Use Proper Fluid: Select hydraulic fluid with appropriate viscosity and additives for heat resistance.
Vickers vane motors can be configured for right-hand or left-hand rotation. Incorrect rotation can cause damage or poor performance.
How to Change Rotation:
- Disassemble the motor cartridge carefully.
- Remove and flip the cam ring 180 degrees to reverse eccentricity.
- Reassemble the motor ensuring all parts are aligned correctly.
- Torque bolts to factory specifications.
- Remove the cartridge carefully, marking the housing for correct reassembly.
- Inspect vanes for wear, cracks, or burrs. Vanes should slide freely without binding.
- Check cylinder block bores for wear or scoring.
- Inspect pistons and shoes for end play and wear.
- Replace any worn or damaged parts to restore motor efficiency.
- Remove worn shaft seals, O-rings, and bearings.
- Clean all metal parts with petroleum solvent and dry with compressed air.
- Install new seals and bearings from a quality seal kit.
- Ensure proper lubrication during reassembly.
- Vickers/Eaton V20 Vane Pump Leak Repair: Demonstrates seal replacement and internal inspection.
- Hydraulic Vane Pump Repair: Shows cartridge replacement and assembly tips.
- Changing Rotation On A Vickers Vane Pump: Step-by-step guide to reversing motor rotation.
Proper maintenance is key to extending the life of your Vickers vane motor and preventing common issues.
- Regular Fluid Checks: Monitor hydraulic fluid levels and quality. Replace fluid according to manufacturer recommendations.
- Use Recommended Hydraulic Oils: Select oils with the correct viscosity and additives to protect against wear and corrosion.
- Filter Maintenance: Replace filters regularly to prevent contamination that can damage internal components.
- Inspect Vanes and Seals: Periodically disassemble the motor to check for wear and replace parts as needed.
- Avoid Air Entrapment: Ensure all fittings are tight and bleed the system to remove air pockets.
- Proper Installation: Align and mount the motor securely to prevent vibration and misalignment damage.
- Follow Torque Specifications: Use a torque wrench to tighten bolts to manufacturer specifications during assembly.
Troubleshooting common Vickers vane motor problems requires a systematic approach to identify symptoms, diagnose causes, and apply appropriate remedies. Key issues such as motor failure to start, insufficient speed or torque, noise, leaks, and overheating can often be traced back to fluid supply problems, worn components, or incorrect assembly. Regular maintenance and careful inspection of vanes, seals, bearings, and hydraulic fluid quality are essential to prolong the life and performance of your Vickers vane motor. Utilizing the detailed repair procedures and visual aids provided will empower technicians and operators to maintain optimal motor function and reduce downtime.
Worn vanes typically cause reduced motor efficiency, increased noise, and vibration. Visually inspect the vanes for cracks, chips, or excessive wear during disassembly. If vanes do not slide smoothly or show damage, replacement is necessary.
Air can enter through loose fittings, damaged seals, or leaks in suction lines. To prevent air ingress, tighten all connections, replace faulty seals, and bleed the system at the highest points to purge trapped air.
Yes, by disassembling the cartridge, flipping the cam ring 180 degrees, and reassembling the motor correctly, you can change the rotation direction. Follow manufacturer instructions and torque specifications carefully.
Use high-quality hydraulic oil with viscosity and additives recommended by the motor manufacturer. Maintaining proper fluid temperature and cleanliness is critical to prevent wear and leaks.
Regular inspections should be done based on operating hours and conditions, typically every few hundred hours. Replace filters and check fluid quality frequently. Detailed inspections of vanes, seals, and bearings should be done during scheduled maintenance or if performance issues arise.
