Concrete mixer trucks are essential vehicles in the construction industry, responsible for transporting and mixing concrete to ensure it remains in optimal condition until it reaches the construction site. These trucks come in various sizes, each designed to meet different project requirements. Understanding the dimensions of a concrete mixer truck is crucial for ensuring safe and efficient delivery of concrete to construction sites.

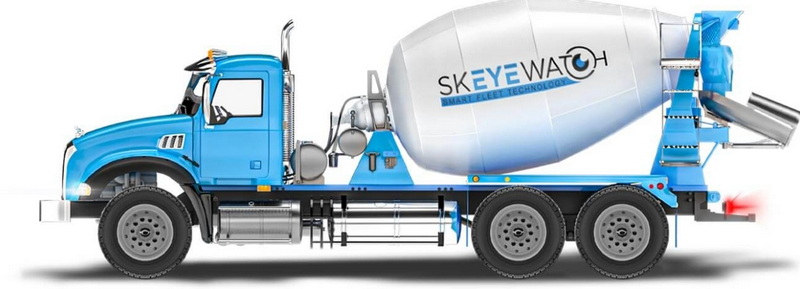

Concrete mixer trucks, also known as cement mixers, are equipped with a rotating drum that continuously mixes the concrete during transport. This drum is powered by the truck's engine or an independent engine, ensuring the concrete remains homogenous and ready to use upon arrival at the site. The trucks are typically available in capacities ranging from a few cubic meters for mini mix operations to larger capacities for standard transit mixers.

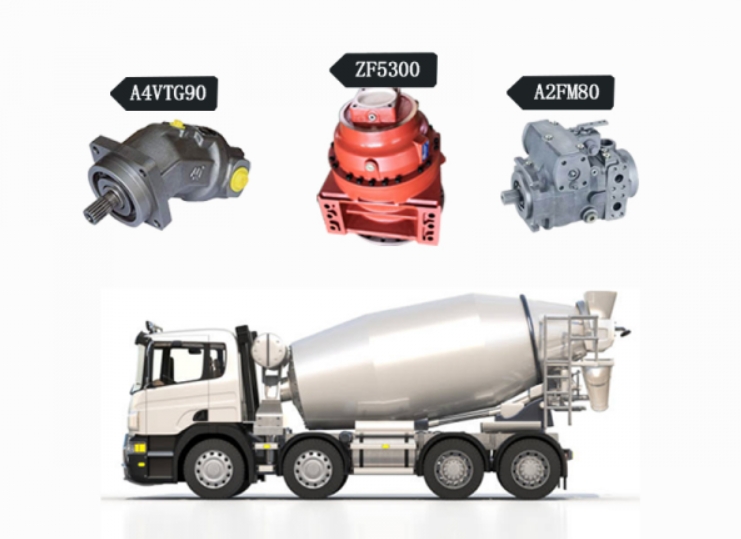

1. Rotating Drum: The central component responsible for mixing the concrete. It features internal blades that ensure thorough mixing and prevent the concrete from setting prematurely.
2. Chassis: Provides structural support for the truck and includes the suspension system to absorb shocks during transport.
3. Engine: Powers the truck and the drum's rotation. Most concrete mixer trucks use diesel engines due to their superior torque and fuel efficiency.
4. Control Systems: Modern trucks often include sophisticated control systems for managing the mixing process and operational parameters.
The dimensions of concrete mixer trucks vary based on their capacity and design. Here are some common dimensions for different sizes of trucks:
4 Cubic Meters:
- Overall width (excluding mirrors): 2491 mm
- Overall width (including mirrors): 2923 mm
- Overall length: 7168 mm
- 1st chute pivot to end of 2nd chute: 1906 mm
- 1st chute pivot to end of 3rd chute: 2669 mm
6 Cubic Meters:
- Overall width (excluding mirrors): 2542 mm
- Overall width (including mirrors): 3101 mm
- Overall length: 8235 mm
- 1st chute pivot to end of 2nd chute: 2440 mm
- 1st chute pivot to end of 3rd chute: 1830 mm
8 Cubic Meters:
- Overall width (excluding mirrors): 2542 mm
- Overall width (including mirrors): 3101 mm
- Overall length: 9760 mm
- 1st chute pivot to end of 2nd chute: 1983 mm
- 1st chute pivot to end of 3rd chute: 2694 mm
6m³ Truckmixer:
- Length: 8.7 meters
- Height: 3.75 meters
- Width: 2.55 meters
- Chute: 2.75 meters
8m³ Truckmixer:
- Length: 9.15 meters
- Height: 3.75 meters
- Width: 2.55 meters
- Chute: 2.75 meters
Mini Mix:
- Height: 3.5 meters
- Width: 2.4 meters
- Concrete Chute Size: 3.0 meters
Maxi Truck:
- Height: 3.5 meters
- Width: 2.6 meters
- Concrete Chute Size: 3.9 meters
3 Cubic Meters:
- Overall width (excluding mirrors): 8.75 ft
- Overall width (including mirrors): 9.5 ft
- Overall length: 21.5 ft
- Height: 11.5 ft
6 Cubic Meters:
- Overall width (excluding mirrors): 9 ft
- Overall width (including mirrors): 10 ft
- Overall length: 28 ft
- Height: 12.5 ft
8 Cubic Meters:
- Overall width (excluding mirrors): 9 ft
- Overall width (including mirrors): 10 ft
- Overall length: 32 ft
- Height: 12.5 ft
The history of concrete mixer trucks dates back to the early 1900s, with the first motorized models emerging during this period. Initially, these trucks were powered by steam engines and later by internal combustion engines. The development of hydraulic mixer trucks in the 1970s marked a significant improvement in efficiency and power.
- Early Years: The first concrete mixers were horse-drawn carts used to transport ingredients for concrete. Mechanical mixers appeared in the late 1800s, but motorized versions became widespread only in the early 1900s.
- 1920s: Widespread use of concrete mixer trucks began in construction projects during this decade, revolutionizing how concrete was mixed and transported.
- 1970s: Hydraulic concrete mixer trucks became the industry standard, offering more power and efficiency compared to mechanical models.
- Modern Era: Today, concrete mixer trucks are available in various configurations, including electric, hybrid, and natural gas-powered models, reflecting advancements in technology and environmental considerations.
Concrete mixer trucks come in several types, each designed for specific applications:
These are compact and versatile, ideal for projects with limited access or space constraints. They are favored for small to medium-sized construction projects and urban developments.
Equipped with a driver-operated chute, these trucks offer enhanced control and precision in concrete pouring. They are particularly effective in congested sites where maneuvering space is limited.
Featuring a drum that can rotate in both directions, these trucks facilitate efficient mixing and discharge of concrete. They are suitable for projects requiring high precision in concrete consistency.
These advanced trucks are equipped with self-loading capabilities, reducing labor requirements and enhancing efficiency. They represent a significant leap towards automation in the construction industry.
Understanding the dimensions of a concrete mixer truck is crucial for ensuring safe access to construction sites. Narrow entrances or tight spaces may require smaller trucks or alternative delivery methods, such as concrete pumps. Ensuring that the truck can navigate the site without causing damage or getting stuck is essential for successful concrete delivery.
Concrete mixer trucks contribute significantly to reducing environmental impact by minimizing waste and carbon emissions. They allow for on-site concrete production, eliminating the need for separate batching plants and long-distance transportation, which are associated with high emissions[2]. Additionally, modern trucks are equipped with safety features like automatic braking systems and rear-view cameras to enhance site safety[2].
- Reduced Emissions: By minimizing the need for multiple trips and reducing the distance concrete is transported, these trucks help lower carbon emissions[2].
- Efficient Mixing: The continuous mixing process ensures that concrete is used efficiently, reducing waste and the need for additional materials.
- Sustainable Materials: Some modern concrete mixers are designed to handle sustainable materials, such as recycled aggregates, further enhancing their environmental benefits.
- Advanced Braking Systems: Modern trucks are equipped with advanced braking systems that improve stopping times and enhance safety on the road and at construction sites[3].
- Rear-View Cameras: These cameras provide drivers with a clear view of the surroundings, reducing the risk of accidents during reversing maneuvers[2].
- Driver Training Programs: Many companies offer comprehensive training programs to ensure drivers are well-versed in operating these complex vehicles safely[2].
Regular maintenance is crucial for extending the lifespan of concrete mixer trucks and ensuring they operate efficiently. This includes routine checks on the engine, drum, and chassis, as well as regular cleaning to prevent concrete buildup.
- Regular Lubrication: Ensure all moving parts are well-lubricated to prevent wear and tear[4].
- Drum Cleaning: Regularly clean the drum to prevent concrete from hardening and causing damage[4].
- Engine Checks: Perform regular engine checks to ensure optimal performance and fuel efficiency[4].
The future of concrete mixer trucks is marked by technological advancements and environmental considerations. Trends include:
The integration of artificial intelligence (AI) and automation will lead to more efficient and autonomous operations, enhancing safety and reducing labor costs[1]. AI-based systems can optimize routes, predict maintenance needs, and improve vehicle utilization rates[1].
There is a growing demand for electric and hybrid concrete mixer trucks due to their reduced emissions and environmental benefits[6]. These models are expected to become more prevalent as environmental regulations tighten.
Manufacturers are focusing on using lightweight materials to improve fuel efficiency and reduce emissions[6]. This trend is driven by the need to minimize environmental impact while maintaining truck durability.
Concrete mixer trucks are vital for the construction industry, providing efficient and timely delivery of ready-mixed concrete. Their dimensions vary based on capacity, with different sizes suitable for various project requirements. Understanding these dimensions is key to ensuring safe and successful concrete delivery.
The typical width of a concrete mixer truck varies, but it is generally around 2.5 to 2.6 meters (excluding mirrors) for larger trucks. Smaller trucks, like mini mixers, may be narrower.
Concrete should typically be discharged from the mixer within two hours of starting the mixing process to prevent it from setting.
Most concrete mixer trucks use diesel engines due to their superior torque and fuel efficiency. However, electric engines are becoming more popular for their environmental benefits.
When selecting a concrete mixer truck, consider factors such as capacity requirements, weight and size constraints, engine power, and fuel efficiency.
The dimensions of a concrete mixer truck can significantly affect site access. Larger trucks may struggle with narrow entrances or tight spaces, requiring smaller trucks or alternative delivery methods.
