Pneumatic vane motors are widely used in various industrial applications due to their unique advantages over traditional electric motors. These motors convert compressed air into rotary motion, making them ideal for environments where safety and reliability are paramount. In this article, we will explore the design, working principle, and advantages of pneumatic vane motors, along with their applications and potential drawbacks.

Introduction to Pneumatic Vane Motors

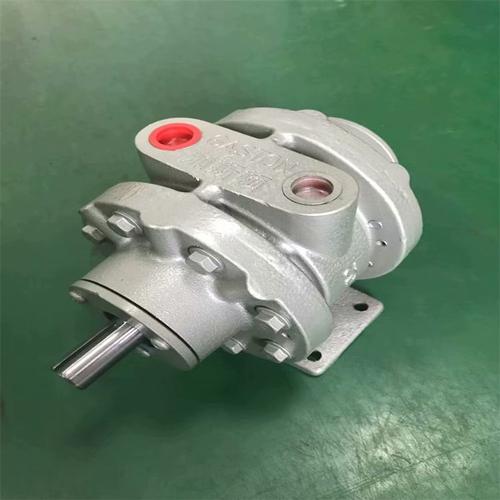

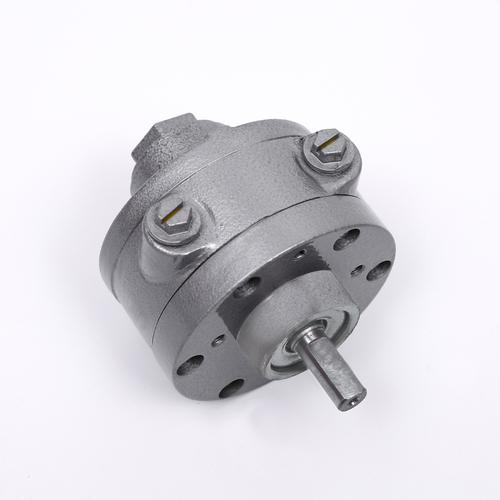

A pneumatic vane motor, also known as an air vane motor, is a type of pneumatic motor that uses compressed air to generate mechanical motion. It consists of a rotor with vanes that slide in and out of slots, creating chambers that fill with compressed air, which then drives the rotor to turn. This simple yet robust design makes pneumatic vane motors suitable for a wide range of applications, from handheld tools to industrial machinery.

Design and Working Principle

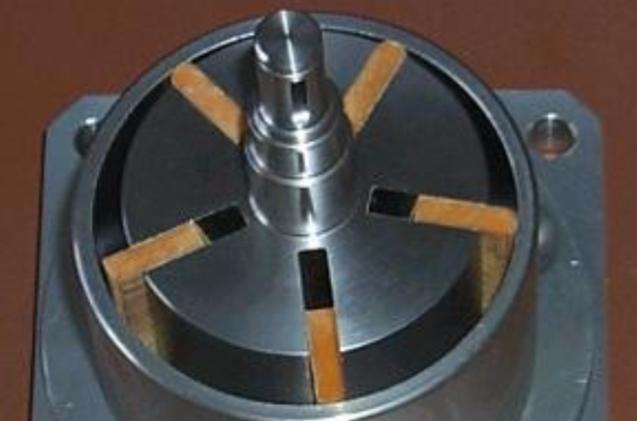

The design of a pneumatic vane motor includes a rotor, vanes, and a cylinder. Compressed air enters the inlet chamber, pushing the vanes against the cylinder wall, creating a pressure differential that causes the rotor to rotate. As the rotor turns, the vanes slide in and out of the slots, creating new chambers and sealing off old ones. This process continues until the compressed air is exhausted.

Types of Pneumatic Vane Motors

Pneumatic vane motors can be classified into two main types: balanced and unbalanced designs.

- Balanced Vane Motors: These motors have an even distribution of forces acting on the vanes during operation. This design minimizes wear and tear on components, leading to longer operational life and improved efficiency.

- Unbalanced Vane Motors: In contrast, unbalanced designs may experience uneven force distribution, which can lead to increased wear on specific components but may be simpler and cheaper to manufacture.

Advantages of Pneumatic Vane Motors

Pneumatic vane motors offer several advantages that make them preferred in many industrial settings:

1. Explosion-Proof Performance: These motors are designed to operate safely in potentially explosive environments because they use compressed air and do not generate sparks, making them ideal for hazardous locations.

2. Versatility: Pneumatic vane motors can operate in dusty and humid environments without compromising performance, which is not always possible with electric motors.

3. Compact and Lightweight: Compared to electric motors, pneumatic vane motors are smaller and lighter, making them suitable for installation in tight spaces and use with handheld tools.

4. High Starting Torque: They have a high starting torque due to the spring-loaded vanes, allowing them to start under load without difficulty.

5. Low Maintenance: The simple design of pneumatic vane motors means they require minimal maintenance compared to electric motors.

6. No Risk of Overheating: Unlike electric motors, pneumatic vane motors do not overheat under continuous operation, making them suitable for high-frequency use.

7. Cost-Effective for High-Torque Applications: They provide lower long-term operating costs compared to electric motors in applications requiring high torque.

8. Environmentally Friendly: As they operate using compressed air rather than electricity or hydraulic fluids, pneumatic vane motors reduce environmental impact and eliminate concerns related to fluid leaks or electrical hazards.

Variable Displacement Vane Motors

Variable displacement vane motors allow for the adjustment of their output speed and torque by varying the size of the working chambers within the motor. This is typically achieved by changing the position of the vanes. They are more complex and expensive to manufacture than unbalanced or balanced vane motors but offer several advantages:

- Speed and Torque Control: They can control the motor's speed and torque without changing the compressed air's pressure or flow.

- Constant Speed/Torque: They operate at a constant speed or torque even if the load/speed on the motor changes.

These motors are typically used in applications requiring precise speed and torque control, such as industrial automation equipment and robotics.

Applications of Pneumatic Vane Motors

Pneumatic vane motors are used in a variety of applications:

- Automotive: Used for tasks like tightening bolts or screws, ensuring the correct force is applied.

- Construction: Powers handheld tools like drills and jackhammers, providing portability and power.

- Food and Beverage: Used in mixing and blending equipment, allowing speed control for different requirements.

- Industrial Cleaning: Powers heavy-duty cleaning equipment like industrial vacuum cleaners.

- Mixing Equipment: Suitable for light to medium duty operations at higher direct shaft speeds.

- Ventilators: Used in ventilation systems for efficient airflow control.

- Hoists and Winches: Provides the necessary torque for lifting and moving heavy loads.

- Textile Industry: Utilized in sewing machines where precise control over speed is essential.

- Agricultural Equipment: Powers various tools used in farming operations where reliability is crucial.

- Medical Devices: Used in medical equipment requiring precise control, such as surgical tools.

Potential Drawbacks

While pneumatic vane motors offer many advantages, they also have some limitations:

- Efficiency Decreases at Low Speeds: The efficiency of pneumatic vane motors decreases as speed decreases while torque increases due to increased internal friction along with potential air leakage occurring at lower speeds.

- Limited Speed Range: Compared to other types of air motors, pneumatic vane motors have a limited speed range; they are generally not suited for high-speed applications.

- Noise Generation: They can generate high noise levels during operation; thus, sound dampening measures may be necessary in certain environments.

Comparison with Hydraulic Motors

Pneumatic vane motors are often compared to hydraulic motors, particularly regarding their suitability for hazardous environments. Pneumatic motors are preferred due to their lighter weight and absence of hydraulic fluid, which can leak and cause contamination or fire hazards. Additionally, pneumatic motors are more compact and easier to transport, making them more agile in various working environments.

Hydraulic systems may offer higher power density but come with challenges such as fluid management issues (leaks), maintenance requirements (filters), and environmental concerns associated with hydraulic fluids. In contrast, pneumatic systems require less maintenance overall while providing similar performance characteristics in many applications.

Future Trends in Pneumatic Vane Motors

As industries continue to evolve towards automation and energy efficiency, advancements in pneumatic technology will likely enhance the performance of pneumatic vane motors further. Some trends include:

1. Smart Technology Integration: Incorporating sensors into pneumatic systems allows for real-time monitoring of performance metrics such as pressure levels or operational efficiency. This data can optimize performance further by adjusting parameters based on workload demands.

2. Enhanced Materials Science: The development of advanced materials may lead to lighter yet more durable components within pneumatic systems—improving overall efficiency while reducing wear rates.

3. Energy Recovery Systems: Innovations aimed at capturing exhaust energy from pneumatic systems could lead to more sustainable practices by recycling energy back into operations instead of venting it into the atmosphere.

4. Modular Designs: Future designs may focus on modularity—allowing users greater flexibility when configuring systems based on specific operational needs without requiring extensive re-engineering efforts.

5. Integration with IoT: The integration of Internet of Things (IoT) technology into pneumatic systems can enable remote monitoring and predictive maintenance, further enhancing reliability and reducing downtime.

Conclusion

Pneumatic vane motors are versatile and reliable devices that offer numerous advantages over traditional electric motors, particularly in hazardous environments. Their ability to operate without generating heat or sparks combined with their compact design and high starting torque makes them ideal for various industrial applications. However, they also have limitations such as decreased efficiency at low speeds and limited speed ranges.

As technology advances within this field—coupled with ongoing research into smart integrations—pneumatic systems will likely continue evolving while maintaining their critical role across multiple sectors worldwide.

FAQs

1. What is the primary advantage of using a pneumatic vane motor in hazardous environments?

- The primary advantage is their explosion-proof performance since they do not generate sparks and use compressed air as the working medium; this makes them safe for use in potentially explosive environments.

2. How does the speed of a pneumatic vane motor affect its efficiency?

- The efficiency of a pneumatic vane motor decreases as speed decreases while torque increases due to increased internal friction along with potential air leakage occurring at lower speeds.

3. What are some common applications of pneumatic vane motors?

- Common applications include automotive assembly lines (e.g., tightening bolts), construction tools (e.g., drills), food processing (e.g., mixers), industrial cleaning equipment (e.g., vacuums), textile machinery (e.g., sewing machines), agricultural implements (e.g., sprayers), ventilation systems (e.g., fans), hoists/winches (e.g., lifting heavy loads).

4. Can pneumatic vane motors be stalled indefinitely without damage?

- Yes! Pneumatic vane motors can be stalled indefinitely under load without overheating or causing damage—unlike electric counterparts which may suffer from thermal overload issues if stalled too long under load conditions.

5. How does the design of a pneumatic vane motor contribute to its reliability?

- The simple design featuring fewer moving parts contributes significantly towards reliability; additionally features like blade ejection systems found within certain models ensure low wear rates on vanes leading towards higher overall longevity during operation cycles.
