Rotary vane motors are widely recognized for their simplicity, reliability, and versatility in various applications. These motors operate by utilizing compressed air to drive a rotor with vanes that slide in and out, creating chambers of varying sizes to generate torque. The design of rotary vane motors offers numerous advantages, making them suitable for use in hazardous environments, compact spaces, and applications requiring high starting torque.

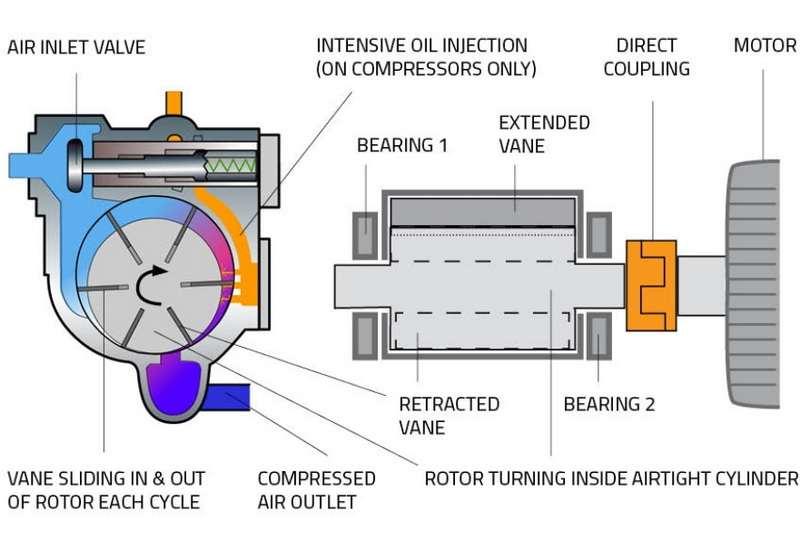

Rotary vane motors are designed with a slotted rotor that rotates eccentrically within a cylindrical chamber. The rotor slots contain vanes that move freely, dividing the chamber into separate working areas. Centrifugal force, often assisted by compressed air, keeps these vanes in contact with the cylinder wall, effectively sealing the chambers and enabling efficient operation.
The basic design of a rotary vane motor includes a rotor mounted off-center within a cylinder. As the rotor turns, the vanes extend and retract, creating chambers that expand and contract. This movement traps and releases air, generating torque at the motor shaft. The torque is determined by the applied air pressure, vane area, and the moment arms between the rotor and cylinder.
Rotary vane motors offer several key advantages that make them preferred in various industrial applications:
1. Explosion-Proof Performance: These motors are designed to operate safely in potentially explosive environments. Since they use compressed air as the working medium, there is no risk of spark generation, making them ideal for hazardous settings.
2. Versatility: Rotary vane motors can function effectively in dusty and extremely humid conditions, making them suitable for a wide range of environments.
3. Extended Operation: They can run at full capacity for extended periods without significant temperature increases, thanks to their efficient cooling and overload protection.
4. High Starting Torque: The spring-loaded vanes provide a high initial torque, allowing the motor to start under load. This is particularly beneficial in applications where immediate power is required.
5. Compact and Lightweight: Compared to conventional motors, rotary vane motors are smaller and lighter, making them ideal for installation in tight spaces and use with hand tools.
Rotary vane motors are used in various industries due to their reliability and adaptability:
- Hazardous Environments: Their explosion-proof design makes them suitable for use in environments where safety is paramount.
- Compact Spaces: Their compact size allows for easy installation in confined areas, such as in machinery or hand tools.
- High Starting Torque Applications: They are ideal for applications requiring immediate power, such as in heavy machinery or equipment that needs to start under load.
When compared to other motor types, rotary vane motors offer distinct advantages:
- Simplicity: They have fewer moving parts compared to traditional motors, reducing maintenance needs.
- Efficiency: They operate efficiently in a wide range of conditions, including dusty and humid environments.
- Cost-Effectiveness: Their compact design and low maintenance requirements make them cost-effective for many applications.
Rotary vane motors are known for their reliability and ease of maintenance:
- Few Moving Parts: The simple design reduces wear and tear, minimizing the need for frequent repairs.
- Easy Access: The compact construction allows for easy access and maintenance, reducing downtime.
Recent advancements in rotary vane technology have further enhanced the efficiency and durability of these motors. For instance, improvements in materials and design have led to better performance under various operating conditions. Additionally, the integration of advanced motor technologies has expanded their applicability in different environments.
Manufacturers are continuously refining rotary vane designs to improve performance metrics such as energy efficiency and operational longevity. For example, advancements like improved sealing mechanisms enhance performance by reducing air leakage during operation. The development of lighter materials has also contributed to reduced overall weight while maintaining structural integrity.
While rotary vane motors are primarily discussed in terms of their mechanical advantages, rotary vane pumps share similar benefits and are widely used across various industrial applications:
- HVAC Systems: They efficiently handle refrigerants, ensuring system reliability.
- Automotive Industry: Used in power steering and brake systems for precision fluid control.
- Manufacturing and Processing Industries: Employed for precise dosing and consistent flow of solvents and chemicals.
Despite their advantages, rotary vane pumps have some limitations:
- Oil Dependence: They require regular oil top-ups and maintenance, increasing operational costs.
- Environmental Concerns: The release of oil mist poses contamination and health risks.
- Limited Vacuum Capability: Not suitable for very high vacuum levels.
The global sliding vane air motor market is experiencing significant growth driven by increasing industrialization and the need for energy-efficient solutions. Manufacturers focus on developing motors with improved efficiency and reduced environmental impact. The integration of IoT technologies is transforming industrial processes; sliding vane air motors are being incorporated into smart systems that enable remote monitoring and control.
Emerging technologies include hybrid pneumatic-combustion systems that utilize both rotary vane engines alongside combustion engines. These systems promise increased efficiency by leveraging multiple energy sources while maintaining compactness—a hallmark feature of rotary designs.
In the maritime industry, rotary vane steering systems have seen significant advancements. For instance, new designs offer a more compact structure with no external moving parts, reducing weight by up to 50% compared to traditional ram-type systems. These systems also fulfill the IMO single failure criteria for tankers over 100,000 dwt, ensuring safety and reliability in critical applications[1].
In conclusion, rotary vane motors are highly versatile and reliable devices offering numerous advantages suitable for a wide range of applications. Their explosion-proof performance, high starting torque, compact design, and adaptability make them ideal choices for use in hazardous environments or tight spaces where immediate power is essential. As technological advancements continue to enhance their capabilities further, rotary vane motors will likely play an increasingly critical role across various industries.
Rotary vane motors are designed to operate safely in potentially explosive environments due to their explosion-proof performance, which eliminates the risk of spark generation.
The high starting torque of rotary vane motors is achieved through spring-loaded vanes that are held against the cylinder wall by centrifugal force, allowing them to start under load.
Their compact and lightweight design makes rotary vane motors ideal for installation in tight spaces and use with hand tools.
Rotary vane motors can run at full capacity for extended periods without significant temperature increases due to their efficient cooling and overload protection.
Rotary vane motors have fewer moving parts which reduce wear and tear; their compact construction allows easy access for maintenance tasks minimizing downtime.
