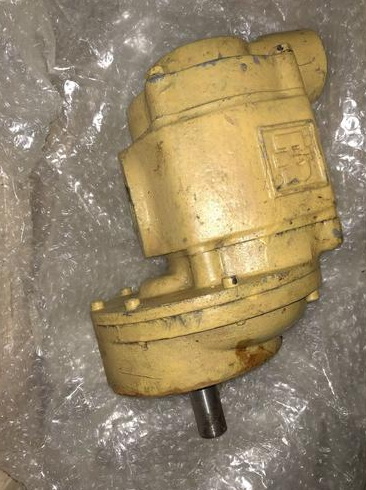

Air vane motors, also known as rotary air motors, are a type of pneumatic motor that converts compressed air into rotational mechanical energy. These motors are widely used in various industries due to their simplicity, reliability, and versatility. In this article, we will explore the advantages of using an air vane motor, their design and working principle, applications, and maintenance considerations.

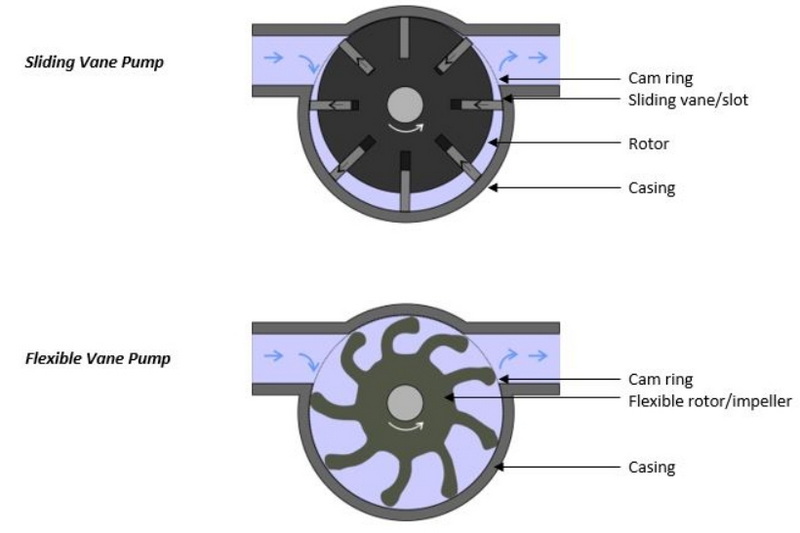

Air vane motors are designed with a rotor that rotates eccentrically within a cylinder, creating a crescent-shaped chamber. The rotor slots contain vanes that move freely, dividing the chamber into separate working sections of varying sizes. As compressed air enters the motor, it forces the vanes to move, creating rotational motion on the output shaft. This design allows for efficient conversion of compressed air energy into mechanical work.
Air vane motors offer several advantages over other types of motors, making them a preferred choice in various industrial applications:
1. Simple and Reliable Design: Air vane motors consist of fewer components compared to electric motors, which reduces the risk of mechanical failure and simplifies maintenance. Their design allows for easy disassembly and replacement of parts such as vanes and seals.
2. Variable Speed Control: The speed of an air vane motor can be easily controlled by adjusting the air supply pressure or flow rate. This feature is particularly useful in applications requiring variable speed operations.
3. High Power-to-Weight Ratio: Air vane motors are lightweight and compact, making them suitable for portable applications and environments where space is limited. They provide a power-to-weight ratio that is significantly higher than electric motors.
4. Safety in Hazardous Environments: Since air vane motors operate using compressed air, they do not generate sparks or heat, making them safe for use in explosive or hazardous environments. They are often used in industries such as petrochemical, food processing, and nuclear.
5. Instant Reversibility: Air vane motors can be easily reversed by changing the direction of air flow, which is achieved with simple control valves. This feature is beneficial in applications requiring frequent direction changes.
6. Low Maintenance: The simple design of air vane motors means they require minimal maintenance. They can operate continuously without overheating, reducing downtime and extending their lifespan.
7. No Risk of Overheating: Unlike electric motors, air vane motors do not overheat even under continuous operation. The expanding air provides a cooling effect, ensuring safe operation in high-temperature environments.
8. Flexibility in Operation: Air vane motors can operate in any position and are resistant to dust, humidity, and temperature fluctuations, making them versatile for various industrial applications.
Air vane motors are used in a wide range of applications across different industries:
- Handheld Tools: They are commonly used in handheld power tools such as drills, grinders, and sanders due to their lightweight and compact design.
- Mixing and Blending Equipment: Air vane motors are used in mixers and agitators for liquids and viscous materials.
- Pumps and Actuators: They are used in pumps for transferring fluids or gases and in actuators for valve automation.
- Food Processing: Air vane motors are used in food processing equipment such as mixers, blenders, and slicers.
- Industrial Machinery: They are used in machinery like conveyor belts, turntables, and packing machines.
Despite their robust design, air vane motors require occasional maintenance to ensure optimal performance:
- Vane Replacement: Vanes are subject to wear and tear and should be replaced periodically. This is a simple process due to the motor's design.
- Filter and Regulator Maintenance: Regular cleaning or replacement of air filters and regulators is necessary to maintain consistent air supply pressure and flow.
- Lubrication: Some air vane motors may require lubrication, although oil-free models are also available. Proper lubrication helps reduce friction and enhance motor performance.
To further extend the lifespan of air vane motors, consider the following advanced maintenance practices:
- Regular Inspections: Perform routine inspections to identify any signs of wear, damage, or loose connections. Early detection can prevent further damage and ensure timely repairs.
- Preventive Maintenance Scheduling: Implement a preventive maintenance schedule to proactively address potential problems. This includes tasks like lubrication, filter replacement, and inspection.
- Environmental Considerations: In high humidity or low temperature environments, ensure additional lubrication is applied to prevent corrosion or freezing issues.
In the automotive sector, air vane motors are used for tasks like tightening bolts or screws, ensuring the correct force is applied. Their ability to provide consistent torque without overheating makes them ideal for continuous operations in assembly lines.
Air vane motors power handheld tools such as drills and jackhammers, providing portability and power. This is crucial in construction sites where mobility and reliability are key factors.
In food processing, air vane motors are used in mixing and blending equipment, allowing for precise speed control to meet different requirements. Their cleanliness and resistance to contamination make them suitable for sterile environments.
Air vane motors are used in medical technology due to their high performance, reliability, and ability to operate in sterile conditions. They are often used in equipment that requires precise control and minimal vibration.
In the chemical industry, air vane motors are valued for their resistance to corrosive substances and ability to operate in hazardous environments. They are used in applications where safety and reliability are paramount.
Companies like DEPRAG offer customized air vane motor solutions tailored to specific applications. These include specialized surface treatments on the rotor cylinder to enhance vane lifespan and improve motor efficiency. Additionally, speed regulators can be integrated to maintain constant speed in applications such as agitators or mixers, ensuring precise control over the production process[3].
Air vane motors offer numerous advantages, including simplicity, reliability, and versatility, making them a preferred choice in various industrial applications. Their ability to operate safely in hazardous environments, combined with easy speed control and low maintenance requirements, positions them as an effective alternative to electric motors in many scenarios.
Air vane motors are safer in hazardous environments because they do not generate sparks or heat, making them ideal for explosive or flammable environments.
Variable speed control is achieved by adjusting the air supply pressure or flow rate, allowing for easy and precise control over the motor's speed.
Air vane motors are commonly used in handheld tools, mixing equipment, pumps, actuators, and food processing machinery due to their lightweight and compact design.
Maintenance should be performed regularly, including vane replacement and cleaning or replacing air filters and regulators. The frequency depends on usage and environmental conditions.
Yes, air vane motors can be mounted and operated in any position, making them versatile for various industrial applications.
