Inline planetary gearboxes are a type of gearbox that has gained widespread popularity due to their compact design, high efficiency, and versatility in various industrial applications. These gearboxes are particularly favored for their ability to provide high torque in a small package, making them ideal for applications where space is limited. In this article, we will delve into the benefits of using an inline planetary gearbox, explore their design and functionality, and discuss their applications across different industries.
Inline planetary gearboxes, also known as coaxial planetary gearboxes, are characterized by their inline configuration where the input and output shafts are aligned on the same axis. This design ensures a compact and space-saving solution, which is crucial in many modern industrial applications.

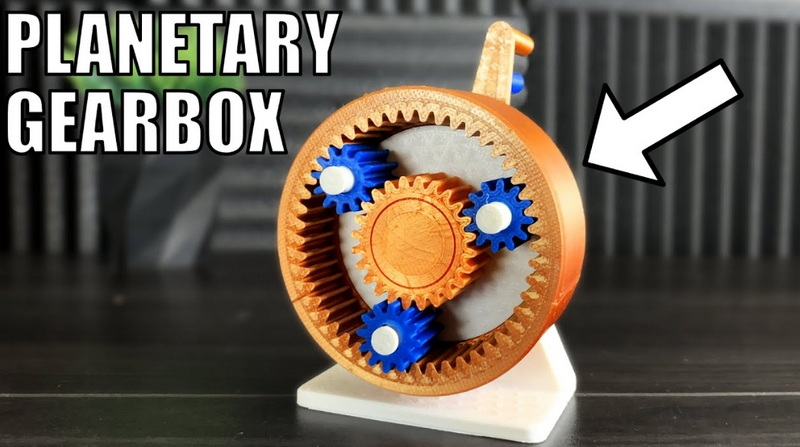

An inline planetary gearbox consists of three main components:
1. Sun Gear: The central gear that receives the input power.
2. Planet Gears: These are the gears that orbit around the sun gear and mesh with it as well as the ring gear.
3. Ring Gear: The outer gear that encloses the planet gears and provides the structural support for the gearbox.
The operation of an inline planetary gearbox involves the rotation of the sun gear, which drives the planet gears. These planet gears, in turn, rotate around their own axis while orbiting the sun gear. The rotation of the planet gears causes the carrier (which holds the planet gears) to rotate, thus providing the output torque. This arrangement allows for high torque transmission in a compact space.
Inline planetary gearboxes are renowned for their compact size and high power density. They can achieve high torque outputs in a much smaller package compared to traditional gearboxes, making them ideal for applications where space is limited.
These gearboxes offer high transmission efficiency due to their design, which minimizes energy loss. Additionally, they have low inertia, which is beneficial in applications requiring quick start-stop cycles or frequent changes in rotational direction.
Inline planetary gearboxes are known for their high precision and low backlash, typically as low as 1 to 2 arcminutes. This makes them suitable for applications requiring precise control over position, speed, or torque.
The modular design of inline planetary gearboxes ensures that the load is distributed evenly across multiple gears, reducing wear and tear. This results in a longer service life compared to traditional gearboxes.
Inline planetary gearboxes are used in a wide range of industries, including robotics, aerospace, automotive, and medical equipment. Their versatility stems from their ability to provide high torque in a compact package, making them suitable for applications where precision and reliability are crucial.
In robotics, inline planetary gearboxes are used to achieve precise motion control and high torque output in a compact space. This is essential for robotic arms and grippers that require precise movements.
Aerospace applications benefit from the high power density and precision of inline planetary gearboxes. They are used in systems requiring high reliability and efficiency.
In the automotive sector, inline planetary gearboxes are used in automatic transmissions to achieve smooth gear shifting and high efficiency.
Medical devices, such as surgical robots and diagnostic equipment, utilize inline planetary gearboxes for their precision and reliability.
Inline planetary gearboxes are also widely used in industrial automation for conveyor systems, pumps, and other machinery that require precise control and high torque.
When installing an inline planetary gearbox, it is crucial to ensure that the motor and gearbox are properly aligned and securely fastened. The input and output shafts must be coaxial, and any foreign objects should be cleared from the connection.
Inline planetary gearboxes are generally maintenance-free due to their grease-lubricated design. However, periodic checks for wear and tear are recommended to ensure optimal performance.
Common issues with inline planetary gearboxes include misalignment, overheating, and excessive noise. These can be addressed by ensuring proper installation, monitoring operating temperatures, and performing regular maintenance checks.
Inline planetary gearboxes can be customized to meet specific application requirements. Factors such as gear ratio, material selection, and lubrication type can be tailored to optimize performance in different environments.
The choice of materials for the gears and housing can significantly impact the gearbox's durability and efficiency. Common materials include steel, aluminum, and specialized alloys for high-performance applications.
Proper lubrication is essential for maintaining the efficiency and longevity of inline planetary gearboxes. Grease-lubricated designs are common, but oil lubrication may be used in high-speed applications.
In high-power applications, thermal management is critical to prevent overheating. Cooling systems or specialized materials can be used to maintain optimal operating temperatures.
As technology advances, inline planetary gearboxes are expected to become even more efficient and compact. Advances in materials science and manufacturing techniques will likely lead to improved durability and performance.
The integration of inline planetary gearboxes with emerging technologies like AI and IoT will enhance their capabilities in real-time monitoring and predictive maintenance.
Inline planetary gearboxes contribute to sustainability by offering high efficiency, which reduces energy consumption and environmental impact. This is particularly important in industries seeking to minimize their carbon footprint.
Inline planetary gearboxes offer a multitude of benefits, including compact design, high power density, high efficiency, and precision. Their versatility makes them a preferred choice across various industries. Whether it's robotics, aerospace, automotive, or medical equipment, these gearboxes provide reliable and efficient power transmission solutions.
Inline planetary gearboxes offer high power density, compact size, high efficiency, and low backlash, making them ideal for applications requiring precision and reliability.
The design of inline planetary gearboxes allows the load to be distributed across multiple planet gears, enabling high torque transmission in a compact package.
Applications that require high precision, reliability, and compact design benefit most, such as robotics, aerospace, and medical equipment.
Inline planetary gearboxes generally offer higher efficiency due to their design, which minimizes energy loss and provides smooth power transmission.
Inline planetary gearboxes are typically maintenance-free due to their grease-lubricated design. However, periodic checks for wear and tear are recommended.
