● Introduction to Planetary Gearbox Motors
● How Planetary Gearbox Motors Work
● Key Advantages of Planetary Gearbox Motors
● Best Applications for Planetary Gearbox Motors
>> Textile and Food Processing
>> Construction and Mining Equipment
>> Smart Devices and Consumer Electronics
● How to Select the Right Planetary Gearbox Motor
● Troubleshooting and Maintenance Tips
● FAQ: Planetary Gearbox Motors
>> 1. What are the main benefits of using a planetary gearbox motor?
>> 2. Which industries use planetary gearbox motors the most?
>> 3. How do I choose the right planetary gearbox motor for my project?
>> 4. What are common problems with planetary gearbox motors and how can they be fixed?
>> 5. Are planetary gearbox motors suitable for high-precision applications?
Planetary gearbox motors are at the heart of modern motion control, power transmission, and automation. Their unique gear arrangement, high torque output, compactness, and efficiency make them indispensable across a wide range of industries. This comprehensive article explores their structure, working principle, advantages, and, most importantly, the best applications where planetary gearbox motors excel.
Planetary gearbox motors, also known as planetary gear motors or planetary reducers, are a type of gear motor that utilizes a unique gear arrangement inspired by the solar system. In this system, a central "sun" gear is surrounded by multiple "planet" gears, all enclosed within an outer ring gear. This configuration allows for exceptional torque transmission, high efficiency, and compact design[2][7][8].

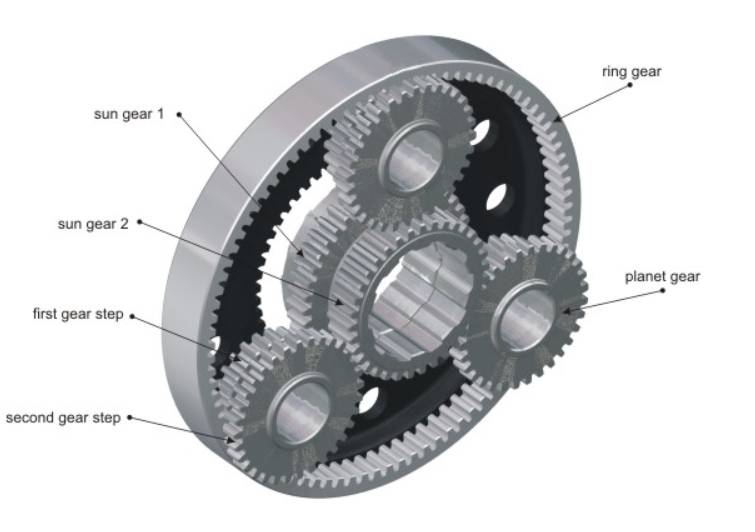

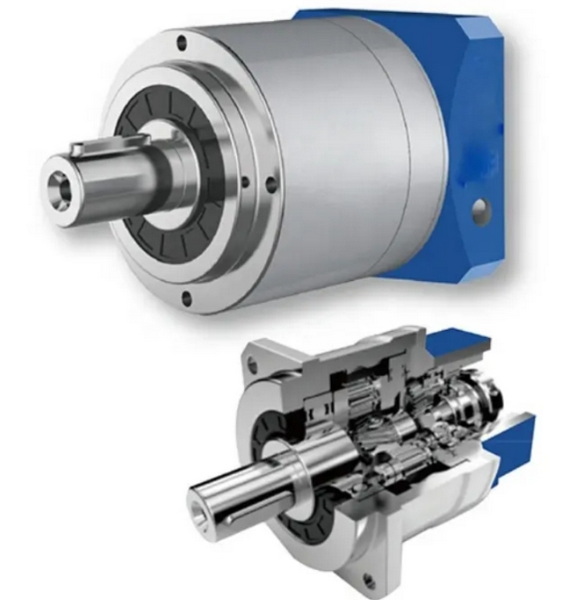

The core components of a planetary gearbox motor include:
- Sun Gear: The central gear, typically connected to the input shaft.
- Planet Gears: Multiple gears that rotate around the sun gear and mesh with both the sun and the ring gear.
- Ring Gear: The outer gear with internal teeth, encasing the planet gears.
- Planet Carrier: Holds the planet gears in place and is usually connected to the output shaft.
When the sun gear is driven by a motor, it turns the planet gears, which, in turn, rotate within the ring gear. The planet carrier collects the combined rotational force and delivers it to the output shaft. This arrangement distributes the load across multiple gears, resulting in high torque output and smooth operation[8][16].
Planetary gearbox motors offer several distinct advantages over other gear systems:
- High Power Density: They deliver more torque in a smaller package[7][18].
- Compactness: The coaxial design saves space, making them ideal for applications with limited installation room[18].
- Efficiency: Load is distributed among multiple gears, resulting in high efficiency and minimal energy loss[1][7].
- Precision: Low backlash and high positioning accuracy are crucial for robotics and automation[7][11].
- Versatility: Suitable for various gear ratios and adaptable for different applications[1][18].
- Durability: Robust construction ensures long service life, even in demanding environments[6][12].
Planetary gearbox motors are used in a broad spectrum of industries. Below are the best and most common applications, each with specific examples and explanations.
Why ideal: Robotics demands precise positioning, high torque, and compact drives. The low backlash and high efficiency of planetary gearbox motors make them perfect for robotic joints, end effectors, and mobile robots[1][3][11][20].
- Industrial Robots: Used in articulated arms for welding, assembly, and pick-and-place operations.
- AGVs (Automated Guided Vehicles): Wheel hub drives use planetary gearboxes for compactness and power[10].
- Collaborative Robots (Cobots): Require quiet, smooth, and precise motion.
Why ideal: Many industrial machines require high torque at low speeds and precise control. Planetary gearbox motors are used in:
- Conveyor Systems: Control speed and torque for material handling in manufacturing and logistics[3][12].
- Mixers and Agitators: Used in food, chemical, and construction industries for blending materials[3].
- CNC Machines and Laser Cutters: Axis drives use planetary gearboxes for accurate, repeatable motion[10].
- Printing and Packaging Machines: Ensure precise roller movement for consistent product quality[3][11].
Why ideal: Automatic transmissions in vehicles rely on planetary gear systems for smooth gear shifting, high torque conversion, and compactness[3][16].
- Passenger Cars and Trucks: Automatic gearboxes use multi-stage planetary gearsets.
- Electric Vehicles: Compact planetary gearboxes optimize power delivery from electric motors.
Why ideal: Aerospace applications demand lightweight, compact, and high-performance gear systems. Planetary gearbox motors are used in:
- Aircraft Landing Gear Systems: Compact design and high load capacity[1][3].
- Flight Control Actuators: Precise control for ailerons, elevators, and rudders.
- Spacecraft Mechanisms: Used in solar panel deployment and antenna positioning.
Why ideal: Wind turbines and solar tracking systems require high torque and reliability.
- Wind Turbines: Planetary gearboxes increase the speed of the generator shaft for efficient electricity generation[1][3][12].
- Solar Tracking Systems: Adjust the orientation of solar panels for maximum sunlight exposure[3].
Why ideal: Medical equipment often requires compact, precise, and quiet gear motors.
- Surgical Robots: Enable delicate, controlled movements.
- Imaging Equipment: Used in CT and MRI machines for table positioning.
- Patient Lifts and Mobility Devices: Require high torque in a compact form factor.
Why ideal: Consistent speed and torque are essential for quality and efficiency.
- Label Printing Machines: Ensure accurate label placement[20].
- Packaging Lines: Drive conveyors, rollers, and feeders[3][11].
Why ideal: High reliability and hygiene standards are crucial.
- Spinning and Weaving Machines: Require precise speed control[3].
- Food Mixers and Packaging: Used in automated food processing lines[3][6].
Why ideal: Heavy-duty applications demand robust gearboxes with high torque.
- Excavators and Cranes: Use planetary gearboxes in swing drives and winches[12].
- Mining Conveyors and Crushers: Handle massive loads and harsh conditions[3][12].
Why ideal: Space-saving and corrosion-resistant gearboxes are essential for ship propulsion and winch systems.
- Ship Propulsion: Control speed and torque of engines[3].
- Deck Machinery: Winches and cranes use planetary gearboxes for compact power transmission.
Why ideal: Miniaturized planetary gear motors are used where space is limited.
- Smart Locks and Cameras: Require precise, quiet, and compact drives[19].
- Home Automation Devices: Used in automated curtains, window openers, and more.
Choosing the optimal planetary gearbox motor for your application involves several considerations:
- Required Output Torque: Match the gearbox's torque rating to your load requirements[8].
- Speed (RPM): Determine the input and output speed needed.
- Gear Ratio: Select a ratio that provides the desired balance of speed and torque.
- Motor Compatibility: Ensure the motor type (DC, stepper, servo) is compatible.
- Size Constraints: Consider installation space and weight limitations[13].
- Duty Cycle: Assess whether the application is continuous or intermittent.
- Environmental Conditions: Factor in temperature, humidity, and exposure to dust or chemicals[8].
Proper maintenance ensures long life and reliable performance from planetary gearbox motors. Common issues and solutions include:
| Issue | Possible Causes | Solutions |
|---|---|---|
| Abnormal Noise | Misalignment, wear | Check alignment, replace worn gears, lubricate9 |
| Overheating | Excess load, poor ventilation | Reduce load, improve ventilation9 |
| Reduced Torque Output | Worn gears, poor lubrication | Replace gears, lubricate9 |
| Vibration | Imbalanced load, misalignment | Distribute load, realign9 |
| Electrical Problems | Faulty connections | Inspect and secure connections9 |
| Excessive Backlash | Gear wear, misalignment | Replace gears, realign9 |
| Seal Leakage | Damaged seals, overpressure | Replace seals, check installation |
Regular inspection, lubrication, and adherence to manufacturer guidelines are vital for preventing most issues.
Planetary gearbox motors are among the most versatile and efficient solutions for motion and power transmission. Their unique gear arrangement allows for high torque, compactness, and precision, making them indispensable in robotics, industrial machinery, automotive transmissions, aerospace, renewable energy, and many other fields. Whether you're designing a high-performance robot, a wind turbine, or an automated production line, planetary gearbox motors offer the reliability, efficiency, and adaptability you need.
Planetary gearbox motors provide high torque in a compact form, excellent efficiency, low backlash, and versatile gear ratios, making them ideal for applications requiring precision and reliability[1][7][18].
They are widely used in robotics, industrial automation, automotive transmissions, aerospace, renewable energy, medical devices, and heavy machinery[1][3][12].
Consider factors such as required torque, speed, gear ratio, motor compatibility, size constraints, duty cycle, and environmental conditions[8].
Common issues include abnormal noise, overheating, reduced torque, vibration, electrical problems, excessive backlash, and seal leakage. Solutions include regular maintenance, lubrication, alignment, and replacing worn parts[9].
Yes, their low backlash and high positioning accuracy make them ideal for robotics, CNC machines, and other precision applications[7][11][20].
