Multi vane air motors are widely used in various industrial applications due to their high performance, reliability, and efficiency. These motors offer superior torque, durability, and speed control, making them ideal for assembly, manufacturing, and maintenance operations. In this article, we will delve into the key features of high-performance multi vane air motors, including their design, operation, and applications.

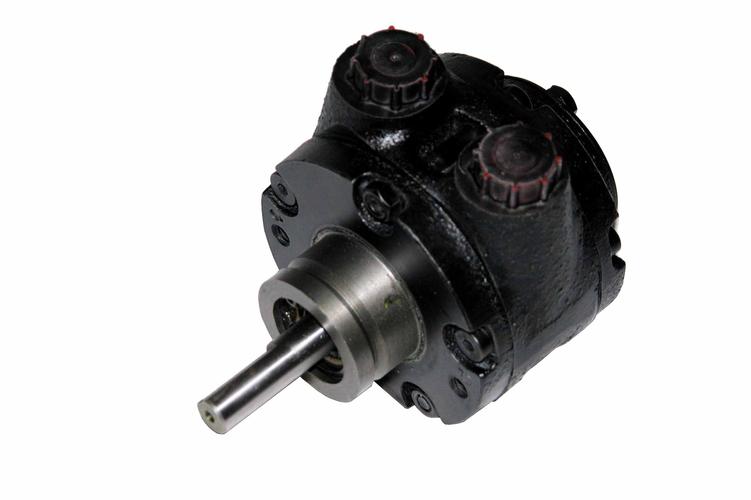

Multi vane air motors are a type of pneumatic motor that utilizes compressed air to generate rotational motion. They consist of a rotor with multiple vanes that slide in and out of slots, creating a pressure differential that drives the rotor to turn. This design allows for high starting torque and precise control over the motor's operation.
The working principle of a multi vane air motor involves the following steps:
1. Compressed Air Inlet: Compressed air enters the motor through an inlet port.
2. Vane Movement: The air forces the vanes against the cylinder wall, creating a seal.
3. Rotation: As the rotor turns, the vanes slide along the inner wall of the chamber, maintaining the seal.
4. Exhaust: The compressed air is exhausted from the motor, and the cycle repeats.
Multi vane air motors are renowned for their high starting torque, which allows them to operate smoothly even under heavy loads. This feature is particularly beneficial in applications where rapid acceleration is required.
These motors offer precise control over speed, enabling them to maintain consistent performance across various operating conditions. This is achieved through the adjustment of air pressure and flow rate.
High-performance multi vane air motors are designed to withstand harsh environments and demanding applications. They are built with durable materials and robust construction to minimize downtime and extend their service life.
Many modern multi vane air motors are designed to operate without lubrication, reducing maintenance needs and making them suitable for critical applications where contamination must be avoided.
These motors are available in a range of sizes and power ratings, making them versatile for different industrial needs. Whether it's a compact solution for tight spaces or a high-power motor for demanding applications, there's a suitable multi vane air motor available.
Multi vane air motors are used in a variety of industries, including:
- Manufacturing: For powering machinery and tools.
- Automotive: In assembly lines and repair shops.
- Construction: For powering pneumatic tools and equipment.
- Food Processing: Where cleanliness and reliability are crucial.
- Pharmaceutical: In environments requiring high hygiene standards.
- Chemical Industry: For applications involving corrosive substances.
Ingersoll Rand offers a range of multi vane air motors known for their reliability and performance. Models like the Ingersoll Rand 92RA011 are compact, lightweight, and designed for harsh environments, providing continuous rotary power from compressed air systems.
Ingersoll Rand 92RA011 Specifications:
- Max. Power (HP): 8.15
- Max. Power (kW): 6.08
- Free Speed (RPM): 852
- Starting Torque (lb-ft): 120
- Starting Torque (Nm): 163
- Stall Torque (lb-ft): 164.5
- Stall Torque (Nm): 223
The number of vanes in a multi vane air motor affects its performance. More vanes provide smoother torque output and easier starting but increase friction and cost. Fewer vanes reduce friction but may make starting more difficult.
Many multi vane air motors use gear systems to convert high-speed, low-torque output into lower-speed, higher-torque output. This is essential for applications requiring significant mechanical advantage.
While some motors require lubricated air for operation, many modern designs are lubrication-free, using special materials to minimize wear and extend service life.
Some advanced multi vane air motors incorporate speed regulators to maintain consistent speed under varying conditions. This is particularly useful in applications where precise control is critical, such as in mixing or agitating processes.
ATEX-certified motors are designed to operate safely in hazardous environments, making them suitable for industries like chemical processing and oil refineries.
Manufacturers offer customization options to tailor air motors for specific applications. This includes materials selection (e.g., stainless steel for hygiene-critical environments) and specialized gear systems for enhanced performance.
Stainless steel air motors are ideal for applications requiring high hygiene standards, such as in the food and chemical industries. These motors are resistant to corrosion and can operate without lubrication, reducing contamination risks.
Multi vane air motors are used in hazardous environments where electric motors cannot be used due to the risk of sparks or overheating. They are suitable for applications in explosive or corrosive atmospheres.
Variable displacement vane motors allow for precise speed and torque control by adjusting the working chamber size. They are used in applications requiring consistent performance under varying loads, such as industrial automation and robotics.
- Low Air Pressure: Check the air supply to ensure it meets the motor's requirements.
- Worn Vanes: Replace vanes if they are damaged or worn out.
- Inadequate Lubrication: Ensure proper lubrication if required by the motor design.
- Regularly inspect the air filter to prevent blockages.
- Check the rotor for free movement to identify any internal issues.
- Use authorized parts for repairs to maintain warranty and performance.
As technology advances, multi vane air motors are expected to become even more efficient and versatile. Innovations in materials and design will further enhance their performance and reliability, making them an even more attractive option for industrial applications.
Efforts are being made to improve the energy efficiency of multi vane air motors by optimizing air consumption and reducing waste. This includes advancements in vane design and motor housing materials.
The integration of multi vane air motors with automation systems allows for more precise control and monitoring. This integration enables real-time adjustments and enhances overall system efficiency.
The use of multi vane air motors can contribute to sustainability by reducing energy consumption and minimizing environmental impact. They are often used in applications where electric motors are not feasible due to safety or environmental concerns.
In a recent industrial automation project, multi vane air motors were used to power robotic arms. The motors provided consistent and precise movement, enhancing the efficiency of the assembly line.
A food processing plant utilized stainless steel multi vane air motors to ensure cleanliness and reliability in their operations. The motors performed well under continuous use, reducing downtime and improving overall productivity.
The global sliding vane air motor market is growing due to favorable government policies and the increasing demand for efficient industrial tools. Key players like Deprag Schulz GmbH u. Co. are developing advanced air motors with improved capabilities, further driving market growth[4].
Multi vane air motors are a crucial component in many industrial applications due to their high performance, reliability, and versatility. Understanding their key features, design considerations, and maintenance requirements is essential for optimizing their use and extending their lifespan.
A multi vane air motor works by using compressed air to force vanes against the cylinder wall, creating a pressure differential that drives the rotor to turn. This process involves the continuous movement of vanes in and out of slots, sealing and unsealing chambers as the rotor rotates.
The number of vanes affects the motor's starting torque and efficiency. More vanes provide smoother torque output and easier starting but increase friction and cost. Fewer vanes reduce friction but may make starting more difficult.
Lubrication-free motors reduce maintenance needs, making them suitable for critical applications where contamination must be avoided. They use special materials to minimize wear and extend service life.
Gear systems convert high-speed, low-torque output into lower-speed, higher-torque output, providing significant mechanical advantage for applications requiring it.
Common maintenance tasks include checking air filters, ensuring proper lubrication (if required), and inspecting the rotor for free movement. Regular inspections help identify potential issues early, reducing downtime and extending motor life.
