Planetary gearboxes are a crucial component in modern mechanical and industrial systems, known for their efficiency, durability, and versatility. These gearboxes are used across various industries, including automotive, aerospace, robotics, and renewable energy, due to their ability to transmit high torque within a compact design. In this article, we will delve into the working principle, advantages, applications, and types of planetary gearboxes, along with visual aids and videos to enhance understanding.

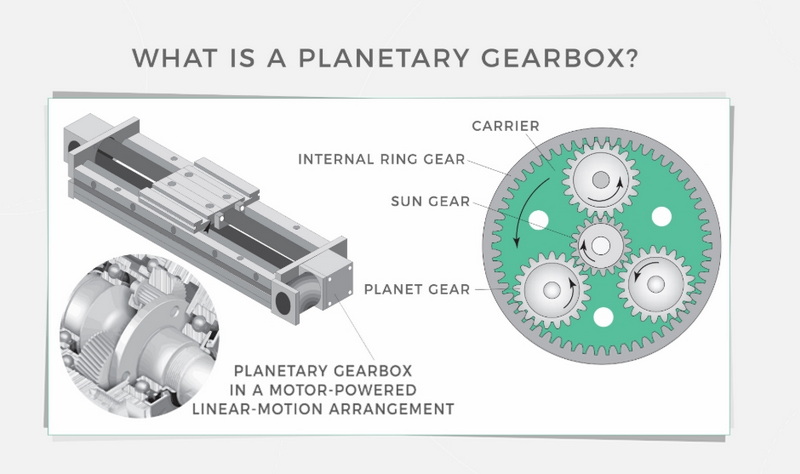

A planetary gearbox, also known as an epicyclic gearbox, consists of three main components: the sun gear, planet gears, and a ring gear. The sun gear is located at the center and serves as the input component. The planet gears orbit around the sun gear and are mounted on a carrier. The ring gear is the outermost component and encloses the planet gears. This unique arrangement allows for efficient power distribution and high torque transmission.
Key Components:
- Sun Gear: Receives input power and drives the planet gears.
- Planet Gears: Rotate around the sun gear and mesh with the ring gear.
- Ring Gear: The outer gear that contains the planet gears.
- Carrier: Holds the planet gears in place and provides output torque.
The operation of a planetary gearbox involves the distribution of torque through multiple gears. When the sun gear rotates, it drives the planet gears, which in turn rotate around their own axes while meshing with the internal teeth of the ring gear. The carrier, connected to the planet gears, provides the output torque. This arrangement allows for high efficiency and precision in torque transmission.
Planetary gearboxes offer several advantages that make them a preferred choice in many applications:
1. High Torque Density: They can transmit high torque within a compact structure, making them ideal for applications where space is limited.
2. Efficiency: The balanced power distribution results in low energy loss, ensuring that most of the input energy is converted into useful output.
3. Durability: Capable of handling heavy loads and long operating hours without significant wear.
4. Versatility: Suitable for various industrial and automation applications due to their ability to achieve different gear ratios.
5. Compact Design: Saves space while delivering superior performance.
Planetary gearboxes are widely used across multiple industries due to their adaptability and efficiency:
- Industrial Automation: Used in valve drive systems, vending machines, and electric screwdrivers.
- Smart Home Devices: Found in handheld washing machines, vacuum cleaners, and baby strollers.
- Automotive Systems: Essential in automatic transmissions, car tail drive systems, and electric parking brake systems.
- Aerospace & Defense: Used in satellite positioning systems and precision control mechanisms.
- Medical Equipment: Employed in surgical robotics and diagnostic machines.
- Wind Turbines: Used in wind turbines to adjust the angle of the blades for optimal energy capture.
- Robotics: Used in robotic arms for precise motion control and high torque applications.
- Excavators: Recent innovations in planetary gearbox design have enhanced excavator functionality by improving torque transmission and reducing backlash[1].
Planetary gearboxes can be categorized based on their output type:
1. Wheel Drive: The sun gear drives the planet gears, which are fixed to a carrier that rotates the outer ring gear.
2. Shaft Output: The sun gear drives the planet gears housed in a rotating carrier, with the ring gear held stationary.
3. Spindle Output: Similar to shaft output but provides the output as a flange.
4. Coaxial Output: Offers a coaxial input and output configuration, ideal for applications requiring minimal space.
5. Right-Angle Output: Provides a right-angle output, useful in applications where space is limited and a change in direction is needed.
While planetary gearboxes offer many advantages, they also have some drawbacks:
- Higher Noise Level: Compared to other gear systems, planetary gearboxes can be noisier.
- Load Sharing Issues: If not accurately manufactured, load sharing among planet gears can be uneven.
- Lubrication Requirements: Must be grease-lubricated to prevent wear.
- Higher Cost: Especially for low backlash and high longevity models.
Regular maintenance is crucial to extend the lifespan of planetary gearboxes. This includes checking for lubrication levels, inspecting for signs of wear, and ensuring proper alignment of components. Common issues include excessive noise, vibration, or overheating, which can be addressed by adjusting the lubrication, checking for misalignment, or replacing worn parts.
As technology advances, planetary gearboxes are being optimized for even higher efficiency and durability. Innovations include the use of advanced materials, improved lubrication systems, and integration with smart sensors for real-time monitoring and predictive maintenance. These developments are expected to further expand the applications of planetary gearboxes in emerging fields like electric vehicles and renewable energy systems.
Several industries have seen significant improvements through the use of planetary gearboxes:
- Automotive Industry: The use of planetary gearboxes in automatic transmissions has improved fuel efficiency and reduced emissions.
- Wind Energy: Planetary gearboxes in wind turbines allow for precise control over blade angles, maximizing energy output.
- Medical Robotics: High precision and reliability of planetary gearboxes enable precise surgical operations.
- Excavators: Enhanced torque transmission and reduced backlash have improved excavator functionality[1].
When designing a planetary gearbox, several factors must be considered to ensure optimal performance:
1. Gear Ratio: The ratio of the sun gear to the ring gear determines the output speed and torque.
2. Material Selection: Choosing materials that offer high strength and durability is crucial.
3. Lubrication System: An effective lubrication system is necessary to prevent wear and overheating.
4. Noise Reduction: Designing the gearbox to minimize noise is important for applications where quiet operation is required.
The manufacturing process of planetary gearboxes involves precise machining and assembly to ensure smooth operation and durability. This includes:
1. Gear Machining: High-precision machining of gears to ensure accurate meshing.
2. Assembly: Careful assembly to ensure proper alignment and smooth operation.
3. Testing: Rigorous testing to verify performance and reliability.
Planetary gearboxes contribute to environmental sustainability by enhancing the efficiency of systems they are used in, such as wind turbines and electric vehicles. This increased efficiency leads to reduced energy consumption and lower emissions, aligning with global efforts to mitigate climate change.
The demand for planetary gearboxes is expected to grow as industries continue to seek more efficient and compact solutions for power transmission. Advances in technology and manufacturing processes are likely to further enhance their performance and availability. The global industrial planetary gearbox market is projected to reach USD 10.55 billion by 2032, driven by automation and renewable energy sectors[4].
In the new energy sector, planetary gearboxes play a crucial role in solar panel production lines and solar tracking devices. They provide precise power transmission necessary for efficient operation, contributing to a sustainable future[2].
Recent advancements in additive manufacturing have enabled the 3D printing of planetary gear trains, offering flexibility in design and improved performance. This technology allows for the creation of complex geometries that can enhance gearbox efficiency and reduce production time[8].
Planetary gearboxes are a vital component in modern engineering, providing efficient and durable solutions for power transmission. Their versatility and compact design make them suitable for a wide range of applications, from automotive to aerospace and medical equipment. Understanding the working principle and advantages of planetary gearboxes is essential for selecting the right gearbox for specific industrial needs.
The main components of a planetary gearbox include the sun gear, planet gears, ring gear, and carrier. The sun gear is the central input component, the planet gears orbit around it, the ring gear encloses the planet gears, and the carrier holds the planet gears in place.
Planetary gearboxes achieve high torque transmission by distributing the input power across multiple planet gears, which then mesh with the ring gear. This arrangement allows for efficient power distribution and high torque output within a compact design.
Planetary gearboxes are used in various industries, including automotive (automatic transmissions), aerospace (satellite systems), robotics (precise motion control), and medical equipment (surgical robotics).
The advantages include high torque density, efficiency, durability, versatility, and compact design. These features make planetary gearboxes ideal for applications where space is limited and high performance is required.
Disadvantages include a higher noise level, potential load sharing issues if not accurately manufactured, the need for lubrication, and a higher cost for models with low backlash and high longevity.
