Vane motors are versatile devices that convert energy into rotary motion, widely used in both pneumatic and hydraulic systems. They are known for their efficiency, reliability, and adaptability across various industrial applications. This article will delve into the working principles, applications, and types of vane motors, providing a comprehensive overview of their functionality and significance.
Vane motors are designed to operate by using vanes or blades that slide in and out of a rotor, creating chambers that expand and contract. This mechanism allows them to convert energy—either from compressed air or hydraulic fluid—into mechanical motion. The simplicity and effectiveness of their design make them a preferred choice in many industries.

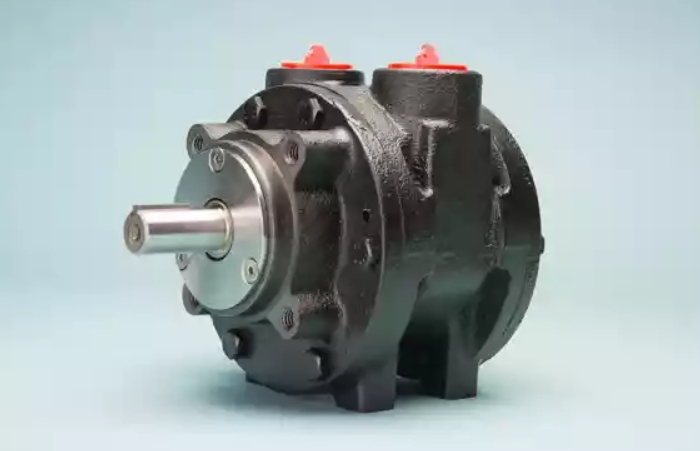

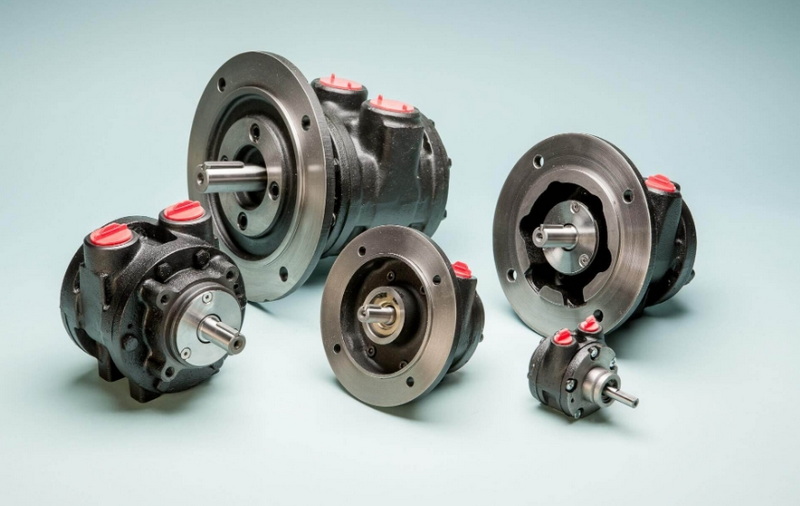

Pneumatic vane motors are powered by compressed air and are commonly used in applications requiring precise control and variable speed. They are particularly favored in environments where electrical motors might pose a risk, such as in explosive zones or where high reliability is crucial.
The working principle of a pneumatic vane motor involves the following steps:
1. Air Inlet: Compressed air enters the motor through an inlet port.
2. Vane Movement: The air pushes against the vanes, causing them to move outward and create expanding chambers.
3. Rotation: As the vanes move, they create a force that drives the rotor to rotate.
4. Air Exhaust: After performing work, the air is exhausted through an outlet port.
Pneumatic vane motors are used in various sectors:
- Pneumatic vane motors are used in the automotive sector for tasks like tightening bolts or screws, ensuring the correct force is applied. They are preferred for their precision and reliability in high-pressure environments.
- In construction, these motors power handheld tools such as drills and jackhammers, providing portability and power. Their ability to operate in dusty conditions without generating sparks makes them ideal for this industry.
- Pneumatic vane motors are used in mixing and blending equipment, allowing for speed control to meet different requirements. Their explosion-proof design and resistance to corrosion make them suitable for environments where cleanliness and safety are paramount.
- These motors power heavy-duty cleaning equipment like industrial vacuum cleaners. Their ability to operate in humid environments and withstand dust makes them well-suited for cleaning tasks.
- Air motors, including vane motors, are used to power mixers and agitators in industries like food processing, chemical manufacturing, and pharmaceuticals. They are preferred in environments where electrical motors might pose a safety risk.
- Pneumatic vane motors can be used to drive conveyor belts, especially in areas where explosive materials are present or where high temperatures might cause electric motors to overheat.
- In various industrial processes, such as in the oil and gas industry, water treatment plants, and chemical manufacturing, air motors are used to control the opening and closing of valves.
8. Aerospace and Transportation
- While less common, pneumatic motors are also explored for use in aircraft systems and transportation due to their safety and efficiency advantages.
- These motors are used in packaging machinery and printing presses due to their compact size and ability to operate in dusty environments.
- Pneumatic vane motors are used in the petrochemical industry for tasks requiring reliability and safety in potentially hazardous environments.
Advantages in These Applications
- Safety: Pneumatic vane motors do not generate sparks, making them safe for use in explosive or flammable environments.
- Compactness: They are lighter and more compact than electric motors, offering easier installation and lower operating costs.
- Versatility: These motors can operate in various positions and are suitable for environments with dust, humidity, or temperature fluctuations.
- Overload Protection: They can be stalled indefinitely without overheating or causing damage, making them ideal for continuous stop-start operations.

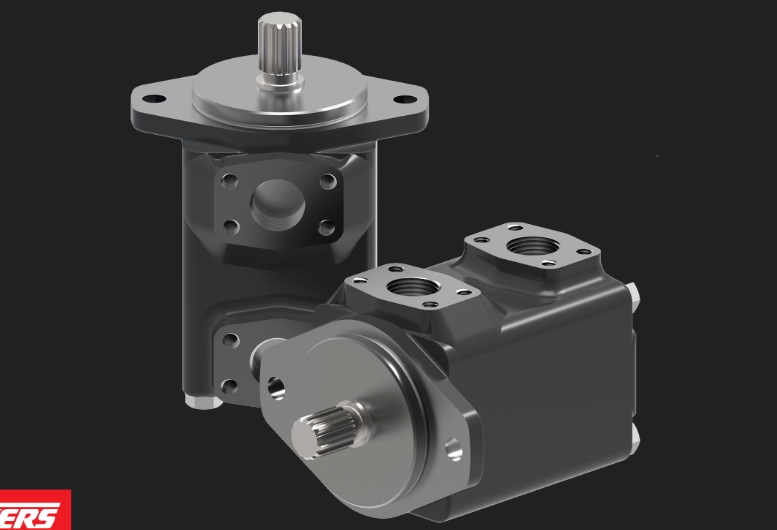

Hydraulic vane motors operate using hydraulic fluid and are known for their high torque at low speeds, making them suitable for heavy-load applications.
The working principle involves:
1. Fluid Inlet: Hydraulic fluid enters the motor through an inlet port.
2. Vane Extension: The fluid pushes against the vanes, causing them to extend and create chambers.
3. Rotation: As the vanes retract and extend, they generate torque, rotating the rotor.
4. Fluid Exhaust: The fluid is then directed towards the outlet.
Vane motors consist of several key components:
- Housing: The outer casing that contains the motor components.
- Rotor: The central shaft with slots for vanes.
- Vanes: Sliding blades that move in and out of the rotor slots.
- Inlet and Outlet Ports: For air or fluid entry and exit.
1. Lubricated vs. Lubrication-Free: Traditional vane motors use lubricated compressed air, while lubrication-free motors use special materials for longer service life.
2. Reversible vs. Non-Reversible: Some motors can rotate in both directions, while others are designed for one-way rotation.
- High Power-to-Weight Ratio: Compact and efficient.
- Variable Speed Control: Easy to adjust speed by modulating input pressure or volume.
- Reliability: Suitable for harsh environments and explosive zones.
- Wear and Tear: High-speed operations can lead to excessive wear on vanes and housing.
- Maintenance: Requires regular checks to ensure optimal performance.
When comparing the efficiency of vane motors to other types, such as piston motors, vane motors generally show better efficiency, especially in larger sizes. For instance, a study found that vane motors have a flow rate of about 46.13 cfm/hp at maximum rating, which is more efficient than piston motors, which average around 28 cfm/hp[3]. This efficiency advantage makes larger vane motors a cost-effective option for applications where multiple small units are used.
Regular maintenance is crucial for extending the lifespan of vane motors. This includes:
- Visual Inspections: Checking for leaks, loose fittings, or abnormal wear[4].
- System Priming: Purging air from the hydraulic system to ensure smooth operation[4].
- Load Testing: Gradually introducing the motor to operational loads to monitor performance[4].
Troubleshooting involves addressing issues like noise and vibration, which can indicate mechanical problems or misalignment[4].
Advances in materials and manufacturing technology have led to improvements in vane motor efficiency and durability. High-strength materials and precision machining enable these motors to withstand high pressures and temperatures, reducing maintenance needs[6]. The versatility of vane motors, with options for variable displacement and speed control, makes them adaptable to various applications[6].
Vane motors are versatile devices that play a crucial role in converting energy into mechanical motion. Their applications span across various industries, from automotive to construction and food processing. Understanding their working principles and advantages can help in selecting the right motor for specific needs.
Pneumatic vane motors are commonly used in automotive, construction, food and beverage, and industrial cleaning sectors for tasks requiring precise control and variable speed.
Hydraulic vane motors use hydraulic fluid to generate high torque at low speeds, making them suitable for heavy-load applications, whereas pneumatic vane motors use compressed air and are better suited for environments where electrical motors are hazardous.
The key components include the housing, rotor, vanes, and inlet and outlet ports.
Lubrication-free vane motors are designed to last longer and deliver better performance without the need for lubrication, making them ideal for applications where maintenance is a concern.
The speed of a vane motor can be controlled by modulating the input air pressure or volume for pneumatic motors, and by adjusting the hydraulic fluid flow for hydraulic motors.
