Rotary vane air motors are a type of pneumatic motor that converts the energy of compressed air into rotary mechanical motion. These motors are widely used in various industrial applications due to their simplicity, reliability, and ability to provide variable speed control. In this article, we will delve into the design, working principle, advantages, and applications of rotary vane air motors, along with some visual aids and videos to enhance understanding.

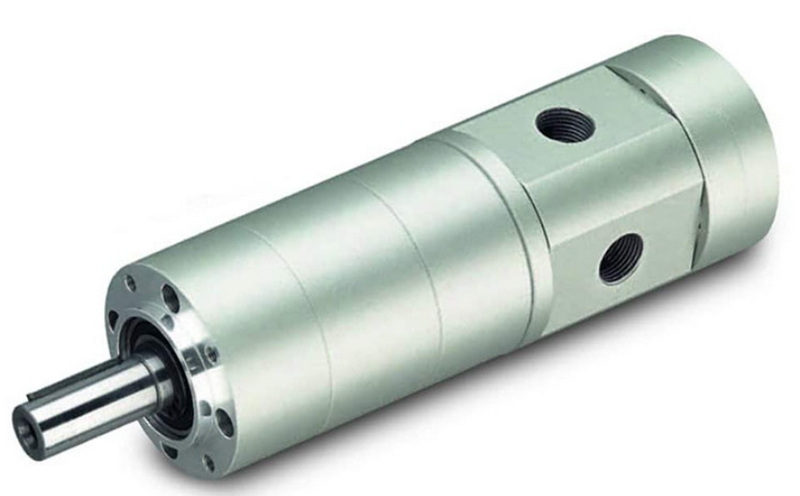

Rotary vane air motors, also known as vane air motors, are designed to operate using compressed air. They consist of a rotor with vanes that slide in and out of slots, creating chambers that fill and empty with compressed air to produce torque. This mechanism allows the motor to rotate and perform mechanical work.
- Housing/Cylinder: The outer casing that encloses the motor components.
- Rotor: The central shaft with slots for vanes, positioned eccentrically within the housing.
- Vanes: Flat or curved blades that move in and out of the rotor slots.
- Inlet and Outlet Ports: For compressed air supply and exhaust.
The working principle involves the conversion of compressed air energy into rotational motion. Here's a step-by-step explanation:
1. Air Supply: Compressed air enters the motor through the inlet port.
2. Vane Movement: The air pushes against the vanes, forcing them against the housing wall.
3. Chamber Formation: As the rotor rotates, the vanes create expanding and contracting chambers.
4. Torque Generation: The pressure difference across the vanes generates rotational force.
5. Exhaust: The air is exhausted through the outlet port after performing work.
The rotor is positioned eccentrically within the housing, which means it does not rotate around its center. As the rotor turns, the vanes extend and retract, creating chambers of varying volumes. The compressed air fills these chambers, pushing the vanes against the housing wall. This action creates a continuous force that drives the rotor to rotate.
- Air Pressure: Higher pressure increases speed and torque.
- Vane Material: Durable materials reduce wear and improve efficiency.
- Sealing: Proper sealing ensures efficient chamber formation and minimizes air leaks.
These motors offer several advantages:
- Variable Speed Control: Easy to adjust speed by controlling air pressure.
- Low Maintenance: Simple design with fewer moving parts.
- Compact and Lightweight: Ideal for handheld tools and confined spaces.
- High Starting Torque: Suitable for applications requiring immediate power.
Rotary vane air motors are used in various industries:
- Handheld Tools: Drills, grinders, and saws.
- Industrial Processes: Mixing, conveying, and starting large engines.
- Food and Agriculture: Processing equipment and farm machinery.
- Petrochemical and Nuclear: Safe operation in hazardous environments.

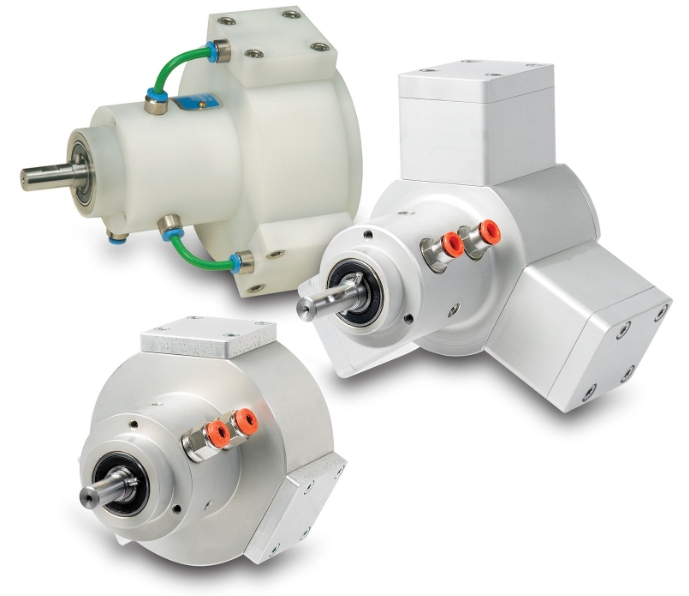

Vane air motors can be customized for specific applications:
- Reversible and Non-Reversible: Depending on the need for bidirectional rotation.
- Gearboxes: To adjust speed and torque according to application requirements.
- Lubrication-Free Designs: For environments where oil contamination is a concern.
Speed control is crucial for optimizing the performance of rotary vane air motors. There are several methods to achieve this:
This is the most common method of speed control. By adjusting the air pressure supplied to the motor using a pressure regulator or valve, you can control its rotational speed. Higher pressure results in faster rotation, while lower pressure leads to slower rotation.
Throttling involves controlling the air flow by placing a flow control valve at the inlet or outlet port of the motor. This method reduces the maximum speed without affecting the starting torque. Throttling on the inlet port reduces air consumption but may impact stability, while throttling on the outlet port maintains stability but does not reduce air consumption.
Modern electronic controllers offer precise speed regulation by continuously monitoring the motor's performance and adjusting the air supply accordingly. They often employ closed-loop control systems, which compare the desired speed to the actual speed and make necessary adjustments.
Another method to modulate speed is by using air flow limiters on the motor's exhaust. This can be done without significant loss of power.
Using gearboxes can effectively reduce the output speed of an air motor, providing a more controlled and slower rotation. By selecting the appropriate gear ratio, engineers can achieve the desired output speed for specific applications.
Rotary vane air motors are compared with other types of pneumatic motors, such as piston and gear motors. Vane motors are lighter and less expensive than piston motors but offer less starting torque. They are ideal for applications requiring high speed and low to moderate torque.
Piston air motors provide high starting torque and are suitable for heavy loads at low speeds. They are typically used in applications where precise control over speed is necessary.
Gear air motors use compressed air to drive gear wheels, providing a different mechanism for torque generation. They are less common but offer unique advantages in specific applications.
Common issues with vane air motors include:
- Air Leaks: Check for leaks in the system.
- Worn Vanes: Replace vanes if they show signs of wear.
- Insufficient Air Pressure: Ensure adequate compressed air supply.
Rotary vane air motors are generally efficient in converting compressed air energy into mechanical work. However, the overall efficiency of the system depends on the compressor efficiency and air distribution network. In terms of environmental impact, they are cleaner compared to electric motors in hazardous environments, as they do not produce sparks or heat.
Future developments in rotary vane air motors focus on improving efficiency, reducing noise levels, and enhancing durability. Innovations include the use of advanced materials for vanes and bearings to reduce wear and improve performance under high-speed conditions.
Rotary vane air motors are widely used in the food processing industry due to their ability to operate in clean environments without the risk of contamination. They are often used in machinery for mixing, conveying, and packaging food products.
In petrochemical and nuclear industries, rotary vane air motors are preferred for their safety features. They do not produce sparks or heat, making them ideal for environments where explosive gases may be present.
Recent advancements in materials science have led to the development of more durable and efficient vane materials. Additionally, there is a growing focus on reducing noise levels and improving the overall efficiency of pneumatic systems.
Rotary vane air motors are versatile and efficient devices used across various industries. Their ability to provide variable speed control and operate in hazardous environments makes them a preferred choice for many applications. Understanding their design and working principle can help in optimizing their performance and extending their lifespan.
The main components include the housing, rotor, vanes, inlet port, and outlet port.
Variable speed control is achieved by adjusting the air pressure supplied to the motor, using throttling, or employing electronic controllers.
They are used in handheld tools, industrial processes, food and agriculture, and petrochemical industries.
Yes, reversible vane motors can rotate in both directions by switching the inlet and outlet ports.
Regular checks for air leaks and worn vanes, along with ensuring proper air pressure, are essential for maintaining performance.
