Vane motors are a type of motor that uses vanes to convert fluid pressure into rotational motion. They are widely used in various industries due to their efficiency, reliability, and versatility. This article will delve into the working principle, applications, advantages, and maintenance of vane motors, providing a comprehensive overview of these essential components.
Vane motors operate by utilizing the pressure of a fluid, such as air or hydraulic oil, to move vanes that are attached to a rotor. This movement creates chambers of varying sizes, which generate torque and drive the motor. The design allows for efficient energy conversion with minimal internal leakage, making them suitable for applications requiring precise control and high torque.

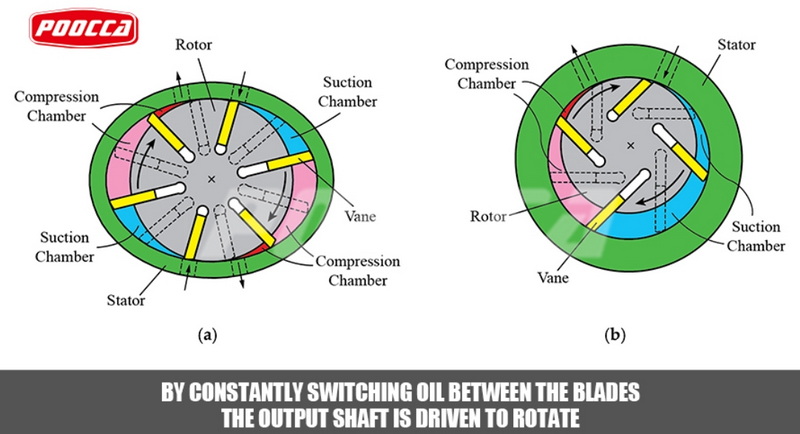

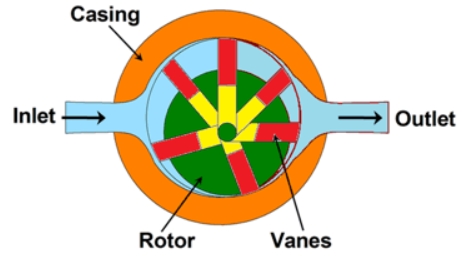

The working principle of vane motors is similar to that of vane pumps but in reverse. In a vane motor, pressurized fluid enters the motor housing and acts on the vanes, causing them to extend and retract. As the rotor rotates, the vanes remain in contact with the housing due to centrifugal force, creating chambers that expand and contract. This process converts the fluid pressure into mechanical energy.
1. Pneumatic Vane Motors: These motors use compressed air to generate motion. They are lightweight, easy to maintain, and commonly used in applications where oil-free operation is required, such as in food processing and construction tools.
2. Hydraulic Vane Motors: These motors use hydraulic oil to produce high torque at low speeds. They are widely used in heavy-duty applications like construction machinery, industrial mixers, and aerospace systems.
Vane motors are versatile and can be found in various industries:
- Automotive: Used for tasks like tightening bolts or screws, ensuring the correct force is applied.
- Construction: Powers handheld tools like drills and jackhammers, providing portability and power.
- Food and Beverage: Used in mixing and blending equipment, allowing speed control for different requirements.
- Industrial Cleaning: Powers heavy-duty cleaning equipment like industrial vacuum cleaners.
1. High Efficiency: Vane motors have high mechanical efficiency, converting fluid energy into mechanical motion with minimal loss.
2. Low Internal Leakage: They have relatively less internal leakage compared to other types of motors, which enhances their efficiency and reduces maintenance needs.
3. Balanced Design: Balanced vane motors eliminate side loads on the rotor, reducing wear on bearings and increasing lifespan.
4. Wide Speed Regulation Range: Hydraulic vane motors can operate over a wide range of speeds, making them suitable for various applications.
Maintaining vane motors involves checking for wear on vanes and bearings, ensuring proper fluid quality, and monitoring operating pressures. Troubleshooting often involves checking for issues like low fluid pressure, worn components, or improper installation.
Recent advancements in vane motor technology include improved materials and designs that enhance efficiency and durability. For example, some vane motors now feature optimized blade geometry and advanced sealing technologies, which improve performance and reduce maintenance requirements.
Variable displacement vane motors allow for the adjustment of their output speed and torque by varying the size of the working chambers within the motor. This is typically achieved by changing the position of the vanes. They are more complex and expensive to manufacture than unbalanced or balanced vane motors, but they offer several advantages:
- Precise Control: Controls the motor's speed and torque without changing the compressed air's pressure or flow.
- Constant Performance: Operates at a constant speed or torque even if the load/speed on the motor changes.
- Applications: Typically used in applications requiring precise speed and torque control, such as industrial automation equipment and robotics.
Many manufacturers now offer customized vane motors tailored to specific applications. These motors can be designed with different materials, configurations, and power classes to meet the needs of various industries. For instance, stainless steel vane motors are used in environments requiring high hygiene standards, such as the food and pharmaceutical industries.
As industries seek more sustainable solutions, vane motors are poised to play a significant role. Their efficiency and precise control make them valuable assets in achieving sustainability goals. Additionally, ongoing advancements in materials and design are expected to enhance their performance and reliability while reducing environmental impact.
The future of vane motor technology looks promising, with continued research focused on increasing efficiency, reducing environmental impact, and expanding application ranges. These advancements will drive innovation in hydraulic systems, making vane motors central to powering the next generation of industrial machinery.

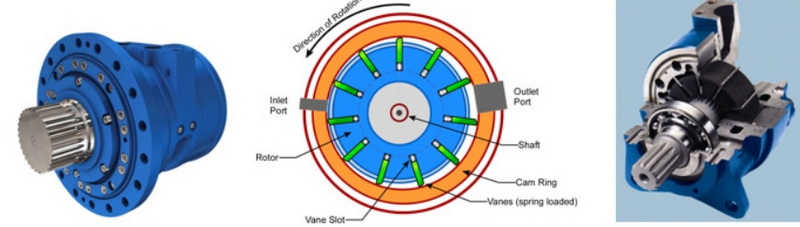

High-torque vane motors, such as those from Bosch Rexroth's Rineer series, feature a patented "vane-crossing-vane" design. This design allows for both low-speed and high-speed operation with high torque, providing an optimal power-to-weight ratio and smooth output across a wide speed range. These motors deliver maximum torque at zero rpm, making them ideal for demanding applications in industries like oil, marine, forestry, agriculture, transportation, construction, and communications[1][2].
- High Starting Torque: Provides consistent medium-speed, high-torque performance without overheating risks.
- Compact Design: Offers a smaller and lighter design, enhancing portability and ease of integration.
- Constant Torque Output: Delivers up to 94% of theoretical torque at both start and stall, ensuring consistent performance[1].
Sliding vane air motors are gaining prominence due to their energy efficiency and reliability. They are used in various industries, including automotive, manufacturing, and renewable energy, where minimizing energy consumption is crucial[3]. These motors are known for their high torque output and ease of maintenance, making them suitable for industrial automation tasks[3].
The market for sliding vane air motors is expected to grow due to increasing demand for energy-efficient solutions. Manufacturers are focusing on improving motor designs to enhance efficiency and reduce environmental impact[3][6]. Additionally, government policies promoting sustainable industrial practices are driving market growth[6].
Vane motors are powerful and reliable components used across multiple industries due to their efficiency and versatility. Understanding their working principle, applications, and maintenance requirements is crucial for optimizing their performance and extending their lifespan.
Pneumatic vane motors use compressed air, while hydraulic vane motors use hydraulic oil. Pneumatic motors are suitable for oil-free environments and lighter applications, whereas hydraulic motors provide higher torque and are used in heavy-duty applications.
Vane motors achieve high efficiency by minimizing internal leakage and converting fluid pressure into mechanical energy effectively. The balanced design also reduces side loads, enhancing overall efficiency.
Hydraulic vane motors are commonly used in construction machinery, industrial mixers, aerospace systems, and other applications requiring high torque at low speeds.
Troubleshooting involves checking for low fluid pressure, worn components, improper installation, and ensuring that the operating conditions match the motor's specifications.
Maintenance includes checking for wear on vanes and bearings, ensuring proper fluid quality, monitoring operating pressures, and performing regular cleaning and lubrication as needed.
